Monotech Systems Ltd.

Interface Type	600 DPI
Brand	Monotech
Dimension	130 cm x 115 cm x 182 cm
Power	50 Hz, 220 V / 110 V - 60Hz, 300 VA max
Scan Rate	900 pages/hr
Camera	2 high resolution i2S cameras with CCD area sensor
Optical Resolution	From 200 x 200 to 600 x 600 dpi optical on 2xA3+
Model	CopiBook v-shape
Maximum Thickness	15 cm (5.91 Inch)
Maximum Weight	20 kg
Operating Temperature	10 - 30 Degree C
Minimum Screen Resolution	1920 x 1080 pixels
File Formates	TIFF, TIFF G4, TIFF LZW, JPEG

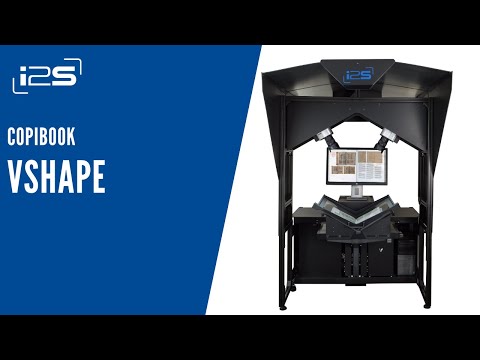

CopiBook V-shape is a semi-automatic scanner equipped with high resolution i2S cameras.
CopiBook V-shape scanner offers all you need to scan the most sophisticated bound documents, even the most fragile

Features:

• Image Quality: Upto 600 dpi on 2xA3; no reflections; no shadows
• Smart: Entire information scanned
• Gentle: Adjustable glass pressure on books; Polished V-glass
• Fast: 900 pages/hr. at 600dpi
• Safe: Glass up if any obstacle
• Engronomic: Full space for operating; Foot Switch Control; Front Screen

Interface Type	600 DPI
Scanning Resolution	1000 x 1000 dpi
Scanner Type	Flatbed
Brand	i2S
Model Name/Number	CopiBook Open System A1
USB Support	Yes
Connectivity	Fast data transfer USB 3.0 interface
Power Supply	100v - 240v,50Hz 60Hz

CopiBook Open System A1 Combines efficiency and productivity

The fourth generation of CopiBook range has been designed to satisfy the most demanding end-users, especially in terms of image quality. The CopiBook OS A1 comes with the E-XTRA camera, a new camera embeding the TrueColor technology: 400 dpi optical resolution and no Moiré pattern…

• The fastest book scanner on the market
• A scanner designed for your large digitization projects

CopiBook OS, the ultimate scanner for high quality and high speed
The fastest book scanner on the market

The CopiBook OS A1 is the best scanner for digitization projects that require high quality and maximum productivity.

A scanner designed for your large digitization projects

Our CopiBook OS, meets the specific requirements of mass digitization projects on large format documents.

High quality and high speed

The E-XTRA camera, a new camera embeding the TrueColor technology.

Image Quality

E-XTRA camera, TrueColor technology inside 156 Mp - 400 dpi optical resolution EAGLE / E-HRIS cameras 71 Mp - 300 dpi optical resolution No mechanical shutter 9 cm depth of field.

Lighting

3 sources for better homogeneity 2 positions with or without the book cradle LED lighting - cold lighting Cover to protect operator’s eyes.

Productivity

Scan time < 1 sec / Cycle time < 5 sec at 300 dpi // Scan time < 4 sec / Cycle time < 11 sec at 400 dpi

Book Cradle

Motorized glass plate // Motorized book plate // Auto levelling system // Front touch pad // Automatic glass.

Scan area

600 x 840 mm with glass down.

LIMB Capture

Color Live preview before scan // Multi frame management: saving multiple files from one scan // Thumbnails flow // Multilingual operator interface

Paper Size	Legal Size
Scanner Type	A2 format planetary book scanner
Brand	i2S
Dimension	1002mm x 740mm x 1364mm
Scanner Interface	USB 3.0
Weight	53 Kg
Scan Format	635 x 440 mm (400dpi),with glass and books up to 10 cm thickness
Scan Mode	Color,Grayscale,Black & White
Scan Time	Less Than 1 Second
Cycle Time	Less Than 3 Second
File Formats	TIFF (multipage),JPEG,JPEG2000,BMP,PDF (multipage),PNG,DNG
Camera	Eagle or E-HRIS / 71 Mpixels matrix sensor camera,auto-focus,no mechanical shutter
Maximum Resolution	600 x 600 dpi
Optical Resolution	400 x 400 dpi

CopiBook Open System A2 The scanner you trust

The fourth generation of CopiBook range has been designed to satisfy the most demanding end-users, especially in terms of image quality. The CopiBook OS A1 comes with the E-XTRA camera, a new camera embeding the TrueColor technology: 400 dpi optical resolution and no Moiré pattern…

• CopiBook OS is compliant with ISO 19264-1 standard, Metamorfoze and FADGI*** image quality guidelines
• CopiBook OS, the fastest book scanner on the market, scan time is less than 1 sec with EAGLE 71 MP camera!

Interface Type	600 DPI
Brand	i2S
Model Name/Number	SupraScan Quartz A1
Dimension	L 1990 mm (78.3
Warranty	12 months hardware and software warranty included Warranty extensions available up to 5 years
Camera	Tri-linear CCD sensor
Output	24 bits for color,8 bits in grayscale,1 bit in binary
Driver	API
Differences between book cradle	25 and book cradle 40
Color Profile	ICC profile management
Image Processing	Processing and compression during scanning
Lighting Correction	Embedded and in real-time
Total Weight (Including Book Cradle 25)	310 kg (683.4 lbs)
Electrical Power	220 V - 50 Hz,110 V - 60 Hz 500 VA max
Type	Planetary scanner
Storage	Fast data transfer to local hard drive or network
Optical Resolutions	600 x 600 dpi optical on A1 format A1 (ANSI D) 300 x 300 dpi to 600 x 600 dpi
Standards	Compliant with Metamorfoze and FADGI standards
Formats	Over DIN A1 / D (2 x A2)
Maximum Dimensions	618 mm (24.3 Inch)
Maximum Thickness	25 cm (7.8 Inch)
Maximum Weight	25 kg (55 lbs) - 40 kg (88 lbs)
Min. Screen Resolution	1920 (w) x 1080 (v) pixels (full HD)
Enhancements	Manual deskew,sharpen filter,white balance
File Formats	TIFF,TIFF G4,TIFF Multipage,TIFF LZW,DNG,PNG,JPEG,JPEG 2000,PDF
Platform	Windows 7,64 bits
Languages	Multilingual operator interface
Saving	Images saved during scanning process
Scan Sequences	Next scan launched immediately after the previous scan is done
Image Control	Images displayed during scanning

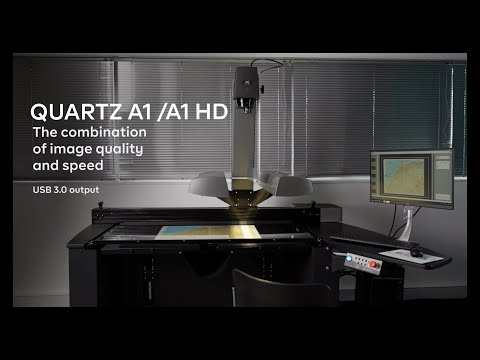

SupraScan QUARTZ A1 - A1HD Excellence at your fingertips

SupraScan Quartz A1 and Quartz A1 HD, scanners compliant with the ISO 19264 standard The third generation of SupraScan range has been designed to satisfy the most demanding end-users, especially in terms of image quality. This search for excellence corresponds to i2S strategy and endeavours. Image quality being at the core of i2S concerns, SupraScan Quartz A1 and Quartz A1 HD are compliant with ISO 19264 standard, Metamorfoze and FADGI image quality guidelines.…

SupraScan Quartz A1 and Quartz A1 HD, scanners compliant with the ISO 19264 standard

The third generation of SupraScan range has been designed to satisfy the most demanding end-users, especially in terms of image quality. This search for excellence corresponds to i2S strategy and endeavours. Image quality being at the core of i2S concerns, SupraScan Quartz A1 and Quartz A1 HD are compliant with ISO 19264 standard, Metamorfoze and FADGI image quality guidelines.

15 years of innovation to reach the highest level in terms of image quality

The SupraScan Quartz A1 and Quartz A1 HD offer innovative features like the relief enhancement and glare controle system. Thanks to optical and lighting innovation, relief enhancement features enables perfect reproduction of works of art sush as paintings, drawings and antique works of art; glare control feature enables scanning any glossy documents even blister poched document.

Image Quality

Compliant with ISO 19264 and the Metamorfoze and FADGI guidelines // Two cameras available: standard and HD model.

Large

Scanning up to 1030 x 630 mm ( 40.5” x 24,8” in) - Quartz A1 // Scanning up to 1030 x 618 mm ( 40.5” x 24,3” in) - Quartz A1 HD.

Productivity

Scan time < 6 seconds with the QUARTZ A1 at 300 dpi // Scan time <16 seconds with the QUARTZ A1HD at 400 dpi

Configurable

A 25 or 40 cm book holder option // The glass can be removed.

Lighting

Unique lighting to highlight the relief of documents or objects.

Respectful

Safety sensors on the glass // Anti-glare lighting

Additional Information:

• Item Code: Quartz-A1-HD

Paper Size	A3
Interface Type	USB
Scanning Technology	CCD (Charge-Coupled Device)
Scanning Resolution	1200 dpi
Connection Type	USB
Long Document Mode	60 inch (1524 mm)
Ready Power Consumption	110 V / 230 V / 240 V, 60/50 Hz
Maximum Scan Width	42 inch (1067 mm)
Maximum Media Width	43.8 inch (1113 mm)
Maximum Media Thickness	10 inch (254 mm)

Contact-free art scanner delivers the market’s most lifelike results

HD Apeiron/42 is a flexible scanner with natural light LEDs that do not compromise on scan quality and reliability when digitizing original artwork and fine art.

Perfect for: Fine art, artwork, artifacts, posters and prints, building materials, textiles, delicate documents, and much more.

Interface Type	600 DPI
Camera	Tri-linear CCD sensor Automatic Focus
Output	24 bits for color,8 bits in grayscale,1 bit in binary
Driver	API
Type	Planetary scanner
Optical Resolutions	600 dpi on A0 format
Standards	Compliant with Metamorfoze and FADGI 3* standards
Lighting	LED,adapted to matt and bright documents. Relief enhancement on documents or objects
Lighting Correction	Embedded and in real-time
Formats	DIN A0/ E

As part of i2S company internationally well-known in industrial vision, i2s DigiBook has a high level of knowledge in image technologies mastering perfectly sensor, optics, electronics, lighting and image processing technologies. This is why, SupraScan™ Quartz A0 HD LED scanner reach the highest level of image quality in terms of resolution efficiency, color rendering, noise and is compliant with the international FADGI and Metamorfoze Preservation Imaging Guidelines. SupraScan™ Quartz A0 HD LEDscanner has been developed to reach the highest level of image quality but with no compromise on speed and productivity. With high quality camera components, powerful server, optimized scan sequence and saving process, SupraScan™ Quartz A0 HD LED scanner offers a very good level of productivity at that level of image quality.

Additional Information:

• Item Code: Quartz-A0-HD-LED

Interface Type	600 DPI
Scanning Resolution	600 x 600 dpi
Scanner Type	Flatbed
Brand	i2S
Model Name/Number	eScan Open System A3
USB Support	Yes
Connectivity	USB 3.0
Power Supply	110v - 240v,50Hz 60Hz
File Format Output	TIFF,TIFF (multipage),JPEG,JPEG2000,BMP,PDF,PDF (multipage),PNG,DNG
Scanning Modes	Color,Grayscale,Black & White

eScan Open System A3 scanner tailored to your needs

Fully configurable and connected, the eScan Open System Book Scanner is a new concept in scanning developed by i2s, and which incorporates all the company's expertise in technical innovation and usage.

• Digitizing/scanning: The eScan Open System book scanner can be adapted to your needs, such as creating a scan & go" service in a reading room, a mass digitization project or office automation equipment.
• Equipped with i2S technologies, the eScan OS offers both high quality and high productivity.

Interface Type	600 DPI
Scanner Type	Planetary scanner
Model Name/Number	SupraScan QUARTZ 2A0HD
Dimension	2650mm x l 1950 mm x 2300 mm
Power	220 V 50 Hz,110 V 60 Hz 300 VA max
Brand	i2S
Camera	Tri-linear CCD sensor
Optical Resolution	400 x 400 dpi optical on 2xA0 format
Scan Time	32 Second,400 x 400 dpi optical on 2A0
Total Weight	927 kg
Model	Supra Scan Quartz HD 2A0
Maximum Dimension	1800 mm x 1200 mm
Maximum Thickness	100 mm
Maximum Weight	100 Kg
Minimum Screen Resolution	169 flat screen 23 Inch full HD (1920 x 1080 resolution)
File Formats	TIFF,TIFF G4,TIFF Multipage,TIFF LZW,DNG,PNG,JPEG,JPEG 2000,PDF

SupraScan QUARTZ 2A0 HD Ensuring high image quality when digitizing large format collections

The SupraScan Quartz HD 2A0 scans works of art and large and/or thick documents (with or without a frame) up to 2 x DIN A0/E in color and black and white. With its moveable plate guaranteeing easy manipulation and correct positioning, the SupraScan Quartz HD 2A0 produces high-resolution scans (up to 800 x 800 dpi optical) using a height/resolution sensor, while ensuring the greatest respect for the original works.

Digitization of large formats collections

The SupraScan Quartz HD 2A0 scans works of art and large and/or thick documents (with or without a frame) up to 2 x DIN A0/E in color and black and white. With its moveable plate guaranteeing easy manipulation and correct positioning, the SupraScan Quartz HD 2A0 produces high-resolution scans (up to 800 x 800 dpi optical) using a height/resolution sensor, while ensuring the greatest respect for the original works.

Image Quality

Thanks to its HD camera, which is compliant with FADGI (4-star at 300 dpi) and Metamorfoze guidelines, the QUARTZ 2A0 HD offers an optical resolution of 800 x 800 dpi.

Large

1,800 x 1,200 mm (70.8 x 46.2").

Ergonomic

To maximize the comfort and efficiency of operators, the QUARTZ 2A0 has a control panel, an ingenious lighting system, and a totally ergonomic configuration (access from 3 sides).

Respectful

Scan your collections without worrying about causing damage thanks to the UV or IR-free lighting.

Lighting

Unique lighting to highlight the relief of documents or objects.

User-friendly

Thanks to the ultrasonic sensor, the camera is positioned at a perfect distance for optimal image quality
