UV Flatbed Printers

In order to meet various requirements of printing industry, we have come out as a successful trader and supplier of high quality UV flatbed printers. Our UV flatbed printers are ideal for premium quality printing in various industrial fields. We are engaged to provide a best quality range of UV flatbed printing machine to our clients. Our range of UV Flatbed printer products include such as Pixeljet 3218RMO Pixeljet 2512 RMO, Pixeljet 2132 , Pixeljet 2512 ,Pixeljet 1212 ,JF-240UV ,Anapurna M2050i ,Anapurna H3200i LED , Avinci DX3200 , Anapurna H2500i LED , Anapurna M2540i FB , Jeti Mira LED , Jeti Titan S/HS , Pixeljet UVmini , Mimaki UJF-3042FX , Mimaki UJF-3042HG , Mimaki UJF-6042 . UV flatbed printer price in India at monotech are affordable. Get a free quote or contact us today for our high quality UV flatbed printers in India.+ Read More

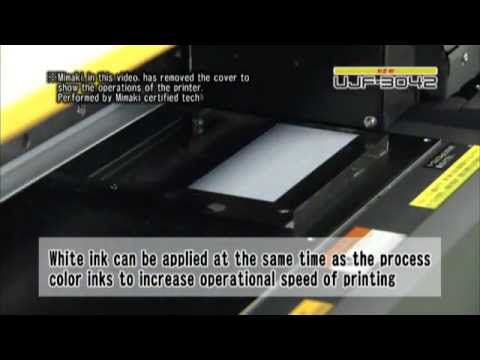

Mimaki UJF-3042FX UV Flatbed Printers
Interested in this product?
Get Best Quote
Head On-demand Piezo head
UV device Equipped with UV Light Emitting Diodes
Interface USB 2.0
Applicable standard VCCI class A, FCC class A, UL, RoHS Directive, CE Marking
Power specifications AC 100 - 240 V (Automated voltage conversion)
Power consumptionLess than 350 VA
Humidity 35 - 65 % Rh
Dust Equivalent to normal office level
Dimensions (W x D x H) 1,200 mm x 1,090 mm x 770 mm (47.2
Print resolution 720 x 600 dpi, 1,440 x 1200 dpi
Ink Hard UV curable ink : LH-100, LF-140, LF-200
Ink capacity 220 ml ink cartridge / 600 ml ink pack
Inkjet primer PR-100 (220 ml ink cartridge / 600 ml ink container)
Maximum print widthWidth : 300 mm (11.8 Inch)
Thickness Max. 50 mm (1.97 Inch)
Weight Approx. 113kg (249.1 lbs.)
Set device Air suction by vacuum

Mimaki UJF-3042FX ensures that you can respond to your client's requirements for single or short-run digital printing enhancing a multitude of products (including molded items), substrates and media up to 50 mm thickness with personalized messages.



Other Details:

  • UV LED curing technology
  • Simultaneous white ink under and overprint
  • Add value with layered finishes
  • Ink mist absorption filter
  • Environmentally friendly technology: UV LED curing technology


Additional Information:

  • Item Code: Mimaki-UJF-3042FX

View Complete Details

Yes, I am interested!

Mimaki UJF-3042HG UV Flatbed Printers
Interested in this product?
Get Best Quote
Capacity220 ml ink cartridge / 600 ml ink container
Maximum print area300 x 420 mm (11.8 x 16.5 Inch)
Thickness Up to 150 mm (5.9 Inch)
Weight Up to 5 kg (11.0 lbs)
UV technologyUV LED unit
Interface USB2.0
Power requirements AC100V - 240V +- 10 % / below 0.5 kVA
Dimensions (WxDxH) / Weight1,200 mm x 970 mm x 770 mm / 130 kg (47.2
Print head On-demand piezo print head
Resolution 720x600 dpi, 1,440x1,200 dpi
Kind LH-100 (C/M/Y/K/W/Cl)
Inkjet primerPR-100 (220 ml ink cartridge / 600 ml ink container)
Max. print size Width: 300 mm (11.8 Inch)

6-color, white and clear ink achieves eye-catching print results:
  • Six-color inks are set up by adding two ink slots.
  • Higher-definition and more beautiful gradation than four-color printing can be achieved by using six colors.
  • Furthermore, white and clear inks add value to printed products by providing under/over-coating on transparent or colored materials as well as glossy /matte finish.
  • Expandability of LF-200 and LF-140 differs depending on the respective media. Please confirm in advance.
  • LF-140 ink set does not include clear ink, LH-100 clear ink can be used with LF-140 ink.



3 different types of UV inks available :

LH-100 / 4 Color (K,C,M,Y) + W,CL:
  • Hard coating ink which has high-solvent fastness.
  • Products which need high-rub and solvent fastness like boards, panels and electronic chassis.



LF-200 / 4 Color (K,C,M,Y) + W:
  • High-weatherability 200 percent flexibility High-adhesiveness – flexible ink that offers great compatibility with media.
  • Signage products and other products which need flexibility like vehicle wrapping, decorative film, membrane switches, etc.



LF-140 / 6 Color (K,C,M,Y,Lc,Lm) + W * LH-100 clear ink can be used together:
  • Gradation reproducibility is improvedwith light color inks.
  • Ink flexibility gives the printed media bendability.
  • Products which need bendability like soft plastics, etc.
  • Panels and photo prints.


Additional Information:

  • Item Code: UJF-3042HG

View Complete Details

Yes, I am interested!

Mimaki UJF-6042 UV Flatbed Printers
Interested in this product?
Get Best Quote
Maximum print area610 x 420 mm (24.0 x 16.5
Maximum print size (WxD)610 x 420 mm (24.0 Inch)
Height Less than 150 mm (5.9 Inch)
Media suction Air suction by vacuum
WeightLess than 7 kg (15.4 lbs) / When using a height adjuster, less than 4 kg (8.8 lbs)
UV unit Equipped with UV LED (Light Emitting Diodes)
Lifetime *1 About 10,000 hours
Interface USB2.0
Applicable standardVCCI class A, FCC Class A, CE Marking, RoHS Directive, REACH Regulation
Power specificationsAC100V - AC240V (Automated voltage conversion), 50 / 60 Hz
Power consumption Less than 450 VA
Dust Equivalent to normal office level
Humidity 35-65%Rh
Dimensions (WxDxH)1,510 x 966 x 960 mm (59.4 x 38.0 x 37.8
Head On-demand Piezo head
Weight 150 kg (330.7 lbs)
Print resolution Y axis 1, 720 dpi, 440 dpi, 800 dpi
Print resolution X axis600 dpi, 900 dpi, 200 dpi, 1, 800 dpi
Supply system 220ml cartridge / 600ml ink pack
Ink circulationWhite ink circulation by MCT (Mimaki Circulation Technology)

A variety of different materials from plastics, glass, and metals can now be printed onto many applications.
Using a unique ball screw type conveyance mechanism to produce higher resolution prints. The 1,800 x 1,800 dpi, variable dot technology, with minimum drop size of 4pl, achieves impressive high quality images. The UJF-6042, allows you to print on promotional products, awards and gift merchandise along with industrial components and accessories.



Additional Information:

  • Item Code: UJF-6042

View Complete Details

Yes, I am interested!

Mimaki UJF-7151 UV Flatbed Printers
Interested in this product?
Get Best Quote
InterfaceUSB 2.0 Hi-speed / Ethernet 1000BASE-T
Size730 x 530 mm (28.7 x 20.9 in) or smaller
Package size1L bottle
Height153 mm (6 in) or less
Weight317 kg (Base stand weight is included)
Power supplySingle-phase AC100-120V / AC200 - 240V
Power consumption1.3kW
Dimensions (W x D x H)2,193 x 1,572 x 1,273 mm
Print conditions600 x 600 dpi; 8 Pass
PrintheadOn-demand piezo head (6 staggered printheads)
Maximum print resolution1,200 dpi
Maximum printable area710 x 510 mm (28 x 20 in)

Mechanical structure for high-precision printing:
  • Unlike conventional models, a print table moves during printing for reducing printer unit vibration.
  • Two ball screws are installed on both sides of the table to facilitate its movement.

Mimaki’s superior print-image quality control technology:
  • Mimaki Advanced-pass system 4 (MAPS4) reduces banding and uneven color printing.
  • Mimaki Fine Diffusion 1 (MFD1), a patented dithering technique, is incorporated in the Mimaki RIP RasterLink 6 software.

Maximum 3.3m2/h productivity:
  • Maximum printing speed. By reaching approximately twice the speed of previous models, it achieves approximately 2.6 times the productivity of competing printers in its class.
  • The print area expands to 710 × 510 mm (28 × 20 in), enabling printing of size 636 × 469 mm (25 × 18.5 in)
  • Which is often used for screen printing.

Uninterrupted printing solutions:
  • Realizes high-stability printing through an ink-circulating mechanism within the head.
  • ”NCU” automatically detects missing jets for cleaning. When cleaning fails, “NRS” automatically sets a replacement nozzle and restarts printing.
  • This minimizes the loss of raw materials due to missing jets and automatically continues production at high quality.


Additional Information:

  • Item Code: UJF-7151-plus

View Complete Details

Yes, I am interested!

  • Pixeljet Velocity: High-Volume UV Flatbed Printer
  • Pixeljet Velocity: High-Volume UV Flatbed Printer
Pixeljet Velocity: High-Volume UV Flatbed Printer
Interested in this product?
Get Best Quote
Brand/MakePixeljet
ResolutionUpto 1440 dpi
Ink TypeUV Curable Inks
Printing SoftwarePhotoprint/Onyx
Ink Capacity2.5 litre drums,automatic ink control
Safety CertificationCE Certification
Power Supply15KW AC,50Hz,220V (+- 10%) Greater than 20A
Color4 color/double 4 color/ 6 color/ white or varnish
Image FormatTIFF,JPEG,PS,EPS,PDF
Ink Supply SystemAuto negative ink supply
AccessoriesAir Compressor & Vaccum Blower
Package Dimensions (LxWxH)4050x2200x1350mm & 4070x870x1000mm
PrintheadRICOH GEN-5
Printing SpeedUpto 525sq.ft/hr (Depends on number of print heads
Thickness of MaterialUpto 100mm
Dimensions (LxWxH)3820 x 3950 x 1500 mm
MediaGlass,PMMA,Ceramic Metal,Paper,Wood,Leather,PVC,PP,PE,PTFE
Net & Gross Weight1800 kg & 2150 kg

Automatic Anti-Crash Sensor:
  • The safety anti–crash sensor design can detect the state of the media beforehand and protect the print heads from a crush hazard.
  • While the anti-crash sensor detects that the edge of media is tilted, the turbo flatbed printer will initiate an emergency stop to prevent printhead from damage.

UV Varnish Solution:

  • Optional varnish not only enhances the visual quality but also creates the tactile attribute of graphics.
  • Users are able to apply varnish directly on graphics via print heads as either an allover coating or as a spot-highlighting, giving your printings more vivid and brighter finishing.

Mechanic Superiority:

  • Dual lead screw & dual guider broadside scanning mechanical structure, industry-leading machinery precision, table loading capacity of 45 kg/sqm automatic take off enables the printing on different sizes of media, auto detection of media, detection of origin, pneumatic medium jack-up can load the large-format media easily.


Additional Information:

  • Item Code: Pixeljet2132

View Complete Details

Yes, I am interested!

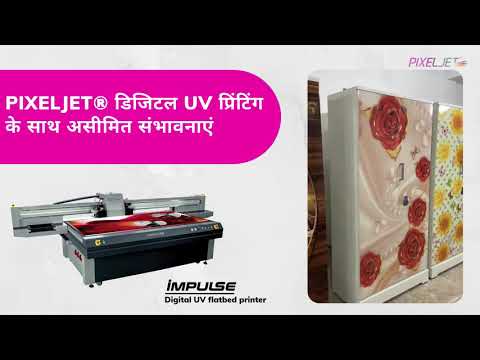

Pixeljet Impulse: Faster, Mid-Volume UV Flatbed Printer
Interested in this product?
Get Best Quote
BrandPixeljet
AccessoriesAir Compressor & Vaccum Blower
Color4 color/double 4 color/ 6 color/ white or varnish
Dimensions (LxWxH)4820 x 2000 x 1500 mm
Image FormatTIFF,JPEG,PS,EPS,PDF
Ink Capacity2.5 litre drums,automatic ink control
Ink TypeUV Curable Inks
Net & Gross Weight1300 kg & 1650 kg
Package Dimensions (LxWxH)4980x2120x1700mm
Power Supply15KW AC,50Hz,220V (+- 10%) Greater than 20A
PrintheadRICOH GEN-5
Printing SoftwarePhotoprint/Onyx
ResolutionUpto 1440 dpi
Safety CertificationCE Certification
SpeedUpto 400sq.ft/hr (Depends on number of printheads)
Thickness of MaterialUpto 100mm

Automatic Anti-Crash Sensor:
  • The safety anti–crash sensor design can detect the state of the media beforehand and protect the print heads from a crush hazard.
  • While the anti-crash sensor detects that the edge of media is tilted, the turbo flatbed printer will initiate an emergency stop to prevent printhead from damage.

UV Varnish Solution:

  • Optional varnish not only enhances the visual quality but also creates the tactile attribute of graphics.
  • Users are able to apply varnish directly on graphics via print heads as either an allover coating or as a spot-highlighting, giving your printings more vivid and brighter finishing.

Mechanic Superiority:

  • Dual lead screw & dual guider broadside scanning mechanical structure, industry-leading machinery precision, table loading capacity of 45 kg/sqm automatic take off enables the printing on different sizes of media, auto detection of media, detection of origin, pneumatic medium jack-up can load the large-format media easily.

White Ink Recirculation:

  • White ink recirculation results in an effective elimination of ink starvation and protects printheads from clogging hazard.

Pressure & Ink Supply Control:

  • Closed-loop automatic control, reliable printing quality, Pneumatic control components improved from Japan delivers guaranteed quality.

Color Option:

  • The machine can be configured as KCMY / KCMY LcLm / KCMY*2 and KCMY + W, moreover, the machine could spray with white color as bed or cover or spot-color printing.


Additional Information:

  • Item Code: Pixeljet_impulse

View Complete Details

Yes, I am interested!

  • Pixeljet Ultron Series
  • Pixeljet Ultron Series
  • Pixeljet Ultron Series
Pixeljet Ultron Series
Interested in this product?
Get Best Quote

Pixeljet Ultron Series

Get Latest Price

Product Brochure Watch Video

BrandPixeljet
Print HeadRicoh
TechnologyPIEZO Drop on Demand
ResolutionUp to2400 dpi
Printing SpeedUpto 450 sq.ft
File FormatTIFF,JPEG,BMP,EPS,PDF
Material Thickness100mm Maximum
Drying SystemUV Mercury Lamp
Printing Area2600mm x 1220mm for flat bed / 1800 mm Roll for RMO
Maximum Material Size2700mm x 1300mm
InkUV Curable Ink
Ink Supply SystemAutomatic Negative Pressure System And Tank Capacity Of 2.5liters
Computer ControlWindows 7 64bit 8gb Ram
Rip SoftwarePhotoprint / Onyx ( Option )
Power Supply230V,20A,12KVA Single Phase
Dimensions4830mm x 2470mm x 1580mm
Net Weight1550kgs
Color4 Color/ 2X4 Color/6 Color ( White & Varnish )

Elevated Productivity

Pixeljet UV Hybrid printers are high-speed LED UV curable inkjet systems which are idle for short run to high level production of multiple jobs with variety of sized media. It offers media edge-to-edge printing that eliminates the need of extra finishing step, saving time and money. Thanks to the multilayer printing feature the Pixeljet UV hybrid printers print several color and white ink layers in one run.

Pixeljet UV printers are workhorse and can deliver printing speed of up to 450sqft/hr. (Depends on print head and colour configurations)

Superior Print Quality

Pixeljet UV Hybrid Printers can print on practically any rigid and sheet material. They deliver exceptional print quality on a wide variety of indoor and outdoor media such as corrugated boards, plastics, acrylic, glass, foam boards, exhibition panels, wood, aluminum, MDF, PS materials and wide range of flexible media. White ink and six colors with RICOH Industrial grade print 7-35 pl print heads allow it to deliver prints that will give you and your customers a competitive edge. The high-density color printing function makes prints even brighter, intense and vivid.

UV LED Print Technology

Equipped with powerful, UV LED lamps for the curing process, the Pixeljet hybrid printers come with a number of economical, ecological and business-generating benefits:

  • LEDs are cool and have minimal heat output, which is why they enable you to print on wide range heat-sensitive substrates.
  • LED lamps eliminates lamp warm-uptime due to instant switch on and off feature that results in faster operations and higher productivity.
  • LEDs have minimal energy consumption, which leads to significant power savings.
  • LEDs have last for at least 5,000 hours each.They generate a consistent output throughout that period with no lamp change downtime or any consumable lamp costs.

UV LED lamps don’t contain mercury, there is no need for mercury disposal or any related costs. Also, LEDs don’t produce ozone gas that needs to be extracted by ventilation.

Unlimited Applications

With Pixeljet UV Hybrid printers you can attract new business with a wide variety of applications: banners, posters, signage, displays, exhibition graphics, POP & POS, mock-ups, backlits, frontlits, self-adhesives (labels). Also niche applications: DVDs, wood, art reproductions, personalized objects, party gadgets, as well as architectural and interior decoration, ceramics... Because any material up to 100 mm thickness can be printed…means endless possibilities.

APPLICATIONS
  • Gift Items
  • Wedding Photo Album
  • Glass
  • Acrylic(Pmma)
  • Wood
  • Foam Board
  • PS Material
  • Flexible Media


Additional Information:

  • Item Code: Pixeljet_ultron_series

View Complete Details

Yes, I am interested!

Jeti Mira LED UV Flatbed Printer
Interested in this product?
Get Best Quote
Brand/MakeAgfa
Model/TypeJeti Mira MG2716 HS LED
Maximum width2.69 m (8.82 ft)
Max-min media thickness3.2 mm (1/8Inch) - 0.2 mm (1/64Inch)
Maximum roll outside diameter305 mm (12Inch)
Roll core7.62 cm (3Inch) (standard) or 15.24 cm (6Inch) (with adapters)
Media skewMax. 3 mm on 10 m printing
Borderless printing flexible mediaUp to 2.05 m (6.72 ft)
Maximum lengthDepends on total roll weight
Minimum sizeDIN A4 (21 cm x 29.7 cm) landscape
ThicknessMin. 1 mm (40 mil) - max. 50 mm (1.97Inch)
Maximum weight100 kg (220.5 lb)
Borderless printingUp to 2.69 m x 1.59 m (8.82 ft x 5.21 ft)
Max-min print width2.05 m (6.72 ft) - 330 mm (13Inch)
Max-min print heightFull roll length - n/a
Max-min roll width2.10 m (6.88 ft) - 330 mm (13Inch)

Jeti Mira LED UV Flatbed Printers

This award-winning flatbed printer now relies on UV LED curing to offer you impressive print quality with a wide variety of media. Accelerate the printing process to 231 m²/hr, use the dockable roll-to-roll extension or opt for 3D Lens Technology printing whenever you need to.

  • True flatbed printer with moving gantry and optional roll-to-roll system for optimal flexibility.
  • Relies on UV LED print technology, allowing you to print on heat-sensitive substrates.
  • Award-winning print quality in six colors + white, with optional (3D) varnish or primer.
Key Benefits
  • True flatbed printer with moving gantry and optional roll-to-roll system for optimal flexibility.
  • Relies on UV LED print technology, allowing you to print on heat-sensitive substrates.
  • Award winning print quality in six colors + white, with optional (3D) varnish or primer.
  • Advanced white printing and white ink management
  • ‘Print & Prepare’ mode: load one side of the table while the other side is printing.
  • Features 6 different vacuum zones and 4 sets of registration pins for complete accuracy.
  • Powered by smart Asanti workflow software and integrable with cloud service Print Sphere.

View Complete Details

Yes, I am interested!

  • Agfa Avinci DX3200 UV Flatbed Printers, Width:3.2 m
  • Agfa Avinci DX3200 UV Flatbed Printers, Width:3.2 m
  • Agfa Avinci DX3200 UV Flatbed Printers, Width:3.2 m
Agfa Avinci DX3200 UV Flatbed Printers, Width:3.2 m
Interested in this product?
Get Best Quote
Brand/MakeAgfa
Max print widthSingle roll = 3.20 m (126.0Inch)
Media transportationPre-heater,dancer bars and print plate suction for roll-to-roll
Open fabric in-& outdoor flags40 to 173 m2/hr (430 to 1862 ft2/hr)
Closed fabric displays40 to 173 m2/hr (430 to 1862 ft2/hr)
Closed fabric with diffusion layer backlit displays40 to 58 m2/hr (430 to 624 ft2/hr)
Print headsPiezoelectric Konica Minolta 1024i
InkCMYKLcLm
Ink system maintenanceAutomatic
Image qualityResolution up to 1440 x 540 dpi in high definition
Max-Min roll widthSingle roll = 3.26 m (128.5Inch)
Maximum lengthAbove 100 m length (also depends on the thickness and total roll weight)
Max media thicknessMax. 5 mm (0.19Inch)
Maximum weightSingle roll = 100 kg (220 lbs)
Maximum roll outside diameter360 mm (14.2Inch)
Roll mountingPneumatic shafts for core diameter 7.62 cm - 3Inch (standard)
Media skewMax. 2 mm on 10 m printing
Borderless printing flexible mediaSingle roll = up to 3.2 m (126Inch)

Avinci DX3200

UV Flatbed Printers

Avinci DX3200UV Flatbed Printers

Meet Avinci DX3200 – Agfa Graphics’ dedicated soft signage dye sublimation roll-to-roll printer. It brings remarkable print quality to a wide range of in- and outdoor soft signage applications such as banners, indoor wall graphics, shop decoration, outdoor advertising, trade show displays and more. You name it, Avinci is up to the challenge.

This advanced soft signage printer is the result of carefully selected features and benefits that combine into one highly productive unit, ready to generate stunning prints that stand out. Large-format printing up to 3.2 m wide, low ink consumption, 6 colors (CMYKLcLm), a resolution up to 540 x 1440 dpi – the Avinci DX3200 has it all.

Key Benefits
  • Large-format soft signage applications up to 3.2 m wide.
  • High productivity and a robust design for reliable printing.
  • Low ink consumption yet excellent print quality in both text and images.
  • 6 colors (CMYKLcLm) for vibrant prints and a wide color gamut.
  • Fine detail rendering with a resolution up to 540 x 1440 dpi.
  • A wide range of polyester-based applications and outstanding print-through on flags.
  • User-friendly and cost-effective, including a smart wind-up system in every speed mode.
  • Off-line calendering to ensure perfect fixation.
  • Powered by Asanti workflow software and integrable with cloud service PrintSphere.
Features
]
Soft signage – a powerful choice

Soft signage is rapidly becoming the preferred solution for many businesses that demand high-quality marketing and display material. And with good reason: it’s user-friendly and cost-effective. Soft signage print results are lighter and easier to transport and install.

The Avinci DX3200 allows you to create large-format, soft signage prints of up to 3.2 m wide with a maximum resolution of 540 x 1440 dpi. Through the process of dye sublimation, this unit prints directly onto your fabrics. The result? An efficient printing process and extremely vivid prints.

Excellent print quality, low ink consumption

Avinci produces premium results with a minimum of jetted ink volume and waste production. The engine ensures the printing of perfect solids and outstanding tonal rendering with six different colors (CMYKlclm) – a rich color gamut that is particularly noticeable in skin tones, for example.

Speedy and precise media feeding

Depending on your requirements and applications, Avinci can manage up to five different modes, with a speed of up to 173 m2/hr. Featuring a soft signage-dedicated media transport system, the Avinci engine ensures precise and easy feeding of all media, as well as the perfect wind-up of the print result.

Off-line calendering

The calendering process in soft signage printing efficiently fixes the colors to the fabric while evaporating the water. If you opt for Avinci, this unit is part of a separate process and your printer will be spared from any mess or damage caused by the sublimation phase.

View Complete Details

Yes, I am interested!

  • Pixeljet UVmini True Flatbed Printer
  • Pixeljet UVmini True Flatbed Printer
Pixeljet UVmini True Flatbed Printer
Interested in this product?
Get Best Quote
Printing TechnologyVariable Dot Printing(Grey Scale Printing)
Brand/MakePixeljet
Resolution720x1200dpi
InterfaceUSB2.0
Weight450kgs
Speed3.5,5 sqm/h
Model/TypePixeljet UV Mini
Printhead5xRicoh Gh2220 industrial printhead Up to 6xprinthead (Optional)
Ink typeUV LED Curable Inks
Ink ColorC,M,Y,K White(Standard), Varnish (Optional)
Ink Capacity1500ml Bottle
Ink Supply SystemNegative Pressure System(NPS)with Automatic Ink Supply
UV TechnologyDaul UV LED Lamp
RIPColorGate(Bundle Version)
Power requirements220-240V,50/60Hz
Assembled Dimensions2150x2218x1132mm
StructureIndustrial Structure Frame with Heavy Duty Y-Bar
Net Weight Printing Speed450kgs
Number of Pass8,12Pass
DirectionBi-Direction
X&Y MotorHigh Quality Servo Motors
Maximum Print Size100cm(Width)x160cm(Length)
Printing resolution720x1200dpi/720x900dpi
Printing directionUni and Bi-direction
Media-Table.Size105cm(Width)x165cm(Length)
Max.Thickness7cm with infrared Sensor Protechtion

Pixeljet UV Mini is a high-value UV flatbed inkjet printer designed for small and medium volume printing requirements of ‘Promotional product market place’.

  • Industrial Y Structure Frame
  • Industrial Servo Motor
  • Ricoh Gh2220 Printheads
  • Negative Pressure System

View Complete Details

Yes, I am interested!

  • Anapurna H2050i LED UV Flatbed Printers
  • Anapurna H2050i LED UV Flatbed Printers
  • Anapurna H2050i LED UV Flatbed Printers
Anapurna H2050i LED UV Flatbed Printers
Interested in this product?
Get Best Quote
Brand/MakeAgfa
Model/TypeAnapurna H2050i LED
Maximum width(Rigid Media)205 cm (6.7 ft), 200 cm (6.6 ft) with borderless printing
ThicknessMin. 0.2 mm
Maximum weight50 kg (110 lb)
Maximum roll outside diameterSupport for 3Inch core-media rolls with maximum outside diameter 36 cm (14.17Inch)
Borderless printing flexible media200 (6.6 ft)
Draft modeUp till 104 m2/h (Up till 1.119 ft2/h)
Express mode64-71 m2/h (689-764 ft2/h)
Production mode32-52 m2/h (344-560 ft2/h)
Standard quality mode19-28 m2/h (204-301 ft2/h)
High-quality mode14-15 m2/h (151-161 ft2/h)
High-quality printsUp to 720 x 1400 dpi
Text qualityPositive 4 point / Negative 6 point
Maximum lengthn/a - restricted by weight and diameter
Minimum sizeA2, landscape

The Anapurna H2050i LED is a high-speed hybrid UV LED-curable inkjet system with a printing width of 2.05 m for indoor and outdoor applications.

  • High-quality printing on a wide range of uncoated rigid media as well as on roll media
  • Robust industrial engineered concept fit for sustained higher workloads
  • UV LED lamps that enable printing on thermally sensitive materials and save costs, time and the environment
  • High productivity—enhanced even more by multiple board printer and an automatic board feeder

Key Benefits
  • High-quality printing on a wide range of uncoated rigid media as well as on roll media
  • Robust industrial engineered concept fit for sustained higher workloads
  • UV LED lamps that enable printing on thermally sensitive materials and save costs, time and the environment
  • High productivity—enhanced even more by multiple board printer and an automatic board feeder
  • UV LED ink for fast drying, material versatility and a very wide color gamut
  • Printing pre- and post-white in one run

View Complete Details

Yes, I am interested!

Jeti Titan S/HS UV Flatbed Printers
Interested in this product?
Get Best Quote
Brand/MakeMonotech
Maximum width(Rigid Media) 3.09 m (122Inch)
Maximum length Depends on total roll weight
Thickness Min. 0.2 cm (80 mil) - max. 5 cm (1.97Inch)
Maximum width(Flixible Media) 3.09 m (122Inch)
Express mode Up to 160 m2/hr (1,722 ft2/hr)
Prints high quality Up to 720 x 1200 dpi
Text quality 4 pt
Printer dimensions (H x W x L) 1.97 m x 2.43 m x 6.55 m (77.5Inch x 95.5Inch x 258Inch)
With FTR (H x W x L) 197 cm x 424 cm x 655 cm (77.5Inch x 167Inch x 258Inch)
Weight Jeti Titan S / HS only 4,014 kg (8,850 lb)
Weight FTR 593 kg (1,308 lb)
Electricity 400Y / 230V, 3-phase 50/60 Hz, 35A (25 KVA)

The Jeti Titan S and HS are true flat-bed, 3-meter-wide UV-curable printers. They achieve speeds up to 160 m²/h and come with a flat-to-roll option.

  • Unparallelled, photorealistic print quality
  • Full speed 6-color printing with white on board
  • Modular head configuration
  • Fit for rigid as well as roll media
Key Benefits
  • Unparallelled, photorealistic print quality
  • Full speed 6-color printing with white on board
  • Modular head configuration
  • Fit for rigid as well as roll media
  • Robust industrial build

View Complete Details

Yes, I am interested!

  • Anapurna M2540i FB UV Flatbed Printers, Speed 93 m2/h
  • Anapurna M2540i FB UV Flatbed Printers, Speed 93 m2/h
  • Anapurna M2540i FB UV Flatbed Printers, Speed 93 m2/h
  • Anapurna M2540i FB UV Flatbed Printers, Speed 93 m2/h
Anapurna M2540i FB UV Flatbed Printers, Speed 93 m2/h
Interested in this product?
Get Best Quote

Anapurna M2540i FB UV Flatbed Printers, Speed 93 m2/h

Get Latest Price

Minimum Order Quantity: 1 Piece

Product Brochure Watch Video

Brand/MakeAgfa
Model/TypeAnapurna M2540i FB
Maximum width(Rigid Media)2.54 m (8.33 ft)
Flatbed printer weight2080 kg (4585 lb)
Maximum length1.505 m (4.94 ft)
Minimum sizeDIN A4 (11.7 x 8.26Inch)
Maximum weight100kg on printing table,evenly distributed
Borderless printingUp to 2.535 m x 1.535 m (8.32 ft x 5.03 ft)
Maximum width(Flexible Media)2.515 m (8.25 ft)
ThicknessMin. 0.2 mm (0.008Inch),Min. 0.2 mm (0.008Inch) - max. 45 mm (1.77Inch)
Draft mode93 m2/hr (1001 ft2/hr)
Express mode58 m2/hr (624 ft2/hr)
Production mode32 m2/hr (344 ft2/hr)
Standard mode26 m2/hr (280 ft2/hr)
High-quality mode18 m2/hr (194 ft2/hr)
High-definition mode9 m2/hr (97 ft2/hr)
Prints high qualityUp to 540 x 1080 dpi
Text qualityPositive 4 point,negative 6 point
Flatbed printer dimensions (W x H x L)5.250 m x 1.7 m x 2.9 m (17.22 ft x 5.57 ft x 9.51 ft)

The Anapurna M2540i FB is a 6-color plus white high-speed, UV-curable flatbed inkjet printer which prints at speeds up to 93 m²/h.

  • True flatbed with moving gantry
  • High productivity
  • Excellent print quality on sheets and rigids
  • Six colors plus white (pre-, post and sandwich)

Key Benefits
  • True flatbed with moving gantry
  • High productivity
  • Excellent print quality on sheets and rigids
  • Six colors plus white (pre-, post and sandwich)
  • Pin-point precision

View Complete Details

Yes, I am interested!

  • Pixeljet Genix
  • Pixeljet Genix
Pixeljet Genix
Interested in this product?
Get Best Quote

Pixeljet Genix

Get Latest Price

Product Brochure Watch Video

Printing TechnologyUv Inkjet
Ink TypeUV curable inks
Brand/MakeMonotech systems ltd.
Usage/ApplicationPrinting Industry
Model/TypeUV flatbed printer
Printer Weight2135 X 1830 X 1295 mm/400 KG
Power Supply230V,10A, 50Hz Single phase power
Printing ResolutionUpto 2400dpi
Printing SpeedUpto 100sqft/hour (Depends on number of print head and color configuration)
PrintheadRicoh industrial grade print heads
Country of OriginMade in India

Power and performance at an entry-level price.

Equipped with powerful RICOH industrial grade print heads, Pixeljet® Genix is a perfect solution for product customization and for small UV printing business enterprises. Print effortlessly on mobile covers, trophies, photo albums and gift & novelty items and much more.

View Complete Details

Yes, I am interested!

Agfa Anapurna H2500i LED UV Flatbed Printers
Interested in this product?
Get Best Quote
Brand/MakeAgfa
ModelsAnapurna H2500i LED
Maximum roll outside diameterSupport for 3Inch core-media rolls with maximum outside diameter 36 cm (14.17Inch)
Borderless printing flexible media247 cm (8.1 ft)
Maximum lengthSupported by 1 rigid roller table 140 cm (4.59 ft),n/a - restricted by weight and diameter
Minimum sizeAbove A2 landscape (60 x 42 cm - 1.97 x 1.4 ft)
ThicknessMin. 0.2 mm
Maximum weight10 kg/m2 on printing table (xxx),50 kg (110 lb)
Maximum width247 cm (8.1 ft) with borderless printing,250 cm (8.2 ft)

The Anapurna H2500i LED is a high-speed hybrid UV LED-curable inkjet system with a printing width of 2.5 m for indoor and outdoor applications.

  • High-quality printing on a wide range of uncoated rigid media as well as on roll media
  • Robust industrial engineered concept fit for sustained higher workloads
  • UV LED lamps that enable printing on thermally sensitive materials and save costs, time and the environment
  • High productivity—enhanced even more by multiple board printer and an automatic board feeder

Key Benefits
  • High-quality printing on a wide range of uncoated rigid media as well as on roll media
  • Robust industrial engineered concept fit for sustained higher workloads
  • UV LED lamps that enable printing on thermally sensitive materials and save costs, time and the environment
  • High productivity—enhanced even more by multiple board printer and an automatic board feeder
  • UV LED ink for fast drying, material versatility and a very wide color gamut
  • Printing pre- and post-white in one run

View Complete Details

Yes, I am interested!

  • Anapurna M2050i UV Flatbed Printers, Speed : 90 m2/h
  • Anapurna M2050i UV Flatbed Printers, Speed : 90 m2/h
  • Anapurna M2050i UV Flatbed Printers, Speed : 90 m2/h
Anapurna M2050i UV Flatbed Printers, Speed : 90 m2/h
Interested in this product?
Get Best Quote

Anapurna M2050i UV Flatbed Printers, Speed : 90 m2/h

Get Latest Price

Minimum Order Quantity: 1 Piece

Product Brochure

Brand/MakeAgfa
Model/TypeAnapurna M2050i
Media widthUp to 207 cm
Media thicknessUp to 45 mm
Media weightRigids up to 10 kg/m2,Roll-to-roll up to 50 kg
Media diameter (roll-to-roll)Up to 36 cm
Tables4 rigid tables (2 rear & 2 front),Extends max length 3.2m
Print heads6 Konica-Minolta KM1024i heads 1024 nozzles/head,12 pl (colors),2 Konica-Minolta KM1024i heads 10
Inks7 Anapurna M G2 UV-curable inks (CMYKLcLm + white)
Text quality positive4 point
Text quality negative6 point
Dimensions (w x h x d)4580 x 1690 x 1540 cm
Weight1800 kg
Print widthUp to 205 cm
Borderless printingUp to 199 cm media width
Multiple board printingMinimum size A2,landscape

Anapurna M2050iUV Flatbed Printers

Productivity is key for the Anapurna M2050i. Incorporating the latest generation of print heads with double the amount of print nozzles, it offers a high throughput as well as high quality. Its new electromechanical redesign has made it even more robust, fit for sustained higher workloads. It prints 205 cm wide and reaches print speeds of up to 90 m²/h. In six colors – and white.

The machine’s perfectly matched hardware, print head, ink and software components constantly work together to ensure premium print quality and enhanced productivity. Regardless of whether you are printing on paper, wood, or even ceramics.

The hybrid printer uses UV-inks that have a wide color gamut, adhere well on difficult substrates and dry fast. You’ll see your time to market shrink. Your company and the Anapurna M2050i: the perfect match, don’t you think?

Features
  • UV-ink for fast drying, material versatility, and a wide color gamut;
  • Automatic vacuum system for flawless media transport;
  • Automatic board feeding for optimized productivity;
  • Multiple board or borderless printing;
  • Pre- and post-white in one run;
  • Perfect ink droplet control for the highest print quality.

View Complete Details

Yes, I am interested!

Get in touch with us

Reach Us

Monotech Systems Limited8b, Chaitanya Exotica, 24, Venkatnarayana Road, T.Nagar, Chennai-600017, Tamil Nadu, India

Akash Kumar (Marketing Manager)

View Mobile Number71% Call Response Rate

Send SMS
Send Email
Send Payment
Leave a Message, we will call you back!
Send your enquiry to this supplier
I agree to the terms and privacy policy

We Accept Online Payments

All Rights Reserved (Terms of Use)
