Our Products

+View All

UV LED Roll to Roll Printer

We are a leading Manufacturer of Anapurna RTR3200i LED UV LED Roll To Roll Printer, Jeti Ceres RTR3200 LED UV LED Roll To Roll Printer, Pixeljet Powerpro 3.2 Meter UV LED Roll To Roll Printer, Pixeljet MiniRTR UV LED Roll To Roll Printer, Anapurna H3200i LED UV Flatbed Printers and Mimaki JV100-160 from Chennai, India.

  • Anapurna RTR3200i LED UV LED Roll To Roll Printer
  • Anapurna RTR3200i LED UV LED Roll To Roll Printer
Anapurna RTR3200i LED UV LED Roll To Roll Printer
Interested in this product?
Get Best Quote
Brandmonotech
Model NumberAnapurna RTR3200i LEDs
Media width61-320 cm (24-126I)Inch, Optional dual-roll kit available: support for 2 rolls of 152.4 cm (60Inch)
Floor space7.7 x 3 m
Print widthUp to 320 cm Optional dual-roll kit available: support for 2 rolls of 152.4 cm (60Inch)
Borderless printing with mesh kitUp to 320 cm media width (126Inch)
Media thicknessMinimum 0.2 mm
Maximum roll weight (including shaft)100 kg (150kg)
Maximum roll diameter36 cm (14.17Inch)
Draft modeUp to 127 m2/h (Up to 1367 ft2)
Express mode76-85 m2/h (818-915 ft2)
Production mode37-65 m2/h (398-700 ft2)
Standard mode22-33 m2/h (237-355 ft2)
High-quality mode16-18 m2/h (172-194 ft2)
High-definitionUp to 9 m2/h (Up to 97 ft2) NA
Backlit4-9 m2/h (43-97 ft2)
Text quality positive4 point
Text quality negative6 point
Dimensions (w x h x d)5960 x 1650 x 1980 cm
Weight3500 kg

UV LED Roll to Roll Printer

Your day-to-day roll-to-roll sign & display jobs? Hand them over to your very solid Anapurna RTR3200i LED. This dedicated roll-to-roll UV LED-curable printer, which comes in a six color and a four color plus white version, handles a broad scope of flexible media for indoor and outdoor applications. As the Anapurna RTR3200i LED is equipped with UV LED lamps, it enables you to print on a wide media mix and to save energy, costs and time.

The four color plus white version stands out by its ability to print white in different modes, improving the opacity of the printed material as well as increasing color contrast and readability.

The Anapurna RTR3200i LED can also handle dual-roll printing. This option enables you to double your productivity when printing on smaller media—whether it is paper, vinyl or polyester.


Key Benefits
  • High productivity thanks to the latest generation of print heads
  • Optional dual-roll printing to heighten productivity
  • Printing with superior quality on a wide range of roll media
  • UV LED ink for fast drying, material versatility and a very wide color gamut
  • White printing to improve opacity, color contrast and readability
  • Multi-layer printing
  • Mesh option

View Complete Details

Yes, I am interested!

Jeti Ceres RTR3200 LED UV LED Roll To Roll Printer
Interested in this product?
Get Best Quote
Model NumberJeti Ceres RTR3200 LED
BrandMonotech
Max-Min print widthSingle roll = 3.20 m (126.0Inc) - 60.96 cm (24Inch) Dual roll = 1.52 m (60Inch) - 60.96 cm (24Inch)
Max-Min print heightFull roll length - na
Max-Min roll widthSingle roll = 3.26 m (128.5Inch)-60.96 cm (24Inch) Dual roll = 1.56 m (61.5Inch)- 60.96 cm (24Inch)
Maximum lengthAbove 100 m length. Also depends on the thickness and total roll weight
Max-Min media thicknessMax. 2.0 mm (0.08Inch)-Min. 0.2 mm (1/64Inch) for single and dual roll
Maximum weightSingle roll = 200 kg (441 lb) Dual roll = 180 kg (400 lb),2 rolls of each 90 kg (200 lb)
Maximum roll outside diameter360 mm (14.2Inch) for single and dual roll
Media skewMax. 2 mm on 10 m printing,for single and dual roll
Borderless printing flexible mediaSingle roll = Up to 3.2 m (126Inch)
Media transportationPre-heater,dancer bars and print plate suction for roll-to-roll & free-fall
Express mode186 m2/h (2,002 ft2/hr)
Production mode94 m2/h (1,012 ft2/hr)
Standard mode62 m2/h (667 ft2/hr)
High-quality mode36 m2/h (387 ft2/hr)
High-definition mode22 m2/h (237 ft2/hr)
Image qualityResolution up to 920 x 1200 dpi in High Definition
Text quality4 point legible text,Sans Serif.
Printer dimensions & Weight (H x W x L)1.99 m x 1.78 m x 6.48 m (78.5 in x 70 in x 255 in) 2177 kg (4800 lbs)
Crate dimensions & Weight (H x W x L)2.54 m x 2.04 m x 6.81 m (100 in x 80.25 in x 268 in) 3175 kg (7000 lbs)

UV LED Roll to Roll Printer

Jeti Ceres is the exclusively roll-to-roll printing solution that combines the extreme robustness of the line with the superior throughput demanded by cutting-edge print facilities.

The robust printer is ideal for mid- to high-end roll media printing of all types, powered by Asanti workflow technology and compatible with PrintSphere. Perfectly adapted to industry-leading Agfa UV inks, Ceres features extremely low ink consumption, for faster printing, fewer passes and rich results.

Equipped with 6 UV LED-cured colors plus white and primer as options, this rugged printer easily tackles the toughest jobs, providing the highest image quality on the market on a wide variety of flexible substrates suitable for indoor and outdoor use. Jeti Ceres comes with ultra-bright 16-watt/cm2 UV LED lamps for benefits that will revolutionize your printing business.

Key Benefits
  • Extremely fast roll-to-roll printing.
  • Combines the robustness of the Jeti line with superior throughput speed.
  • Relies on UV LED print technology, for cost benefits and printing on heat-sensitive media.
  • Outstanding print quality in six colors, with optional primer & white.
  • Powered by smart Asanti workflow software and compatible with PrintSphere.

View Complete Details

Yes, I am interested!

  • Pixeljet Powerpro 3.2 Meter UV LED Roll To Roll Printer
  • Pixeljet Powerpro 3.2 Meter UV LED Roll To Roll Printer
Pixeljet Powerpro 3.2 Meter UV LED Roll To Roll Printer
Interested in this product?
Get Best Quote
Print HeadStainless Steel Industrial Grey Scale Print Head
Printer TypeUV LED Roll to Roll
Model/TypePOWERPRO
Model NumberPixeljet Powerpro
BrandPixeljet
TechnologyUV
PrintheadRICOH Stainless Steel Industrial Grey Scale Print Head
Color4 color/ 6 color (White)
Resolution600x600,600x900,600x1200,600x1800
Printing SpeedUpto 700 sq.ft (Depends upon no. of Print and Head Configuration)
File FormatTIFF,JPEG,BMP,EPS,PDF
Drying SystemUV LED Lamp
Maximum Media Printing Width3200 mm
InkUV LED Curable Ink
Ink Supply SystemAutomatic Negative Pressure System
MediaPaper,Leather,Wall Paper,Soft Film,PVC,Vinyl,PP
PE Computer Control SystemWindows 7 64bit 8GB RAM
Rip SoftwarePhotoprint / Optional ONYX
Power SupplyAC 220 V ; 10%,30 A,50/60Hz
Dimensions5000 mm x 1200 mm x 1580 mm
Net Weight2120kgs

PIXELJET POWERPRO HIGH SPEED 3.2 METER UV LED Roll to Roll Printer

  • Efficient energy saving UV LED
  • Anti crash sensors
  • Wrinkle free feeding Roller
  • Advanced antistatic device

View Complete Details

Yes, I am interested!

  • Pixeljet MiniRTR UV LED Roll To Roll Printer
  • Pixeljet MiniRTR UV LED Roll To Roll Printer
Pixeljet MiniRTR UV LED Roll To Roll Printer
Interested in this product?
Get Best Quote
BrandPixeljet
Country of OriginMade in India
PrintheadRICOH Industrial grade printhead
Number Of PrintheadUp to 3 heads
Ink TypeUV curable inks
Colors(CMYK)x3, (CMYK)+WV
Printing Width1900 mm
Printing SpeedUpto 150sqft/hour (Depends on number of print head and color configuration)
SoftwarePhoto Print (Pixeljet edition)
InterfaceUSB 3.0
Media Thickness1.5-8Mm Adjustable
MediaPaper,Leather,Wall Paper,Soft Film,Pvc,Vinyl,Pp,Pe And More
Dimension3100mm X 1400mm X 720mm (LXBXH)

  • Thin-Film Piezoelectric Technology(MEMS)
  • Industrial Luxury design,industrial-grade circuit design
  • Strong nozzle compatibility,supporting water-based ink,eco solvent ink,sublimation ink and UV ink
  • UV roll to roll printing, color+white+color simultaneous printing program, leading the future of the printing market


Additional Information:

  • Item Code: Pixeljet_miniRTR

View Complete Details

Yes, I am interested!

  • Anapurna H3200i LED UV Flatbed Printers
  • Anapurna H3200i LED UV Flatbed Printers
  • Anapurna H3200i LED UV Flatbed Printers
  • Anapurna H3200i LED UV Flatbed Printers
Anapurna H3200i LED UV Flatbed Printers
Interested in this product?
Get Best Quote
Brand/MakeAgfa
Printer dimensions (H x W x L)177 x 572 x 193 (70 x 225 x 76inch)
Weight2800 kg (6170 lb)
Minimum sizeAbove A2 landscape (60 x 42 cm - 1.97 x 1.4 ft)
ThicknessMin. 0.2 mm
Maximum weight10 kg/m2 on printing table (22 lb)
Maximum width320 cm (10.5 ft), 316 cm (10.3 ft) with border-less printing
Maximum lengthn/a - restricted by weight and diameter,Supported by 1 rigid roller table 140 cm (4.59 ft)
Borderless printing flexible media316 cm (10.3 ft)
Draft modeUp to 129 m2/h (up to 1,388 ft2/h)
Express mode77-87 m2/h (829-936 ft2/h)
Production mode39-64 m2/h (420-689 ft2/h)
Standard quality mode23-34 m2/h (248-366 ft2/h)
High-quality mode9-19 m2/h (97-205 ft2/h)
High-definition modeNA
InksCMYKLcLm + white
High-quality printsUp to 720 x 1440 dpi
Text qualityPositive 4 point / Negative 6 point

UV Flatbed PrintersThe wide-format hybrid Anapurna H3200i LED is a perfect fit for sign shops, digital printers, photo labs and mid-size graphic screen printers that want to combine board and roll-to-roll print jobs.

The 6-color engine prints at a width up to 3.2 m and combines high quality with high productivity for outdoor and indoor, rigid and flexible wide-format jobs. The white ink function creates possibilities for printing on transparent material for backlit applications or for printing white as a spot color.

The Anapurna H3200i LED is fitted with air-cooled UV LED lights that save you energy, costs and time. Due to their minimal energy output, these LED lights are ideal for thin heat-sensitive materials. They also lead to faster operations as they can be switched on and off instantaneously.

Key Benefits
  • High-quality printing on a wide range of uncoated rigid media as well as on roll media
  • Robust industrial engineered concept fit for sustained higher workloads
  • UV LED lamps that enable printing on thermally sensitive materials and save costs, time and the environment
  • High productivity—enhanced even more by multiple board printer
  • UV LED ink for fast drying, material versatility and a very wide color gamut
  • Printing pre- and post-white in one run
Features Solid design for great accuracy

Thanks to a reinforced belt drive and shuttle beam, the Anapurna H2500i LED printer brings a highly accurate dot positioning and thus excellent image quality, which is further enhanced by the gradient and multi-layer functionality. The eight 12 picolitre heads guarantee printing of good solids, fine text reproduction of up to 4 pt, good tonal rendering and low ink consumption.

UV LED lamps that save time, costs and the environment

The Anapurna H2500i LED is fitted with air-cooled 16 Watt/cm² UV LED lamps, which results in a number of unique advantages related to generating extra business, cost savings and environmental friendliness. These include a wider applications scope, higher productivity and less power consumption.

Latest generation of fast-firing print heads

Incorporating the latest generation of fast-firing print heads, the Anapurna M2500i offers an impressive throughput. The machine enables you to maintain a high print production on all substrates, satisfying even your most demanding customers.

Flawless media handling

Media loading is smooth and accurate thanks to automated features such as the media registration bar and head height adjustment. The automatically controlled vacuum system, consisting of four zones, delivers an equal vacuum during the printing process, whether printing roll or rigid materials. This ensures flawless media transport, giving accurate print results at all times.

Ink monitoring

During production the ink levels are monitored by the automatic ink refill system. The ink (re)filling system can be accessed easily, enabling a spotless refill of your ink containers. The white ink is managed by a fully separate system (circulation, under-pressure regulation and cleaning circuit). The tank containing it is equipped with a stirring mechanism to keep the ink properly mixed at all times.

More Features
  • Reinforced beam for accurate dot placement
  • Automated media positioning bar mounted on table for the registration of rigids
  • Shuttle safety sensors to prevent print heads from touching the substrate
  • Ionization bar mounted on each side of the carriage to remove electro-static charges on the substrate
  • Powerful fastscan motor
  • Straightforward graphic user interface in a swivel-arm mounted touchscreen
  • Internal bitmap server with a HD of 1 TB for ripped images for fast spooling and secure transfer of big amounts of data
  • Network and USB3 (2) connection

View Complete Details

Yes, I am interested!

  • Mimaki JV100-160
  • Mimaki JV100-160

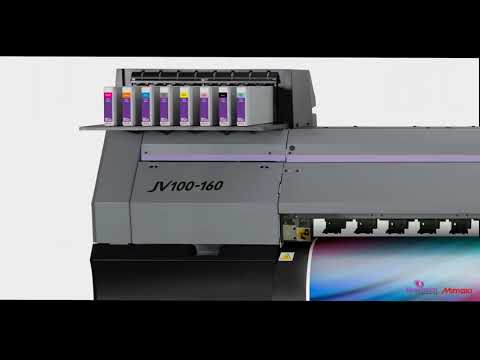

Mimaki JV100-160
Interested in this product?
Get Best Quote

Mimaki JV100-160

Get Latest Price

Product Brochure Watch Video

Model Name/NumberJV100-160
BrandMimaki

Expert printing made easy.
– Well-balanced entry-level models with excellent operational performance, image quality, speed and cost –
100 Series: Eco-solvent inkjet printer

With two newly developed heads, the JV100-160 has pursued high quality, high productivity, and stable operation as a eco-solvent inkjet printer.

In addition to NCU (Nozzle Check Unit), NRS (Nozzle Recovery System), and MAPS4 (Mimaki Advanced Pass System4) that enable stable and high-quality printing, DAS (Dot Adjustment System) is also provided to new “100 series” printers. Dot position correction and feed amount correction, which used to be manual operations and require time and effort, can be automated, reducing the workload on the operator.

View Complete Details

Yes, I am interested!
