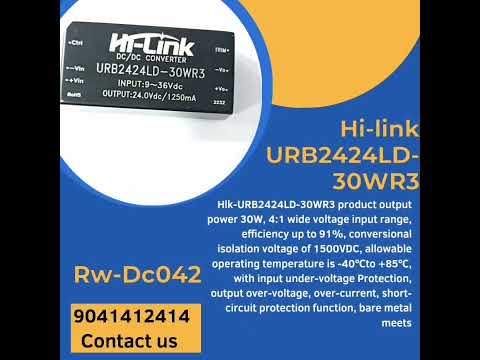

Introducing G-energy URB2424LD-30WR3 24V To 24V 30W 1.25A dc-dc converter at the best price in India with g-energy. This buck boost converter takes an input of 9-36V DC and converts it into a fix 24V DC output and make it perfect to power 24V device from a higher voltage source. This converter is designed with IP68 waterproof and dust proof protection for its use in harsh outdoor environment, vehicles, or industrial sites.

DIP Package Design: This URB2424LD-30WR3 converter built with dual In-line package  for easy to mount on PCBs.

High Efficiency: This buck boost converter gives up to 91% high conversion efficiency and convert power with minimal loss & reduce heat and saving energy.

Wide input voltage: This voltage converter can smoothly work on big input voltage range of 9v to 36v dc input voltage.

1.Input Voltage Range: 9-36V

2. Output Voltage: 24V DC

3. Output Current: 1250mA

4. Output Power: 30W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50-80mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 50mm × 25mm × 13mm

17. Weight: 24 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: RW-DC042
• Production Capacity: 10000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Introducing the G-energy URB4805LD-30WR3, a high performance isolated DC converter built for precision in electronic applications. This cutting edge power module transforms 48V to a stable 5V, delivering 30W with a robust 6A output. With its isolated buck converter design and 1500VDC isolation voltage. This URB4805LD-30WR3 also ensure both safety and efficiency. And also make it best choice for industry and DIY projects.

The URB4805LD-30WR3 feature hi link’s renowned isolated power module technology, solidifying its position as a best solution for diverse electronic setups. Its 48V to 5V conversion capability, coupled with a 30W power capacity and 6A output. It also makes this converter perfect for applications need both power and precision. It is also a best choice for use in industry machine or utilized in DIY electronic project.

Upgrade your power supply system with the G-energy URB4805LD-30WR3, where cutting edge technology meets efficiency. The isolated power module design, coupled with a powerful 48V to 5V conversion, positions this converter as a reliable solution for applications where precision and safety are important.

• Isolated Buck Converter Design: Elevate your electronics with hi link’s URB4805LD-30WR3. It also featur an advanced isolated buck converter design for precise and secure power transformation in diverse setups.
• Stable 5V Output: This power module ensures a stable 5V output. And also make this URB4805LD-30WR3 as a dependable choice for various electronic applications where stability is paramount.
• High Power Capacity: Boasting a robust 30W power capacity and a 6A output, the URB4805LD-30WR3 stands out as a powerhouse. And also fulfill power needs of a variety of electronic needs with hi link’s expertise.
• Isolation Voltage 1500VDC: Prioritize safety with the URB4805LD-30WR3, equipped with an impressive 1500VDC isolation voltage. And also make it a best choice for electronic systems in industry and DIY projects.
• Efficient and Versatile Design: The URB4805LD-30WR3 features an efficient and versatile design. And also ensure best performance in diverse electronic setups, solidifying its position as a reliable solution by G-energy.

Additional Information:

• Item Code: RW-DC041
• Production Capacity: 10000
• Delivery Time: 3-4 DAYS
• Packaging Details: BOX TYPE

Introducing Roboway G-Energy URB2412YMD-20WR3 24V to 12V 20W 1666mA DC to DC converter at the best price in India with Roboway.  A trusted 24V to 12V DC-DC isolated buck converter designed to meet diverse power supply needs. With a robust 20W power delivery capability. This compact module stands out as a powerful solution for applications need precise voltage regulation within a 24V system.

The URB2412YMD-20WR3 sets itself apart by not only being a high performance buck converter but also an isolated step down power module crafted by G-Energy. This converter also ensures that it delivers not just power but isolated power. And also make it best choice for projects with specific voltage regulation demands. With a current output of 1666mA.

Isolated Buck Converter:  The G-Energy URB2412YMD-20WR3 takes power conversion to the next level as a DC-DC isolated buck converter. And also ensure both reliability and security in power delivery. Its isolation feature enhance safety, making it an ideal choice for applications need secure and stable power.

High Power Output: Setting itself apart, this converter delivers an impressive 20W power output with a substantial current of 1666mA, making it well-suited for projects need significant power capacity. Whether power industry systems or DIY electronics, it provides the necessary energy for diverse applications.

91% Transfer Efficiency: With a remarkable 91% transfer efficiency, the URB2412YMD-20WR3 decrease energy loss during power conversion, promoting sustainability and cost-effectiveness. Its efficiency ensures that power is utilized optimally, making it an eco-friendly and economical solution.

Compact Form Factor: Designed with versatility in mind, this buck converter features a compact form factor, allowing for easy integration into various setups. Its adaptability makes it suitable for both industry applications and creative DIY electronics projects, where space may be a constraint.

Additional Information:

• Item Code: RW-DC015
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Introducing the WRB2405S-3WR3, a powerful 24V to 5V 3W DC-DC Converter from Hilink. Specifically designed as a 2405 Hilink DC-DC converter. This module also ensure efficient power transformation with a focus on precision and reliability. With its compact size and capability to handle 400mA, it stands out as the go-to solution for diverse applications.

This 24V to 5V 3W Hilink DC-DC Converter provides a seamless power conversion process, guaranteeing a stable 5V output. Its 1500VDC isolation voltage enhances safety in electrical systems. It also make it best choice for projects where isolation is paramount. The WRB2405S-3WR3 exemplifies Hilink’s commitment to delivering cutting-edge DC-DC power modules.

Additional Information:

• Item Code: RW-DC002
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Introducing g energy 48V To 5V 20W dc dc converter at best price in India with g energy. This 48V to 5V Dc-Dc isolated buck converter designed to meet diverse power supply need.  This voltage converter take a 18-75V input range and give a steady 5V output with up to 20W power and make it perfect to power sensitive electronic.

Wide input voltage: This URB4805YMD-20WR3 voltage converter smoothly work on wide input voltage of 18v to 75v input voltage.

5V Fix output voltage: It also provide a fix 5v dc output voltage from changing input voltage with up to 250mA dc current & 20W max dc power.

Up to 91% conversion efficiency: It use advance conversion technology for it high conversion efficiency up to 91% energy conversion & energy saving set ups.

1.Input Voltage Range: 18-75V

2. Output Voltage: 5V DC

3. Output Current: 4000mA

4. Output Power: 20W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 250m

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25mm × 25mm × 12mm

17. Weight: 15 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: URB4805YMD-20WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: In box packing

Introducing G-energy URB2412YMD-6WR3 24V to 12V 500mA 6W dc dc converter IP68 buck converter at best price in India. This voltage converter takes 9V-36V input range & convert it to a fix 12V dc output. It can deliver up to 500mA current with 6W total power and can be used for small electronic circuit, multiple type of pcb board and automotive device. This converter equipped with protection like over-current, short-circuit, and overheating prevention to keep both the converter and connected devices safe.

Input voltage: This URB2412YMD-6WR3 voltage converter work on wide input voltage from dc 9v to 36v dc voltage source.

Short Circuit & Over current Protection: This 24V to 12V 6W converter built with short circuit, under voltage, over load protection for converter safety.

DIP Package Design: This buck converter comes in a standard DIP (Dual Inline Package) form factor for easy mount on PCBs, breadboards, or prototyping boards.

High Efficiency – This buck converter gives up to 80-85% efficiency and converts power with minimal loss, reducing heat and saving energy.

1.Input Voltage Range: 9-36V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25x25x11 mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: URB2412YMD-6WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing B0509S-2WR3 5V to 9V 222mA 2W dc dc converter with 4.5v to  5.5v input range boost converter at the best price in India with g-energy. This step up converter provide a fix 9v dc output with 222mA dc current and 2W max dc power. It is built with advance conversion technology that help it to achieve energy conversion efficiency up to 85% energy conversion.

IP68 Waterproof: Converter comes with fully sealed design protects it from dust, water, and moisture, making it suitable for outdoor or harsh environments.

Short-Circuit & Overload Protection: This 5v 9v converter built-in safety features prevent damage if there’s a wiring issue or overload.

2W Power Output: Converter can supply up to 2 watts dc power with 222mA max dc current and 9v fix output voltage.

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 9V DC

3. Output Current: 200mA

4. Output Power: 2W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50

10. Nominal Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B0509S-2WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing  B0512S-2WR3 5V to 12V 166mA 2W Dc Dc Converter at best price in India with g-energy. This converter takes a lower 4.5-5.5V input and increases it to a stable 12V output and make it perfect to power device that need fix 12v dc input. This converter come in SIP package and single Inline Package design for compact size and easy mounting on circuit board. Also converter comes with short-circuit protection and overcurrent protection, and high isolation voltage for safe and reliable operation.

2W Power Output: This 5v to 12v boost converter give up to 2 watts power with 166mA dc current to operate small electronics, sensors, or control circuits.

Input voltage: This B0512S-2WR3 converter work on 4.5v to 5.5v dc input voltage range to control fluctuation 5v dc input to a fix 12v dc output voltage.

High quality built: It is built with high quality component to ensure dependable, long-term operation. And fulfill industry standard for performance and reliability in demanding application.

. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 166mA

4. Output Power: 1W

5. Efficiency: 89%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/75mVp-p

10. Standard Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B0512S-2WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G Energy VRB2424YMD-10WR3 24V To 24V 10W 416mA dc to dc converter IP68 buck boost converter at the best price in India with g-energy. This voltage converter take a 18-36V input range and give a steady 24V output with up to 10W power and make it perfect to power sensitive electronic. It also provide up to max 416mA output current with 10W dc power.

Wide input voltage: This VRB2424YMD-10WR3 voltage converter smoothly work on wide input voltage of 18v to 36v input voltage.

24V Fix output voltage: It also provide a fix 24v dc output voltage from changing input voltage with up to 416mA dc current & 10W max dc power.

Up to 91% conversion efficiency: It use advance conversion technology for it high conversion efficiency up to 91% energy conversion & energy saving set ups.

1.Input Voltage Range: 18-36V

2. Output Voltage: 24V DC

3. Output Current: 416mA

4. Output Power: 10W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: VRB2424YMD-10WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing B0505S-2WR3 5V to 5V 400mA 2W dc dc converter with 4.5-5.5V voltage input range at the best price in India with g-energy. This voltage converter provide up to 400mA dc current and 2w max dc power to operate small electronics, sensors, or communication modules. It is also built with advance energy conversion technology and help it to achieve high conversion efficiency up to 88% for more efficient energy conversion set up.

Isolation Protection (1500VDC): Converter has high electrical isolation between input and output, which improves safety and reduces interference between circuits.

Short circuit & over current Protection: This buck boost converter automatically shut down or limit current if there is a fault & prevent damage to the converter or connected device.

High Efficiency: This buck boost converter gives up to 88% efficiency and converts power with minimal loss & reduce heat and saving energy.

. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 400mA

4. Output Power: 2W

5. Efficiency: 88%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/80mVp-p

10. Nominal Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 6mm × 10mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B0505S-2WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing WRB1212S-3WR2 12V To 12V 3W 250mA dc dc converter IP68 buck boost converter at the best price in India with g-energy. This buck boost converter takes 9-18V input voltage range and convert it to a fix 12V output. It can deliver up to 3 watt dc power with 250mA maximum dc current for small electronic circuits, sensors, and control modules.  This converter comes in a standard single In-line package for easy mounting on PCBs, and ideal for easy integration into electronic circuit.

Isolation Voltage: This WRB1212S-3WR2 12V To 12V 3W 250mA dc dc converter stand out with a1500VDC isolation voltage.

Compact Design: This WRB1212S-3WR2 compact design make it perfect solution for application with limited space provide versatility in installation.

2W Output Power – Converter can provide up to 2watt power with 250a dc current and make it perfect for small electronics, sensors, and control circuits.

1.Input Voltage Range: 9-18V

2. Output Voltage: 12V DC

3. Output Current: 250mA

4. Output Power: 3W

5. Efficiency: 85%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50

10. Nominal Input Voltage: 12V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 21mm × 11mm × 9mm

17. Weight: 5 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: WRB1212S-3WR2
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing

The G energy VRB2412YMD-5WR3 isolated DC converter is a trusted solution for voltage conversion needs in various applications. With its robust design and high performance, it also provides seamless conversion from 24V to 12V & deliver stable power output of 5W and a current capacity of 0.42A. This power module ensures complete electrical isolation. And also enhance safety and reliability in diverse operation environments.

Ideal for industry automation, vehicle electronics, and embedded systems. This G energy VRB2412YMD-5WR3 isolated DC power module also offers versatility and flexibility in power supply requirements. Its compact form factor and smooth operation make it perfect for less space installations, provide smooth voltage regulation and power delivery.

Engineered to meet stringent quality standards, the G energy VRB2412YMD-5WR3 isolated DC converter ensures high performance and long life. Whether used in tele communications, instrumentation, or consumer electronics, this power module offers stable operation and peace of mind. With its 1500VDC isolation voltage and stable output characteristics, it is an ideal choice for various voltage conversion applications.

• Efficient Voltage Conversion: The G energy VRB2412YMD-5WR3 isolated DC converter efficiently transforms 24V input to stable 12V output. And also ensure smooth power delivery for a wide range of applications. Its high efficiency also reduce power loss & make it an ideal choice for energy conscious projects.
• Compact and Versatile: With its compact design, the VRB2412YMD-5WR3 power module is versatile and perfect for diverse applications where space is limited. Its small footprint also allows for easy integration into various systems without loosing performance or reliability.
• Complete Electrical Isolation: The VRB2412YMD-5WR3 isolated DC converter provides complete electrical isolation. And also enhance safety and prevent from electric hazards in sensitive environments. This feature also ensures that the input and output circuit are fully isolated & protect equipment and operators from electrical disturbances.
• Robust and trusted: Engineered for durability, the G energy VRB2412YMD-5WR3 power module also deliver a stable performance in harsh industry environments. Its rugged construction and high-quality components ensure long-term stability and smooth operation, even in harsh conditions.
• Wide Application Range: Perfect for industry automation, vehicle electronics, telecommunications, and various other voltage conversion applications. This VRB2412YMD-5WR3 power module also offers versatility and flexibility to meet diverse project requirements. Its stable output characteristics and wide input voltage range make it an ideal choice for a broad range of applications.

Additional Information:

• Item Code: RW-DC070
• Production Capacity: 10000
• Delivery Time: 3-4 DAYS
• Packaging Details: BOX

1. characteristic:Constant voltage input, isolated non stabilized voltage single output,2W

2. Isolation voltage 1500VDC

3. Low no-load power consumption 0.025W(Typ.)

4. Transfer efficiency up to 90%

5. Output short-circuit protection: continuous short circuit protection, automatic recovery

6. The voltage of the input power supply is relatively stable.（Voltage variation range±10%Vin）

7. Operating temperature range ：-40°C~+85°C

8. Small SIP package

9. International standard pin，direct installation of PCB board.

10. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)

Additional Information:

• Item Code: RW-DC061
• Production Capacity: 10000
• Delivery Time: 3-4 days
• Packaging Details: box type

The G energy B2405S-2WR3 isolated dc converter is a trusted and compact isolated DC to DC converter. It is designed for smooth power conversion in electronic applications. This power module converts a 24V input to a stable 5V output. And also deliver a 2W of power with a maximum current output of 400mA. The B2405S-2WR3 excels in providing a safe and isolated power supply, boasting an isolation voltage of 1500VDC.

As a versatile G energy isolated power module, the B2405S-2WR3 is suitable for a variety of applications, from industrial automation to embedded systems. Its compact design and advanced specifications ensure optimal performance in projects where space saving power conversion is crucial. Whether powering sensors, microcontrollers, or communication modules, the B2405S-2WR3 stands out as a best choice. It also combine efficiency with high isolation to meet the demands of modern electronic systems.

The B2405S-2WR3 isolated DC converter from G energy offers a range of features, including smooth power conversion, high isolation voltage, and a compact design. With a focus on precision and safety. This converter is also perfect for diverse electronic applications & ensure a stable and isolated power supply in a space saving package.

• Efficient Power Conversion: The G energy B2405S-2WR3 excels to convert a 24V input to a stable 5V output. And also deliver 2W of power with a maximum current output of 400mA.
• High Isolation Voltage: It also boast an isolation voltage of 1500VDC, this DC to DC converter also built with safety and reliability in mind. And also make it perfect for sensitive electronic devices.
• Compact Design: The power module features a space saving and efficient design. And also make it ideal for applications where size is crucial while ensuring optimal power delivery.
• Versatile Applications: Suitable for a variety of applications, from industrial automation to embedded systems. And also ensure a smooth power conversion in diverse electronic projects.
• Advanced Technology: With its advanced function and high isolation capabilities, the B2405S-2WR3 is a best solution for precision power conversion in modern electronic systems.

Additional Information:

• Item Code: RW-DC024
• Production Capacity: 10000
• Delivery Time: 3-4 DAYS
• Packaging Details: BOX TYPE

Introducing G energy B2424S-2WR3 24V to 24V 83mA 2W Dc Dc Converter at best price in India with Roboway. As a G energy 2424 DC-DC power module, it ensures reliable and efficient power delivery in various application. With a focus on safety, this converter boasts a 1500VDC isolation voltage. And make it a secure choice to power sensitive electronic system.

This G energy B2424S-2WR3 stand out as a versatile solution with its 24V to 24V 2W DC-DC conversion capability. Its compact design and efficient power delivery make it an ideal choice for application where space is a premium, and precise power regulation is crucial. Whether used in industrial setting or electronic device, this converter meet the demands of modern power conversion needs.

• Isolation Voltage: This B2424S-2WR3 Dc Dc Converter stand out with a 1500VDC isolation voltage.
• Efficient Power Delivery: As a G energy 2424 DC-DC power module, this converter excels in delivering reliable and efficient power to meet the demands of modern applications.
• Compact Design: This B2424S-2WR3 compact design make it perfect solution for application with limited space & provide versatility in installation. This G energy 24V to 24V 83mA Dc Dc converter prove that efficiency and space saving can go hand in hand.
• Precise Power Regulation: With a focus on precision, this G energy converter ensures stable 24V to 24V 2W DC-DC conversion, contributing to the reliability of electronic systems. The precise power regulation makes it a key player in maintaining optimal performance.
• Versatile Application: Engineered for versatility, the B2424S-2WR3 caters to diverse power conversion needs, making it suitable for various applications. Its reliability and efficiency make it a trusted choice in both industrial settings and electronic devices.

Additional Information:

• Item Code: RW-DC003
• Production Capacity: 10000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Introducing the g energy VRB2405LD-10WR3, a reliable 24V to 5V DC-DC buck converter deliver 10W power. This step down power module ensures precise voltage regulation for various applications, thanks to its isolated design and 1500VDC isolation voltage.

The G energy VRB2405LD-10WR3 is not just a typical 24V to 5V buck converter; it’s a versatile step-down power module. Offering 10W output with a current of 2000mA, this converter is tailored for projects need efficient and isolated power delivery.

Upgrade your power management with the G energy 24V to 5V 10W 2000mA Isolated Converter. Its compact design, high isolation voltage, and efficiency make it an ideal solution for diverse applications. And also ensure a reliable and stable power supply.

• Efficient Voltage Conversion: The G energy VRB2405LD-10WR3 stands out as a robust 24V to 5V DC-DC buck converter. And efficiently deliver 10W power with precise voltage regulation. Its reliability makes it a top choice for projects need accurate power conversion.
• High Output Current: Tailored for efficiency, this step down power module provides a substantial 2000mA output. And also cater to applications demanding a reliable and high current power supply. The VRB2405LD-10WR3 is design to meet the power requirements of diverse projects.
• Isolated Design: With an impressive 1500VDC isolation voltage, the VRB2405LD-10WR3 ensures reliable power delivery while maintaining circuit separation for enhanced safety. This feature makes it a trusted choice for applications where isolation is crucial for optimal performance.
• Compact Form Factor: The G energy VRB2405LD-10WR3 combines efficiency with a compact design & make it versatile for various setups. Whether integrated into industry systems or utilized in DIY electronics projects, its compact form factor enhances adaptability.
• Versatile Applications: Engineered for diverse applications, this G energy converter offers efficient and isolated power, making it a reliable choice for projects with specific voltage regulation needs. From industry setups to creative DIY endeavors, the VRB2405LD-10WR3 is designed to meet various power supply requirements.

Additional Information:

• Production Capacity: 25000
• Delivery Time: 1-3 days
• Packaging Details: In box packing

Introducing the versatile B1224S-2WR3 by Hi-link, a 12V to 24V 2W DC to DC power module converter. Functioning as both a boost converter and a step-up power module. This device efficiently transforms 12V input to a stable 24V output. And also make it perfect for a wide range of electronic applications. It also delivers reliable and efficient voltage transformation for your projects.

This compact Hi-link 12V to 24V 2W module boasts a powerful 83mA output current, ensuring a consistent and reliable performance. With an impressive 1500VDC isolation voltage, the device prioritizes safety, providing a stable power supply for electronic devices. Upgrade your projects with the simplicity, reliability, and efficiency of the Hi-link B1224S-2WR3 12V to 24V 2W boost converter.

Additional Information:

• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Introducing G-energy B0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Boost Converter at the best price in India with g-energy.  It can supply up to 1 watt of power which is enough for small circuits, sensors, or multiple types pcb boards. This boost converter takes 4.5-5.5V input and gives out the same 12 volts and ensure your devices get a constant and stable supply.

Boosts Voltage from 5V to 12V – This boost converter converts a lower input voltage (5V) to a higher stable output voltage (12V) and it is perfect for powering devices that need more voltage.

Comes in SIP package – Converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

High Efficiency – This converter gives up to 85% efficiency and designed to efficiently convert and regulate power with minimal energy loss, reducing heat generation.

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 12V DC

3. Output Current: 83mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/75mVp-p

10. Nominal Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 11*9*5 mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B0512S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy F0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Step Up Converter at best price in India with g-energy. This converter take 4.5-5.5V voltage input and give 12V voltage output for smooth 12v dc operation. Converter give up to 1 watt of power with an output current of 83mA it is enough to run small electronic and multiple types of pcb board.

High Efficiency: This boost converter gives up to 83% efficiency and convert power with minimal loss & reduce heat and saving energy.

Over current and short-circuit protection: This converter has built in safety features to prevent damage to the converter and connected device in case of electrical fault.

Fix 12V dc output: It also provide a fix 12v dc output voltage from a fluctuating 5V(4.5-5.5V) dc input voltage.

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 12V DC

3. Output Current: 83mA

4. Output Power: 1W

5. Efficiency: 83%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50

10. Nominal Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: F0512S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy B1203S-1WR3 12v to 3V 333mA 1W dc dc converter IP68 step down converter at the best price in India with g-energy. This step down converter comes in single Inline Package design for easy mounting on circuit boards. It smoothly work on 10.8V-13.2V dc input voltage and convert it to a fix 3V dc output.

Stable Output: Converter delivers up to 333mA current at 3 volt and ensure your device get a stable and reliable power without fluctuation.

High Efficiency: This buck converter gives up to 80% efficiency and converts power with minimal loss, reducing heat and saving energy.

Input Voltage: It can take 12 volts from your power source and convert it safely into a stable 3 volts output and making it perfect for devices that run on lower voltage.

1. Input Voltage Range: 10.8-13.2V

2. Output Voltage: 3V DC

3. Output Current: 333mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 12V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B1203S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy B2405S-1WR3 24V to 5V 200mA 1W dc dc converter ip68 buck converter at the best price in India with g-energy. This buck converter take an input voltage of 21.6v to 26.4v and changes it to a stable 5V output voltage. It deliver a maximum of 1 watt power and ensure efficient energy use while preventing overload for small load.

Input Voltage: This buck converter works perfectly with 21.6v to 26.4v dc input voltage for its use in multiple dc device.

IP68 Waterproof & dust proof: It also come with fully sealed ip68 body for protection from water, dust, and moisture.

High Efficiency: This buck converter gives up to 83% efficiency and convert power with minimal loss & reduce heat and saving energy.

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 83%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/100mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 9mm × 11mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B2405S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing g-energy vrb1205ymd-20wr3 12v to 5v 20w dc dc converter at best price in India. This voltage converter work on input voltage range from 9v to 18v. And it also provide high dc power up to 20w and max dc current up to 4a.

9v-18v input voltage range: This vrb1205ymd-20wr3 converter can smoothly work on wide input voltage of 9v to 18v for smooth operation in changing input condition.

20w power: It also provide a high dc power up to 20w and 4a max dc current.

1. Input Voltage Range: 9-18V

2. Output Voltage: 1205V

3. Output Current: 4000mA

4. Output Power: 20W

5. Efficiency: 90%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 24V/36V/48V72V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25mm × 25mm ×12mm

17. Weight: 16gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: VRB1205YMD-20WR3
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: Inbox Packing

Introducing the G-energy B0505LS-1WR3 an smooth 5V to 5V 200mA 1W dc-dc converter at best price in India. This converter take 4.5v-5.5v dc input voltage and provide a fix 5v dc output with 200mA dc current and 1W max dc power. This G-energy B0505LS-1WR3 is a 5V to 5V 1W 200mA isolated dc-dc converter & give a compact and smooth power solution.

Isolation Voltage (1500V DC): It also give high electrical isolation between input and output & protect sensitive circuit from voltage spike or noise.

Input voltage: This B0505LS-1WR3 converter take fluctuating 5V(4.5-5.5V) dc input and convert it to a fix 5v dc output.

Stable Performance: It maintain stable output voltage even if the input voltage varies within its working range.

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V

3. Output Power: 1W

4. Output Current: 200mA

5. Isolation Voltage: 1500VDC

6. Efficiency: Up to 89%

7. Operating Temperature Range: -40℃ to +85℃

8. Package: SIP – Single Inline Package for compact design.

9. Over voltage Protection: Yes

10. Short Circuit Protection: Yes

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B0505LS-1WR3
• Production Capacity: 1000
• Delivery Time: 1-3 Days
• Packaging Details: Inbox Packing

Introducing G-energy B2424S-1WR3 24v to 24v 42ma 1w dc dc converter at best price in India. It take 21.6v to 26.4v dc input voltage and provide a fix 24v dc output with up to 42mA dc current. This G-energy 24V to 24V 42mA isolated dc-dc converter stand out for its compact design and efficiency in power delivery with 1W power output. This B2424S-1WR3 ensure stable performance and safety & also make it best device for various power conversion need.

Input voltage: This B2424S-1WR3 converter work on 21.6V-26.4V input voltage range for its use at multiple use.

Protection features: It also come with multiple safety features including short circuit protection, under voltage protection and over load protection.

SIP Design: It is designed with space efficiency in mind, the B2424S-1WR3 SIP(single in line package) compact form is perfect  for less space device.

1. Output Power: 1W

2. Input Voltage : 24V

3. Input Voltage Range : 21.6-26.4V

4. Output Voltage: 24V

5. Output Current: 42mA

6. Isolation Voltage: 1500VDC/min

7. No-load Input Current: 5mA

8. Operating Temperature Range: -40℃ to +85℃

9. Efficiency: Up to 88%

10. Low Ripple/Noise (20MHz bandwidth): 30mVp-p

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 11mm × 10mm × 6mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B2424S-1WR3
• Production Capacity: 100000
• Delivery Time: 1-3 Days
• Packaging Details: Inbox Packing

The Dd1912pa 2-in-1 Step-up Step-Down DC-DC Converter Module . You can use it as a versatile power regulator to accept 3-24VDC input and produce dual ±9VDC outputs. With a wide operating temperature range of -40~85℃, this converter ensures reliability in diverse environmental conditions.

This converter is an excellent choice for those seeking a plus-minus 9V DC power supply. It is commonly known as a ±9V buck-boost DC converter. Its unique capability to operate as a step-up and step-down converter allows for flexibility in voltage regulation. Additionally, its compact design and dual output feature make it a valuable two-in-one 9V DC converter for various applications.

Equipped with a 2-in-1 functionality, the Dd1912pa converter caters to specific needs requiring dual ±9VDC outputs. Its wide input voltage range and robust temperature tolerance up to -20 to 80°C. It also make it perfect for application need stable power supply in industry, automotive, and DIY electronic project.

• Dual Voltage Outputs: Offers both positive and negative dual ±9VDC outputs, providing versatility in power supply.
• Wide Input Voltage Range: Accepts input voltages ranging from 3V to 24VDC, ensuring compatibility with various power sources.
• Buck-Boost Functionality: Acts as a ±9V buck-boost DC converter, capable of both step-up and step-down operations for voltage regulation.
• Extended Temperature Range: Operates reliably within a broad temperature range of -40~85℃, ensuring stability in varying environmental conditions.
• Two-in-One Design: This +-9V buck boost dc converter also feature 2 in 1 function to fulfil to dual ±9VDC output needs.

Additional Information:

• Item Code: RW-1080
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G energy WRB1205S-3WR2 12V to 5V 600mA 3W dc dc converter ip68 step down converter at best price in India with g-energy. This step down converter provide 9-18V input voltage range which is perfect for low-voltage electronic and device. This converter is designed to supply a maximum output power of 3 watts with 600mA dc current.

Input Voltage: This converter works perfectly with a 9v-18v dc input voltage rage & provide a fix 5v dc output voltage.

Output Voltage: It provide a fix 5V dc output, which is best to power device like USB gadgets, sensors, and small electronics.

High Conversion Efficiency: Converter gives 80% efficiency and designed to convert power with minimal loss, so less heat is generated and more energy goes to your device.

1. Input Voltage Range: 9-18V

2. Output Voltage: 5V DC

3. Output Current: 600mA

4. Output Power: 3W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 70mVp-p

10. Nominal Input Voltage: 12V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 10x5x4 mm

17. Weight: 5gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: WRB1205S-3WR2
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing

The Dd1912pa Plus minus 10V DC converter Module caters to varied power needs with its versatile functionality. This ±10V buck boost dc converter work on 3V to 24VDC input. And it also delivers both positive and negative dual ±10VDC outputs. And also make it perfect for various application who need precise voltage regulation.

This converter serves as a trusted solution for those seeking a plus-minus 10V DC power supply. And also function smoothly as a ±10V buck-boost DC converter. With the capability to operate as a step-up and step-down converter. It also adapts to voltage adjustments efficiently, offering flexibility in power regulation.

Equipped with a broad temperature range of -40~85℃, this two-in-one 10V DC converter is designed for industrial, automotive, and DIY electronic projects, providing stable dual ±10VDC output, essential for diverse power needs.

• Dual Voltage Outputs: This ±10V buck boost dc converter provides both positive and negative dual ±10VDC outputs. And ensure a trusted power supply for various application.
• Wide Input Voltage Range: This ±10V buck boost dc converter work on input voltage from 3V to 24VDC. It also adapts smoothly to different power sources to work with diverse devices.
• Buck-Boost Functionality: Functioning as a ±10V buck-boost DC converter, it efficiently performs both step-up and step-down operations, adjusting voltages as required.
• Extended Temperature Range: This converter is design to work reliably within a broad temperature range of -40~85℃.
• Two-in-One Function: With its 2-in-1 function, it serves as a reliable solution, providing precise dual ±10VDC power outputs for a variety of electronic applications.

Additional Information:

• Item Code: RW-1081
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

The Dd1912pa Plus minus 6V DC converter Step up step down power Module is a versatile unit catering to voltage needs. It converts 3-24VDC input to positive and negative dual ±6VDC outputs. This Dc converter work on -40~85℃. It also maintains stability and serv as a reliable power source.

This Dd1912pa Step up step down converter is designed as a Buck-Boost DC Converter. The DD1912PA provides dual voltage outputs. It also has capability to perform both step-up and step-down function. Which offer flexibility in voltage regulation for various device.

The DD1912PA Plus-Minus 6V DC Converter.. It is also known for its buck-boost functionality and ensures stable and adaptable power delivery. With dual voltage outputs, it suits diverse setups who needs both positive and negative voltage supply.

• Dual Voltage Outputs: The DD1912PA also use for its ability to provide dual voltage outputs. It also offer both positive and negative dual ±6VDC power supplies. This feature also make sure compatibility with a broad range of electronic systems who need symmetrical power sources for balanced operation or signal process.
• Wide Input Voltage Range: It also has capability to accept input voltages ranging from 3V to 24VDC. This converter use in various power sources and make it best choice for different device. It offer the flexibility to adapt to diverse voltage need within electronic setup.
• Buck Boost Function: The DD1912PA operates as a Buck Boost DC Converter. It also allow it to perform both step up and step down operation. This feature enables efficient voltage regulation and make it perfect choice for demanding precise and adaptable power supply.
• Temperature Tolerance: Operating reliably within a wide temperature range of -40 to 85℃. This module also make sure stabile and high performance in harsh environment condition. Its ability work with to changing temperature makes it perfect for use in diverse industry setting.
• Versatile Application Scope: This converter also use in a wide range of application. From industry setups to DIY projects. Its dual ±6VDC output capability fulfil to various electronic systems who need symmetrical voltage supplies in both professional and practical setting.

Additional Information:

• Item Code: RW-1079
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

The DD1912PA 2 in 1 Step Up Step Down DC Converter Module is a versatile device that allows conversion from 3-24VDC input to positive and negative dual voltage output. This Dd1912pa plus minus 5V Dc converter work at a wide temperature range of -40 to 85℃. This Dd1912pa plus minus 5V Dc converter also use to deliver stable ±5VDC output.

1. Dual Voltage Output: This Dd1912pa Step up step down converter also use to give both positive and negative dual voltage outputs of ±5VDC.
2. Wide Input Range: Accepts input voltages ranging from 3V to 24VDC, ensuring compatibility with various power sources.
3. Buck-Boost Functionality: Capable of performing both step-up and step-down operations for efficient voltage regulation.
4. Temperature Resilience: Operates reliably within a broad temperature range of -40 to 85℃, ensuring stability in diverse environments.
5. Versatile Application: Ideal for powering electronic systems requiring dual voltage outputs in a range of industrial and DIY projects

Additional Information:

• Item Code: RW-1078
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy B0503S-2WR3 5V to 3V 666mA 2W Dc Dc Converter IP68 Step Down Converter at the best price in India with g-energy. This 5V to 3V step down converter give up to 2 watts of output power and also it can provide up to 666mA of current. Converter can work smoothly even in harsh outdoor or industrial environments, protected against dust and water immersion.

High Efficiency: This buck converter is built with advance conversion technology that give up to 88% efficiency and converts power with minimal loss.

Comes in SIP package: It come with single inline package design for compact size and easy mounting on circuit board.

Fix 3V output: This B0503S-2WR3 converter is built to provide a fix 3v dc output voltage for smooth operation in any dc set up.

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 3V DC

3. Output Current: 666mA

4. Output Power: 2W

5. Efficiency: 88%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75/200mVp-p

10. Nominal Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B0503S-2WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy B2403S-1WR3 24V to 3V 333mA 1W Dc Dc Converter IP68 Step Down Converter at the best price in India with g-energy. This step down converter takes a 24V dc input and change it into a stable 3 voltage dc output and it is perfect to power low-voltage device. This converter comes with built-in protection like short circuit and over current protection to prevent damage to the device and the load.

Input Voltage: This 1w converter work smoothly with a 24V power source and make it perfect for industrial, automotive, and electronic project.

Reliable and Long-Lasting Performance: It is built with high quality component to ensure dependable, long-term operation. And fulfill industry standard for performance and reliability in demanding application.

High Efficiency This buck converter gives up to 80% efficiency and converts power with minimal loss, reducing heat and saving energy.

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 3V DC

3. Output Current: 333mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B2403S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-Energy VRB2405YMD-6WR3 24V to 5v 6w 1.2A dc to dc converter IP68 buck converter at the best price in India with g-energy. This converter take 18-36V input voltage range and steps it down to 5V dc output. This voltage converter come with built-in protection features like short-circuit, over current, and over-temperature protection. It also provide up to 1.2a dc current and 6w dc power for small dc operating set ups and DIY projects.

Input voltage: This VRB2405YMD-6WR3 work on input voltage range from dc 18v to 36v input voltage range and convert it to a fix 5v dc output.

High Efficiency: This buck converter gives up to 84% efficiency and converts power with minimal loss & reduce heat and saving energy.

Reliable and Long-Lasting Performance: It is built with high quality component to ensure dependable, long-term operation. And fulfill industry standard for performance and reliability in demanding application.

1.Input Voltage Range: 18-36V

2. Output Voltage: 5V DC

3. Output Current: 1200mA/1.2A

4. Output Power: 6W

5. Efficiency: 84%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25*25*10 mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: VRB2405YMD-6WR3
• Production Capacity: 10000
• Delivery Time: 1-3 dyas
• Packaging Details: in box packing

Introducing URB2405YMD-6WR3 24V to 5V 1.2A 6W dc dc converter IP68 step down converter at best price in India with g-energy. This step down converter take 9-36V input voltage range and convert into a fix 5V dc output. It provides up to 6 watts of power with a maximum current of 1.2A dc current. This converter also come with IP68 rated water proofing.

Input Voltage Range: This converter can take 9v-36v dc input and safely convert it down to 5V output to operate any 5v dc device.

Reliable and Long-Lasting Performance: It is built with high quality component to ensure dependable, long-term operation. And fulfill industry standard for performance and reliability in demanding application.

DIP Package: This 24V to 5V converter comes in a DIP (Dual In-line Package) form and make it easy to mount on circuit board or use in prototypes and DIY project.

1.Input Voltage Range: 9-36V

2. Output Voltage: 5V DC

3. Output Current: 1200mA

4. Output Power: 6W

5. Efficiency: Up to 85%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/50mVp-p

10. Nominal Input Voltage: 12V/24V/36V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: URB2405YMD-6WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-Energy VRB2412YMD-6WR3 24V to 12V 6W 500mA dc dc converter IP68 step down converter at the best price in India with g-energy. It takes 18-36v Input voltage range and converts into 12V stable dc output. Converter can deliver up to 6 watts of power with 500mA dc current at 12V output voltage. It also come with safety feature like short circuit protection, over current protection, and voltage stability which ensure safe and long last operation.

Input voltage: This VRB2412YMD-6WR3 work on 18v to 36v input voltage range for its compatibility with multiple dc set up.

DIP Package Design: This step down converter comes in a standard Dual In-line Package, which is compact, easy to mount on PCBs, and ideal for easy integration into electronic circuit.

High Efficiency: This buck converter give up to 80-85% efficiency and converts power with minimal loss, reducing heat and saving energy.

1.Input Voltage Range: 18-36V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: up to 84% conversion efficiency

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80 mVp-p

10. Nominal Input Voltage: 12V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 25*25*10mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: VRB2412YMD-6WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy F0505S-1WR3 5V to 5V 200mA 1W Dc Dc Converter IP68 Buck Boost Converter  at best price in India with g-energy. This buck boost converter comes in single Inline Package design for easy mounting on any circuit board. Converter give reliable and long lasting performance and it is built with high quality component to ensure dependable, long-term operation.

Input voltage: This F0505S-1WR3 converter work on 4.5 to 5.5v dc input voltage and convert it to a fix 5v dc output voltage.

1W Power Capacity: This buck boost converter gives up to 1 watt of power with 200mA dc current to power small electronic device, sensor, and control circuit.

Comes in sip package: Converter come in single inline package design for compact size and easy mounting on circuit board.

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 82%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/75 mVp-p

10. Nominal Input Voltage: 5V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: F0505S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing g-energy WRB2405S-3WR3 24V to 5V 600mA 3W Dc Dc Converter at best price in India with G-energy. This converter also ensure efficient power transformation with a focus on precision and reliability. It comes with compact size and capability to handle 600mA with 3W power output. This 24V to 5V 3W dc-dc Converter gives a smooth power conversion process & guarantee a stable 5V output.

3W Power: This WRB2405S-3WR3 converter provide dc power up to 3w and 600mA max dc current.

83% conversion efficiency: It is built with conversion efficiency up to 83% energy conversion for energy efficient dc set up.

Isolation Voltage: This 24V to 5V 600mA 3W Dc Dc Converter also host a 1500VDC isolation voltage for safety in electrical systems.

1. Input Voltage Range: 18-36V

2. Output Voltage: 5V

3. Output Power: 3W

4. Output Current: 600 mA

5. Isolation Voltage: 1500 V DC

6. Efficiency: Up to 83%

7. Operating Temperature Range: –40 °C to +85 °C

8. Short Circuit Protection: Yes

9. Overload Protection: Yes

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 21mm × 11mm × 8mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: WRB2405S-3WR3

Introducing G-energy B2412S-1WR3 24V to 12V 83mA 1W Dc Dc Converter IP68 Step Down Converter at the best price in India with g-energy. This converter take a 24V input and step it down to a stable 12V output and make it ideal to power 12V device from a 24V source. This converter give 1500VDC isolation voltage between input and output and improve safety and prevent damage to connected equipment.

Input voltage: This B2412S-1WR3 dc dc converter smoothly work on wide input voltage of 21.6v to 26.4v dc input voltage range for its better compatibility in multiple set up.

1W Power Capacity: Converter also provides up to 1 watt dc power with83mA dc current for smooth 1w dc operation.

Short circuit & over current Protection: It also come with built in short circuit, under voltage, overload protection for converter safety.

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 12V DC

3. Output Current: 83mA

4. Output Power: 1W

5. Efficiency: 81%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 11mm × 9mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B2412S-1WR3
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Introducing G-energy F1224S-1WR3 12V to 24V 41mA 1W Dc Dc Converter IP68 Step Up Converter at best price in India with g-energy. This step up converter gives 10.8-13.2V input voltage range which is useful when your equipment needs a higher voltage than your power source. Converter gives up to 1 watt of power which enough for small electronics, sensors, communication devices, and other low-power applications.

Comes in SIP package – This step up converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

Step-Up Voltage Conversion – This 108-13.2V to 24v 1w converter convert a 12V input into a stable 24V output.

High Efficiency – This F1224S-1WR3 converter provide up to 80% conversion efficiency and converts power with minimal loss.

1. Input Voltage Range: 10.8-13.2V

2. Output Voltage: 24V DC

3. Output Current: 41mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 12V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 9mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: F1224S-1WR3
• Production Capacity: 100000
• Delivery Time: 1-3 Days
• Packaging Details: Inbox packing

Introducing G energy B2415S-2WR3 24V to 15V 133mA 2W  DC DC converter IP68 Step Down Converter at the best price in India with g-energy. Converter gives 21.6-26.4V input voltage range and stable 15V DC output for your equipment. It can provide a maximum output power of 2 watts, which is enough for small electronics, sensors, and control systems. This converter works in harsh conditions, making it suitable for automotive, outdoor equipment.

High Efficiency – Converters gives Up to 88% efficiency and converts power with minimal energy loss, reducing heat buildup and saving battery or power supply energy.

Comes in SIP package – It is single Inline Package design for compact size and easy mounting on pcb boards.

Overcurrent & Short Circuit Protection – It is automatically shuts down in case of overload or short circuit, protecting both the converter and your equipment.

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 15V DC

3. Output Current: 133mA

4. Output Power: 2W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/75mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: B2415S-2WR3
• Production Capacity: 10000
• Delivery Time: 1-3 Day
• Packaging Details: In Box packing

Introducing G energy WRB2412S-3WR2 24V to 12V 250mA 3W Dc-Dc Converter IP68 Buck Converter at best price in India with g-energy. This buck converter work on 18-36V input voltage and provide a fix 12v dc output voltage.  It can supply up to 250mA current and 3W max dc power. It  designed with ip68 protection to work in wet, dusty, or outdoor environments without damage & make it ideal for harsh condition.

Input Voltage: This 24V to 12V converter works with 18v to 36v input voltage range & make it suitable for various industrial and automotive power system.

Fixed 12V Output: It also provide a fix 12V dc output voltage with up to 250mA dc current & protect your device from voltage change.

High Efficiency: It is built with advance voltage conversion technology to provide up to  85% efficiency and designed for low energy loss in energy saving dc set up.

1. Input Voltage Range: 18-36V

2. Output Voltage: 12V DC

3. Output Current: 250mA

4. Output Power: 3W

5. Efficiency: 85%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 100mVp-p

10. Nominal Input Voltage: 24V

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

1. Waterproof Rating: IP68

2. Protections Included:

   • Short Circuit

   • Over current

   • Under voltage

   • Over temperature

   • Under voltage recovery

16. Dimensions: 21mm × 11mm × 8mm

17. Weight: 5gm

18. Cooling Method: Free air convection (no fan required)

Additional Information:

• Item Code: WRB2412S-3WR2
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing
