Newtech Enterprises

Output Voltage	5V
Input Voltage	24V
Usage/Application	Electronic Instruments
Design	Smps
Display Type	Digital
Series	HI LINK
Input Current	6W
Brand	APC

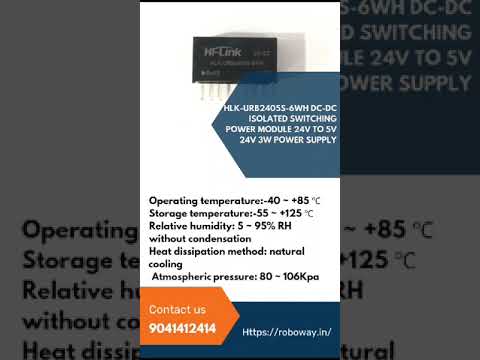

Operating temperature:-40 ~ +85 ℃
Storage temperature:-55 ~ +125 ℃
Relative humidity: 5 ~ 95% RH without condensation
Heat dissipation method: natural cooling
Atmospheric pressure: 80 ~ 106Kpa
Altitude: ≤ 2000m
Vibration coefficient: 10-500Hz, 2G, 10 Min.each along X, Y and Z
Input current (full load/no load):140mA/25mA(24VDC input)
82mA/15mA(48VDC input)
Reflected ripple current: 15mA
Impulse voltage (lsec.max):-0.7 ~ 50VDC(24VDC input) -0.7 ~ 100VDC(48VDC input)
Starting voltage: 6VDC(Type./24VDC input) 12VDC(Type./48VDC input)
Input undervoltage protection: 8VDC(Max./24VDC input) 16VDC(Max./48VDC input)
Input filter type: capacitive filter
Hot plug: not supported
Output Load (Percentage of Load):10%-100%
Output voltage accuracy: 1.0%(Typ.)
Linear adjustment rate (input voltage 1%): 0.3%(Typ.)
Output ripple noise:(mVp-p)≤ 150mVp-p
Output short circuit protection: sustainable, self-recovering

Additional Information:

• Item Code: RW-DC008
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Power	50 W
Input Voltage	24
Output Power	1w
Output Voltage	05
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Application	Solar, Automotive
Current	1A
Phase	Single Phase

1. small SIP package

2. Conversion efficiency 89% ( type )

3. Isolation is required between input and output ( insulation voltage ≤ 1500VDC )

4. The voltage of the input power supply is relatively stable ( voltage variation range ± 10% Vin )

5. Operating temperature range: -40 ° C ~ + 105 ° C

6. Exit short-circuit protection, do not require high output voltage stability

7. Low ripple / noise ( 20MH bandwidth ): 45mVp-p ( type )

8. international standard pins, PCB board direct installation installation

9. It is pot with high quality environmentally friendly waterproof and thermal conductive adhesive, which is moisture proof and vibration proof, and meets the waterproof and dustproof IP65 standard

10. high reliability, long life design, long continuous working hours



environmental conditions



Additional Information:

• Item Code: RW-DC051
• Production Capacity: 1000
• Delivery Time: 3-4 DAYS
• Packaging Details: BOX type

Input Voltage	24V
Output Power	6W
Output Voltage	5V
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Application	Battery Charger, Telecom, IT And Server, Defence, Industrial, Solar, Medical, Instrumentation, Automotive, Railway
Current	1200mA
Phase	Single Phase
Efficiency	88%
Protection Features	Overload, Over Voltage, Short Circuit

Overview of this VRB2405YMD-6WR3 24V to 5V 1.2A 6W DC DC Converter

Introducing VRB2405YMD-6WR3 24V to 5V 1.2A 6W Dc Dc converter at best price in India. This compact VRB2405YMD-6WR3 Dc Dc converter ensure a stable 5V output from a 24V input source. Its isolated power supply design enhance safety and performance in various application. This 24V to 5V 1.2A 6W DC DC Converter is ideal for industrial control, communication device, and embedded system.

With a power output of 6W and 1.2A, this VRB2405YMD-6W DC-DC Converter deliver stable and efficient operation. Its DIP package allow for easy fit into electronic circuit. Designed with robust component, it offers protection against short circuits and voltage change.

Features

• Stable Power Output: This VRB2405YMD-6WR3 24V to 5V 1.2A 6W DC DC Converter convert 24V input to a regulated 5V output with 1.2A current. Ideal to power low voltage device that need precise and stable voltage level.
• Compact DIP Package: It feature a space saving DIP design for easy fit into circuit board. Perfect for applications with limited space or requiring modular component.
• High Efficiency: It achieve superior energy conversion efficiency & reduce power loss and heat buildup. Enhances the reliability and performance of connected devices in operation.
• Galvanic Isolation: Provides full isolation between input and output for enhanced safety and stability. Ideal for sensitive device to prevent interference and electrical surge.
• Comprehensive Protection Features: This 24V to 5V 1.2A 6W Dc Dc Converter include safety against short circuit, overload, and over voltage. Ensures safe and reliable operation in harsh or sensitive application.

Specification

Additional Information:

• Item Code: RWDC031
• Production Capacity: 10000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Input Voltage	12V
Output Power	10 W
Output Voltage	5V
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Application	Automotive, Battery Charger, Instrumentation, Solar, Telecom, Medical, Defence, IT And Server, Industrial, Railway
Current	2A
Phase	Single Phase
Output Current	2 A
Efficiency	88%
Protection Features	Over Voltage, Short Circuit, Over Temp, Overload

Overview of this Hi-link VRB1205LD-10WR3 Isolated dc converter

Discover the hi-link VRB1205LD-10WR3, a top-tier isolated DC converter delivering precision in electronic applications. This exceptional power module excels with a 12V to 5V 10W 2A output & also ensure stability and efficiency across diverse setups. The VRB1205LD-10WR3 also feature hi-link’s renowned isolated power module technology, stands as a beacon of reliability and safety in the realm of power conversion.

Engineered with meticulous precision, the VRB1205LD-10WR3 showcases an isolated buck converter design & also guarantee safe and precise power transformation. Its 1500VDC isolation voltage elevates safety standards for electronic systems. And also make it best choice for industrial applications and DIY projects alike. The compact and efficient design of the VRB1205LD-10WR3 also fulfill to wide range of electronic needs.

Upgrade your power supply system with the hi-link VRB1205LD-10WR3, where precision seamlessly meets reliability. Whether integrated into industrial machinery or powering DIY electronics, this converter is your assurance of consistent and secure power delivery.

Features

• Isolated Buck Converter Design: The hi-link VRB1205LD-10WR3 takes the lead with its isolated buck converter design. And also ensure precision and security in power transformation for various electronic setups.
• Stable 5V Output: This power module guarantees a stable 5V output. It also make this VRB1205LD-10WR3 as a best choice for efficiency in diverse electronic applications.
• High Power Capacity: Boasting a robust 10W power capacity and a 2A output, the VRB1205LD-10WR3 stands out as a powerhouse. And also fulfill the need of a variety of electronic needs with hi-link’s expertise.
• Isolation Voltage 1500VDC: With an impressive 1500VDC isolation voltage, this converter also prioritizes safety standards. And make this VRB1205LD-10WR3 converter a secure choice for electronic systems.
• Compact and Efficient Design: The VRB1205LD-10WR3 features a compact and efficient design. It also make it best solution for electronic setups where space is a premium, without compromising on performance.

Specification

Additional Information:

• Item Code: RW-DC040
• Production Capacity: 10000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Input Voltage	24V
Output Power	6W
Output Voltage	5V
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Application	IT And Server, Battery Charger, Industrial, Defence, Railway, Telecom, Medical, Automotive, Instrumentation, Solar
Current	6W
Phase	Single Phase
Output Current	1 A
Efficiency	88%
Protection Features	Over Voltage, Over Temp, Short Circuit, Overload

Overview of this VRB2405YMD-6WR3 24V to 5V 1.2A 6W DC DC Converter

Introducing VRB2405YMD-6WR3 24V to 5V 1.2A 6W Dc Dc converter at best price in India. This compact VRB2405YMD-6WR3 Dc Dc converter ensure a stable 5V output from a 24V input source. Its isolated power supply design enhance safety and performance in various application. This 24V to 5V 1.2A 6W DC DC Converter is ideal for industrial control, communication device, and embedded system.

With a power output of 6W and 1.2A, this VRB2405YMD-6W DC-DC Converter deliver stable and efficient operation. Its DIP package allow for easy fit into electronic circuit. Designed with robust component, it offers protection against short circuits and voltage change.

Features

• Stable Power Output: This VRB2405YMD-6WR3 24V to 5V 1.2A 6W DC DC Converter convert 24V input to a regulated 5V output with 1.2A current. Ideal to power low voltage device that need precise and stable voltage level.
• Compact DIP Package: It feature a space saving DIP design for easy fit into circuit board. Perfect for applications with limited space or requiring modular component.
• High Efficiency: It achieve superior energy conversion efficiency & reduce power loss and heat buildup. Enhances the reliability and performance of connected devices in operation.
• Galvanic Isolation: Provides full isolation between input and output for enhanced safety and stability. Ideal for sensitive device to prevent interference and electrical surge.
• Comprehensive Protection Features: This 24V to 5V 1.2A 6W Dc Dc Converter include safety against short circuit, overload, and over voltage. Ensures safe and reliable operation in harsh or sensitive application.

Specification

Additional Information:

• Item Code: RW-DC031
• Production Capacity: 100000
• Delivery Time: 3-4 DAYS
• Packaging Details: BOX TYPE

Input Voltage	12V
Output Voltage	24V
Power	50 W
Usage/Application	Industrial
Phase	Single Phase
Current	5W
Model Name/Number	RW-DC023
Capacity	1500VDC

Product Feature

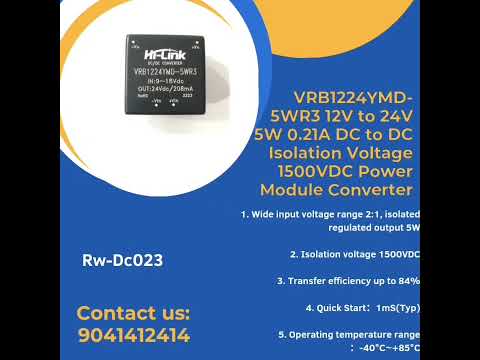

1. Wide input voltage range 2:1, isolated regulated output 5W

2. Isolation voltage 1500VDC

3. Transfer efficiency up to 84%

4. Quick Start：1mS(Typ)

5. Operating temperature range ：-40°C~+85°C

6. Small SIP package, metal case, low output ripple

7. International standard pin，direct installation of PCB board

8. Output short-circuit protection: continuous short circuit protection, automatic recovery



Enviroment Condition



Additional Information:

• Item Code: RW-DC023
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Power	50 W
Input Voltage	12V
Output Power	5 W
Output Voltage	12V
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Current	5W 1500VDC
Phase	Single Phase

Product Feature

1. Wide input voltage range 2:1, isolated regulated output 5W

2. Isolation voltage 1500VDC

3. Transfer efficiency up to 84%

4. Quick Start：1mS(Typ)

5. Operating temperature range ：-40°C~+85°C

6. Small SIP package, metal case, low output ripple

7. International standard pin，direct installation of PCB board

8. Output short-circuit protection: continuous short circuit protection, automatic recovery



Enviroment Condition



Additional Information:

• Item Code: RW-DC066
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Power	50 W
Input Voltage	12V
Output Voltage	24V
Material	ABS Plastic
Current	2W 83mA
Phase	Single Phase

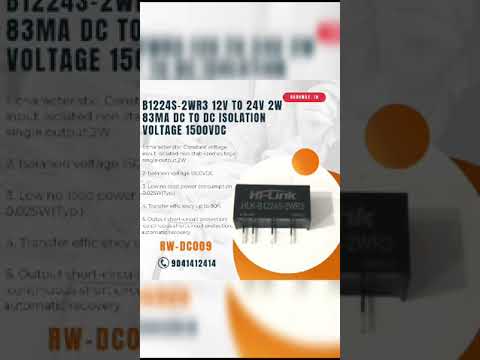

1. characteristic: Constant voltage input, isolated non stabilized voltage single output,2W

2. Isolation voltage 1500VDC

3. Low no-load power consumption 0.025W(Typ.)

4. Transfer efficiency up to 90%

5. Output short-circuit protection: continuous short circuit protection, automatic recovery

6. The voltage of the input power supply is relatively stable.（Voltage variation range±10%Vin）

7. Operating temperature range ：-40°C~+85°C

8. Small SIP package

9. International standard pin，direct installation of PCB board.

10. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)

Enviroment Condition :



Additional Information:

• Item Code: RW-DC009
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Power	50 W
Input Voltage	110V
Output Voltage	12V
Material	ABS Plastic
Current	10W 833mA
Phase	Single Phase

Product Feature :

1. Ultra wide range input (4:1), output 10W

2. Conversion efficiency 91%（Typ）

3. Isolation voltage: 1500VDC

4. Ultra low standby power consumption: 0.036W (typical)

5. Ultra fast start: 1mS (typical)

6. Operating temperature range ：-40°C~+85°C

7. Output protection: short circuit protection, over current protection, over voltage protection

8. Metal case, low output ripple

9. International standard pin, PCB board in-line installation

10. It is sealed with high quality environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dust proof IP65.

11. High reliability, long life design, long continuous working time



Enviroment Condition :



Additional Information:

• Item Code: RW-DC010
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Input Voltage	48V
Output Voltage	12V
Material	ABS Plastic
Power	50 W
Current	300w

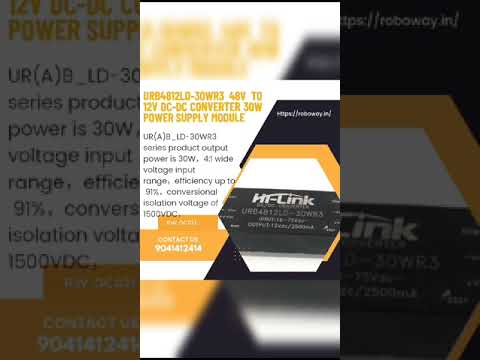

UR(A)B_LD-30WR3 series product output power is 30W，4:1 wide voltage input range，efficiency up to 91%，conversional isolation voltage of 1500VDC，allowable operating temperature is -40℃to+85℃，with input under-voltage protection, output over-voltage, over-current,short-circuit protection function, bare metal meets CISPR32/EN55032CLASSA，widely used in medical, industrial control, electri power, instrumentation,communication, railway and other fields.Product features :● Wide input voltage range(4:1),Output 30W
● Conversion efficiency 91%(Typ)
● Isolation voltage 1500Vdc
● Ultra low power consumption: 0.036W）
● Fast startup: 1ms
● Working temperature range：-40°C~+85℃
● Input undervoltage，output short circuit，overcurrent，overvolatge protection
● Metal case,low output ripple
● International standard pins,PCB board in-line

Additional Information:

• Item Code: RW-DC021
• Production Capacity: 1000
• Delivery Time: 3-4 DAYS
• Packaging Details: BOX TYPE

Power	50 W
Input Voltage	24V
Output Voltage	12V
Material	ABS Plastic
Current	30W
Phase	Single Phase

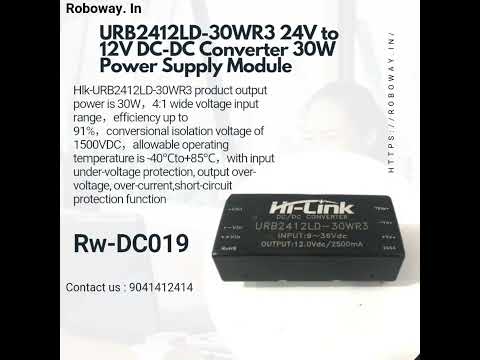

Hlk-URB2412LD-30WR3 product output power is 30W，4:1 wide voltage input range，efficiency up to 91%，conversional isolation voltage of 1500VDC，allowable operating temperature is -40℃to+85℃，with input under-voltage protection, output over-voltage, over-current,short-circuit protection function, bare metal meets CISPR32/EN55032CLASSA，widely used in medical, industrial control, electric power, instrumentation,communication, railway and other fields.Product features :● Wide input voltage range(4:1),Output 30W
● Conversion efficiency 91%(Typ)
● Isolation voltage 1500Vdc
● Ultra low power consumption: 0.036W）
● Fast startup: 1ms
● Working temperature range：-40°C~+85℃
● Input undervoltage，output short circuit，overcurrent，overvolatge protection
● Metal case,low output ripple
● International standard pins,PCB board in-line

Additional Information:

• Item Code: RW-DC019
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Power	10W
Input Voltage	9V to 36V
Output Power	10 W
Output Voltage	12V
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Application	Medical, Defence, Solar, IT And Server, Battery Charger, Industrial, Railway, Telecom, Automotive
Current	833mA
Output Current	1 A
Efficiency	92%
Protection Features	Overload, Over Voltage, Short Circuit

Overview of this Hi-link URB2412YMD-10WR3 isolated dc converter

Introducing the Hi-link URB2412YMD-10WR3 isolated DC-DC converter. A trusted solution for smooth power conversion. This power module efficiently converts input voltage from 9V to 36V to a stable 12V output. And also deliver up to 10W of power with a current rating of 833mA. With its compact and robust design, the URB2412YMD-10WR3 module also offer easy use with various electronic systems. And also ensure easy installation and use.

The Hi-link URB2412YMD-10WR3 isolated DC power module also ensure safe and stable power delivery for a wide range of device. Its isolated design also provide better safety from electric interference. And also ensure high performance even in harsh environments. Whether used in industry machine, vehicle electronics, or telecommunications device. This converter fulfill power need with efficiency and consistency.

Experience the versatility and reliability of the 9-36V to 12V 10W 833mA Hi-link isolated power module. With its high quality design, it also offer smooth power conversion solutions for various applications. Simplify your projects and power your devices confidently with the trusted technology of Hi-link.

Features

• Efficient Power Conversion: The Hi-link URB2412YMD-10WR3 converter efficiently transforms 9-36V input to 12V output. It also delivers up to 10W of power for diverse electronic devices.
• Isolated Design: Enhanced protection ensures reliability even in challenging environments. It also help to reduce electric interference & guarantee a stable performance for sensitive device.
• Compact and Robust: Its small size and sturdy construction make integration easy in electronic systems. Users also use it for hassle free installation and long life use.
• Wide Input Voltage Range: Accepts voltage from 9V to 36V, ensuring compatibility with various power sources. This versatility also use in different application need effectively.
• High Power Output: With a current rating of 833mA, it efficiently supplies up to 10W of power. It also make it perfect to power a range of electronic device.

Specification

Additional Information:

• Item Code: RW-DC140
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing

Power	10W
Input Voltage	24V
Output Power	10 W
Output Voltage	24V
Material	ABS Plastic
Isolation	Isolated
Mounting Type	PCB Mount
Application	Industrial, Battery Charger, Telecom, IT And Server, Medical, Defence, Instrumentation, Railway, Solar, Automotive
Current	416mA
Output Current	0.5 A
Efficiency	88%
Protection Features	Over Voltage, Overload, Short Circuit, Over Temp

Overview of this Hi-link URB2424YMD-10WR3 24V to 24V dc dc converter

Introducing the Hi-link URB2424YMD-10WR3, a trusted 24V to 24V DC-DC converter designed to meet your power supply needs. This compact module provides a stable 416mA output. And also make it best choice for various applications need precise voltage regulation within a 24V system.

The Hi-link 24V to 24V DC-DC Power Module stands out with its remarkable 91% transfer efficiency & ensure optimal energy conversion. This isolated converter, with a power rating of 10W. It also guarantees a consistent and smooth power supply. And make it perfect for sensitive electronic device that need precision and stability in their operational voltage.

Elevate your power management capabilities with the Hi-link 24V to 24V 10W 416mA Isolated Converter. Whether use into industry setups or used in electronic projects. This power module also deliver efficiency and isolation & ensure a smooth and safe power source for your applications.

Features

• Stable Voltage Output: The Hi-link URB2424YMD-10WR3 stands out as a best 24V to 24V DC-DC converter. And also ensure a stable and consistent power output for your applications. This feature is crucial for electronics that demand precise voltage levels to operate smoothly.
• High Transfer Efficiency: Achieving an impressive 91% transfer efficiency, this Hi-link module excels in energy conversion. And also minimize power wastage and promoting eco friendly and cost effective operations. It’s a smart choice for those seeking an efficient power solution.
• Precise Current Rating: Tailored for accuracy, the isolated converter delivers a precise 416mA output. And also make it best choice to fit for applications that require specific current regulation. This ensures best performance for sensitive electronic device.
• Compact and Versatile Design: With a compact form factor, the Hi-link 24V to 24V converter offers versatility in integration. It also fit easily into diverse setups, whether part of an industry system or a DIY electronic project. Its design prioritizes simplicity and adaptability.
• Isolated Power Supply: Providing isolation, this power module also enhance safety and reliability by preventing interference between circuit. The Hi-link URB2424YMD-10WR3 is a trustworthy choice to power sensitive electronic device within a 24V system.

Specification

Additional Information:

• Item Code: RW-DC012
• Production Capacity: 1000
• Delivery Time: 3-5 DAYS
• Packaging Details: BOX TYPE

Input Voltage	24V
Output Voltage	24V
Current	833mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this URB2424YMD-20WR3 24V to 24V 20W 833mA Dc Dc Converter

Introducing the Hi-link URB2424YMD-20WR3 Isolated DC Converter, designed for smooth power conversion. This power module offers stable isolation and precise voltage control for best performance. With a power rating of 20W and 833mA output, it ensures stable power delivery in various applications.

The Hi-link URB2424YMD-20WR3 Isolated Power Module is housed in a convenient DIP package & allow for easy fitting into your projects. Its compact design saves space while providing efficient voltage transformation, making it suitable for diverse electronic setups. Whether in industry machine or telecommunications device, this converter ensure stable power supply.

Specification

Additional Information:

• Item Code: RW-DC091
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: in box packing

Input Voltage	12V
Output Voltage	5V
Current	400mA
Usage/Application	Industrial
Phase	Single Phase
Weight	25gm

Overview of this hi-link B1205S-2WR3 12v to 5V 2W 400mA Dc converter

Introducing the Hi-link B1205S-2WR3 12V to 5V 2W 400mA DC Converter, a reliable power solution for various applications. This compact module seamlessly converts 12V input voltage to 5V output voltage, delivering a power rating of 2W with a 400mA output current. With its Hi-link B1205S-2WR3 design, it ensures stable and efficient power conversion for your electronic devices.

Experience seamless voltage conversion with the Hi-link B1205S-2WR3 12V to 5V 2W DC Converter, designed for simplicity and reliability. Whether used in automotive electronics, telecommunications, or industrial automation, this module offers consistent and efficient power delivery. Its compact size and robust construction make it suitable for integration into various electronic systems.

Specification



Additional Information:

• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	24V
Output Voltage	3.3V
Material	ABS Plastic
Current	33mA
Usage/Application	INdustrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link URB2403YMD-10WR3 dc-dc buck converter

Introducing the advanced Hi-link URB2403YMD-10WR3, a cutting edge DC-DC buck converter design to easily convert 24V input into a precise 3.3V output. This step down converter stands out as a reliable power solution. And also deliver a robust 10W power supply for a myriad of applications need stable and regulated voltage.

The URB2403YMD-10WR3 is not just your ordinary buck converter. With a focus on optimal power performance, this converter ensure a precise 3.3V output with a 10W power capacity. And also cater to projects with discerning need for efficient and dependable power conversion. Whether it’s power electronic device or use in creative DIY electronics project.

Specification :

Additional Information:

• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: In box packing

Input Voltage	18V - 75V
Output Voltage	12V
Current	3.3A
Usage/Application	Industrial
Phase	Single Phase
Weight	55gm

Overview of this URB4812LMD-40WR3 18V-75V to 12v 40W 3.3A Dc Dc Converter

The Hi-link URB4812LMD-40WR3 Isolated DC Converter offers robust power conversion capabilities. Designed as a DIP package module, it easily fit into various electronic systems. Operating within an input voltage range of 18V to 75V. This converter reliably transforms power to a stable 12V output, delivering 40W and 3.3A of power.

Experience enhanced safety and performance with the Hi-link URB4812LMD-40WR3 Isolated DC Power Module. Its isolation design ensures protection and reliability in harsh environments. Whether for industry automation or telecommunications device, this converter provide a stable 12V power source for smooth operation.

Specification



Additional Information:

• Item Code: RW-DC081
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing

Input Voltage	24V
Output Voltage	5V
Material	ABS Plastic
Current	600mA
Usage/Application	Industrial
Phase	Single Phase
Weight	25gm

Overview of this Hi-link URB2405S-3WR3 isolated dc converter

Introducing the Hi-link URB2405S-3WR3 isolated DC converter, an efficient solution for voltage conversion needs. This compact module easily transform 24V input to stable 5V output. And also provide 3W of power with a current capacity of 600mA. It is also built with safety in mind, the URB2405S-3WR3 also ensures complete electrical isolation with an isolation voltage of 1500VDC.

The Hi-link URB2405S-3WR3 isolated DC power module is design to meet various industry and electronic need . Its compact design makes it perfect for less space usage while its robust construction also ensure durability and long life. With stable and precise power delivery, this module is also use to power sensors, control systems, and communication device in diverse applications.

Specification



Additional Information:

• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	5V
Output Voltage	5V
Material	ABS Plastic
Current	200mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link F0505S-1WR3H Isolated dc converter

Introducing the Hi-link F0505S-1WR3H Isolated DC Converter, a trusted solution for power conversion needs. This compact module efficiently converts 5V to 5V. And also deliver 1W of power with a current output of 200mA. With its high isolation voltage of 1500, it also ensures safety and reliability in various electronic systems.

Experience seamless power conversion with the Hi-link F0505S-1WR3H Isolated Power Module. It is also designed for versatility and stability. Whether used in industry automation, telecommunications, or vehicle electronics, this converter offers stable and smooth power delivery. Its compact design and high quality part also make it perfect for use in diverse electronic systems.

Specification



Additional Information:

• Item Code: RW-DC052
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	21.6V - 26.4V
Output Voltage	12V
Material	ABS Plastic
Current	83mA
Phase	Single Phase
Weight	35gm

Overview of this Hi-link B2412LS-1WR3 Isolated dc converter

Introducing the Hi-link B2412LS-1WR3 Isolated DC-DC Converter, a reliable solution for voltage conversion. This Dc module easily transforms 24V input to 12V output. And also deliver 1W power at 83mA. With its compact SIP package design, the Hi-link B2412LS-1WR3 ensure easy fitting into various device. And also optimize space use with high performance.

Designed for reliability and versatility, the Hi-link B2412LS-1WR3 Isolated DC Power Module offers unparalleled efficiency and safety. Its isolated design also protect sensitive electronics from voltage change and electromagnetic interference. And also ensure smooth operation in diverse environment. Whether in industry machine, vehicle systems, or consumer electronics. This module also delivers stable power delivery & enhance overall system performance.

Specification



Additional Information:

• Item Code: RW-DC106
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	24V
Output Voltage	5V
Material	ABS Plastic
Current	200mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi link B2405S-1WR3 isolated dc converter

Introducing the Hi link B2405S-1WR3 isolated dc converter, an advanced isolated DC converter designed for precision and reliability. With an 88% transfer efficiency, this power module easily transforms 24V to 5V & deliver a stable 1W output. It also make it the perfect choice for various electronic applications. The Hi-link B2405S-1WR3 stands out as an exemplary isolated power module.

Engineered for versatility, the Hi-link B2405S-1WR3 boasts an isolated buck converter design. It also make it a best solution for applications need precision and safety. With a focus on efficient power conversion, this module delivers a consistent 5V output with a 200mA current. And also cater to a wide range of electronic devices. Trust in the Hi-link brand for superior engineering and quality in every isolated DC converter application.

Specification

Additional Information:

• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: In box packing

Input Voltage	5V
Output Voltage	12V
Material	ABS Plastic
Current	167mA
Usage/Application	Industrial
Phase	Single Phase
Weight	12 gm

Overview of this Hi-link B0512S-2WR3 Isolated dc converter

Introducing the Hi-link B0512S-2WR3 isolated DC converter, a versatile power solution design for efficiency and reliability. This compact power module easily converts 5V input voltage to a stable 12V output & deliver 2W of power with a current capacity of 167mA. Ideal for various industry and commercial applications, the Hi-link B0512S-2WR3 isolated DC converter ensures safe and stable power delivery in diverse environments.

The Hi-link B0512S-2WR3 isolated power module offers superior performance and flexibility. With its advanced isolation technology, it guarantees protection against voltage fluctuations and electrical interference & ensure the integrity of your sensitive electronic devices. Whether powering control systems, sensors, or communication equipment, this converter provides stable and smooth power, contributing to the smooth operation of your systems.

Specification



Additional Information:

• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing

Input Voltage	12V
Output Voltage	9V
Material	ABS Plastic
Current	222mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link B1209S-2WR3 isolated dc converter

Introducing the hi-link B1209S-2WR3, a state-of-the-art isolated DC converter designed for precision and reliability in electronic applications. With a focus on delivering a stable 9V output, this power module stands out as a dependable solution. And also provide a robust 2W power capacity and a 222mA output current. The B1209S-2WR3, a hi-link 12V to 9V 222mA buck converter & also ensure best performance and versatility in diverse setups.

Engineered with precision, the hi-link B1209S-2WR3 features an isolated buck converter design, guaranteeing safe and precise power transformation. With an isolation voltage of 1500VDC, this power module also enhance safety in electronic systems. The compact and efficient design of the B1209S-2WR3 makes it an ideal choice for various applications. It also cater to the need for reliable and isolated 9V power sources.

Specification



Additional Information:

• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	9V to 36V
Output Voltage	5V
Material	ABS Plastic
Current	1200mA
Usage/Application	Industrial
Phase	Single Phase
Weight	30 gm

Overview of this Hi-link URB2405ZP-6WR3 Isolated dc dc converter

Introducing the Hi-link URB2405ZP-6WR3 isolated DC-DC converter. Best solution for smooth power conversion needs. This converter easily convert input voltage from 9V to 36V to a stable 5V output & deliver up to 6W of power with 1200mA current. With its DIP package design it also offers easy use with various electronic systems & simplify installation and use.

The Hi-link URB2405ZP-6WR3 isolated DC power module ensures safe and stable power delivery for a wide range of applications. Its isolation design also provide better safety from electric interference. And also ensure smooth performance even in harsh environment. Whether in industry machine, vehicle electronics, or consumer gadgets. This converter also fulfill the power ned with efficiency and consistency.

Specification



Additional Information:

• Item Code: RW-DC129
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	5V
Output Voltage	9V
Material	ABS Plastic
Current	111mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link F0509S-1WR3H isolated dc dc converter

Introducing the Hi-link F0509S-1WR3H Isolated DC-DC Converter, a trusted power solution designed for various applications. This compact SIP package power module easily converts input voltage from 5V to 9V. And also deliver a stable output of 1W at 111mA.

With its isolated design, the Hi-link F0509S-1WR3H ensures safety and reliability by giving safety from electrical interference. Whether you need to power sensors, control circuit, or other electronic components. This converter offers dependable performance in a compact form factor.

Specification



Additional Information:

• Item Code: RW-DC121
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	24V
Output Voltage	15V
Material	ABS Plastic
Current	333mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35

Overview of this Hi-link VRB2415YMD-5WR3 Isolated dc dc converter

Introducing the Hi-link VRB2415YMD-5WR3 isolated DC-DC converter. A trusted solution for smooth power conversion. This DIP package power module easily transforms 24V input to stable 15V output. And also deliver 5W of power with a 333mA output current. With its isolation feature, the VRB2415YMD-5WR3 converter also ensure safe and stable power delivery. And protect for  sensitive electronics from voltage fluctuations.

The Hi-link VRB2415YMD-5WR3 isolated power module is designed for versatility and efficiency in various applications. Its DIP package design also ensure easy fitting into existing setups & make it perfect for a wide range of projects. Whether in industry machine, vehicle electronics, or telecommunications device. This VRB2415YMD-5WR3 converter also provide stable power delivery with less energy loss.

Specification



Additional Information:

• Item Code: RW-DC119
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	18V to 36V DC
Output Voltage	5V
Material	ABS Plastic
Current	400mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link B2405S-2WR3 isolated dc converter

The Hi-link B2405S-2WR3 isolated dc converter is a trusted and compact isolated DC to DC converter. It is designed for smooth power conversion in electronic applications. This power module converts a 24V input to a stable 5V output. And also deliver a 2W of power with a maximum current output of 400mA. The B2405S-2WR3 excels in providing a safe and isolated power supply, boasting an isolation voltage of 1500VDC.

As a versatile Hi-link isolated power module, the B2405S-2WR3 is suitable for a variety of applications, from industrial automation to embedded systems. Its compact design and advanced specifications ensure optimal performance in projects where space saving power conversion is crucial. Whether powering sensors, microcontrollers, or communication modules, the B2405S-2WR3 stands out as a best choice. It also combine efficiency with high isolation to meet the demands of modern electronic systems.

Additional Information:

• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	9V to 18V
Output Voltage	15V
Material	ABS Plastic
Current	333mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link VRB1215YMD-5WR3 Isolated Dc Dc Converter

Introducing the Hi-link VRB1215YMD-5WR3 isolated DC-DC converter, a reliable solution for efficient power conversion. This converter is built to handle input voltage from 9V to 18V and easily convert them to a stable 15V output. And also deliver up to 5W of power with a current rating of 333mA. With its DIP package design, the VRB1215YMD-5WR3 also offer easy fitting into various electronic systems.

The Hi-link VRB1215YMD-5WR3 isolated DC power module ensures safe and stable power delivery for a wide range of device. Its isolated design also provide better protection from electric interference & also ensure smooth performance even in harsh environment. Whether in industry machine, vehicle electronics, or telecommunications equipment. This converter fulfill the power need with efficiency and consistency.

Specification



Additional Information:

• Item Code: RW-DC132
• Production Capacity: 2500
• Delivery Time: 1-3 days
• Packaging Details: In box packing

Input Voltage	48V
Output Voltage	12V
Material	ABS Plastic
Current	2.5A
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link URB4812LD-30WR3 dc dc converter

Introducing the Hi-link URB4812LD-30WR3, a powerful DC to DC converter designed for efficient voltage transformation. This compact power supply module specializes to convert a 48V input to a stable 12V output. And also deliver a robust 30W with a current capacity of 2.5A.

The URB4812LD-30WR3 isn’t just a conventional converter; it’s a versatile DC to DC power module design for various electronic applications. With its horizontal DIP package, this module ensures space efficiency while providing a trusted solution for electronic systems need a stable 12V power supply. It stands out as a dependable choice for diverse projects, from DIY electronics to industry device.

Specification



Additional Information:

• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	11V - 16V
Output Voltage	15V
Material	ABS Plastic
Current	133mA
Phase	Single Phase
Weight	50gm

Overview of this Hi-link B1215S-2WR3 Isolated dc converter

Introducing the Hi-link B1215S-2WR3 Isolated DC Converter, a versatile power solution for various applications. This compact module efficiently transforms 12V to 15V with a power output of 2W and a current rating of 133mA. And also ensure a smooth & high performance. With its isolation voltage of 1500VDC this Hi-link B1215S-2WR3 also guarantee better safety and protection for your electronic devices.

Designed to meet diverse power needs, the Hi-link B1215S-2WR3 Isolated DC Power Module also offers seamless voltage conversion in a small footprint. Its high-quality construction and precise engineering ensure stable and consistent power delivery. And also make it perfect for industry, automotive, and telecommunications applications. Experience peace of mind knowing your sensitive equipment is safeguarded with this reliable converter.

Specification



Additional Information:

• Item Code: RW-DC068
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	12V
Output Voltage	3.3V
Material	ABS Plastic
Current	303mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link F1203S-1WR3 Isolated dc dc converter

Introducing the Hi-link F1203S-1WR3 isolated DC-DC converter. A trusted solution for smooth power conversion. This compact power module easily transforms 12V input to stable 3.3V output. And also deliver 1W of power with 303mA output current. With its isolation feature it also ensure safe and smooth power delivery. And also protect sensitive electronics from voltage change.

The Hi-link F1203S-1WR3 isolated DC-DC power module is designed for versatility and efficiency in various applications. Its compact design also make it perfect for less space device environments. And also ensure easy fitting into existing setups. Whether in industry machine, vehicle electronics, or tele communications device. This F1203S-1WR3 converter also provide stable power conversion with less energy loss.

Specification



Additional Information:

• Item Code: RW-DC115
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	5V
Output Voltage	3V
Material	Mild Steel
Current	1A
Usage/Application	Industrial
Phase	Single Phase

Overview of this Hi-link HLK-WRB0503S-3WR3H dc converterThe Hi-link HLK-WRB0503S-3WR3H is an advanced isolated DC to DC converter designed for efficient power conversion in electronic applications. With a focus on precision, this power module seamlessly converts a 5V input to a stable 3V output. And also deliver a reliable 3W of power with a maximum output current of 1A. The HLK-WRB0503S-3WR3H excels in providing a safe and isolated power supply.As a versatile Hi-link power module, the HLK-WRB0503S-3WR3H is suitable for a variety of applications. Its compact design and advanced specifications ensure optimal performance in projects where space-efficient power conversion is crucial. Whether used in industrial automation, communication modules, or embedded systems. This HLK-WRB0503S-3WR3H also use as a reliable choice, combining efficiency with high isolation to meet the demands of modern electronic systems.Specification Specification ValueInput Voltage5VOutput Voltage3VOutput Power3WMaximum Output Current1AApplicationsIndustry useEfficiencyUpto 92Operating Temperature Range-40 ~ +85 ℃Storage Temperature Range-55 ~ +125 ℃DimensionsWeight50gShort circuit protectionYesOvervoltage protectionYesCertificationRohsSKURW-DC026

Additional Information:

• Item Code: RW-DC026
• Production Capacity: 1000
• Delivery Time: 1-3 Days
• Packaging Details: In Box Packing

Input Voltage	10.8V to 13.2V
Output Voltage	9V
Material	ABS Plastic
Current	111mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link F1209S-1WR3 Isolated Dc Dc Converter

Introducing the Hi-link F1209S-1WR3 isolated DC-DC converter. A compact solution for efficient power conversion. This power converter transform 12V input to 9V output with a power rating of 1W and a current capacity of 111mA. Its SIP package design also ensure easy fitting into various electronic systems.

With the Hi-link F1209S-1WR3 isolated DC power module, you can rely on stable and safe power delivery for your applications. It also feature an isolation voltage of 1500VDC This module also provide better safety from electric interference. Whether in industry, vehicle electronic, or consumer electronics, this converter ensure high performance.

Specification



Additional Information:

• Item Code: RW-DC127
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	24V
Output Voltage	5V
Material	ABS Plastic
Current	666mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link WRB2405S-3WR2 Isolated dc dc converter

Introducing the Hi-link WRB2405S-3WR2 isolated DC-DC converter. A trusted solution for smooth power conversion. This compact SIP package module easily transform 24V input to stable 5V output. And also deliver 3W of power with 666mA output current. With its isolation feature this WRB2405S-3WR2 converter also ensure safe and smooth power delivery. And also protect safety for sensitive electronic from voltage change.

The Hi-link WRB2405S-3WR2 isolated DC power module is built to work in various applications. Its compact design and SIP package also make it perfect for less space device. And also ensure easy fitting into existing setups. Whether in industry machine, vehicle electronics, or telecommunications device. This WRB2405S-3WR2 converter also provide smooth power conversion with less energy loss.

Specification



Additional Information:

• Item Code: RW-DC117
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	12V
Output Voltage	5V
Current	1A
Usage/Application	Industrial
Phase	Single Phase
Weight	52 gm

Overview of This 12V to 5V 10W 1A DC converterIntroducing the VRB1205YMD-10WR3 12V to 5V 10W DC converter designed for various applications. This power module transforms a 12 volt input into a stable 5 volt output with high efficiency. And also deliver a consistent 1 ampere of current. With a power capacity of 10 watts, it caters to lower power electronics, ensuring seamless voltage conversion with minimal energy loss.Featuring a robust build and 1500VDC isolation voltage. This 12V to 5V 1A DC converter ensures reliable and safe power transformation. Its compact design makes it suitable for less space setups while giving high efficient and steady voltage output. Whether in electronics, automotive systems, or small gadgets. This converter provides a reliable solution for stepping down voltage while maintaining a steady 5 volt output at 1 ampere.SpecificationDetailsInput Voltage12VOutput Voltage5VOutput Power10WOutput Current1AIsolation Voltage1500VDCEfficiency91%Operating Temperature-40°C to +85°CProtectionOverload, overcurrentDimensionsCompact designApplicationsVarious electronic devices

Additional Information:

• Item Code: RW-DC135
• Production Capacity: 2500
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	21.6V - 26.4V
Output Voltage	5V
Current	200mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link B2405LS-1WR3 Isolated dc converter

Introducing the Hi-link B2405LS-1WR3 Isolated DC-DC Converter, a versatile solution for smooth power conversion. This innovative module efficiently transforms input voltage from 24V to 5V. And also provide a stable output of 1W at 200mA. With its compact SIP package design, it also ensure easy fitting into various device & optimize space use with best performance.

Designed for reliability and performance, the Hi-link B2405LS-1WR3 Isolated DC Power Module offers high efficiency and safety. Its isolation capability protects sensitive electronics from voltage change and electromagnetic interference. And also ensure smooth operation in diverse environment. Whether in industry machine, vehicle systems, or tele communications device. This module also deliver a smooth power delivery & enhance overall system performance.

Specification



Additional Information:

• Item Code: RW-DC103
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	5V
Output Voltage	24V
Material	ABS Plastic
Current	41mA
Usage/Application	Industrial
Phase	Single Phase
Weight	35 gm

Overview of this Hi-link F0524S-1WR3H isolated dc dc converter

Introducing the Hi-link F0524S-1WR3H Isolated DC-DC Converter. A trusted power solution built to fulfill a various application needs. This compact SIP package power module efficiently converts input voltages from 5V to 24V. And also ensure its function with a wide range of power source and system. With its robust design and high performance, this Hi-link F0524S-1WR3H is best choice for engineers who need a compact yet powerful DC-DC converter solution.

Featuring an isolated power design, the Hi-link F0524S-1WR3H provides enhanced safety and reliability by preventing electric interference and reduce the risk of voltage spikes. This ensures stable and consistent power delivery,. And also make it perfect to power sensitive electronic component and system. Whether you’re work on industry automation, telecommunications, or consumer electronics projects. This converter also offers peace of mind knowing that your devices are powered safely and efficiently.

Specification



Additional Information:

• Item Code: RW-DC122
• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: in box packing

Input Voltage	9V to 36V
Output Voltage	5V
Current	2A
Usage/Application	Industrial
Phase	Single Phase
Weight	35gm

Overview of this Hi-link URA2405YMD-10WR3 isolated dc converter

Introducing the Hi-link URA2405YMD-10WR3 Isolated DC-DC Converter. A trusted and robust power module built to cater to a diverse range of application needs. This innovative DIP package power module is built to efficiently convert input voltages from 9V to 36V into a stable 5V output. And also deliver an impressive 10W of power with 2A current.

With its meticulously crafted isolated design. This Hi-link URA2405YMD-10WR3 guarantees enhanced safety and reliability by effectively reduce the risks associated with electric interference. This feature is particularly crucial in environments where precision and consistency in power delivery are paramount. And also ensure optimal performance even in the presence of external disturbances.

Specification



Additional Information:

• Item Code: RW-DC123
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In box packing

Input Voltage	40V to 160V
Output Voltage	24V
Material	ABS Plastic
Current	1.25A
Usage/Application	Industrial
Phase	Single Phase
Weight	50gm

Overview of this Hi-link URB1D24LD-30WR3 Isolated dc converter

Introducing the Hi-link URB1D24LD-30WR3 Isolated DC Converter, a cutting edge power solution designed for versatility and reliability. With its advanced technology, this module efficiently converts voltages from 40V to 160V to a stable 24V output. And also deliver 30W of power with current of 1.25A.

Built for industry and commercial applications, the Hi-link URB1D24LD-30WR3 Isolated Power Module also ensure stable performance even in harsh environments. Its robust design and high quality part also guarantee long life & smooth operation. And also fulfill the power need of various device.

Specification



Additional Information:

• Production Capacity: 10000
• Delivery Time: 1-3 days
• Packaging Details: In box packing

Input Voltage	5V
Output Voltage	5V
Current	200mA
Usage/Application	Industrial
Phase	Single Phase
Weight	20g

Overview of this Hi-link E0505S-1WR3 5V to 5V 3W Dc converter

Introducing the Hi-link E0505S-1WR3 5V to 5V 3W DC converter, a compact and efficient power solution. This module easily converts 5V input voltage to 5V output voltage with a power rating of 3W & ensure reliable performance in various applications. With its Hi-link E0505S-1WR3 design, it offers stability and precision for your power needs.

Experience smooth power conversion with the Hi-link E0505S-1WR3 5V to 5V Power Module, designed for simplicity and reliability. Whether it’s industry automation, tele communications, or vehicle electronics, this module provides smooth and stable power delivery. Its compact size and robust construction make it ideal for integration into less space environments.

Specification



Additional Information:

• Item Code: RW-DC043
• Production Capacity: 10000
• Delivery Time: 1-3 Days
• Packaging Details: In box packing
