Connectivity Type	Wired (Corded)
Brand	Allen Bradley
Scanner Type	Laser
Usage/Application	Industrial
Type Of Operation	Hand Free
Color	Yellow and Black
Scanning Angle	190 to 270 Degree C

Details:

• Safety Light Curtains
• Safety Laser Scanners
• Hand Detection Safety Sensor
• Safety Mats
• Safety Edge Profiles

Sensing Mode	Proximity
Sensor Type	Diffused

Detection Range: 1 mm to 18 mm, with a typical sensing range of 1 mm to 15 mm for objects with 90% reflectivity.

Minimum Detectable Object: 0.1 mm at a 5 mm distance.

Light Source: Visible red PinPoint LED (660 nm wavelength).

Output Configuration: PNP, Light-ON switching mode.

Response Time: Less than 625 µs.

Switching Frequency: Up to 800 Hz.

Supply Voltage: 10 V DC to 30 V DC.

Connection: 200 mm cable with M8 3-pin connector.

Enclosure Rating: IP67, ensuring protection against dust and water ingress.

Operating Temperature: -20°C to +50°C.

Housing Material: Durable VISTAL® plastic.

Dimensions: 14 mm (W) x 24 mm (H) x 3.5 mm (D).

Weight: Approximately 13 grams.

Sensor Type	Diffused
Sensing Mode	Proximity

Sensor Type: Photoelectric proximity sensor with background suppression

Sensing Range: 1 mm to 35 mm

Switching Output: PNP (light switching)

Light Source: PinPoint LED

Connection: 3-wire, 2-meter PVC cable

Adjustment: Fixed (no manual adjustment)

Housing: Miniature rectangular format (G2F series)

Typical Applications: Precise object detection in constrained spaces, such as assembly lines and packaging systems

Brand	Sick
Resolution	1 mm
Accuracy	10 mm
Reproducibility	5 mm / 2.5 mm
Response Time	10 ms
Switching Frequency	50 Hz
Light Source	Laser
Model No.	DS50

SICK mid-range distance sensors are high-tech measurement instruments for customer requirements in the mid-measuring range.

Brand	Banner
Usage/Application	Industrial
Sensing Distance	Close- 25mm, Far- 610mm
Model Name/Number	Q4X Series
Supply Voltage	30 VDC
Range	300 mm
Packaging Type	Box
Outputs	Bipolar: 1 NPN; 1 PNP
Connection	Euro M12 5-Pin Integral Connector

This photoelectric sensor solves many challenging applications and comes in a rugged IP69K rating with FDA food grade stainless steel casing.

Brand	Banner
Usage/Application	Industrial
Material	ABS
Color	Black
Sensing Distance	2000 mm
Model Name/Number	Q5X Series
Supply Voltage	30 V DC
Packaging Type	Box

A powerful, problem-solving sensor in a cost-effective device with industry-standard rectangular housing.

Output Type	One discrete output (1 x NPN/PNP) and one analog output (1 x 4...20 mA)
Brand	Allen-Bradley
Diffuse Range	8m (Class 1 laser); 15m (Class 2 laser)
Retroflected Model Range	50 m
Response Time	10ms
Color	Black
Packaging Type	Box

45LMS Laser Measurement Sensors offer an excellent mid- to long-range measurement solution. Available in three ranges, this sensor uses the Time of Flight (ToF) principle and has a relatively small beam spot, even from a distance of 50m.

Brand	Sick
Usage/Application	Industrial
Packaging Type	Box
Measurement Ranges	500 mm
Light Type	LED
Voltage	30 V DC

Simply accurate measurement, CMOS receiving element for measurement independent of surface, Easy, LED-based user and teach-in concept.

Brand	Allen-Bradley
Light Source	Red LED
Degree of Protection	IP54
Output Type	PNP or NPN
Two Sensing Mode	Long Range and High Speed
Usage/Application	Industrial

45FPL Long-range Fiber Optic Sensors are compact DIN rail mount sensors for use with fiber optic cables up to 2.2 mm in diameter. These sensors have large status indicator displays and one touch multi-directional push-buttons.

Housing Material	Aluminum Die Cast
Supply Voltage	DC 12 V - 24 V, +- 10%, including residual ripple
Brand	Sick
Usage/Application	Industrial
Power Consumption	180 mA (at 24 V)
Weight	280 gm
Dimensions	78 x 75 x 29 mm
Enclosure Rating	IP67

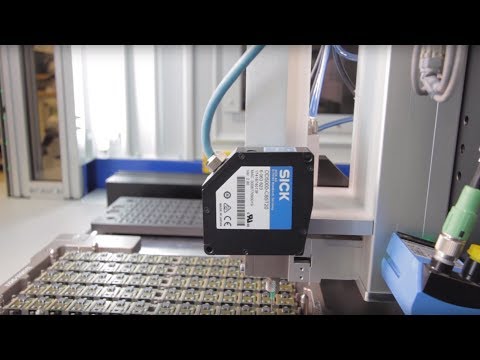

The expert for high performance measurement, Measuring frequency up to 80 kHz, Ethernet interface with TCP/IP protocol directly in the sensor head, Web server interface for configuration, Innovative analysis algorithm.

Housing Material	Metal
Brand	Sick
Connection type	Female connector, HRS, 12-pin (I/O, power supply)
Measuring ranges	125 mm
Response Time	More Than 5 ms
Ambient Operation Temperature	-10 Degree C to +40 Degree C
Ambient Storage Temperature	-20 Degree C to +60 Degree C
Type. Light Spot Size (Distance)	0.3 x 32 mm
Laser Class	2
Digital Output	3 x PNP

Cost-effective profile measurement, Measure complex profiles with just one laser line, Analyze up to four areas at the same time, Sensor head and evaluation unit in one device

Sensing Mode	Proximity
Sensor Type	Retro-Reflective

The SICK 1064340 is a miniature photoelectric proximity sensor from SICK's G2S series, specifically the GTB2S-F1451 model. Designed for precise object detection in confined spaces, it offers reliable performance with background suppression.
Key Specifications

• Sensing Range: 2 mm to 120 mm

• Output Type: PNP, Dark-ON switching

• Supply Voltage: 10 V DC to 30 V DC

• Response Time: < 0.6 ms

• Switching Frequency: 800 Hz

• Light Source: Visible red LED (640 nm)

• Connection Type: 3-wire cable, 2 meters

• Ingress Protection: IP67

• Operating Temperature: –25°C to +50°C

• Housing Dimensions: 7.7 mm (W) × 27.5 mm (H) × 13.5 mm (D)

• Housing Material: ABS plastic

• Cable Material: PVC

• Weight: 34.2 g

Sensing Mode	Proximity
Sensor Type	Retro-Reflective

The SICK 1064341 corresponds to the GTB2S-F5451 model, a miniature photoelectric proximity sensor from SICK's G2S series. This sensor is designed for precise detection of small objects in confined spaces, offering background suppression for reliable performance.
Key Specifications

• Sensing Range: 2 mm to 120 mm

• Output Type: PNP, Dark-ON switching

• Supply Voltage: 10 V DC to 30 V DC

• Response Time: < 0.6 ms

• Switching Frequency: 800 Hz

• Light Source: Visible red LED (640 nm)

• Connection Type: 3-wire cable, 2 meters

• Ingress Protection: IP67

• Operating Temperature: –25°C to +50°C

• Housing Dimensions: 7.7 mm (W) × 27.5 mm (H) × 13.5 mm (D)

• Housing Material: ABS plastic

• Cable Material: PVC

• Weight: 17.5 g

Sensing Mode	Proximity
Sensor Type	Retro-Reflective

The SICK 1062929, also known as the GTB2S-N1331, is a miniature photoelectric proximity sensor designed for precise object detection in compact industrial applications.
 Key Specifications

• Sensing Range: 1 mm to 36 mm (adjustable range: 5 mm to 30 mm)

• Light Source: Visible red light (640 nm)

• Sensor Type: Background suppression photoelectric sensor

• Output Type: NPN, Light-ON switching mode

• Response Time: < 0.6 ms

• Switching Frequency: Up to 800 Hz

• Supply Voltage: 10 V DC to 30 V DC

• Current Consumption: 20 mA

• Maximum Output Current: ≤ 50 mA

• Ingress Protection: IP67

• Ambient Operating Temperature: –25°C to +50°C

• Housing Dimensions: 7.7 mm x 21.8 mm x 13.5 mm

• Cable: 3-wire, 2 m PVC cable

Sensing Mode	Proximity
Sensor Type	Retro-Reflective

The SICK 1060203, also known as the GTB2S-N1451, is a compact and precise photoelectric proximity sensor designed for industrial automation applications.
Key Specifications

• Sensing Range: 2 mm to 120 mm

• Light Source: Visible red light (640 nm)

• Sensor Type: Background suppression photoelectric sensor

• Output Type: NPN, Light-ON switching mode

• Response Time: < 0.6 ms

• Switching Frequency: Up to 800 Hz

• Supply Voltage: 10 V DC to 30 V DC

• Current Consumption: 20 mA

• Maximum Output Current: ≤ 50 mA

• Ingress Protection: IP67

• Ambient Operating Temperature: –25°C to +50°C

• Housing Dimensions: 7.7 mm x 27.5 mm x 13.5 mm

• Cable: 3-wire, 2 m PVC cable

• Adjustment: Potentiometer (3 turns)

Sensor Type	Retro-Reflective
Sensing Mode	Proximity

The SICK 1064349, also known as the GTB2S-N5311, is a compact photoelectric proximity sensor designed for precise detection in industrial automation applications

 Key Specifications



• Sensing Range: 1 mm to 18 mm (adjustable range: 4 mm to 15 mm)

• Light Source: Visible red light (640 nm)

• Sensor Type: Background suppression photoelectric sensor

• Output Type: NPN, Light-ON switching mode

• Response Time: < 0.6 ms

• Switching Frequency: Up to 800 Hz

• Supply Voltage: 10 V DC to 30 V DC

• Current Consumption: 20 mA

• Maximum Output Current: ≤ 50 mA

• Ingress Protection: IP67

• Ambient Operating Temperature: –25°C to +50°C

• Housing Dimensions: 7.7 mm x 21.8 mm x 13.5 mm

• Cable: 3-wire, 2 m PVC cable

Sensing Mode	Proximity
Sensor Type	Diffused

Sensor Type: Photoelectric proximity sensor with background suppression

Sensing Range: 1 mm to 36 mm (optimized for 5 mm to 30 mm)

Light Source: PinPoint red LED (640 nm)

Output: PNP, light-switching mode

Response Time: < 0.6 ms

Switching Frequency: 800 Hz

Housing: Rectangular ABS plastic (7.7 mm × 21.8 mm × 13.5 mm)

Protection Rating: IP67

Operating Temperature: –25 °C to +50 °C

Connection: 2-meter PVC cable (3-wire)

Sensing Mode	Proximity
Sensor Type	Diffused

Sensing Range: 1 mm to 18 mm

Output Type: PNP, Light-ON

Response Time: 600 µs

Light Source: Red LED (640 nm)

Supply Voltage: 10–30 V DC

Operating Temperature: -25°C to +50°C

Ingress Protection: IP67

Dimensions: 7.7 mm (W) × 21.8 mm (H) × 13.5 mm (D)

Cable Length: 2 meters

Sensing Mode	Proximity
Sensor Type	Diffused

Sensing Range: 2 mm to 120 mm (optimized for 25 mm to 90 mm)

Light Source: Visible red PinPoint LED (640 nm)

Output Type: PNP, Light-ON switching mode

Response Time: < 0.6 ms

Switching Frequency: 800 Hz

Adjustment: 3-turn potentiometer

Housing Dimensions: 7.7 mm × 27.5 mm × 13.5 mm

Protection Rating: IP67

Operating Temperature: –25°C to +50°C

Connection: 200 mm cable with M8, 3-pin connector

Usage/Application	Industrial
Brand	Sick
Measuring Range	250 mm
Response Time	More Than 2 ms
Measuring Frequency	Less Than 2 kHz
Ambient Operation Temperature	-10 Degree C to +50 Degree C
Ambient Storage Temperature	-20 Degree C to +60 Degree C

Compact, lightweight sensor for precise measurement,  Compact, rugged housing, Stand-alone use or in combination with the OD Mini evaluation unit, Display and LEDs on device for visualization of current status.

Additional Information:

• Delivery Time: ex stock

Brand	Allen-Bradley
Response Time	1 ms
Temprature	10 to 55 Degree C
Environmental Protection	IP67
Sensing Range	50 mm
Color	Black

Detects the presence of invisible luminescence/fluorescent particles and materials45LUM Luminescence Sensor, the latest addition to our photoelectric sensor portfolio. This advanced sensor detects the presence of luminescent/fluorescent particles that are inherent in glues, inks, clear labels, oils, greases, paints, detergents and chalks. By emitting ultraviolet light, this sensor detects visible light reflected from fluorescent/luminescent objects regardless of the background or surface.

Brand	Allen-Bradley
Usage/Application	Industrial
Detects Objects	0.2 mm
Status Indicators	Power and Output
Color	Black
Packaging Type	Box

45LSP Plastic Fork Sensors are a self-contained low cost alternative to transmitted beam sensors for small parts detection. Simple push button sensitivity adjustment, multiple connection options and flexible mounting features make the 45LSP an economical, easy-to-use solution for many applications.
