Nexus Automech Private Limited

Brand	Allen-Bradley
Usage/Application	Industrial
Voltage Type	AC
Color	Red
Country of Origin	Made in India
Packaging Type	Box

Product Details:

440C-CR30 Software Configurable Safety Relay is flexible, cost-effective, and easy to use. This relay is ideal for applications requiring as many as ten dual-channel safety circuits and controlling as many as five output zones. You can configure this relay by selecting certified safety function blocks to rapidly build your applications.

Brand	Allen-Bradley
Usage/Application	Industrial
Voltage Type	AC
Color	Red and White
Country of Origin	Made in India
Packaging Type	Box

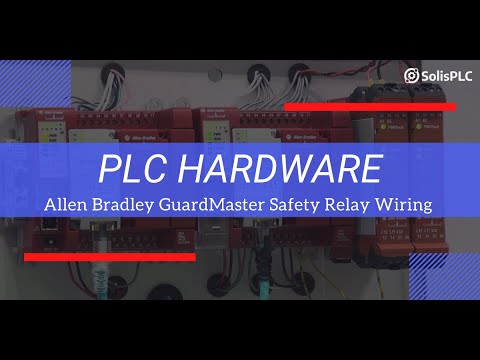

Guardmaster single-function safety relays are designed to meet functional safety standards, such as ISO 13849-1 or IEC 62061, and they offer key functions to simplify installation and system complexity. In addition, information gathered from the GSR intelligent safety relays via the optional EtherNet/IP Interface helps minimize unplanned downtime, increase efficiencies, and enable The Connected Enterprise®.

Material	Polycarbonate

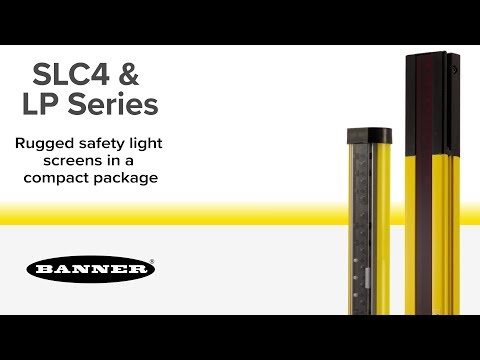

Model Name/Number	SLC4 Series
Technique	Type 4 Per IEC 61496-2
Automation Grade	Automatic
Dimension	26.7 x 22.1 mm
IP Rating	IP65
Operating Range	2 mm

Details:

• Defined area heights of 160 mm (6.3 in), 240 mm (9.4 in), and 320 mm (12.6 in) 0.1 m to 2 m (4 in to 6.5 ft) sensing range
• 14 mm (finger detection) or 24 mm (hand detection) resolution models available
• Sturdy interior aluminum housing with IP65 polycarbonate enclosure
• Basic functionality with auto start/restart (trip output)
• End-to-end sensing design (no blind zone)
• Integral 300 mm M12 QD Pigtail included
• Versatile mounting options, including rotating end and side mount brackets (sold separately)
• Highly immune to EMI, RFI, ambient light and strobe light
• Safety PLC input compatible (per OSSD specifications)
• FMEA tested to ensure control reliability

Material	Aluminum
Color	Yellow and Black
Model Name/Number	LS Series
Technique	Type 4 Per IEC 61496-2
Automation Grade	Automatic
IP Rating	IP65
Operating Range	24 VDC
Brand	Banner

Details:

• Full featured models with options to meet a wide range of applications
• Heavy-duty aluminum housing and recessed window to avoid damage in harsh environments
• End-to-end sensing
• Highly visible alignment and diagnostic indicators
• 14, 23 & 40 mm resolution (detection capability)
• Available in 23 defined area heights from 280 to 1820 mm in 70 mm increments
• External device monitoring, auxiliary fault options and scan code select included (with 8-pin connectors)
• IP65/IP67 environmental rating with IP69K models available
• Cascade capable models available
• Remote fixed blanking to ignore stationary objects
• Optional status indicator or fixed blanking control with cascade models

Material	Aluminum Extruded Profile
Model Name/Number	C4000 Palletizer, C4000 Select, C4000 select ex, C4000 Entry/Exit, C4000 Fusion, C4000 fusion ATEX
Automation Grade	Automatic
Voltage	24 V DC
Operating Temperature	0 Degree C - +55 Degree C
Nominal Sensing Distance	21 m
Brand	Banner

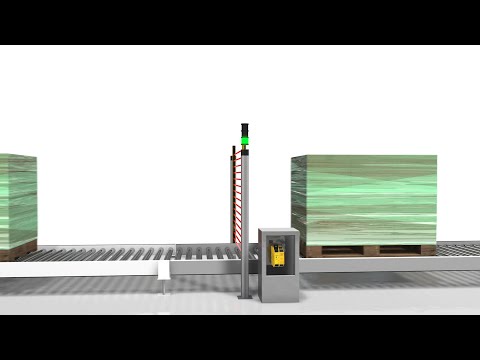

Safety light curtains reliably and cost-effectively protect against access into hazardous points and areas. Depending on the variant, different machine functions are integrated or can be selected via safe control solutions. The range from small and compact types to extremely robust and resistant variants that withstand special ambient conditions up to the highest safety level.

• C4000 Palletizer,
• C4000 Select,
• C4000 select ex,
• C4000 Entry/Exit,
• C4000 Fusion,
• C4000 fusion ATEX,
• C4000 Advance,
• C4000 Standard,
• C4000 Fusion Ex,
• C4000 Advance Ex,
• C4000 Advance ATEX,
• C4000 Standard ATEX,
• C4000 Entry/Exit ATEX

Material	Aluminum
Model Name/Number	EZ-Array Series
Range Of Product	4 m
Automation Grade	Automatic
Brand	Banner
Beam Spacing	5 mm
Array Heights Range	2400 mm

EZ-ARRAY light screens excel at high-speed, precise process monitoring and inspection, profiling and web-guiding applications with simple installation.

Material	Polycarbonate
Color	Yellow
Model Name/Number	M4000 Series
Range Of Product	70 m
Automation Grade	Automatic
Voltage	24 VDC
Brand	Sick

Details:

• Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849)
• Rugged housing with three mounting grooves
• 7-segment display
• Resolution 14 mm or 30 mm, scanning range up to 19 m
• External device monitoring (EDM), restart interlock (RES), application diagnostic output (ADO), and SDL interface
• Beam coding for correct system allocation
• Muting: on-site connection and processing in combination with the UE403 muting switching amplifier
• Configuration and diagnostics via PC

Material	Plastic
Model Name/Number	C4000 Series
Automation Grade	Automatic
Packaging Type	Box
Brand	Sick
Power Source	24 VDC
Ambient Light	-5 to 50 Degree C

Details:

• Configuration via DIP switch, without PC
• Long scanning range up to 19 m
• Integrated laser alignment aid and alignment display
• Rugged housing with three mounting grooves for maximum mounting flexibility
• Single beam / double beam blanking
• Diagnostics via 7-segment display - error codes directly on the device
• Beam coding for correct system allocation
• Can cascade up to three light curtain systems or one safety laser scanner

Material	Stainless Steel V4A
Model Name/Number	MiniTwin-2, MiniTwin- 4, MiniTwin - OX4
Automation Grade	Automatic
Brand	Sick
Power Source	24 V DC
Detecting Distance	4.5 m

The miniTwin4 safety light curtain is the smallest electro sensitive protective device of its kind. It is mainly used at hazardous points for finger and hand protection. The miniTwin, which is based on a twin stick design, combines the technologies of both sender and receiver into one compact housing unit. Whether it is used as a stand alone device or it is cascaded with other miniTwin light curtains, the miniTwin4 enables machine access protection up to the highest safety level, PL e. Protective field heights, in 60 mm increments, from 120 mm to 1,200 mm are available and it is possible to cascade up to three systems. Commissioning, which is almost completely automatic, requires no software. This along with the bracket sets saves valuable installation time. The miniTwin4 offers a modern, industrial design that combines an intuitive operating system with sustainable optics.

The miniTwin2 safety light curtain is currently the smallest electro sensitive protective device of its kind. It is mainly used at hazardous points for finger and hand protection. The sender and receiver are combined and integrated into an extremely compact housing. Whether it is used as a standalone device or it is cascaded with other miniTwin light curtains, the miniTwin2 enables machine access protection up to the safety level PL c. Protective field heights ranging from 120 mm to 1,200 mm are available and it is possible to cascade up to three systems. Individual protective fields are extremely easy to implement by virtue of housing lengths in 60 mm increments. Commissioning, which is almost completely automatic, requires no software. This along with the bracket sets saves valuable installation time. The miniTwin2 offers a first rate, modern, industrial design that combines an intuitive operating system with sustainable optics.

In the pharmaceutical industry, extremely aggressive cleaning and decontamination agents require products that are highly resistant and rugged. The TWINOX4 stainless-steel safety light curtain has been designed specifically for use in the pharmaceutical industry. Since it has no edges or gaps, its design is particularly suitable for the protection of machines with stringent hygiene requirements. Due to its compact size, the TWINOX4 is ideal for flexible installation when space is limited. It boasts impressive features  it is rugged, easy to clean, and made of stainless steel.

Brand	Allen-Bradley
Model Name/Number	440F MatGuard Safety Mats
Construction	Hardened Steel Plate
Detection	4-wire system to detect opens and shorts
Pressure	Can withstand a static pressure of 4500 psi
Rated	IP67
Min. Detection Weight	29.9 kg

440F MatGuard™ Safety Mats are pressure-sensitive safeguarding products that we designed to detect the presence of people on the sensing surfaces. These mats have two conductive hardened steel plates that are held apart by non-conductive compressible separators.

IP Rating	IP54
Lighting Type	LED
Lighting Color	Cool White
Brand	Sick
Connection Type	M12 male connector, 8-pin
Height	Detection Height 50 mm
Usage/Application	Industrial

The HLG is designed for high-resolution and high-speed detection of the smallest objects, like letters in a mail system

Brand	Allen Bradley
Mounting Type	Panel
Number Of Poles	4 Pole
Voltage	240 VAC
Power Source	Electric
Relay Type	Voltage Relay
Packaging Type	Box

E300 Electronic Overload Relay Includes intelligent motor control, Provides diagnostic information, Includes Test/Reset button, Provides protection for single- and three-phase motors.

Housing Material	75 x 25 x 29 mm
Contacts	2 N.C. or 1 N.O. and 1 N.C.
Environmental Protection	IP67
For Difficult Applications	GD2 style available
Color	Red
Packaging Type	Box

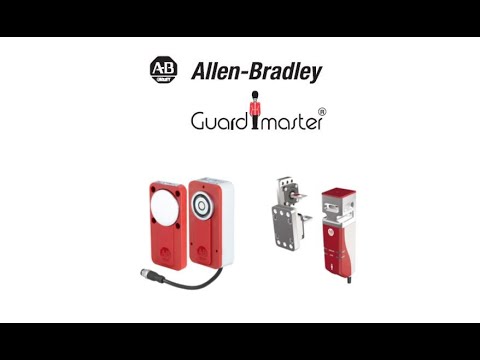

Miniature Tongue Interlock Switches are tongue-or key-operated safety interlock switches that fit at the leading edge of sliding, hinged, or lift-off guards. The unique miniature housing makes the Elf interlock switch one of the smallest of its kind currently available. This switch is ideal for smaller machines such as printers, copiers and domestic machinery which, until now, have been unable to use safety interlocks due to space restrictions.

Color	Yellow
Beam separation or resolution	600 mm
Scanning Range	70 m External Device Monitoring
Fields of Applications	Access Protection
Safety Integrity Level	SIL3, SILCL3
Enclosure Rating	IP65

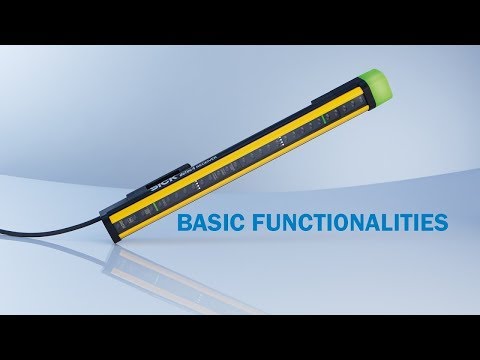

M2000 RES/EDM A/PProtection using intelligent wiring and integrated functionsThe M2000 RES/EDM A/P multiple light beam safety device is an ideal solution for simple access protection. Similar to the M2000 A/P Standard, this safety device is particularly economical since only the active side must be wired, which reduces the required installation considerably. In addition, the integrated restart interlock (RES) provides shorter cable runs and fast commissioning times. The functions are easy to understand and the mechanical and electrical interfaces are simple to manage. Integrated functions and status information enable quick commissioning and minimize machine downtime. The modular concept allows customization of the deviceaccording to the application requirements and ensures high machine safety. In addition, sens:Control devices, accessories, and services complete the product offering and form packaged solutions designed specifically for industrial environments.
