CNC Machines

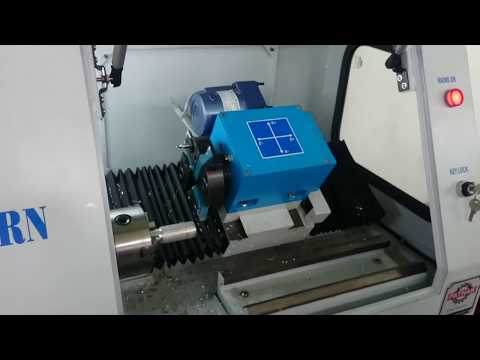

| Maximum Turning Length | 180 |
| Maximum Turning Diameter | 60 |
| Spindle Size | na |
| Spindle Motor Power Fanuc Continuous | mach3 |
| Model Name/Number | cnc trainer 180 |
| Brand | T.L. PATHAK GROUP |
| Country of Origin | Made in India |
| Max swing over bed | 180mm |
| Max.length of work pieces | 300mm |
| Spindle bore | 20mm |
| Spindle taper | MT3 |
| Spindle speed | 50-2250rpm |
| Metric thread cutting | 0.5-2.5mm |
| Inch thread cutting | 12-52TPL |
| Electric toolpost | 4-Position |
| X Travel | 60 MM |
| Z Travel | 250mm |
| X Moving speed | 800mm/min |
| Z Moving speed | 1200mm/min |
| Spindle motor power | 400w (optional;550w) |
| X Motor power | 1.5 NM |
| Z Motor power | 2 NM |
| Mini setting unit | 0.001mm |
| Tailstock diameter | 20mm |
| Tailstock Travel | 50mm |
| Tailstock taper | MT2 |
| Overall size | 900x400x1250mm |
| Net Weight | 90 kgs WITH STAND 135 KGS |
| CONTROLLER | MACH 3 |
| Max swing over bed | 180mm |
| Max.length of work pieces | 300mm |
| Spindle bore | 20mm |
| Spindle taper | MT3 |
| Spindle speed | 50-2250rpm |
| Metric thread cutting | 0.5-2.5mm |
| Inch thread cutting | 12-52TPL |
| Electric toolpost | 4-Position |
| X Travel | 60mm |
| Z Travel | 250mm |
| X Moving speed | 800mm/min |
| Z Moving speed | 1200mm/min |
| Spindle motor power | 400w (optional;550w) |
| X Motor power | 1.5 NM |
| Z Motor power | 2 NM |
| Mini setting unit | 0.001mm |
| Tailstock diameter | 20mm |
| Tailstock Travel | 50mm |
| Tailstock taper | MT2 |
| Overall size | 900x400x1250mm |
| Net Weight | 90 kgs WITH STAND 135 KGS |
View Complete Details

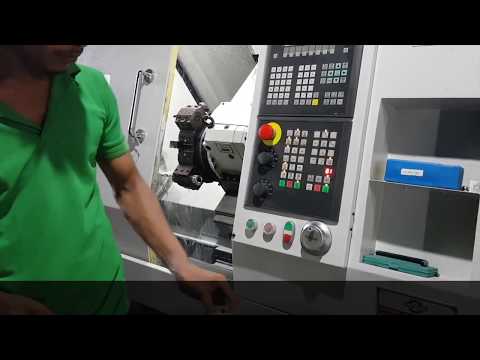

| Cross (X-Axis) Travel | 175 MM |
| Longitudinal (Z-Axis) Travel | 350 MM |
| Spindle Nose | A2-5 |
| Spindle Bore | 45 MM |
| Chuck Size | 170 mm |
| Quill Stroke | 100 mm |
| Quill Taper | MT4 |
| Machine Condition | New |
| Brand | T.L. PATHAK GROUP |
| Country of Origin | Made in India |
| Maximum Turning Diameter | 275 mm |
| Standard Turning Diameter | 165 mm |
| Max Turning Length | 280 mm |
| Admit Between Centers | 350 mm |
| Model Number | MX TURN 165 |
| Swing Over Bed | 475 mm |
| Maximum Turning Dia. | 275 MM |
| Standard Turning Dia. | 165 MM |
| Max.Turning Length (with chuck) | 280 MM |
| Admit Between Centres | 350 MM |
| Rapid Feed (X & Z Axis) | 30/30 m/min |
| Spindle Motor Power | 5.5/75KW cont/30 min. |
| Max.Bar Capacity | 38 MM |
| Spindle Speed Range | 50-4500 rpm |
| Full Power Speed Range | 100-3300 rpm |
| Quill Dia. | 80 mm |
| Base Travel | 250 mm |
| No. of Tool Position | 8 no |
| Tool Shank Size | 25x25 mm |
| Max Boring Bar Dia. | 40 mm |
| Positioning Uncertainty | 0.007 |
| Repeatability | 0.003 mm |
| Weight ( Approx.) | 3400 kg |
| Dimension (Approx.) | 2600x1450x1800 (L x W x H) |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
| Spindle Power | 3 kW |
| Brand | T.L. PATHAK GROUP |
| Job Material | Wood, Plastic, Acrylic |
| Weight | 1200 kg |
| Machine Condition | New |
| Voltage | 220 V |
| Country of Origin | Made in India |
| Power consumption | 400 W |
| Operation Mode | Automatic |
| Model Number | K 1325 Stone CNC |
| Working Size (x,y,z) | 1300*2500*190 mm |
| Maximum Moving Speed | 10000mm/min |
| Reposition Accuracy | <0.05mm/300mm |
| Max Engraving Speed | 6000-24000rpm |
| Tool Diameter | 3.175,4, 6,12 |
| Feeding Height | 190mm |
| X,Y,Z Guide Rail | Hiwin square Linear Rail |
| Engraving Instruction | HPGL, G code |
| Motor / Drive | Steper motor |
| Working Voltage | AC220V/50HZ (AC can use 380V) |
| Platform | Aluminium |
| Cross beams | Steel |
| Machine Size | 3000*1700*1900mm |
We provide a very wide range of affordable CNC wood signature Routers of great quality designed and developed by our highly professional team. We are the best manufacturer and producer as we make our machines in such a way that they are compatible with a variety of different industrial applications. We use sophisticated technologies to manufacture the perfect machine for your usage.
Special Features
- Inbuilt Computer System
- Auto Tool Height Sensor
- Control System From U.S.A
- Variable Speed and Feed Range
- Easy To Use Software
- Work table area: 1300 X 3010 mm
- X, Y, Z Maximum working area: 1300 X 2500 X 300 mm
- Cutting speed: 35 meter / min
- Max height of material: 300 mm
- Max width of material: 1350 mm
- Drive system: Advanced Digital Micro Step Drivers
- Spindle: 3500 W air cool
- Spindle rotating speed: 6000-18000 rpm
View Complete Details
| Brand | T.L. PATHAK GROUP |
| Max Bending Radius | 200-250 mm |
| Phase | Three Phase |
| Power | CNC |
| Automatic Mode | Automatic |
| Automation Grade | Automatic |
| Country of Origin | Made in India |
| Max.Turning Length | 180 mm |
| Max.job swing Diameter | 180 mm |
| std.Turning Diameter | 60 mm |
| Cross (X-Axis) | 300 mm |
| Longitudinal (Z-Axis) Travel | 200 mm |
| Rapid Feed (X & Z Axis) | 24 m/min |
| Spindle Motor Power | 5.5/7 Kw cont/30min.rating |
| Spindle Bore | 44 mm |
| Spindle Nose | A24 |
| STD.Chuck Dia | 135 mm |
| Max.Bar capacity | 36 mm |
| Spindle Speed Range | 100/5000 mm |
| Full Power Speed Range | 800-3000 rpm |
| Tool Holder Shank height x width | 20x20 mm |
| Boring Bar Shank Diameter | 32max mm |
| Positioning | 0.015 mm |
| Repeatability | 0.003 mm |
| Machine Size | 1760 mm |
| Floor Space (Length x Width) | 1540 x 1208 |
| Machine Weight | 1550 Approx kg |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details

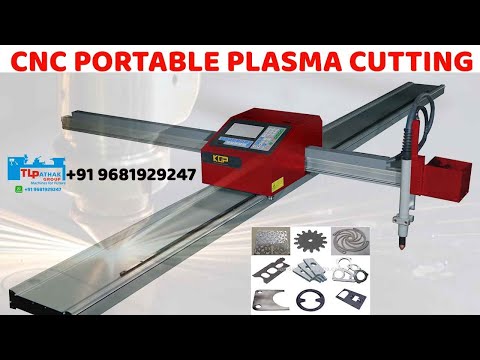

Portable Cnc Plasma Cutting Machine
₹ 4,32,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Automation Grade | Fully-automatic |
| Power | single phase |
| Voltage | 220 |
| Material | Mild Steel |
| Cutting Method | Plasma |
| Max Cutting Speed | 500-1000 mm/min |
| Max Cutting Thickness | 20 mm |
| Working Area | 3mtr x 1.5 mtr |
| Flame Torch | included |
| Max Cutting Length | 1000-2000 mm |
| Country of Origin | Made in India |
| MCHINE Type | Portable (Plasma / Oxyfuel) |
| Model No. | Arc Mate Portable PC1530FL |
| Driving configuration | Single drive 57 series steper motor |
| Cutting head | Oxy-fuel with manual z-axis up-down movement |
| Max.Travel Speed | 3000mm/min |
| Input Power | Single phase 220V, 50 Hz |
| Gases required | Oxygen and LPG |
| Z-axis (torch) lifting distance | <100mm |
| Working accuracy | +/- 0.2mm |
| Cutting capacity | 5-60mm (Mild steel) |
| Controller | 7'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
| Nesting software | Fast Cam basic |
| Cutting Table Base | To be constructed by end used, drawing will be provided against order |
| Req.Installation Area | W 3.7mm * L3.6m * H1.0m |
| Brand | T.L. PATHAK GROUP |
|
Specification |
Description |
|
|
Machine Type |
Portable (Plasma / Oxyfuel) |
|
|
Model No. |
ArcMate Portable PC1530FL |
Arcmate Portable PC1530PL |
|
Driving configuration |
Single drive 57 series steper motor |
|
|
Cutting head |
Oxy-fuel with manual z-axis up-down movement |
Plasma with Auto z-axis up-down movement |
|
Max. Travel Speed |
3000mm/min |
|
|
Input Power |
Single phase 220V, 50Hz |
Single phase 220V, 50Hz + Plasma (depends on power source selection) |
|
Gases required |
Oxygen and LPG |
Compressed air |
|
Z- axis (torch) lifting distance |
< 100mm |
|
|
Working accuracy |
+/- 0.2mm |
|
|
Cutting capacity |
5-60mm (mild steel) |
1-25mm (depending on Plasma rating |
|
Controller |
7” wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
|
Additional Information:
- Production Capacity: 2
- Delivery Time: 15 20 days
View Complete Details

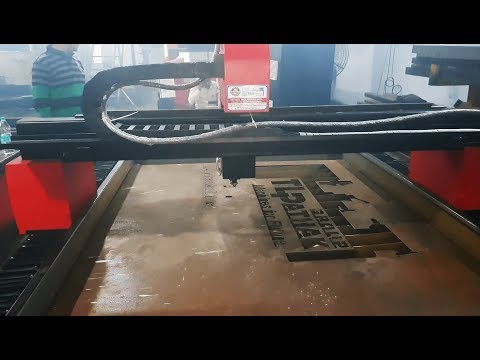

| Automation Grade | Fully-automatic |
| Power | SINGLE PHASE |
| Voltage | 220 V |
| Material | Stainless Steel |
| Cutting Method | Plasma |
| Rated Power | 220 |
| Max Cutting Speed | >4000 mm/min |
| Max Cutting Thickness | 20 mm |
| Max Cutting Length | 1000-2000 mm |
| Country of Origin | Made in India |
| Brand | T.L. PATHAK GROUP |
| Machine Type | Advance Table Top |
| Model No | Arcmate Advance TT PC1530ST |
| Advance Feature | Wireless remote for x-y- axis alignment |
| Driving Configuration | Dual drive 86 series stepper motor |
| Cutting Head | Plasma with Auto z-axis up-down movement and Oxyfuel with manual up down switch |
| Max. Travel Speed | 6000mm/min |
| Input Power | Single phase 220V, 50Hz + Plasam (depends on power source slection) |
| Gases Required | Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting |
| Z- axis (torch) Lifiting Distance | <100mm |
| Working Accuracy | +/-01.15mm |
| Cutting Capacity | 2mm to 25 mm (Mild steel) depending on Plasam power source selection / 10mm to 150mm for Oxy-fuel cu |
| Controller | 10.4" wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
| Nesting Software | Fast Cam basic |
| Cutting Table Base | Standard material collection table with weight carrying capacity of 1200kg |
| Req. Installation Area | W 2.2 *L 4.2m *H1.5m |
|
Specification |
Description |
|
|
Machine Type |
Advance Table Top |
|
|
Model No. |
Arcmate Advance TT PC1530ST |
Arcmate Advance TT PC1530SR |
|
Advance Feature |
Wireless remote for x-y axis alignment |
|
|
Driving configuration |
Dual drive 86 series stepper motor |
Dual drive 400w servo motor with planetary reducer |
|
Cutting head |
Plasma with Auto z-axis up-down movement and Oxyfuel with manual up-down switch |
|
|
Max. Travel Speed |
6000mm/min |
12000mm/min |
|
Input Power |
Single phase 220V, 50Hz + Plasma (depends on power source selection) |
|
|
Gases required |
Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting |
|
|
Z- axis (torch) lifting distance |
< 100mm |
|
|
Working accuracy |
+/- 0.15mm |
|
|
Cutting capacity |
2mm to 25mm (Mild steel) depending on Plasma power source selection / 10mm to 150mm for Oxy-fuel cutting |
|
|
Controller |
10.4” wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
|
|
Nesting software |
Fast Cam basic |
|
|
Cutting Table Base |
Standard material collection Table with weight carrying capacity of 1200Kg |
|
|
Req. Installation Area |
W 2.2m * L 4.2m * H1.5m |
|
View Complete Details
| Cutting Material | MDF |
| Capacity | 900 MM X 600 MM |
| Laser Type | CO2 |
| Brand | T.L. PATHAK GROUP |
| Usage/Application | Industrial |
| Material | Mild Steel |
| Laser Power | 30-150 W |
| Cutting Speed | 60,000 mm/mn |
| Working Area | 600x400 |
| Operating Temperature | 0-45'C |
| I Deal In | New Only |
| Power Supply | 220 V /50 Hz |
| Model Name/Number | CO2L1 |
| Country of Origin | Made in India |
| Graphic formet supported | DST,PLT,BMP,DXT |
| Software Supportec | Coreldraw, Photoshop Autocad |
| Driving Motor | Stepper Motor |
| Operating humidity | 5-95 % |
| Equipment Size | 1360x800x1080mm |
| Weight | 250 KG |
Product Description
Quality being our prime concern, we with an aid of our enriched industry expertise as well as highly qualified and trained manpower facilities, we are able to bring forth the finest Laser Cutting Machine. Tested on various parameters in order to ensure its quality, clients can avail these machines from us at a pocket-friendly price.
Applicable Materials:
Plexiglas’s, acrylic, wooden product, rubber, ceramic tile, crystal, bamboo product, jade, granite, marble, resin and other non-metal materials
Applicable Industry:
The laser engraver and cutting machine DE-1490 is suitable to professional user for cutting Performance in art gift, package, portraits, cloth toy and other industries
Equipment performance:
The double guide rail, step drive, belt transmission, tube feeding, the honey-comb striation, the circulation of water cooling, the hydraulic protection, exclusion of dust and smoke, the huff protection
Applications:
Advertising industry, decoration, furniture, model manufacturing, and handicraft industry
The machine is widely applied in the fine engraving, cutting and hollowing out on non-metallic materials like acrylic, organic board, double color plate, plank, bamboo product, paper, glass, etc
With all kinds of characters, graphs, images, trademarks and so on
View Complete Details
CNC TABLE TOP PLASMA CUTTING MACHINE
₹ 9,96,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Automation Grade | Fully-automatic |
| Power | SINGLE PHASE |
| Material | Stainless Steel |
| Phase | SINGLE |
| Country of Origin | Made in India |
| COLOUR | RED |
| SIZE | 3 MTR X 1.5 MTR |
| CUTTING THICKNESS | 15MM |
| Machine Type | Lite Table top |
| Model No. | Arcmate Lite PC1530PL |
| Advance Feature | Wireless remote for x-y axis alignment |
| Driving configuration | Dual drive 86 series steper motor |
| Cutting head | Plasma with Auto z-axis up-down movement |
| Max.Travel Speed | 6000mm/min |
| Input Power | Single Phase 220V, 50 Hz + Plasma (depends on power source selection) |
| Gases required | Compressed air |
| Z-axis (torch) lifting distance | < 100mm |
| Working accuracy | +/- 0.15mm |
| Cutting Capacity | 1-16mm (depending on plasma rating) |
| Controller | 7'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
| Nesting software | Fast Cam basic |
| Cutting Table Base | Standard water-table with weight carrying capacity of 600kg |
| Req. Intallation Area | W 2.4m * L3.7m * H1.5m |
| Brand | T.L. PATHAK GROUP |
|
Specification |
Description |
|
Machine Type |
Lite Table top |
|
Model No. |
Arcmate Lite PC1530PL |
|
Advance Feature |
Wireless remote for x-y axis alignment |
|
Driving configuration |
Dual drive 86 series steper motor |
|
Cutting head |
Plasma with Auto z-axis up-down movement |
|
Max. Travel Speed |
6000mm/min |
|
Input Power |
Single phase 220V, 50Hz + Plasma (depends on power source selection) |
|
Gases required |
Compressed air |
|
Z- axis (torch) lifting distance |
< 100mm |
|
Working accuracy |
+/- 0.15mm |
|
Cutting capacity |
1-16mm (depending on Plasma rating) |
|
Controller |
7” wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
|
Nesting software |
Fast Cam basic |
|
Cutting Table Base |
Standard water-table with weight carrying capacity of 600Kg |
|
Req. Installation Area |
W 2.4m * L 3.7m * H1.5m |
View Complete Details
| Voltage | 220 Volt |
| Brand | HIPAT |
| Job Material | Wood |
| Max Job Size | 2500 X 1400 |
| Spindle Power | 3KW |
| Operation Mode | Automatic |
| Spindle Speed | 20000 RPM |
| Reposition Accuracy | 0.01 |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
| Automation Grade | Fully-automatic |
| Cutting Method | Flame, Plasma |
| Max Cutting Thickness | 20 mm |
| Brand | HIPAT |
| Size | 2000X3500 |
| Max Cutting Width | 2000-3000 mm |
Model: 2000 x 3500 CNC plasma Cutting Machine
Ø Table Width 2000 mm
Ø Working width: 1500 mm
Ø Table length: 3500 mm
Ø Working length: 3000 mm
Ø CNC controller system: 1 No (MODEL : FLSK-2100B)
Ø Plasma torch lifter station: 1 No (WELDARC)
Ø Plasma TORCH height sensor- 1 set ( PTHC 200DC)
Ø Nesting software : 1 set ( FASTCAM _ AUSTRALIA)
Ø Gear Box ( Planetary )
Ø Motors & Drives STEPPER
Ø Powersource Hypertherm PMX 45 , USA
View Complete Details
| Brand | T.L. PATHAK GROUP |
| Country of Origin | Made in India |
| Model Number | HC-60GN |
| Spindle Hollow | 62 mm |
| Range of spindle speed | 90- 1000 rpm |
| Center of holes above turret slide | 45 |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
| Brand | T.L. PATHAK GROUP |
| Country of Origin | Made in India |
| No of cutting torches | 1 nos. plasma cutting station |
| Positioning speed | Maximum 10 m/ min |
| Positioning accuracy | +/- 0.5 mm |
| Repeat ability | +/- 0.2 mm |
| Shape accuracy | +/- 0.6 mm |
| Kerfs compensation | +/- 15 mm in 0.1 mm Increment |
| Motion System | Linear Drive (Rack & Pinion) |
| Z-Travel | 250 mm |
| Linear Positional Accuracy | + 0.05 mm per Axis |
| Material Used in Tank | MS with SS (lining over the edge) |
| Control System | WEIHONG/ECKEMANN/ECS |
| Software | MOST 2D/ IGEMS/FASTCAM |
| Wireless Remote | OK |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
GANTRY TYPE CNC PLASMA CUTTING MACHINE
₹ 12,58,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
| Automation Grade | Fully-automatic |
| Power | SINGLE PHASE |
| Voltage | SINGLE PHASE |
| Material | Stainless Steel |
| Machine Capacity | 3MTR X 1.5 MTRS |
| Phase | SIINGLE |
| Country of Origin | Made in India |
| COLOUR | RED |
| Machine Type | Lite Gantry |
| Model No. | ArcMate Pro 2070 (Lite Gantry) |
| Effective Cutting Width | 2000mm |
| Effective Cutting Length | Customizable length upto 15000mm |
| Advance Feature | Wireless remote for x-y axis alignment |
| Driving configuration | Dual drive 86 series stepper motor |
| Cutting Head | Plasma with Auto z-axis up-down movement and Oxyfuel with manual uo-down switch |
| Max.Travel Speed | 6000mm/min |
| Input Power | Single phase 220V, 50Hz + Plasma (depends on power source selection) |
| Gases required | Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting |
| Z-axis (torch) lifting distance | <100mm |
| Working accuracy | +/- 0.2mm |
| Cutting capacity | 2mm to 25mm (Mild steel) depending on Plasma power source selection / 10mm to 150mm for Oxy-fuel cut |
| Controller | 10.4'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
| Nesting software | Fast Cam basic |
| Cutting Table Base | Standard material collection Table with weight carrying capacity of 1200 kg |
| Req. Installation Area | W3.2m * L 8.5m * H 1.5m |
| Brand | T.L. PATHAK GROUP |
We provide our customers with the best quality automation grade arcmate pro gantry type CNC plasma machine and have been the best manufacturer and producer in the market for several years. The machines are made of stainless steel and are fully automated which is why it does not require any physical operator which will help you to save your time and money.
|
Specification |
Description |
|
|
Machine Type |
Lite Gantry |
|
|
Model No. |
ArcMate Pro 2070 (Lite Gantry) |
ArcMate Pro 2070 (Lite Gantry) |
|
Effective cutting Width |
2000mm |
2500mm |
|
Effective cutting length |
Customizable length upto 15000mm |
|
|
Advance Feature |
Wireless remote for x-y axis alignment |
|
|
Driving configuration |
Dual drive 86 series stepper motor |
|
|
Cutting head |
Plasma with Auto z-axis up-down movement and Oxyfuel with manual up-down switch |
|
|
Max. Travel Speed |
6000mm/min |
|
|
Input Power |
Single phase 220V, 50Hz + Plasma (depends on power source selection) |
|
|
Gases required |
Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting |
|
|
Z- axis (torch) lifting distance |
< 100mm |
|
|
Working accuracy |
+/- 0.2mm |
|
|
Cutting capacity |
2mm to 25mm (Mild steel) depending on Plasma power source selection / 10mm to 150mm for Oxy-fuel cutting |
|
|
Controller |
10.4” wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. |
|
|
Nesting software |
Fast Cam basic |
|
|
Cutting Table Base |
Standard material collection Table with weight carrying capacity of 1200Kg |
|
|
Req. Installation Area |
W 3.2m * L 8.5m * H 1.5m |
W 3.7m*L 8.5m * H 1.5m |
Additional Information:
- Production Capacity: 2 MACHINES PER MONTH
View Complete Details
| Voltage | 220 |
| Frequency | 1 |
| Material | Mild Steel |
| Model Name/Number | KCPSR1 |
| Brand | T.L. PATHAK GROUP |
| Spindle Power | 5.5KW |
| Job Material | STONE |
| Machine Type | CNC |
| Repositioning Accuracy | 0.01m |
| X-Y Movement | Rack & Pinion Transmission |
| Z Movement | Ball Screw Transmission |
| Driven Motor | Servo Motor |
| Command Code | G Code |
| Machine Condition | New |
| Country of Origin | Made in India |
| X-Y-Z Axis Movement | 1300mm x 2500mm x 200mm |
| Table Size | 1440mm x 3040mm |
| Max Idiling Speed | 35m/min |
| Max Cutting Speed | 25m/min |
| Working Volatge | 3/380 V / 50 Hz |
| Spindle | Water Cooled Spindle 4.5 kw(6HP) |
| Spindle Rotating Speed | 0-24000 RPM |
| Computer interface | USB |
| Controls | NK 105 / NC Studio |
| Collet Size | 6mm, 8mm, 12mm |
| Work Piece Holding | Manual T Slot Clamping |
| Water tank | YES |
| Auto Water Cooling System | YES |
roduct Details:
| Minimum Order Quantity | 1 Piece |
| Frequency | 50/60 Hz |
| Voltage | AC 380 V |
| Applicable Materials | Stone |
| Brand | ATS |
| Model Number | 1325 |
View Complete Details
| Material | Mild Steel |
| Brand | T.L. PATHAK GROUP |
| Spindle Power | 4.5 kw |
| Max Job Size | 8ft x 4 ft |
| Job Material | WOOD |
| Machine Type | CNC |
| Model | WRR-1 |
| Machine Condition | New |
| Country of Origin | Made in India |
| Table Size (MM) | 1500mmx3050mm |
| X Y Z Traveling Area | 1300mmx2500mmx200mm |
| Table Structure | Aluminium T - slot |
| X Y Axis Transmission | High Precision rack gear |
| Z Axis Transmission | Germany NEFF ball screws |
| X Y Z Axis Guide | Talwan HIWIN square rall |
| Rotary Attachment (fourth axis) | Diameter 300mm |
| Max.Spindle Speed | 24000 RPM /min |
| Max. Treveling Speed | 32m/min |
| Max. Working Speed | 20m/min |
| Processing Accuracy | + 0.01mm |
| Preposition Accuracy | + 0.01mm |
| Driving Mode | Power stepper motor |
| Command Language | HPGL, G-Code |
| Operation System | DSP |
| Working Voltage | AC380V 50 HZ or AC 220V 50Hz |
| Net Weight/Gross Weight | 1120KGS/1380KGS |
| Package Dimension | 3170mm*2280mm*1660 mm |
cnc router 4 axis 1325 wood cnc machine with Rotary axis
Features:
1) With rotary axis put on the side, allow to perform flat materials, such as doors, panels, icons, sheets, etc(3D professing), as well as engrave cylindrical objects, such as columns, balusters, table/chair legs,or many other cylindrical models(4D processing)
2) Wholly cold-roll machine structure, which is very heavy and strong, this can restrain resonance during working and increase the stability to ensure the machine have very high precision.
3) DSP control system allows control machine working without connecting computer
4) X Y axis use high precision rack&pinion, Z axis adopts Germany NEFF ball screws, X Y Z axis use Taiwan HIWIN square rails, dual stepper motors for Y axis.
5) This machine is widely used for cutting and engraving large format materials and cylinder/round objects.
Technical Parameters:
| Machine Model | WRR-1 |
| Table Size(MM) | 1500mmx3050mm |
| X Y Z Traveling Area | 1300mmx2500mmx200mm |
| Table Structure | Aluminum T-slot |
| X Y Axis Transmission | High precision rack gear |
| Z Axis Transmission | Germany NEFF ball screws |
| X Y Z Axis Guide | Taiwan HIWIN square rail |
| Spindle Power | 4.5KW, Air cooled / water cooled |
| Rotary Attachment(fourth axis) | Diameter 300mm |
| Max. Spindle Speed | 24000 RPM/min |
| Max. Traveling Speed | 32m/min |
| Max. Working Speed | 20m/min |
| Processing Accuracy | ±0.01mm |
| Preposition Accuracy | ≤0.01mm |
| Driving Mode | Powerful stepper motor |
| Command Language | HPGL, G-Code |
| Operation System | DSP |
| Auto Lubrication& Tool Sensor | With |
| Working Voltage | AC380V 50HZ or AC220V 50Hz |
| Net Weight/Gross Weight | 1120KGS/1380KGS |
| Package Dimension | 3170mm*2280mm*1660 mm |
Additional Information:
- Production Capacity: 5
- Delivery Time: 15 days
View Complete Details
Automatic Advertising CNC Router
₹ 4,75,000/UnitGet Latest Price
| Spindle Power | 4 KW |
| Max Job Size | 2500 X 1400 |
| Job Material | Acrylic |
| Brand | T.L. PATHAK GROUP |
| Machine Condition | New |
| Reposition Accuracy | 0.01 mm |
| Voltage | 220 Volt |
| Spindle Speed | 20000 RPM |
| Operation Mode | Automatic |
| Country of Origin | Made in India |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
| Usage/Application | Industrial |
| Capacity | 20kw |
| Laser Type | fiber |
| Cooling | air |
| Marking Area | 100x100 standard also available in 200 x200 and 300 x 300 |
| Supporting Format | DXF, BMP, PLT |
| Automation Grade | CNC |
| Power | 20 KW |
| Wavelength | 1000 |
| Weight | 200 KGS |
| Laser Power | 20W-30W-50W |
| Brand | T.L. PATHAK GROUP |
| CNC or Not | Yes |
| Cooling Method | Air cooling |
| Country of Origin | Made in India |
| Laser Wavelength | 1064nm |
| Laser Device | Raycus |
| Min.Line Width | 0.01mm (0.0004'') |
| Red Light | double red light |
| Min.Line speed | (Adjustable depending on material) |
| Control Card | JCZ(Original) |
| M2/Beam quality M2 | <1.2 |
| Min.Letter | 0.2mm (0.008'') |
| Power supply | 220V / 50Hz / 1kVA |
| Product Description
Applications: 1. Widely used in electronic part and component, electrical engineering, electrical appliance, telecommunication product, car and motorcar spare part, instrument and meters, plastic case, aviation and aerospace, military product, hardwareitting and accessory, facility, measuring implement, cutting tool, sanitary appliance, stationery, medicament, food and beverage, make-up, medicine packaging, medical instrument, clock and jewelry, light-through key board, solar PV, and craft, etc. 2. Widely suitable for various metals, alloy, metallic oxide materials and some non-metallic materials(silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, printing ink, plating, spraying, and coating film, etc.Features: 1.Fiber laser: high- speed scanning galvo mirror; English operation system. 2.Strong software functions, convenient Control Panel, set and deal separately. 3.Professional control software is compatible with AutoCAD, CorelDraw and Photoshop, etc. 4.It could achieve the auto arrangement and amendment of letter, symbol, pattern, figure, image, bar code, 2D code, serial number, and auto increasing, etc. 5.It supports PLT, PCX, AI, DXF, BMP, JPG format pictures. It is also available by using TIF, SHX character code.Warranty and Service: 1. One year warranty, any spare parts can be replaced free of charge, and on a cost price after warranty. 2. online service support free of charge during life-span. 3. Free training course at our plant. 4. online service each day, free technical support. 5. Machine has been adjusted before delivery, operation disk is included. |
Additional Information:
- Production Capacity: 10
- Delivery Time: 7 DAYS
- Packaging Details: WOODEN
View Complete Details
| Usage/Application | WOOD |
| Brand | HIPAT |
| Material | MS |
| Machine Type | CNC |
| Automation Grade | Automatic |
| Phase | SINGLE / THREE |
| Weight | 1500 KGS |
cnc router 4 axis 1325 wood cnc machine with Rotary axis
Features:
1) With rotary axis put on the side, allow to perform flat materials, such as doors, panels, icons, sheets, etc(3D professing), as well as engrave cylindrical objects, such as columns, balusters, table/chair legs,or many other cylindrical models(4D processing)
2) Wholly cold-roll machine structure, which is very heavy and strong, this can restrain resonance during working and increase the stability to ensure the machine have very high precision.
3) DSP control system allows control machine working without connecting computer
4) X Y axis use high precision rack&pinion, Z axis adopts Germany NEFF ball screws, X Y Z axis use Taiwan HIWIN square rails, dual stepper motors for Y axis.
5) This machine is widely used for cutting and engraving large format materials and cylinder/round objects.
Technical Parameters:
| Machine Model | WRR-1 |
| Table Size(MM) | 1500mmx3050mm |
| X Y Z Traveling Area | 1300mmx2500mmx200mm |
| Table Structure | Aluminum T-slot |
| X Y Axis Transmission | High precision rack gear |
| Z Axis Transmission | Germany NEFF ball screws |
| X Y Z Axis Guide | Taiwan HIWIN square rail |
| Spindle Power | 4.5KW, Air cooled / water cooled |
| Rotary Attachment(fourth axis) | Diameter 300mm |
| Max. Spindle Speed | 24000 RPM/min |
| Max. Traveling Speed | 32m/min |
| Max. Working Speed | 20m/min |
| Processing Accuracy | ±0.01mm |
| Preposition Accuracy | ≤0.01mm |
| Driving Mode | Powerful stepper motor |
| Command Language | HPGL, G-Code |
| Operation System | DSP |
| Auto Lubrication& Tool Sensor | With |
| Working Voltage | AC380V 50HZ or AC220V 50Hz |
| Net Weight/Gross Weight | 1120KGS/1380KGS |
| Package Dimension | 3170mm*2280mm*1660 mm |
View Complete Details
| Usage/Application | wood working |
| Brand | HIPAT |
| Material | ms |
| Model Name/Number | na |
| Automation Grade | Automatic |
| Country of Origin | Made in India |
- Work table area: 1300 X 3010 mm
- X, Y, Z Maximum working area: 1300 X 2500 X 300 mm
- Cutting speed: 35 meter / min
- Max height of material: 300 mm
- Max width of material: 1350 mm
- Drive system: Advanced Digital Micro Step Drivers
- Spindle: 3500 W air cool
- Spindle rotating speed: 6000-18000 rpm
View Complete Details
| Brand | T.L. PATHAK GROUP |
| Country of Origin | Made in India |
| Swing Over Bed | 500 mm |
| Maximum Turning Diameter | 350 mm |
| Standard Turning Diameter | 200 mm |
| Max Turning Length | 500 mm |
| Admit Between Centers | 1200 mm |
| Chuck Size | 210 mm |
| Model Number | MX TURN 230L |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
| Brand | T.L. PATHAK GROUP |
| Weight | 2600/2700 Kgs |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Applicable Materials | Mild Steel |
| Main Functions | Straightening,Bending,Punching,Cutting,Forming,Stamping |
| Controll Type | Hydraulic Type CNC Controll |
| No. Of Cylinder | 2 Pcs |
| Feeding Servo Motor | 7.5 Kw |
| Bending Servo Motor | 5.5 Kw |
| Bending Speed | 800 degree/sec |
| Feeding Wheels materials | Cr12MoV |
| Electric Controll System | KUNLUN |
| Hydraulic Motor Power | 11 Kw |
| Bending Range (Dia.) | 60-700 mm |
| Outer Dimension | 2700x1250x1900 mm |
The TL Pathak Group's CNC clamp making machine is a cutting-edge equipment designed for mass production of clamps with high precision and accuracy. It is equipped with advanced CNC technology, easy-to-use interface, and can produce clamps of various shapes and sizes with consistent quality and reliability.
View Complete Details
CNC Turning Centre KCP Turn 100
Get Latest Price
| Brand | T.L. PATHAK GROUP |
| Country of Origin | Made in India |
| Swing Over Bed | 250 mm |
| Maximum Turning Diameter | 150 mm |
| Standard Turning Diameter | 100 mm |
| Max Turning Length | 150 mm |
| Admit Between Centers | 175 mm |
| Chuck Size | 100 mm |
| Model Number | MX TURN 100 |
These machines are designed and developed by our trained professionals in complete accordance with set international norms by making use of optimum quality raw material, components and cutting-edge technology in compliance with the set universal standards. Products offered by us are available in various specifications to meet the wide needs of our valuable patrons. Cherished for their excellent performance, silent operation, extended durability, minimum maintenance, sturdy construction and longer functional life, these machines are widely demanded all across the nation. The offered machines are strictly checked on various measures in order to deliver defect free range at clients’ end. Customers can purchase the offered machines from us at industry leading rates.
View Complete Details
CNC Milling Machine
₹ 3,50,000/UnitGet Latest Price
| Brand | HIPAT |
| Automation Grade | Automatic |
| Voltage | 220-440 Volt |
| Phase | Three Phase |
| Power Source | Electric |
Milling machine with latest technology, made of high grade standardized Cast Iron. Spindle and Gears of quality steel. Bearings (Taper Roller, Ball & Thrust) of genuine quality. Alloy Steel Arbour, Carbon Steel lead Screws with working pressure of table lead screw taken up by trust bearings. Machine is easy to operate and gives maximum production with minimum fatigue and is enameled in ever shine lasting colour.
View Complete Details
- Developed and Managed by IndiaMART InterMESH Limited
