Pathak Machines Industries

Machine Type	Hose/Pipe Crimping Machine
Brand	Pathak Machine Industries
Dimension	800x630x1300 mm
Country of Origin	Made in India
Crimping Range	6-51 mm (1/4"-2")
Quality of Mold	10 sets with long dies 15,18,23,26 (70 mm),31,36,41 (100 mm),47,55 (100 mm),61 (80 mm)
Accuracy	0.01 mm
Swept Volume	2.5 L/5 L(Optional)
System Pressure	31.5 Mpa
Power	3 KW
Voltage	220 V 50 HZ Single Phase
Buckling Pressure	500 T
Oil Quantity	40 L
Efficiency	200 pcs/h
Package Dimension	890x710x1430 mm
Net Weight	310 kg
Gross Weight	320 kg
Maximum Open Diameter	114 mm
Range	+- 30 mm

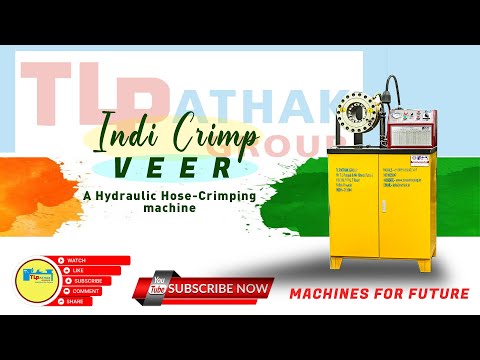

The Hydraulic Hose Crimping Machine by Pathak Machine Industries embodies precision and reliability. Its innovative crimp-veer mechanism ensures seamless crimping, combining accuracy with efficiency. This feature allows for consistent and uniform crimps, vital for optimal performance and safety in hydraulic systems. The machine's design prioritizes user convenience, with intuitive controls and robust construction for long-term durability. It offers versatility to accommodate various hose sizes and materials, catering to diverse industrial needs. Hipat Machine Tools' crimping machine represents a fusion of cutting-edge technology and practical engineering, delivering unmatched quality and performance in hose assembly applications.

Machine Capacity	3 inch od
Material	mild steel
Brand	T.L. PATHAK GROUP
Automation Grade	Semi-automatic
Power	2 hp and 1 hp motor
Absorbed Power	na
Face Width	na
Finishing	yes
Model Name/Number	hipat hcs
Noise Level	na
Packaging Size	wooden packing
Usage/Application	hose cutting and skiving
Working Width	2 inch r 4
Country of Origin	Made in India

heavy duty hose cutting cum skieving machine by TL PATHAK GROUP capacity of hose cutting up to 2 inch R4 pipe
capacity of skiving up 2 inch r 4 pipe
complete with all electricals , cutting blade ( high speed)
and add on bushes for skiving
we also have hose crimping machines in ready stock with us

Additional Information:

• Delivery Time: ready stock

Power	3 KW
Brand	Pathak Machine Industries
Model Name/Number	PMHSCM
Size/Dimension	680x520x1040 mm
Voltage	380 V/220 V
Weight	65 kg
Country of Origin	Made in India
Peeling Mould	6,8,10,13,16,19,22,25
Cutter Blade	1 Piece
Cutting Tool	2
Maximum Cutting Size	51 mm

Pathak Machine Industries presents a versatile Motorized Hose Crimping Cum Skiving Machine, combining crimping and skiving functions for streamlined hose assembly. Engineered for efficiency and precision, this machine features motorized operation for enhanced productivity. It effortlessly crimps and skives hoses of various sizes, making it ideal for automotive, industrial, and hydraulic applications. With its robust design and intuitive controls, it ensures consistent results and seamless workflow, meeting the diverse needs of industries reliant on hose assemblies.

Machine Type	Hose/Pipe Crimping Machine
Brand	Pathak Machine Industries
Country of Origin	Made in India
Crimping Range	6-102 mm
Free Dies	17 Sets incl
Accuracy	0.01 mm
Volume of Oil Tank	10 L
System Pressure	31.5 Mpa
Motor Power	4 KW
Voltage	380 V 50 HZ 3 Phase
Buckling Pressure	2100 T
Efficiency	200 Pcs/h
Maximum Open Diameter	200 mm
The Max Open Tolerance	+- 30 mm
Control System	Electric Automatic/Micro Control with Button Control with
Hydraulic Oil	46 L
Net Weight	500 kg
Gross Weight	520 kg
Machine Dimension	890x570x1200 mm
Package Dimension	910x590x1210 mm
Foot Pedal and Light	included

Pathak Machine Industries presents the Indie Crimp-Vishal, a cutting-edge hydraulic hose crimping machine. Designed for precision and efficiency, it effortlessly crimps hoses with unmatched accuracy, ensuring optimal sealing for various applications. With its advanced technology and robust construction, it delivers consistent results, reducing downtime and increasing productivity. The Indie Crimp-Vishal boasts user-friendly controls and a compact footprint, making it suitable for diverse industrial environments. Trust in Hipat Machine Tools for top-notch quality and reliability in hose crimping solutions, empowering your operations to thrive with seamless performance and superior craftsmanship.

Machine Type	Hose/Pipe Crimping Machine
Brand	Pathak Machine Industries
Weight Kg	1300
Country of Origin	Made in India
Crimping Range	6-76 mm (1/4"-3") 4SP
Quantity of Mold	15 sets 14,18,22,26,30,34,39,45,50,55,65,75,85,92 master die length 80-85 mm
Accuracy	0.01 mm
Swept Volume	10 L (Output of Pump 14 L/min)
System Pressure	31.5 Mpa
Power	4 KW
Voltage	380 V 50 HZ 3 Phase
Buckling Pressure	800 T
Oil Quantity	110 L
Efficiency	250 Pcs/h
Stroke Time	14+3S
Package Dimension	730x1040x1600 mm
Maximum Open Diameter without dies	170 mm
Range	+- 60 mm

Pathak Machine Industries presents the IndieCrimp Slim, a revolutionary hydraulic hose crimping machine. Streamlined and compact, it seamlessly integrates into any workspace, offering efficiency and precision in hose assembly. With its intuitive interface, operators can effortlessly produce consistent and reliable crimps, ensuring optimal performance in various applications. Its versatile design accommodates a wide range of hose sizes, empowering users to tackle diverse projects with ease. Engineered for durability and reliability, the IndieCrimp Slim is the ultimate solution for professionals seeking high-quality hose assemblies. Upgrade your workflow with this cutting-edge machine from Hipat Machine Tools.

Brand	T.L. PATHAK GROUP
Country of Origin	Made in India
Crimping Capacity of 2 wire hose	2 Inches
Opening at Front side	155 mm
Opening at Rear end	130 mm
Kilowatt of motor	3.75 kW. 5 HP
Capacity of oil tank	50 Lites
Size of dies	15,19,23,26,30,34,38,45,52,62
Weight of the machine	250 kg
Dimensions of Expert Packing	720 x 575 x 870 mm

Pathak Hose Crimping Machine is a pivotal part of any hose gathering. When you have liquids or gases in movement over expanded time frames, the crimp must be perfect generally there is a ton that can turn out badly.

Model Name/Number	KCP
Machine Type	Hose/Pipe Crimping Machine
Material	MS
Automation Grade	Automatic
Machine Structure	Horizontal
Brand	T.L. PATHAK GROUP
Operation	Automatic
Power Source	Hydraulic
Crimping Depth	3INCHES
Power	3HP MOTOR
Country of Origin	Made in India
Crimping Capacity of 2 wire hose	2 inches
Crimping Capacity of 4 wire hose	1 inches
Opening at Front side	155 mm
Maximum inside opening without dies	115 mm
Opening at Rear end	130 mm
Maximum working pressure	315 Bar
Kilowatt of motor	3.75 KW, 5 HP
Voltage	220V/415 V
Capacity of oil tank	50 Litres
Number of dies	10
Sizes of dies	15, 19, 23, 26, 30, 34, 38, 45, 52, 62
Noise level	<75db
Weight of the machine	250 Kg
Dimensions of machine (L X B X H)	665 x 525 x 800 mm
Dimensions of Export packing (wooden box)	720 x 575 X 870 mm

Hose Crimping Machine Crimping Range (Inner Diameter):6~51mm ( 1/4~2" ) Free Dies:10 Sets of dies Quantity of Mold:10 Sets of dies Accuracy:0.01mm Volume:2.5L System Pressure: 31.5MPa(Optional) Voltage:380V Buckling Pressure:450T Efficiency:200pcs/h Maximum Open Diameter:114mm The max open tolerance:± 30mm Control system:Electric Automatic Control model:Micro control with Button Hydraulic oil:46# Net Weight:245KG Gross Weight:260KG Package Dimension:800*530*870 mm

Additional Information:

• Delivery Time: READY STOCK

Model Name/Number	HCPL 35
Machine Type	Hose/Pipe Crimping Machine
Material	Mild Steel
Automation Grade	Manual
Machine Structure	Vertical
Brand	T.L. PATHAK GROUP
Power Source	Mechanical
Crimping Depth	25 mm
Dies	fixed
Hose Inside Diameter	32 MM
Hose Pipe Diameter	20 MM
Maximum Sleeve Diameter	25 MM
Weight Kg	25
Country of Origin	Made in India
Opening Without Dies	32 MM

TL Pathak Hose Crimping Machine is a pivotal part of any hose gathering. When you have liquids or gases in movement over expanded time frames, the crimp must be perfect generally there is a ton that can turn out badly.

Model Name/Number	kcp68
Machine Type	Hose/Pipe Crimping Machine
Material	MS
Automation Grade	Automatic
Machine Structure	Horizontal
Brand	TL PATHAK GROUP
Power Source	Electric
Dies	10
Country of Origin	Made in India
Crimping Capacity of 2 wire hose	2 inches
Crimping Capacity of 4 wire hose	1 inches
Opening at Front side	155 mm
Maximum inside opening without dies	115 mm
Opening at Rear end	130 mm
Maximum working pressure	315 Bar
Kilowatt of motor	3.75 KW, 5 HP
Voltage	220V/415 V
Capacity of oil tank	50 Litres
Number of dies	10
Sizes of dies	15, 19, 23, 26, 30, 34, 38, 45, 52, 62
Noise level	<75db
Weight of the machine	250 Kg
Dimensions of machine (L X B X H)	665 x 525 x 800 mm
Dimensions of Export packing (wooden box)	720 x 575 X 870 mm

Pathak Hose Crimping Machine is a pivotal part of any hose gathering. When you have liquids or gases in movement over expanded time frames, the crimp must be perfect generally there is a ton that can turn out badly.

Material	Mild Steel
Power Source	Electric
Brand	T.L. PATHAK GROUP
Country of Origin	Made in India
Available Model Number	PIK35A, PIK50
Cap size	32 mm, 50 mm
Available Dimension	320 x 225 x 90 mm, 320 x 225 x 100

HOSE CRIMPING MACHINEWITH 10 DIE SETSAVAILABLE IN SINGLE AND THREE PHASE MOTOR OPTIONCRIMPING CAPACITY UP TO 3 INCH OD

Machine Type	Hose/Pipe Crimping Machine
Machine Structure	Horizontal
Brand	T.L. PATHAK GROUP
Operation	Automatic
Power Source	Hydraulic, Electric
Hose Pipe Diameter	1/4" TO 2"
Dimension	730*480*740 mm
Country of Origin	Made in India
Crimping Range	6~51mm (1/4~2")
Quantity of Mold	10
Accuracy	0.50,118m,2m3,26,31,36,41,47,55,61
Swept Volume	2.5L/5L/10L (Optional)
System Pressure	31.5Mpa (Optional)
Voltage	220V/240V/380V/415V
Buckling Pressure	(400p0Ttional)
Efficiency	200pcs/h
Package Dimension	800*530*870 mm
Net Weight	245kg
Gross Weight	260kg
Maximum Open Diameter	114mm
Range	30mm

Pathak Hose Crimping Machine is a pivotal part of any hose gathering. When you have liquids or gases in movement over expanded time frames, the crimp must be perfect generally there is a ton that can turn out badly. T.L Pathak Group No1 Exporter of Hose Crimping Machines.

Model Name/Number	TLPMC
Machine Type	Hose/Pipe Crimping Machine
Brand	Pathak Machine Industries
Dies	Fixed
Hose Inside Diameter	32 mm
Hose Pipe Diameter	20 mm
Maximum Sleeve Diameter	25 mm
Weight Kg	25 kg
Country of Origin	Made in India
Opening Without Dies	32 mm
Capacity	Cap Size - 25 mm, Bore Size - 38 mm
Size of Machine (LxWxH)	300x200x90 mm

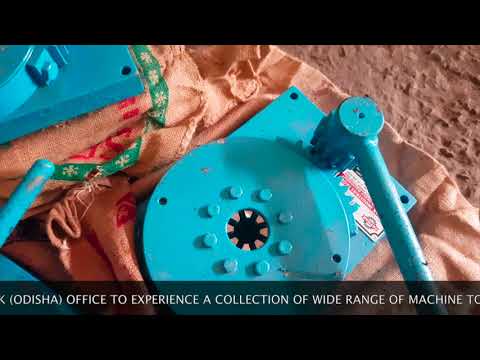

Pathak Machine Industries offers a manual hose crimping machine designed for precision and efficiency in hose assembly. This compact machine enables quick and reliable crimping of hoses for various applications. With intuitive controls and sturdy construction, it ensures consistent crimps, enhancing productivity and safety. Ideal for small-scale operations or on-site use, it streamlines the hose assembly process with ease and reliability, meeting the demands of diverse industries.

Model Name/Number	TLPAHC
Brand	Pathak Machine Industries
Weight Kg	10/set
Country of Origin	Made in India
Colour	Red or Black
Crimping Range	7-12 mm
Mould Tooth	6
Lifting Jack	5 Ton
Single Package Size	45x33x11.5 cm
Single Gross Weight	11.000 kg
Type	Manual

Pathak Machine Industries introduces an advanced Agri hose crimping machine tailored for agricultural applications. Engineered for durability and precision, this machine efficiently crimps hoses used in irrigation systems, pesticide spraying, and other farming tasks. With user-friendly features and robust construction, it ensures secure connections for seamless operation in diverse agricultural settings. Boosting productivity and minimizing downtime, it's a reliable solution for farmers and agricultural professionals seeking dependable hose assembly equipment.

Automation Grade	Manual
Brand	Pathak Machine Industries
Model Name/Number	PHSC
Country of Origin	Made in India
Crimping Tool Head Type	HSS
Crimping Range	1/4 to 1 inch
Crimping Force	10-20 Ton
Stroke	12 mm
Cutting Capacity	1 inch

Pathak Machine Industries introduces a Hand Operated Skiving Machine, providing precise skiving for efficient hose assembly. This compact yet powerful machine offers manual operation, making it versatile for on-site or workshop use. With its ergonomic design and user-friendly controls, it ensures easy handling and precise skiving of hoses of various sizes. Ideal for small-scale operations or mobile workshops, it delivers consistent results, enhancing productivity in industries reliant on hose assemblies such as automotive, construction, and manufacturing.

Power	0.2 KW
Brand	Pathak Machine Industries
Model Name/Number	PMSC
Size/Dimension	400x300x800 mm
Weight	20 kg
Country of Origin	Made in India
Cutter Blade	1 Piece
Maximum Cutting Size	38 mm

Pathak Machine Industries presents a Motorized Skiving Machine designed for precise and efficient hose assembly operations. This machine features motorized operation, ensuring consistent and uniform skiving of hoses with ease. Its robust construction and intuitive controls make it suitable for a wide range of industrial applications, including automotive, hydraulic, and manufacturing sectors. With adjustable settings and a reliable motor, it offers versatility and reliability in skiving tasks, enhancing productivity and quality in hose assembly processes.

Model Name/Number	TLPMHCM
Brand	Pathak Machine Industries
Weight Kg	31.4
Country of Origin	Made in India
Height	350 mm
Max. Pressure	700 Bar
Oil Required	315 CC
Max Output	100 Tons/980 KN
Ram Stroke	22 mm
Crimping Range of Copper	up to 64 mm O.D. Sleeve
Crimping Range of Aluminium	up to 75 mm O.D. Sleeve
Crimping Range of Steel	up to 32 mm O.D. Sleeve
Hydraulic Pump	Double-Acting Hydraulic Pump

Pathak Machine Industries presents a Motorized Crimping Machine specifically engineered for Aluminum Conductor Steel Reinforced (ASCR) conductors. This machine offers automated crimping capabilities, ensuring precise and efficient connections for electrical transmission and distribution systems. Equipped with a powerful motor and custom dies, it guarantees consistent and secure crimps, enhancing the reliability and longevity of ASCR installations. Ideal for utility companies and electrical contractors, it optimizes workflow and ensures high-quality connections in ASCR applications.

Model Name/Number	TLPHHCM
Brand	Pathak Machine Industries
Country of Origin	Made in India
Overall Length of Platform	750 mm
Overall Width of Platform	355 mm
Overall Height of Machine from Platform Base	420 mm
No. of Pumps	2 Nos.
Capacity of Low Pressure Pump	45 Ton
Capacity of High Pressure Pump	100 Ton
Diameter of Ram	108 mm
Length of Operating Handel	745 mm
Working Fluid	Hydraulic Oil 32/68 no.
Total Weight of Machine	95 kg
Weight of Die Set for ASCR	18-19 kg
Weight of Die Set for Earth Wire	9-9.5 kg
Safe Working Load	100 Ton
Machine Tested at Load	125 Ton
Dimension of Die	100x90x75 mm
Travel of Ram	22-25 mm

Pathak Machine Industries offers a specialized Hydraulic Crimping Machine tailored for Aluminum Conductor Steel Reinforced (ASCR) cables. This machine ensures precise and secure crimping of ASCR conductors, vital for electrical transmission and distribution systems. With its robust hydraulic system and custom dies, it guarantees accurate crimps, enhancing the reliability and longevity of ASCR connections. Ideal for utilities and electrical contractors, it streamlines the installation process and ensures optimal performance of ASCR cables in various applications.
