Pathak Machines Industries

Product Type	MANUAL
Max Shear Thickness	1.5MM
Operation Mode	Manual
Automation Grade	Manual
Capacity	4 FT X 1.5 MM
Length Of Bed	14 1/2"
Strokes Per Min	5.0
I Deal In	New Only
Country of Origin	Made in India
Shear Size	12"
Width of Bed	10 "
Shear M.Sheets upto	24swg
Length of Cut one Stroke	12"
Size of Blades	305x62x14
Height of Machines	40"
No. of Tensile Springs	1
BRAND	T.L. PATHAK GROUP

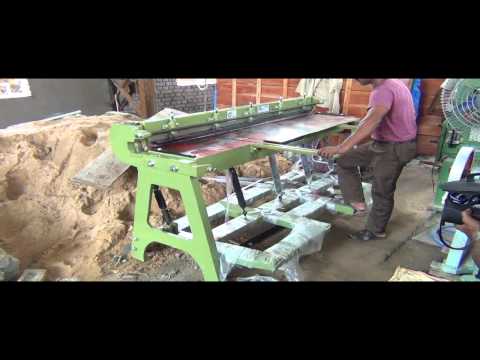

We are one of the leading manufacturers of treadle shearing machines as it is specially designed for rapid and continuous costing of M.S. sheets of varied width. Our machine provides perfect parallelism of cutting on either side because its spring-loaded pressure pad holds the sheets very firmly. The blades of the treadle shearing machine have 4 cutting edges to avoid downtime in grinding.

Additional Information:

• Production Capacity: 5
• Delivery Time: READY STOCK

Voltage	400-440 V
Power	5-6 Hp
I Deal In	New Only
Country of Origin	Made in India
Brand	T.L. PATHAK GROUP
Model Number	PHS330
Power Source	Electric
Frequency	50-60 Hz
Shearing Length mm	3000
Min. Rake Angle	3.15/4
Maximum Rake Angle (M.S)	2/3
Rake Angle	1"15"
Rake Angle Range	0.5-2"
Strokes Minute at Min. & Max. Rake Angle	24-9
Holddowns	16
Holding Force kgs.	2500
Over all Dimensions in mm (LxWxH)	3500x2000x2400
Approx. weight kgs.	4400

T. L Pathak Leading Manufacturer & Exporter Hydraulic Shearing Machine. For More Details Visit Our Showroom or Call Us Today.

Frequency	50-60 Hz
Brand	T.L. PATHAK GROUP
I Deal In	New Only
Phase	3 Phase
Power Source	Electric
Voltage	400-415 V
Weight	3-5 Ton
Country of Origin	Made in India
Model	POS-156
Cutting Cap. in MS Length-X Thickness	1525X6
Stroke Per Minute	25
Table Height	750
Table Width	450
Front Gauge	600
Rear Gauge	750
Motor HP/WK	7.5/5.5
Blade Length X Width X Thickness	1525X75X18
Overall Dimension in M.M (LXWXH)	2500X1950X2300

We have produced our over-crank shearing machines from structural analysis techniques for continuous production, accuracy, and repeatability. Our team has optimally designed the rigid steel frame of shears to avoid the weak sections at load support. We ensure a proper clean-cut as the arm of our machine is guided throughout its length by fibre guideways.

Max Shear Width	2500
Automation Grade	Automatic
Cutting Material	MS SS
Brand	T.L. PATHAK GROUP
Capacity	2500 X 4 MM
Model Name/Number	HIPAT UC4
Usage/Application	SHEET METAL WORKS
Country of Origin	Made in India

UNDER CRANK HEAVY DUTY SHEARING MACHINE CAPACITY
2500 X4 MM COMPLATE WITH 10 HP MOTOR STARTER AND V BELT
SUITABLE FOR SHEET METAL WORKS

Usage/Application	plate rolling and bending
Bending Material	Mild Steel
Max Bending Radius	150-200 mm
Voltage	440
Model Name/Number	PBH-1516
Brand	T.L. PATHAK GROUP
Automation Grade	Semi-Automatic
Country of Origin	Made in India
TOP ROLL	160
BOTTOM ROLL	128
MOTOR HP	7.5
ROLL BENDING CAPACITY (without pre Bending Facility) Length x Thick	1500x10

We produce and sell various types of plate bending rolling machines to our customers with the aim to best satisfy every customer’s requirements. Therefore, we also customize our machines as per the needs of our customers. Our team has created a robust machine that has adequate safety factors and needs the minimum power. They have used the most advanced methods for the production of this machine.

Usage/Application	SPRING LEAF BENDING MACHINE
Color	BLUE
Material	Mild Steel
Motor Power	3-4 Kw
Voltage	415-440 V
Brand	T.L. PATHAK GROUP
Position	VERTICAL
I Deal In	New Only
Country of Origin	Made in India
Frequency	50 Hz

Our company is the foremost name that is fully involved in providing a diverse range of leaf spring bending cutting machines to its customers. The team of our experts only uses advanced techniques for the production of these machines as per the demand of our clients. We also customize the machine the same as our customers want. Our experts ensure you long working life and outstanding performance of our machines.

Additional Information:

• Production Capacity: 5 MACHINES PER MONTH
• Delivery Time: READY STOCK

Usage/Application	Industrial
Capacity	25
Brand	T.L. PATHAK GROUP
Type Of Testing Machines	SPRING LEAF HIGH
Material	MS
Design	Customized
Automation Grade	Semi-Automatic
Country of Origin	Made in India

We have made a reputed name of our company in the market with the use of high-quality raw material with our extensive experience of supplying and trading the economical three die ironworker machine. It is a cost-effective machine and is equipped with a shear blocking device. Our experts always check the product before delivering it to the customers so that you may expand your business easily.

Additional Information:

• Production Capacity: 5 MACHINES PER MONTH
• Delivery Time: READY STOCK

Usage/Application	Industrial
Country of Origin	Made in India
Brand	T.L. PATHAK GROUP

We are one of the most reputed manufacturers of leaf spring bending cutting and clamp-making machines. Our team has designed this machine to have no cam and without a swing arm. This will shorten the time for installation and labor costs. It is very easy to use and you do not need to take any training for its usage. However, anyone can easily buy this machine as it is very cost-effective.

Voltage	440-460 V
Frequency	50 Hz
Motor Power	4-5 Hp
Weight	300-400 Kg
Power Source	Electric
I Deal In	New Only
Brand	T.L. PATHAK GROUP
Country of Origin	Made in India

Pathak is the manufacturer of shearing machine. Our Shearing Machine with electricals 4 edged blade manual backgauge.

Weight	2100 Kg (Approx)
I Deal In	New Only
Country of Origin	Made in India
MODEL	TLPMSS 20
Blade Size	20 inch
Blade Open Size	75 mm
Crank Shaft	1 nos
Steel Gear	1 nos
Fly Wheel	1 nos
Gun Metal Bushing	Provided
V Belt	Provided
Pulley	Provided
Elector Starter	Provided
Motor	7.5 H.P.,1440 RPM
Overall Dimension (LxwxH)	84x36x140 mm
Brand	T.L. PATHAK GROUP

TL Pathak Group in India provides Mechanical shearing machines for cutting and processing scrap metal, with high efficiency and safety.

Power Source	Electric
Voltage	440-415 V
Frequency	50 Hz
I Deal In	New Only
Country of Origin	Made in India
Blade Size	l270X63Xl2 (LXWXH)
Motor Power	2 HP
Weight	1000-1500 Kgs
Brand	T.L. PATHAK GROUP
Model	PUSl22
Cutting Cap.(In, MS Length X Thickness)	l270X2
Stroke per minute	5S
Table Height	750
Table Width	350
Front Guage	600
Read Giage	600
Overall Dimension in MM (APP) (LXWXH)	1250Xl000X1100

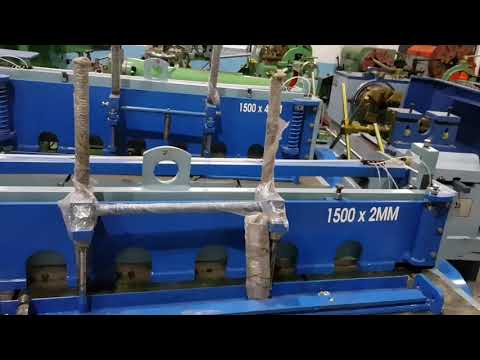

We are one of the most advanced manufacturers of under-crank shearing machines as we design our machines through structural analysis techniques to ensure scratch-free production, high accuracy, and repeatability. These are the most trusted and reliable machines in the market as all of our machines are manufactured under the supervision of our expert team to get 100% satisfaction from our customers.

I Deal In	New Only
Country of Origin	Made in India
MODEL	TLPAS 25
Blade Size	25 inch
Cylinder	2 nos
Oil Tank	200 Ltr
Electric Pannel	Provided
Motor	15 H.P.,1440 RPM,3 Phase,50 Hz
Body Plate	16 mm,20 mm Fabricated Body
Brand	T.L. PATHAK GROUP

TL Pathak Group in India provides alligator shearing machines for cutting and processing scrap metal, with high efficiency and safety.
