Pathak Machines Industries

Brand	TL Pathak Group
Dimension	16250x685x1425 mm
Model Name/Number	TLPTMT 12
Country of Origin	Made in India
Working Ability	Rebar 10-12 mm
Length of Straight Stirrup Side	150-1200 mm
Maximum Bending Speed	25 mtr/min
Maximum Bending Angle	120
Length Tolerance	+/- 0.5 mm
Angle Tolerance	+/- 0.5 deg
Total Power	3.5 KW
Total Weight	1500 kg

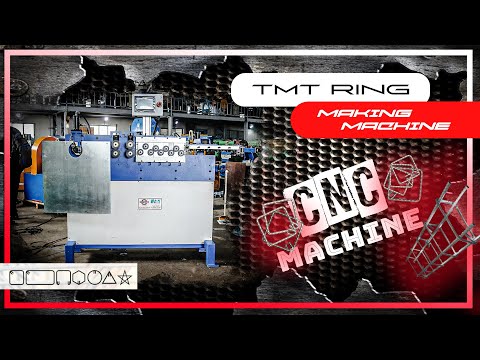

The CNC TMT Ring Making Machine by TL Pathak Group is a precision tool designed for efficient fabrication of TMT rings. Utilizing computer numerical control (CNC) technology, it ensures accurate shaping of steel bars into rings with consistent dimensions. With advanced features and sturdy construction, this machine streamlines production processes, offering reliability and high productivity for metalworking industries.

Frequency	30-110 KHz
Voltage	380 V 50 Hz can be customized
Country of Origin	Made in India
Model	TLPPEC - 40
Pipe OD	6-40 mm
Pipe Thickness	0.7-2 mm
Motor Power	4.0 KW
High Frequency Heater	20 KW
Control	Micro Computer
Colling System	Water Cooling
Machine Weight	900 Kg
Machine Size	1.9x1.0x1.35 m
Input Power	2-220 KVA
Water Cooling Presure	0.05-0.15 Mpa
Flow Rate	5-10 L/Min

Pathak Machine Industries' Pipe End Closing Machine is designed to provide precise and efficient closure of pipe ends. It features advanced technology and robust components to ensure optimal performance. The machine handles a wide range of pipe sizes and materials, offering versatility for various applications. With a user-friendly interface and adjustable parameters, operators can easily control the process to achieve desired results. This machine is known for its reliability, productivity, and consistent quality​.

Brand	TL Pathak Group
Size	500x810x1400 mm
Model Name/Number	TLPSPN-100
I Deal In	New Only
Country of Origin	Made in India
Max Tube Specification	100x100 mm
Max Processing Wall Thickness	1.8 mm (stainless steel) 2.5 mm (Copper,Aluminium,Iron)
Punch Specification	3.5-30 mm
Max Length of One Feed	1500 mm
Number of Continuous Machining Tools	Unlimited
Max Workpiece Length	6000 mm
Processing Efficiency	1-2 second/hole
X Axis Repeated Position Accuracy	+0.05 mm
Power Specification	380+10 V,50 HZ
Total Power	5.5 KW
Max Working Pressure	150 Mpa

The Square Pipe Notching Machine by Pathak Machine Industries is designed for precise notching and profiling of square pipes. This machine offers accurate and consistent results, catering to various industrial applications. It accommodates different pipe sizes and materials, making it versatile for diverse notching processes. With user-friendly controls and robust construction, it ensures durability and reliability in demanding industrial settings​.

Voltage	415 V,50 HZ,3 Phase
I Deal In	New Only
Country of Origin	Made in India
Model	TLPPTM1
Pipe Diameter	12.7-76.2 mm
Pipe Thickness	0.2-1.2 mm
Weight	380 kg
Spindle Speed (rev/min)	2.2
Spindle Center Height	800 mm
Forming Length	6000 mm
Mold Hardness	HRC 58-60
Forming Time	30 (S/6m)

The Pipe Twisting Machine by TL Pathak Group is a precision-engineered equipment designed for efficient pipe fabrication. It seamlessly twists pipes with utmost accuracy, ensuring uniformity and reliability in production processes. Its robust construction and advanced features enable seamless operation, optimizing productivity while maintaining quality standards. Ideal for various industrial applications, it exemplifies TL Pathak Group's commitment to innovative solutions in manufacturing technology.

Material	Metal
Power	1100 W
Model Name/Number	TLPCM-1
Brand	Pathak Machine Industries
Weight	60 kg
I Deal In	New Only
Country of Origin	Made in India
Speed (Arc/Linear)	8800 RPM
Depth (Arc/Linear)	0.3 mm
Packing	600x500x550 mm

TL Pathak Group's chamfering machines are designed for precision and efficiency in creating beveled edges on metal parts. These machines are robust, capable of handling various materials, and feature high-speed operation, typically around 8800 RPM. They are widely used in industries requiring clean and accurate edge finishes, such as automotive and metal fabrication. Pathak's chamfering machines are known for their reliability, ease of use, and long service life, making them a valuable addition to any workshop.

Country of Origin	Made in India
Model	TLPEHM
Brand	Pathak Machine Industries
Dia	16-25 mm
Type	Heavy Duty , Gear Type
Cycle Time	30-35 sec. approx
Motor Capacity	3/5 H.P. 1440 RPM
Body	Stress Relieved
Pins	HiCr Material

Pathak Machine Industries' Eye Hook Making Machine is a precision-engineered device designed for producing high-quality eye hooks efficiently. The machine features robust construction, user-friendly controls, and advanced automation capabilities. It ensures consistent output with minimal manual intervention, enhancing productivity. Ideal for industrial applications, the machine supports various sizes and specifications, catering to diverse manufacturing needs. Pathak Industries guarantees reliability and durability, making it a valuable asset for any production line.

Model Name/Number	TLPPEM1
Brand	TL Pathak Group
Country of Origin	Made in India
Pipe Thickness in Carbon Steel	0.6-1.5 mm
Forming Length	Maximum 290 mm
Mold Hardness	HRC 58-60
Mold Material	Cr12MoV
Mold Length	300 mm
Electrical Power	415 V,50 HZ,3 Phase
Pipe Diameter	12.7-50.8 mm
Pipe Thickness in Stainless Steel	0.6-1.2 mm
Motor	4 KW

The Pipe Embossing Machine from TL Pathak Group's is a sophisticated device designed to emboss intricate patterns on various types of pipes, enhancing both their aesthetic and functional qualities. It supports a wide range of materials and pipe sizes, ensuring versatility for different industrial needs. With user-friendly controls and robust construction, this machine guarantees precise and consistent results, making it ideal for applications in construction, furniture, and decorative arts.

Bending Speed	60 degree/sec
Bending Capacity	12-65 mm
I Deal In	New Only
Country of Origin	Made in India
Model	CNC Pipe Bending Machine (3 Axis)
Wall Thickness	2 mm
Maximum Length	2500 mm
Bending	by Hydraulic Pump
Feed and Rotation by	Servo Motor
Maximum Bending Radius	150 mm
Maximum Bending Angle	180 degree

TL Pathak Group introduces its 3-axis CNC Pipe Bending Machine, a cutting-edge solution for precise pipe bending operations. This machine offers unparalleled accuracy and efficiency, seamlessly bending pipes of various materials and diameters. With its advanced technology and user-friendly interface, it streamlines the manufacturing process, ensuring high-quality results while maximizing productivity.

Voltage	3 phase 5 lines 380 V, 50 HZ
Country of Origin	Made in India
Model	TLPGM-7-2 B/G
Working Size (X*Y*Z)	2500x1250x350 mm
No. of Axis	(3+3)
Strip Material	PU Foam
Strip Width	3-30 mm
Strip Height	2-15 mm
Mixing Ratio	1:1-10:1
Output Qty	0.2-7.0 g/s
Environment Temp	40+/-10 C
Cleaning Method	High-Pressure water Cleaning
Pressure Required	>= 0.5 MPA
Glue Temp	20-25 C
Total Power	4-5 Kw
Filter Accuracy	40~50
Glue Head Running Speed	0~30 m/min
Relocation Accuracy	+- 0.03 mm
Measurment Accuracy	+- 0.1 %
Frame Colour	White RAL5003 and Dark Blue RAL9003
Total Weight	About 1600 kg

TL Pathak Group's Automatic PU Gasket Sealing Foaming Machine is designed for precise and efficient sealing applications. It automates the production of polyurethane (PU) gaskets, ensuring consistent quality and reducing manual labor. The machine features advanced control systems for accurate dispensing and foaming, adaptable to various shapes and sizes. Ideal for industries requiring reliable sealing solutions, it enhances productivity and product performance with minimal operational downtime.

Brand	T.L. PATHAK GROUP
Country of Origin	Made in India
MODEL	TLPEF 25
Base Tube Material	Aluminium,Carbon Steel,Copper
Base Tube Dia. Range	7-12 mm
Fin Material	Aluminum/Copper
Fin Material Thickness	0.3-0.7 mm
Fin Height	7 mm
Finished Fin Tube Outer Dia	25 mm
Spiral Pitch	1.8 mm,2.0 mm,2.1 mm,2.3 mm,2.5 mm,2.8 mm,3.0 mm,3.2mm,8.0 mm
Max Length of Finished FIn Tube	15 m
Center Line Height of Main Spindle to	345 mm
Height of Worktable	718 mm
Output Spindle Rotating Speed	80 rpm,100 rpm,120 rpm
Fin Rolling speed	0.6 m/min,0.75 m/min,0.9 m/min
Main Driving Motor Power	11 Kw
Coolant Water Pump Motor Power	0.12 Kw
Weight	1200 Kg
Dimension (Packed)	2450x1000x1650 mm

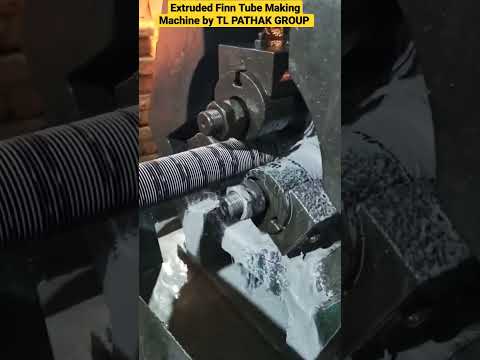

The TL Pathak Group's extruded fin tube making machine is a state-of-the-art equipment designed to produce high-quality fin tubes with excellent heat transfer performance. It features advanced extrusion technology, precise controls, and can produce fin tubes of various sizes and shapes to meet diverse industrial applications with ease.

Country of Origin	Made in India
Model	TLPRR-60
Diameter Range	12-60 mm
Max Pressure	25 Mpa
Length	0-400 mm
Motor Power	22 KW
Productivity	4-7/min
Shrink Cylinder	80 T
Clamping Cylinder	50 Tx3
Dimensions	2.6x1.5x1.7 mm
Weight	3000 kg

Pathak Machine Industries' Rod Reducing Machine is engineered for precision in reducing rod diameters while maintaining structural integrity. This robust machine boasts advanced technology for seamless operation, ensuring high efficiency and accuracy. Its features include adjustable settings for various rod sizes, durable construction, and user-friendly controls. Ideal for manufacturing sectors, it enhances productivity and quality in rod processing tasks.

Brand	Pathak Machine Industries
Weight	2600/2700 Kgs
I Deal In	New Only
Country of Origin	Made in India
Main Functions	Straightening,Bending,Punching,Cutting,Forming,Stamping
Controll Type	Hydraulic Type CNC Controll
No. Of Cylinder	2 pcs
Feeding Servo Motor	7.5 Kw
Bending Servo Motor	5.5 Kw
Bending Speed	800 degree/sec
Feeding Wheels materials	Cr12MoV
Electric Controll System	KUNLUN
Hydraulic Motor Power	11 Kw
Bending Range (Dia.)	60-700 mm
Outer Dimension	2700x1250x1900 mm
Applicable Materials	Mild Steel

The Pathak Machine Industrie's CNC clamp making machine is a cutting-edge equipment designed for mass production of clamps with high precision and accuracy. It is equipped with advanced CNC technology, easy-to-use interface, and can produce clamps of various shapes and sizes with consistent quality and reliability.

Voltage	Not to be Confirmed
Country of Origin	Made in India
Pipe Thickness	0.6-1.2 mm for stainless steel,0.6-1.5 mm for carbon steel,0.6-2.0 mm for aluminium
Brand	T.L. PATHAK GROUP
Forming Time (S)	6-30
Mold Hardness	HRC58-60
Model	TLPPT 2
Motor	5.5 kw
Weight (kg)	2300
Spindle Speed (rev/min)	200
Spindle Center Height	800
Pipe Diameter	12-51 mm
Machine Size (LxWxH)	1.3x1.25x1.35 mm
Mold Length	400 mm (cone length <= 390 mm)
Mold Material	Cr12MoV

T.L. Pathak Group Offers Pipe Tapering Machine that shapes the end of pipes to a tapered shape. It uses a spindle with a cutting tool to remove material gradually and create the desired taper angle and length
