Pathak Machines Industries

Phase	3 Phase
Cooling	Fan Cooled
Model	tx3
Brand	T.L. PATHAK GROUP
Insulation Class	A
Technology	IGBT
Product Type	New
Welding Current Range	400
Country of Origin	Made in India
Rated input capacity (KVA/KW)	13.9/13.2
Rated output current (V)	400
Dimension (W X D X H) (mm)	327 X 555 X 602
Input voltage	415, +10%, -10%
Input power frequency (Hz)	50
Rated output voltage	26
Output current range - tig (A)	4 - 400
Power control method	IGBT inverter type
Rated duty cycle (%)	60
Mass (KG)	43

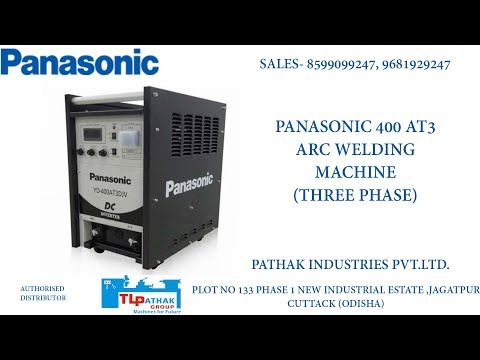

One can get the best Panasonic  Welding Machine 400TX3 from T.L Pathak group leading manufacturer. It is easy to handle and the price is very reasonable, one can get it within ? 29,999 To 32,900. It has excellent manual welding performance. The High power IGBT components in the main circuit make the output smooth waveform which is great arc stability even at 4A output current.

Welding Range (mm)	200 mm
Weight	55 kg / 45 kg
I Deal In	New Only
Country of Origin	Made in India
Model	PHDP200M
Clamps	4 Clamps
Working Voltage	220 V 50HZ
Heating Plate Power	1.60KW
BRAND	T.L. PATHAK GROUP

You can get the best quality machines from our store as we are one of the most reputed and well-known manufacturers and exporters of providing HDPE pipe welding machines 200 mm. All of our clamps are made of aluminum material to make our machines work properly. The life of our machines is very big as we use only high-quality products for our machine and our team works very hard to manufacture these machines.

Welding Range (mm)	150 mm
Weight	45 kg / 35 k9
I Deal In	New Only
Country of Origin	Made in India
Model	PHDP160M
Clamps	4 Clamps
Heating Plate Max Temp	2700C
Temp. Deviation Surface	+-500
Working Voltage	220 V 50HZ
Heating Plate Power	1.0KW
Pressure Adjustable Range	0.6to3MPa
BRAND	T.L. PATHAK GROUP

Our team has gained the trust of all our customers with many positive reviews for providing the best machines to them. All of our experts test and check the machines before delivering them to the customers. This machine is made to weld the plastic pipes and fittings that are made from PE, PP, and PVDF. The prices of our machines are under the range as we did not charge any extra cost for maintenance and installation.

Welding Range (mm)	More Than 200 mm
I Deal In	New Only
Country of Origin	Made in India
Heating Plate Max. Plate	2700C
Temp. Deviation in Surface	<+-100C
Presure Adjustable Ranges	0-8.0MPa
Working Voltage	380/ 50HZ/220V50HZ
Heating Plate Power	6.50KW
Planning Tool Power	1.50KW
Total Power	9.50KW
BRAND	T.L. PATHAK GROUP

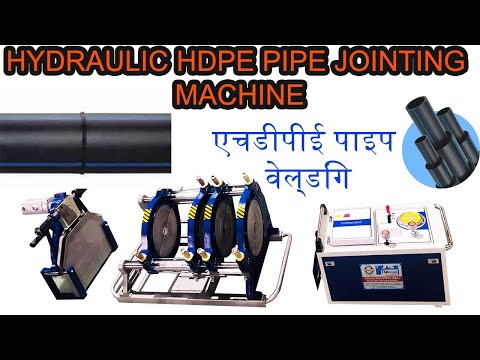

You will get our hydraulic HDPE pipe welding machine 1200 at the most affordable prices only from our company because we manufacture the products accordingly as per the prices. You can buy any of them as per your needs. Our team uses only the best quality raw material for production and work under the supervision of our experts. Our only aim is to make our customers satisfied with our services.

Welding Range (mm)	More Than 200 mm
Weight	90 kg / 60 kg
I Deal In	New Only
Country of Origin	Made in India
Model	PHDB250M
Clamps	4
Working Voltage	220 V 50HZ
Heating Plate Power	2.0KW
Planning Tool Power	1.0KW
BRAND	T.L. PATHAK GROUP

We have got many positive reviews from our clients about the working of our machines. Our 250 mm HDPE pipe welding machine 250 mm is made with the use of high-quality and advanced raw material. This machine is available in both heavy-duty and light models. However, the price of this machine is not that high. Anyone can easily afford this machine and our technicians did not charge any installation charges.

Welding Range (mm)	200 mm
Weight	135 kg
I Deal In	New Only
Country of Origin	Made in India
Model	PHDP200
Working Voltage	220 V 50HZ
Heating Plate Power	1.80KW
Planning Tool Power	1.10KW
Total Power	3.65KW
Volume	0.53M3
BRAND	T.L. PATHAK GROUP

We are considered the only best manufacturer of hydraulic HDPE pipe welding machines as you will get the most updated machines. Our team uses only top-quality raw material for our welding machines so that their life remains good and it works properly. We did not give the product to our customers until and unless our exerts check them properly and approve them.

Country of Origin	Made in India
COLOUR	YELLOW
PHASE	3
Input Voltage (V)	380V 15%
Frequency (HZ)	50/60
Rated Input (A)	12
No-load Voltage (V)	240
Output Current Range (A)	20-60
Base Material	Carbon Steel, Stainless Steel, Low-alloy Steel
Plate Thickness (mm)	0.8-25.0
Current Range (A)	20-60
Air Pressure	3-4
Applicable Model	cut 60

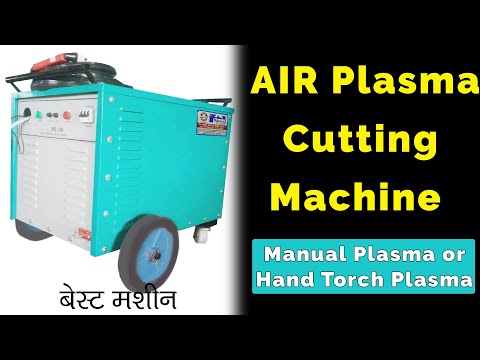

The prime consideration for Manual Hand plasma cutting machines is portability. The machine has good features like it can be used for a long time without any trouble and it saves electricity. Using this machine for small repair and maintenance jobs will give the best results.

Additional Information:

• Production Capacity: 5 MACHINES / MONTH
• Delivery Time: READY STOCK

Frequency	50 Hz
Voltage	400-415 V
Material	Mild Steel
Brand	T.L. PATHAK GROUP
Country of Origin	Made in India
Power Source	Electric
Phase	3 Phase
Model	PHSW-16
Output KVA	16
Input primary voltage (AC)	415V (2-Phase)
Rated frequency (HZS)	50/60
No-load voltage (Max OCV) (Volt)	9
Primary line current (Max (AMP)	55
Dimension (approx) (H*L*W) (MM)	625X510X800
Weight (without gun and cable) (approx kg)	104
Gun & cable weight (approx Kg)	9.5
Output work cable with water cooling length (Mtr)	3
Earth cable with water cable length (Mtr)	3
Cooling	Natural
Insulation Class	A
Time control (KA)	Solid stage electronic
Output current selection (way)	8 Step
Time control (step)	Cycle / second

The Hand Spot welding machine has been made following one of the recent technologies in the welding field. Many types of supplementary functions clarify the work of the welder and it helps in increasing the productivity of the person who is working with it.  It is satisfying because the job demands an uninterrupted change of the welding methods. Pathak welding equipment's manufacturer machines come with multi-system welding units which have the three most usual welding methods of a similar package.Spot Welding is a resistance welding process in which the weld is obtained by pressing two pieces of metal together while an electric current is passed through them to heat the localized contacting surface to the welding temperature.

Voltage	240-260 V
Phase	1/2 Phase
Frequency	50 Hz
I Deal In	New Only
Brand	T.L. PATHAK GROUP
Country of Origin	Made in India
Power Source	Electric
MODEL	PSW-8
KVA Rating @50% duty Cycle (KVA)	8
Input Supply (Volts)	230 / 440
Insulation Class	A (Cu.)
Nomination Throat Clearance (MM)	230
Throat Depth (MM)	450
Max.Electrode Stroke (MM)	40
Nominal Electrode Force (Approx kg.)	100
Max.Available short circuit current (k.Amps.)	7.5
Mild Steel Thickness (MM)	2.0 0.3
Brass Steel Thickness (MM)	0.9 0.1
Stainless Steel Thickness (MM)	1.8 0.25
Cooling for Arms & Electrods	Water
Approx Dimensions (HLW) MM	1200X660X450
Weight With arm Approx (KG)	150

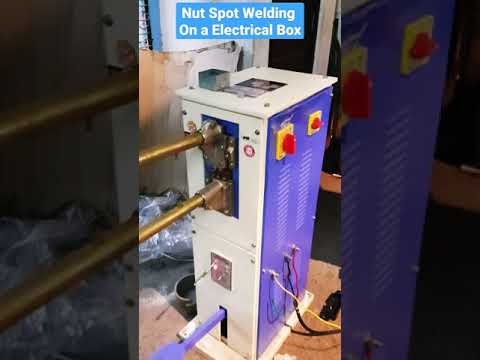

The Pedal Operated Spot Welding Machine is a Special 10 KVA Model With 24 Inches Arm Suitable For Almirah Fabrication. It was ? 50,000 To 158000. Our expertise in the respective domain enables us to offer Power Tech Pedal Operated Spot Welding Machines as per the clients' specific requirements. It has high-quality standards and the machines come with various technical specifications.

Cutting Width	900X 400
Material	Mild Steel
Model Name/Number	KCPPGC 50
Brand	T.L. PATHAK GROUP
Power Source	ELECTRIC
Type Of Profile Cutting	AUTOMATIC
Fuel Gas Type	LPG
Torch Type	Gas Torch
Max Cutting Thickness	125MM
Max Cutting Width	500-1000 mm
Automation Grade	Automatic
Voltage	220
Color	VARIABLE
Warranty	1 YEAR
I Deal In	New Only
Cutting Diameter	1200MM
Cutting Thickness	125MM
Usage/Application	CUTTING
Country of Origin	Made in India

We are one of the most reputed companies in the whole industry that manufacture and export all in one profile gas cutting machines in which cutting will be done using single-point or multi-point tools. Our team is well experienced and trained to provide you with the most updated types of machinery. You can buy our machines at any range as per your demands and needs.

Additional Information:

• Production Capacity: 5MACHINE PER MONTH
• Delivery Time: READY STOCK

Brand	T.L. PATHAK GROUP
Current	200-300 A
Voltage	220-240 V
Frequency	50 Hz
Phase	1 Phase
Product Type	New
Country of Origin	Made in India
Input Voltage (V)	220V 15%
Frequency (HZ)	50/60
Rated Input (A)	30
No-load Voltage (V)	230
Output Current Range (A)	15-40
Base Material	Carbon Steel, Stainless Steel, Low-alloy Steel
Plate Thickness (mm)	0.8-15.0
Current Range (A)	20-40
Air Pressure	3-4
Applicable Model	Cut 40

The ARC welding machine 400 AMPS is known for its durability and this machine type is best to be used in intermitted operations. The professionals have designed this welding machine under strict supervision which is made under quality control measures and it is also best for small repair and maintenance purposes. The best feature of this machine is that it consumes less electricity.

Output Current	0-100 A
Voltage	230-240 V
Efficiency	80%
Phase	1
Frequency	50 - 60 Hz
Brand	T.L. PATHAK GROUP
Country of Origin	Made in India
Input Voltage (V)	220V 15%
Rated Input (A)	30
No-load Voltage (V)	230
Output Current Range (A)	15-40
Base Material	Carbon Steel, Stainless Steel, Low-alloy Steel
Plate Thickness (mm)	0.8-15.0
Current Range (A)	20-40
Air Pressure	3-4
Applicable Model	Cut 40

The ARC welding machine with 200 AMPS  is best for small repair and maintenance jobs. The machine is easier to work with because of its portability. The machine type is useful in intermittent operations. The ARC machine is tested by experts under strict supervision and quality control measures which helps to work for the long term and it also doesn't consume much electricity.

Brand	T.L. PATHAK GROUP
Output Current	200-300 A
Automation Grade	Automatic
Welding Type	ARC
Power Source	IGBT
Phase	SINGLE
Color	BLACK
Country of Origin	Made in India
Input Voltage (V)	220V 15%
Frequency (HZ)	50 / 60
Rated Input (A)	30
No-load Voltage (V)	230
Output Current Range (A)	15-40
Base Material	Carbon Steel, Stainless Steel, Low-alloy Steel
Plate Thickness (mm)	0.8-15.0
Current Range (A)	20-40
Air Pressure	3-4
Applicable Model	Cut 40

From small repair work to maintenance jobs, everything can be done with the machine ARC welding machine 300 AMPS. It is best to work with because of its portability. The machines are appropriate to be used in intermittent operations. One who purchases this welding machine can use it for a long run without facing any trouble and it also saves a lot of electricity.

Usage/Application	Industrial
Country of Origin	Made in India
Laser Source	Max
Laser Power	1500 watt
Laser Incidence	Coaxial
Laser Wavelength	1080
Collimated Focal Length	50 mm
Focusing Focal Length	100 mm
Voltage	Ac 380 V,50 Hz
Cross Power	>=5000 W
Gas Source	0.2mpa (Argon,Nitrogen)
Wave Length	1080mm+-5
Colling Style	Water Cooling
Power Stability	+-1.5%
Operating Mode	Continuously
Fuber Code Dia	25
Output Cable Length	10 m
Interface Type	QBH
Brand	T.L. PATHAK GROUP

Hipat mechinery manufacture the best fiber laser welding machine.Our machine quality is good and gives the best result.

Model	mig
Brand	T.L. PATHAK GROUP
Insulation Class	B
Compatible Rods	10 mm
Technology	IGBT
Product Type	New
Welding Current Range	400
Country of Origin	Made in India
Rated input voltage (V)	415, -20 %, +20%
Phase/Freq (No./Hz)	3ph/50-60
Input KVA @ 60% duty cycle (KVA/KW)	17.6/16.7
Rated output current (amps)	20-400
Rated output voltage (V)	36(MMAW)
Rated Dutcy Cycle (%)	60
Ingress Protection (Class)	IP23
Insulation (Class)	H
Weight (KG)	50

The welding machine is made by the T.L Pathak group, the leading manufacturer of the exporter of the Panasonic Welding Machines. The current (Ampere) is 20-400 amp, the technology is made on Inverter Based, voltage (V) is 415 V and the outer Current ( Ampere ) is 20-400 amp. The weight of the Panasonic Welding Machine is 59 kg and its welding type is Arc welding.

Phase	3 Phase
Cooling	Fan Cooled
Model	mig
Brand	T.L. PATHAK GROUP
Insulation Class	A
Product Type	New
Welding Current Range	400
Country of Origin	Made in India
Rated Current Range (amps)	16-39
Welding Current (40 C)	400
INPUT	415, +10%, 10%
OUTPUT	60-400

The Panasonic Welding Machine 400KR2 is easy to handle due and it has long durability. This Welding Machine is from T.L Pathak group leading manufacturer which ranges between  ? 31,999 To 41,999. It is best suited for industrial purposes and the machine is made with updated technologies. One can get accurate results on the product after the complete work.
