8kw 72v /60v pmsm motor  For high performance or heavy vehicle. Very high quality and heavy duty product.

• 5kw 72v / 60v / 48v pmsm motor and controller kit with 56" 2 speed hydralic diffrerential set.
• Heavy duty and durable
• best for car hybrid conversion, Ev Conversion, DIY projects, Loading vehicle etc

6kw / 6000watt 72v PMSM Motor  3 Phase

• For High performance
• Product Features
• 72v operation
• Best Performance at 72V
• RPM up to 5500
• Regenerative Braking
• Speed Selection Switch
• F / R direction

Product Features

• Digital Speedometer with variable speed
• FRN drive mode selection
• Brake Switch
• E-ABS
• 3- Phase System
• For better Torque
• Better Efficiency
• Battery Heat Management
• Efficiency up to 94%
• IP 65 / 67 Protection

It sounds like you're referring to an E-rickshaw that uses a Permanent Magnet Synchronous Motor (PMSM) with a power rating of 1.5 kW and operates at 60 volts. Here’s a quick overview of what this means:

1. Power Rating (1.5 kW): This is the maximum power the motor can deliver. In terms of performance, a 1.5 kW motor is capable of providing sufficient power for typical E-rickshaw applications, offering a good balance between efficiency and performance.

2. Voltage (60V): This indicates the operating voltage of the motor. E-rickshaws typically use batteries that match this voltage rating. A 60V system is common in smaller electric vehicles and helps in balancing power consumption with battery life.

3. Permanent Magnet Synchronous Motor (PMSM): PMSMs are known for their high efficiency and performance. They use permanent magnets in the rotor and have better torque and efficiency compared to induction motors. They are often used in electric vehicles for their smooth operation and reliability.

• PMSM with FOC offers smoother torque, higher efficiency (~5% more), and lower noise, especially at low speeds

• 🔋 Battery & System Matching

  Choose a battery capable of delivering the required voltage and current:

  • Voltage: 48‑60 V (e.g., 13S–16S Li-ion or LiFePO₄)

  • Capacity: 30–40 Ah (1.5–2.4 kWh)

  • BMS Rating: Must support ≥100 A peak discharge

  • Energy: ~2.0 kWh yields ~60 km range under typical load

• Works flawlessly with QS & DT PMSM motors

• 72V, 200A peak

• Regen braking, cruise, reverse, programmable via PC or Bluetooth

• Comes with LCD display (Nucular-style or basic)

• Industrial-grade

• 72V nominal, up to 300A peak (model-specific)

• Fully programmable: speed mode, torque limits, throttle mapping

• Expensive, but reliable and robust

• Budget option

• Compatible with DT motors (popular in Indian EV market)

• USB software for tuning FOC and regen settings

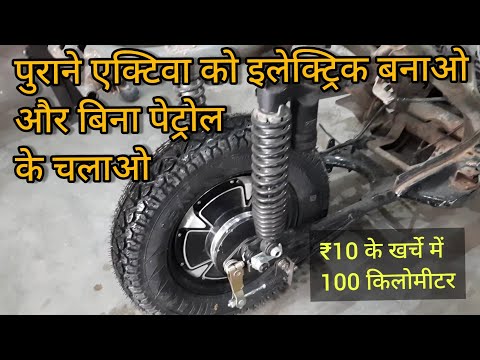

A 1.2 kW 48V Hub Motor is typically used in applications like electric bicycles (e-bikes), electric scooters, small electric vehicles (EVs), and other personal mobility devices. A hub motor integrates the motor directly into the wheel hub, making it compact and efficient for these types of transportation systems.

Let’s break down the specifications and additional details about a 1.2 kW 48V hub motor.

• Designed specifically for AC induction motors

• 72V nominal systems

• Field-Oriented Control (FOC)

• Fully programmable via Curtis software

• KAC7275I (72V, 75A continuous, 200A peak)

• Supports AC Induction motors

• Regen, reverse, throttle, serial communication

• Affordable, but less documented

• Often sold with motor kits

• Support for basic throttle and reverse

Since it’s an AC motor running at 48V, it must be powered by an inverter/controller that:

• Accepts 48V DC input (from battery pack).

• Outputs 3-phase AC (typically variable frequency and voltage, via V/f or vector control).

• Controls torque/speed based on throttle input or torque demand.

✅ Recommended: VFD or ACIM controller rated for:

• Input: 48V DC

• Output: 3-phase AC, matched to motor power (3.3kW)

• Control: Vector (FOC) or V/f

• Communication: Optional CAN, analog throttle, brake regen

Since it’s an AC motor running at 48V, it must be powered by an inverter/controller that:

• Accepts 48V DC input (from battery pack).

• Outputs 3-phase AC (typically variable frequency and voltage, via V/f or vector control).

• Controls torque/speed based on throttle input or torque demand.

✅ Recommended: VFD or ACIM controller rated for:

• Input: 48V DC

• Output: 3-phase AC, matched to motor power (3.3kW)

• Control: Vector (FOC) or V/f

• Communication: Optional CAN, analog throttle, brake regen

✅ Gearbox / reduction:

• Direct-drive to wheels is rarely practical with induction motors.

• Use a single-speed reduction or differential to match torque & speed.

✅ Cooling:

• For heavy or continuous loads, consider forced air or liquid cooling.

✅ Encoder / speed sensor:

• ACIMs don’t require Hall sensors like BLDC, but some controllers support external encoders for improved control & regen.

✅ Torque arm / mounting:

• Mount the motor securely; induction motors generate high startup torque.

A 3kW 48V AC induction motor is a type of electric motor commonly used for higher-power applications, like electric bikes, scooters, or tricycles. Induction motors are popular due to their robustness, efficiency, and relatively low maintenance. Here's a breakdown of the specifications and considerations for this motor:

• AC Induction Motor: These motors are powered by alternating current and are known for their durability and simplicity. Unlike DC motors, induction motors don't have brushes, which reduces wear and maintenance needs. They're commonly used in applications requiring steady, reliable performance.
• Power: 3kW (3000W), which is a high-powered motor suitable for vehicles requiring significant torque and higher speeds, like electric scooters, e-bikes, or industrial machinery.
• Voltage: 48V. This is a standard voltage for higher-powered electric motors, offering a good balance between power output and efficiency, particularly for vehicles that need substantial torque for hill climbing, acceleration, and carrying loads.

• 72V, 200A peak

• Fully FOC, programmable

• Works well with DT 3kW motors

• USB software tuning + regen + throttle mapping

• 72V, 100–150A peak

• Excellent for mid-sized EVs

• Soft throttle feel, smooth regen

• Can pair with LCD display for speed/range data

• 72V, ~80A+ continuous

• Rugged, industrial-grade build

• Torque & speed mode, field weakening, programmable

This AC motor requires a dedicated 48 V AC traction controller (not a DC brushless or PMSM controller). You’ll need an inverter-style controller designed for EV traction motors.

Suggested Controller Specs:

• Input Voltage: 48 V nominal (range 36–60 V allowed)

• Output: 3-phase AC

• Current Rating: ~100 A peak (dependent on torque requirements)

• Features: Regen braking, throttle input, fault protection

• Compatibility: Must support this specific motor winding and encoder/feedback interface (if present)
