INARC I Series machines are IGBT inverter based arc welding power source with soft switching technology.They are widely used for Carbon arc gouging & manual metal arc welding with acid and basic electrodes.

• Advance Soft Switching inverter technology and high efficiency.
• Easy arc striking & stable arc.
• Digital display of current with precise preset function.
• High power factor.
• High switching frequency,hence low volume &weight.
• Adjustable arc force.
• Can be used with extended welding cable.

INMIG-IS Series welders are Semi-Automatic Gas Shielded Metal are Welding machines with advanced wave control technology. They are widely used for GMAW/FCAW applications.

Features :

• Full bridge IGBT(Module)Inverter technology.
• Low spatter and adjustable inductance.
• Continuous adjustment of welding voltage and current.
• Slow start facilitates easy arc striking.
• Reduced melting ball at the end of welding.
• High operating frequency hence small size and weight.
• High Power Factor & Efficiency.
• Preset Digital Display of Welding voltage and current.

• Power Source, Wire Feeder, MIG Torch, 3 Mtr.Length,
• Regulator-flow meter pre heater,Interconnecting cable.
• Earthing cable with Clamp.
• Note:Package with Scope of Supply other than above is available on request.

INMIG-i Series welders are Semi-Automatic Gas Shielded Metal arc Welding machines with advanced wave control technology. Machines are available in 400/500/600 Amps range.

• Advanced Switching inverter technology, low spatter.
• Continuous adjustment of welding voltage and current.
• Slow start facilitates easy arc striking.
• Reduced melting ball at the end of welding.
• High operating frequency hence small size and weight.
• High Power Factor & Efficiency.
• Preset Digital Display of Welding voltage and current.

• Power Source, Wire Feeder, MIG Torch,
• 3 Mtr. Length.
• Regulator-flow meter-Heater.
• Interconnecting cable
• Earthing Cable with Clamp.

Model	Input Power (KVA)	Current Range(A)	Voltage Range	Power Factor	Duty Cycle	Weight (Kg)	Dimension (LxWxH) mm
INMIG-400 i	17.5	50-400	17-40	0.87	100%	43	600x300x560
INMIG-500 i	25	50-500	17-50	0.87	100%	46	600x300x560
INMIG-600 i	33	50-600	17-50	0.87	60%	57	600x300x560

INTIG PULSE Series machines are microprocessor controlled fully Digital lGBT Inverter based arc welding power source with advanced inverter technology. They are widely used for DC MMA, DC TIG & DC PULSE TIG welding In mild steel, alloy steel, stainless steel, copper & Titanium.

Features :

• Advanced inverter technology, hence more reliability.
•  Micro controller based technology for precise setting of welding parameters
• Under voltage, Over voltage, Phase absence and over heat protection.
• Digital preset of all welding parameters.
• High Efficiency, Better power factor.
• Built In High Frequency.
• 2/4 Step function.
• Built in gas control solenoid valve.

These Welding Positioners are designed for welding application where welding in circular path is required. They are also very useful for positioning the job for better welding position.

These gas cutting trolley is used to perform straight and circular cuts using flame cutting torch mounted on it. The trolley is easy to use and simple to set up.

• Aluminum Die Cast Body For Light Weight
• Stepless Variation Of Speed By Electronic Control Board
• Nozzle Mix Type Of Flame Cutting Torch
• Wider Wheel Base Makes It More Stable
• Angular Adjustment Of Torch Possible For Bevel Cuts
• Long Horizontal Cross Bar Gives More Flexibility For Set Up
• On/off Liver For Gas Control So That Flame Setting Does Not Change

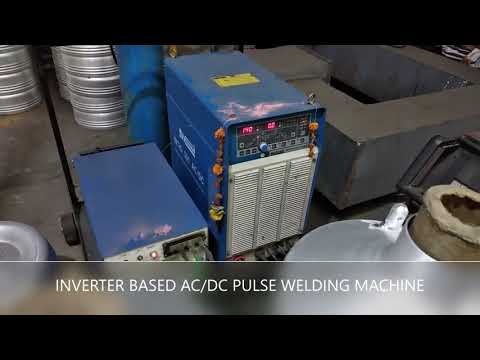

INTIG-AC/DC Series machines are microprocesser controlled fully digital IGBT inverter based arc welding power source with soft switching technology. They are widely used for DC TIG, DC PULSE TIG / AC Square wave TIG and AC Square Wave Pulse TIG welding in various metals including Al. and Mg alloy.


Features :

• Advanced Soft Switching technology, hence more reliability.
• Micro controller based technology for precise setting of welding parameters.
• Under voltage, Over Voltage, Phase absence and over heat protection.
• Digital preset of all welding parameters.
• Memory channels to store parameters.
• High efficiency, Better power factor.
• Light Weight but high duty cycle.
• Built in High Frequency..
• Gas Check Facility.
• 2/4 Step function.

INTIG 200 HD is Single Phase IGBT Inverter Based MMA/TIG Welding machine which can be used for Manual Metal Arc (MMA) Welding and Gas Tungsten Arc Welding (GTAW) in various kind of metals except AI & Mg.

• IGBT based inverter and hence more reliable
• Built in High Frequency for GTAW (TIG)
• Digital Display for set welding current
• Compact & Light in weight
• Better Welding Performance
• Higher Efficiency and better power factor
• Adjustable post gas time & down slope time in TIG.
• Adjustable arc force in MMA.

• Power Source : INTIG 200 HD
• 1.8 Meters of Welding cable witn welding holder
• 1.8 meters of Earthing cable wiith Earth Clamp
• 4 Meters Long Gas Cooled Tig Torch.
