PVR Controls

We are a supplier of SZ-7031/21/81 Digital Temperature Controllers in india. Simple digital temperature and process indicator comes with ABS plastic with polycarbonate graphics are used. Design Digital and Analog circuit based Temperature Sensor Input Thermocouple type J, K, or RTD (Pt-100)/2 or 3 wire (any one to be specified)Temperature Range0 to 400^oC for J,K or (Pt-100) 0 to 1000^oC for K type 0.0 to 199.9^oC /-100.0 to 199.9^oC for (Pt-100) (User to specify required range)Process Input(4-20)mA, (0-1)V, (0-5)V, (0-10)V Process Range0 to 1999 or -1999 to 1999 or 0 to 19999 or -19999 to 199999 with choice of Decimal point (User to specify required range).

Indicating Accuracy /-0.5% of the specified range for temperature input and Absolute to the process input Display Size3 and ½ digit or 4 digit or 4 and ½ digit 0.3”, 0.5”, 1.0”, 2.0” and 4.0” red/green seven segment LED.Control Set Points One or Two settable using potentiometer or thumb wheel switches.Control Action On/Off, Time Proportional or Analogue Proportional Hysterisis, Band and Reset Control Adjustable using front panel potentiometers (settings are model dependent).Control Output a) Relay changeover contacts(6A@230VAC) – preferred for ON/OFF control only (To drive external power contactors).

Solid state relay driver (0 to 10) VDC pulse – preferred for Time Proportional control. Built in Solid-state relay or Triac (rated for 10A @ 230VAC) – preferred for Time Proportional control. d) Analog or triggering pulses for Triac for phase angle control {single phase} – preferred for proportional control.Supply Voltage90 to 250VAC, or 110VAC / 230VAC /- 10% 50/60 Hz.Enclosure ABS Plastic for 1/8 din, ¼ din and Metal for others Front Fascia ABS plastic with polycarbonate graphics Sizes in mm.96 x 48, 48 x 96, 72 x 72, 96 x 96, 192 x 96 (for 0.3” to 2” display size). Bigger size for 4” display size.

Features:-

• Furnace / Oven control

• Constant temp. Baths

• Plastic / Packaging / Pharma industry

• Cold Storage and Chilling plants

• Laboratory equipment etc.


Get best price of Sub Zero SZ-7081 Temperature Controller.

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A

Additional Information:

• Item Code: SZ-7529P
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P

Additional Information:

• Item Code: SZ-7525P

• Cooling output & time based Defrost
• Memory retention, time delay for compressor protection
• Auto operation in case of sensor error
• Buzzer output

• Relay output : 8(3) A
• Buzzer output :10 VDC, 10 mA Max.
• Temp. Sensor Input : 1 NTC

• Temperature range - 50 °C to + 99°C
• 230VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1X 2.5 mm² wire

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P,D/A

We are a supplier of SZ-7031/21/81 Digital Temperature Controllers in india.Simple digital temperature and process indicator comes with ABS plastic with polycarbonate graphics are used.

Design Digital and Analog circuit based Temperature Sensor Input Thermocouple type J, K, or RTD (Pt-100)/2 or 3 wire (any one to be specified)Temperature Range0 to 400^oC for J,K or (Pt-100) 0 to 1000^oC for K type 0.0 to 199.9^oC /-100.0 to 199.9^oC for (Pt-100) (User to specify required range)Process Input(4-20)mA, (0-1)V, (0-5)V, (0-10)V Process Range0 to 1999 or -1999 to 1999 or 0 to 19999 or -19999 to 199999 with choice of Decimal point (User to specify required range)Indicating Accuracy /-0.5% of the specified range for temperature input and Absolute to the process input Display Size3 and ½ digit or 4 digit or 4 and ½ digit 0.3”, 0.5”, 1.0”, 2.0” and 4.0” red/green seven segment LED.Control Set Points One or Two settable using potentiometer or thumb wheel switches.Control Action On/Off, Time Proportional or Analogue Proportional Hysterisis, Band and Reset Control Adjustable using front panel potentiometers (settings are model dependent).Control Output a) Relay changeover contacts(6A@230VAC) – preferred for ON/OFF control only (To drive external power contactors)
b) Solid state relay driver (0 to 10) VDC pulse – preferred for Time Proportional control.
c) Built in Solid-state relay or Triac (rated for 10A @ 230VAC) – preferred for Time Proportional control. d) Analog or triggering pulses for Triac for phase angle control {single phase} – preferred for proportional control.Supply Voltage90 to 250VAC, or 110VAC / 230VAC /- 10% 50/60 Hz.Enclosure ABS Plastic for 1/8 din, ¼ din and Metal for others Front Fascia ABS plastic with polycarbonate graphics Sizes in mm.96 x 48, 48 x 96, 72 x 72, 96 x 96, 192 x 96 (for 0.3” to 2” display size). Bigger size for 4” display size.

Features:-

• Furnace / Oven control

• Constant temp. Baths

• Plastic / Packaging / Pharma industry

• Cold Storage and Chilling plants

• Laboratory equipment etc.

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P,D/A

• Cooling & Heating output
• Memory retention, time delay for compressor protection
• Auto operation in case of sensor error
• Power switch

• Relay output : 8(3)A
• Temp. Sensor Input : NTC

• Temperature range : -40° C to 99° C (1° C Resolution)
• 230 VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1 X 2.5 mm² wire

Additional Information:

• Item Code: SZ7510WV
• Pay Mode Terms: T/T (Bank Transfer),D/P

• Switch off compressor at setpoint.
• Manual / Auto restart options.
• Alarm output for high / low temperature.

• Relay output : 20 A (Inductive)
• Alarm relay : 5A
• Temp. Sensor Input : 1 NTC

• Temperature range 0° C to 70° C (SZ 7558P) & - 50° C to 99° C (SZ 7568P)
• 230 VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1X 2.5 mm² wire
• Spade terminals for compressor

Additional Information:

• Item Code: SZ-7558P-7568P
• Pay Mode Terms: T/T (Bank Transfer),D/P

• Cooling output
• Memory retention, time delay for compressor protection
• Auto operation incase of sensor error

  Input & Output:


  • Relay output :SZ-7510E - 8(3)A / SZ-7569E - 20A (Inductive)
  • Temp. Sensor Input : 1 NTC

    General Specifications


    • Temperature range -50° C to +50° C
    • 230 VAC Standard. Other models with 12VDC, 24VDC, 110VAC on request
    • Panel cutout : 29 X 71 mm Screw terminals : Admit 1 X 2.5 mm² wire
    • Spade terminals for compressors (For SZ-7569-E only)

Additional Information:

• Item Code: SZ-7510EandSZ-7569E

• Innovation is our forte and we strive to design and develop a precision engineered range of highly efficient Cold Room Controllers.
• This CRC-1100A is a panel mounted controller and is efficient in controlling the cold room temperature. There is a controller present in these freezers, which effectively controls the defrost.
• It does so either with the aid of an electrical heater where the compressor is stopped or at cycle inversion using warm gas where the compressor keeps on working.
•  Intervals between defrosts and the maximum time out after which the defrost needs to be interrupted can be decided by the user.
•  Evaporator fans present in the freezer are controlled by the same probe which controls the defrost cycle.

Other Details:

• Possible to set the temperature
• Delay time after a defrost can also be set
• User can also decide the relation of fans with the compressor

Main Features:

• LCD with back lighting to display all parameters
• 2 NTC probes for cold room temp + evap. coil temperature
• Relay outputs : Compressor + Cond. Fan + Heater + Evap. Fan + Alarm
• Audible alarm. •Digital inputs : 2 nos. (a) Door switch (b) Pressure cutout
• HP / LP / OSS trip protection for compressor. •Compressor protection algorithm
• Auto/Manual defrosting facility (Time/Temp based)
• Special software to indicate probable heater fault

Input & Output:

• Relay Output 1 : 8(3)A Compressor
• Output 2 : 8(2)A Heater
• Output 3 : 8(2)A Evaporator Fan
• Output 4 : 8(3)A Condenser Fan
• Output 5 : 5 A Alarm

General Specifications:

• Temperature range: -50°C to +50° C.
• 230 VAC Standard. 110 VAC on request.
• Panel cutout : 92 X 92 mm Screw terminals : Admit 1 X 2.5 mm² wire.

SZ 7523P

Main Feature:

• Digital input for Pressure Cutout.
• Relay output : Compressor + Heater + Evap. Fan. .
• HP/LP/OSS trip protection for compressor.
• Compressor protection algoriithm.
• Auto/Man defrosting facility (Time/ Temp based).

Input & Output:

• Relay Output 1 & 2 : 8(3)A for Heater & Evap. Fan.
• Relay Output 3 : 20A Compressor
• Temp. Sensor Input : 2 NTC (Room & Evap. Coil).

Application :

Freezer and cold room.


General Specification

• Temperature range -50°C to 50°C.
• 10VAC/DC Standard.
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1X 2.5 mm²wire.

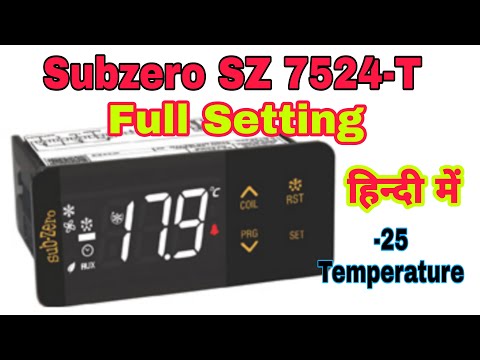

We have emerged as one of the leading manufacturers of SZ 7524P / SZ 7527 Freezer Controllers.

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P

• 2NTC probes for cold room temp + Evap.Coil temperature
• Range : -50 to 50 Degree C.
• Relay outputs: Compressor + Heater +Evap.Fan + Light.
• Digital Input - Pressure cutout.
• HP/LP/OSS trip protection for Compressor.
• Auto/ Man defrosting facility (Time/Temp based).
• Buzzer output.
• Corrosion resistance
• Durability
• Excellent performance

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A

Main Features:

• Digital input for pressure cutout.
• HP / LP / OSS trip protection for Compressor
• Auto/ Man defrosting facility (Time/Temp based)
• Inbuilt buzzer

Input & Output:

• Temp. Sensor Input : 2 NTC (Room & Evap. Coil)
• Relay Output : 8(3) A for Compressor, Heater & Evap. Fan
• Relay Output : 5 A for Light

• Blue LCD with backlighting with 16 X 2 characters to display all parameters
• Relay outputs Compressor, Heater, Evap. Fan and Alarm
• HP / LP / OSS trip protection for Compressor
• Auto / Man defrosting facility (Time/ Temp Based)
• Special Software to indicate probable heater fault

• Relay output : 8(3) A for Compressor
• Relay output : 8(3) A for Heater, Evap. Fan
• Alarm : 5 A
• Temp. Sensor Input : 2 NTC (Room & Evap. Coil)

Additional Information:

• Item Code: SZ-7515P
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A

• Cooling output
• Digital input for Door Switch
• Relay output : Heater & Compressor
• Auto / Manual defrosting facility (Time/ Temp based)

• Relay Output 1 : 8(3) A Compressor
• Relay Output 2 : 5 A Heater
• Temp. Sensor Input : 2 NTC (Room & Evap. Coil)

• Room Temperature range - 50 °C to + 99 °C
• Coil Temperature range -50°C to +50°C
• 230VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1 X 2.5 mm² wire

• Switch off compressor on the difference between control & reference temp
• Provision to switch off compressor on Low Temperature (LT)

Additional Information:

• Item Code: SZ-7552P-7562P

• Cooling & Heating output
• Memory retention, time delay for compressor protection
• Auto operation incase of sensor error
• Power switch

• Relay output :SZ-7510 P - 8(3)A / SZ-7569P - 20A (Inductive).
• Temp. Sensor Input : NTC.



• Temperature range -50° C to 99° C
• 230VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1 X 2.5 mm² wire
• Spade terminals for compressors (For SZ-7569-P only)

• Cooling output & Time based Defrost.
• Memory retention, time delay for compressor protection
• Auto operation in case of sensor error

• Relay output : 8(3) A
• Temp. Sensor Input : 1 NTC

• Temperature range -50 °C to +99 °C.
• 230VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1 X 2.5 mm² wire

Additional Information:

• Item Code: SZ-7520-P
• Pay Mode Terms: T/T (Bank Transfer),D/P

• Switch off compressor at setpoint.
• Manual / Auto restart options.
• Alarm output for high / low temperature.

• Relay output : 20 A (Inductive)
• Alarm relay : 5A
• Temp. Sensor Input : 1 NTC

• Temperature range 0° C to 70° C (SZ 7558P) & - 50° C to 99° C (SZ 7568P)
• 230 VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1X 2.5 mm² wire
• Spade terminals for compressor

• Cooling output & Time based Defrost
• Memory retention, time delay for compressor protection
• Auto operation in case of sensor error

•  Relay output : 20 A (Inductive)
• Temp. Sensor Input : 1 NTC

• Temperature range - 50 °C to + 99 °C
• 230 VAC Standard. Other models with 12 VDC, 24 VDC, 11 0VAC on request
• Panel cutout : 29 X 71 mm Screw terminals : Admit 1X 2.5 mm² wire
• Spade terminals for compressors

• Switch off compressor at set point.
• Manual reset is required to re-start.
• Buzzer output on achieving antifreeze set point.

• Relay output : 8 (3) A.
• Buzzer output :10 VDC, 10 mA Max.
• Temp. Sensor Input : 1 NTC with ½’’ BSP connection.

• Temperature range -50° C to +50° C.
• 230VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request.
• Panel cutout : 29 X 71 mm. Screw terminals : Admit 1X 2.5 mm² wire.

• *We are Manufacturer & Supplier of Refrigeration Controllers in india from New Mumbai.

Main Features:

• Cooling & Heating output
• Memory retention, time delay for compressor protection
• Auto operation in case of sensor error
• Power switch
• Digital input (HP, LP, OSS, Phase Loss)

  Input & Output:


  • Relay output : 8(3) A.
  • Temp. Sensor Input : 1 NTC.

    General Specifications:


    • Temperature range -50° C to +99° C
    • 230 VAC Standard. Other models with 12 VDC, 24 VDC, 110 VAC on request
    • Panel cutout : 29 X 71 mm Screw terminals : Admit 1X 2.5 mm² wire

Additional Information:

• Item Code: SZ7510P-DI

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P,D/A

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P
