Stepper Motor
Nema 17 Stepper Motor
₹ 988/UnitGet Latest Price
Minimum Order Quantity: 1 Unit
Product Brochure Watch Video
| NEMA Frame Size | NEMA 17 (42mm) |
| Motor Type | Stepper Motor |
| Number of Phase | 2 |
| Current | 1.2, 1.5 & 1.8 A |
| Shaft Diameter | 5 mm |
| Step Angle | 1.8 Degree |
| Torque | 0.22, 0.34 & 0.71 N.M |
| Model Name/Number | 42A02 |
| Weight | 300 grams |
| Number of Phases | 2 Phase |
| Body Length | 48 mm |
| Brand | Rtelligent |
| Holding Torque | 0.2 Nm |
| Rated Current | 1.4 A |
| Rated Voltage | 3.2 V |
| Inductance Per Phase | 2.8 mH |
| Width | 42.3 mm |
The Nema 17 Stepper Motor specially designed for accurate control of position and speed. The biggest characteristic of stepper motor is “Digital”. For each pulse signal from controller, the stepper motor driven by its drive runs at fixed angle.
Additional Information:
- Item Code: 42AM08
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
Nema 23 Stepper Motor
₹ 2,224/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Frame Size | NEMA 23 |
| Voltage | 24-48 VDC |
| Holding Torque | 3 Nm |
| Phase | 2 Phase |
| Current Per Phase | 1 A |
| Shaft Diameter | 6.35 mm |
| Step Angle | 1.8 Degree |
| Torque | 0.9 to 3 NM |
| Motor Type | Stepper Motor |
| Brand | Rtelligent |
| Model Name/Number | 57A09 |
| Dimension | 57 x 57 x 55 mm |
| Weight | 1030 grams |
| Rated Voltage | 24 V |
| Application | Robot |
| Body Length | 56 mm |
| Shaft Type | Single Shaft |
| Phase Current | 2.8 Amp |
| Inductance | 5.6 mH |
| Detent Torque | 0.68 kgcm |
| Shaft Length | 22 mm |
| Rated Current | 2.8/2.8/4.0 Amp |
| No Of Phase | 2 |
The Nema 23 Stepper Motor specially designed for accurate control of position and speed. Thr biggest characteristic of stepper motor is “Digital”. For each pulse signal from controller, the stepper motor driven by its drive runs at fixed angle.
Additional Information:
- Item Code: 57AM30
- Production Capacity: 100
- Delivery Time: 7 Days
- Packaging Details: Corrugated box
View Complete Details
Closed Loop Stepper Motor And Driver
₹ 9,950/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Motor Type | 2 Phase |
| Current Rating | 7 A |
| Control Mode | Pulse Train |
| Supply Voltage | 48 V DC |
| Step Angle | 1.8 Degree |
| Microstepping | 1/2 step |
| Voltage | 48V |
| Brand | Rtelligent |
| Control Interface | RS232 |
| Mounting Type | Panel Mount |
| Cooling Type | Natural Air |
| type of system | Closed loop stepper motor & driver |
| step accuracy | 0.5 % (synchronising load) |
| encoder resolution | 1000 ppr / 2500 ppr |
| motor frame size | 42 mm / 57 mm / 60 mm / 86 mm |
| motor torque | 0.8 Nm / 3 Nm / 8 Nm |
| stepper driver Amp. | 5 A / 7 A |
Our closed loop stepper motor & driver or we can say easy servo system are highly reliable for engraving machine, wire-stripping machine, laser marking, cutting machine etc.
Additional Information:
- Item Code: T86
- Production Capacity: 1000
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
Bipolar Stepper Motors
₹ 1,100/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Frame Size | NEMA 17 |
| NEMA Frame Size | NEMA 17 (42mm) |
| Holding Torque | 4.2 kg-cm |
| Phase | 2 Phase |
| No Of Phase | 2 |
| Step Angle | 1.8 Degree |
| Current Per Phase | 3 A |
| Rated Current | 1.7 A |
| Shaft Diameter | 5 mm |
| Motor Type | Bipolor |
| Voltage | 24 VDC |
| Dimension | 42 MM FRAME SIZE |
| Rated Voltage | 24 V |
| Number of Phases | 2 Phase |
| Body Length | 48 mm |
| Shaft Type | Single Shaft |
| Torque | <10 Kgcm |
Stepper motor is a control motor whose operatingspeed and position can be determined. It operates stepby step at a fixed angle (step angle) in rotation. Controlswitching pace of the step angle of stepper motor tocontrol its operating speed and position.The stepper servo is used for switching the pace ofstep angle of the stepper motor according to thespecified sequence.
Additional Information:
- Production Capacity: 1000
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
Ethercat stepper driver
₹ 9,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Motor Type | 2 Phase |
| Current Rating | 7 A |
| Input Phase | DC |
| Supply Voltage | 24 V DC |
| Input Voltage | 18 to 80 VDC |
| Microstepping | 1/8 Step |
| Voltage | 24V |
| Brand | Rtelligent |
| Usage/Application | Industrial |
| Model Name/Number | ECR60 |
| Mounting Type | Panel Mount |
| Cooling Type | Natural Air |
The EtherCAT fieldbus stepper driver ECR86 is based on the CoE standardframework and complies with the CiA402 standard. The data transmission ratecan reach 100Mb/s, and supports linear, ring and other network topologies.Control mode: PP, PV, CSP, HM, etc.Power supply voltage: 24-100V DC / 18-80V ACInput and output: 2-channel differential inputs/4-channel 24V commonanode inputs; 2-channel optocoupler isolated outputsTypical applications: assembly lines, lithium battery equipment, solarequipment, 3C electronic equipment, etc.
Additional Information:
- Item Code: ECR60
- Production Capacity: 1000
- Delivery Time: 2 Days
View Complete Details
Hybrid Stepper Motor
₹ 3,046/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Type | Hybrid Stepper Motor |
| Holding Torque | 28 Nm |
| Phase | 2 Phase |
| Number of Phase | 2 |
| Step Angle | 1.8 Degree |
| Current Per Phase | 3 A |
| Drive Type | Close loop |
| Torque | 20.0 kg-cm |
| Rated Voltage | 24 V |
| Body Length | 80 mm |
| Shaft Type | Single Shaft |
A hybrid stepper motor is a combination of adjustable reluctance and permanent magnet motors. The rotor of a hybrid stepper motor is axially magnetized as a permanent magnet stepper motor and the stator is electromagnetically energized as a variable stepper motor.Get the best price for Hybrid Stepper Motor
Additional Information:
- Production Capacity: 1000
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
Nema34 Stepper Motor 85 Kg Cm Torque
₹ 3,457/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Holding Torque | 12 Nm |
| Torque | 85 kg-cm |
| Frame Size | NEMA 34 |
| Phase | 2 Phase |
| Step Angle | 1.8 Degree |
| Current Per Phase | 5 A |
| Drive Type | Bipolar |
| Type | Bipolar |
| Number of Phase | 2 |
| Rated Voltage | 48 V |
| Body Length | 80 mm |
| Shaft Type | Single Shaft |
The Stepper motor is a special motor specially designed for accurate control of position and speed. the biggest characteristics of stepper motor is 'digital'. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle('one step for short').
Additional Information:
- Item Code: 86AM85
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details

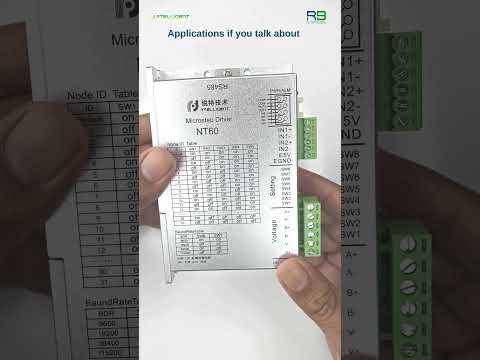

Stepper Motor Drives
₹ 11,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Motor Type | 2 Phase |
| Current Rating | 2 A |
| Control Mode | Step And Direction |
| Supply Voltage | 24 V DC |
| Microstepping | Half Step |
| Voltage | 24V |
| Input Phase | Single Phase |
| Brand | Rtelligent |
| Control Interface | RS232 |
| Mounting Type | Panel Mount |
| Cooling Type | Natural Air |
The 3R130 digital 3-phase stepper drive is based on patented three-phase demodulation algorithm, with built-in micro
stepping technology, featuring low speed resonance, small torque ripple. It can fully play the performance of three-phase
stepper motors.
Additional Information:
- Item Code: 3R130
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
Bipolar Stepper Motors
₹ 2,963/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Frame Size | NEMA 23 |
| Torque | 2 Nm |
| Holding Torque | 2 Nm |
| Phase | 2 Phase |
| Step Angle | 1.8 Deg |
| Current Per Phase | 1.5 A |
| Shaft Axial Play | 12.7 Nm |
| Number of Phase | 2 |
| Rated Voltage | 24 V |
| Body Length | 56 mm |
| Shaft Type | Single Shaft |
| Type | Bipolar |
| Motor Type | Hybrid |
The stepper motor is a special motor specially designed for accurate control of position and speed. The biggest characteristic of stepper motor is “digital”. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle.
Additional Information:
- Item Code: 86AM45
- Production Capacity: 100
- Delivery Time: 2 days
- Packaging Details: Corrugated box
View Complete Details
Nema 17 4 2 Kg Cm Stepper Motor
₹ 1,152/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| NEMA Frame Size | NEMA 17 (42mm) |
| Holding Torque | 4.2 kg-cm |
| Motor Type | Biopolar |
| Rated Current | 2.0 A |
| Shaft Diameter | 5 mm |
| Step Angle | 1.8 Degree |
| Torque | 0.07 Nm / 0.22 Nm |
| Speed | 800 Rpm |
| Model Name/Number | 35A01 / 39A02 |
| Power Source | Electric |
| Phase | Two Phase |
| Number of Phases | 2 Phase |
| Body Length | 48 mm |
| Frequency | 50 Hz |
| Iec Frame Sizes | 35mm / 39 mm |
The Nema 16 Stepper Motor specially designed for accurate control of position and speed. Thr biggest characteristic of stepper motor is “Digital”. For each pulse signal from controller, the stepper motor driven by its drive runs at fixed angle.
Additional Information:
- Production Capacity: 100
- Delivery Time: 7 Days
- Packaging Details: Corrugated box
View Complete Details
Nema 42 Stepper Motor
₹ 10,140/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| NEMA Frame Size | NEMA 42 (110mm) |
| Motor Type | Stepper |
| Shaft Diameter | 19 mm |
| Step Angle | 1.8 Degree |
| Model Name/Number | 110A12/110A20/110A28 |
| Dimension | 110 x 110 x (115/150/201) mm |
| Weight | 5000 grams |
| Number of Phases | 2 Phase |
| Body Length | 118 mm |
| Rotor Inertia | 5500 gcm2 |
| Brand | Rtelligent |
| Holding Torque | 110 Kgcm bipolar mode |
| rated current | 6/6/6.5 Amp |
| Length | 99 mm |
| Shaft Length | 55.37 mm |
| Phase Current | 5.5 Amp |
| Configuration | 4 wire bipolar stepper motor |
| Resistance | 0.7 ohm |
The Nema 42 Stepper Motor specially designed for accurate control of position and speed. Thr biggest characteristic of stepper motor is “Digital”. For each pulse signal from controller, the stepper motor driven by its drive runs at fixed angle.
Additional Information:
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
Nema 34 Stepper Motor
₹ 3,477/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| NEMA Frame Size | NEMA 34 (86mm) |
| Motor Type | Hybrid Bipolar |
| Number of Phase | 2 |
| Step Angle | 1.8 Degree |
| Shaft Diameter | 12.7 mm |
| Torque | 27 Nm / 45 Nm |
| Model Name/Number | 86AM85 |
| Number of Phases | 2 Phase |
| Iec Frame Sizes | 86 mm |
| Brand | Rtelligent |
| Holding Torque | 8 Nm |
| Rated Current | 6 A |
| Body Length | 112 mm |
| Phase Resistance | 0.53 ohms+- 10% |
| Inductance | 5.54 mH |
| Frame Size | 86 x 86 mm |
| Shaft Length | 32 mm |
The Nema 52 Stepper Motor specially designed for accurate control of position and speed. Thr biggest characteristic of stepper motor is “Digital”. For each pulse signal from controller, the stepper motor driven by its drive runs at fixed angle.
Additional Information:
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
| Frame Size | NEMA 34 |
| Holding Torque | 8 Nm |
| Phase | 2 Phase |
| Step Angle | 1.8 Deg |
| Current Per Phase | 5 A |
| Drive Type | Hybrid |
| Torque | 50 kg-cm |
| Max Axial Force | 8 NM |
| Rated Voltage | 48 V |
| Body Length | 80 mm |
| Shaft Type | Single Shaft |
The Stepper motor is a special motor specially designed for accurate control of position and speed. the biggest characteristics of stepper motor is 'digital'. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle('one step for short').
Additional Information:
- Production Capacity: 100
- Delivery Time: 7 days
- Packaging Details: Corrugated box
View Complete Details
| Holding Torque | 12 Nm |
| Torque | 85 kg-cm |
| Frame Size | NEMA 34 |
| Phase | 2 Phase |
| Step Angle | 1.8 Degree |
| Current Per Phase | 6 A |
| Drive Type | Hybrid |
| Type | Hybrid |
| Number of Phase | 2 |
| Rated Voltage | 48 V |
| Body Length | 80 mm |
| Shaft Type | Keyed Shaft |
The Stepper motor is a special motor specially designed for accurate control of position and speed. the biggest characteristics of stepper motor is 'digital'. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle('one step for short').
Additional Information:
- Item Code: 86AM120ED
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
| Holding Torque | 3 Nm |
| Torque | 20.0 kg-cm |
| Frame Size | NEMA 23 |
| Phase | 2 Phase |
| Step Angle | 1.8 Degree |
| Current Per Phase | 2 A |
| Drive Type | Bipolar |
| Type | Bipolar |
| Voltage | 24 VDC |
| Rated Voltage | 24 V |
| Body Length | 60 mm |
| Shaft Type | Double Shaft |
| Number of Phase | 2 |
The Stepper motor is a special motor specially designed for accurate control of position and speed. the biggest characteristics of stepper motor is 'digital'. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle('one step for short').
Additional Information:
- Item Code: 86AM85ED
- Production Capacity: 100
- Delivery Time: 2 Days
- Packaging Details: Corrugated box
View Complete Details
| NEMA Frame Size | NEMA 17 (42mm) |
| Holding Torque | 4.2 kg-cm |
| Motor Type | Integrated |
| Step Angle | 1.8° |
| Rated Current | 1.5 A |
| Shaft Diameter | 5 mm |
| Brand | Rtelligent |
| Number of Phases | 2 Phase |
| Body Length | 40 mm |
The IR/IT series is an intelligent integrated stepper motor launched by Rtelligent. The existing products cover 42mm-86mm base motor. It not only supports external pulse and communication control, but also can achieve motion control through internal self-programming.
- Pulse control methods: pulse + direction, double pulse, orthogonal pulse
- Communication control mode: RS485/EtherCAT/CANopen
- Communication Settings: 5-digit dip code - 31 axis addresses;2-di it di code -4 baud rates
- Motion direction setting: A I-digit dip code is used to set the motor's running direction
- Control signal: 5V or 24V single-ended input, common anode connection method
Additional Information:
- Item Code: ITD
- Production Capacity: 1000
- Delivery Time: 2 Days
- Packaging Details: Corrugated Box
View Complete Details
- Developed and Managed by IndiaMART InterMESH Limited
