R. K. Label Printing Machinery Private Limited

Machine Size (in inches)	42
Model Name/Number	RK-DPS-40''
Type	Slitter Machine
Paper Material	Duplex
Automation Grade	Semi-Automatic
Maximum Web Width	1000mm

Jumbo Roll Slitting and Rewinding Machine 40"

 1. MODEL NO: - RK DPS- 40”  ROLL TO ROLL DUPLEX SLITTER MACHINE• Maximum Paper feeding Size 1000 MM  • Unwinding Unit Roll ø800MM Maximum• Unwinding Unit With 3” Manual Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (BRAND:- ARISE)• Unwinding Side Tension Controlled by Mechanical Brake System• Normal Shear Blade Slitting attachment (8pcs)• Air Blower System for Waste Trimming Collection• Rewinding Unit Up & Down Type With Max ø500 MM (Depends on Slitting Width)• Rewinding Unit With 3” Manual Shaft• Rewinding Side Tension Controlled by Mechanical Clutch System• Electronics Meter Counter With Auto Stop Control• Main Motor 4 HP 3 Phase AC With Variable Speed Control (VFD Brand: Schneider)• Machine Speed 80 Mtr. / Min

Additional Information:

• Item Code: RK-DPS
• Production Capacity: 80M/M
• Delivery Time: 30 to 45 Days

Production Capacity	Upto 100 m/min
Capacity	50 m/min
Usage/Application	Paper
Power Consumption	7.5 HP 3 PHASE
Power	7.5 HP 3 Phase
Material	Mild Steel
Automation Grade	Semi-Automatic
Power Source	7.5 HP 3 PHASE
Motor Power	7.5 HP 3 PHASE
Country of Origin	Made in India

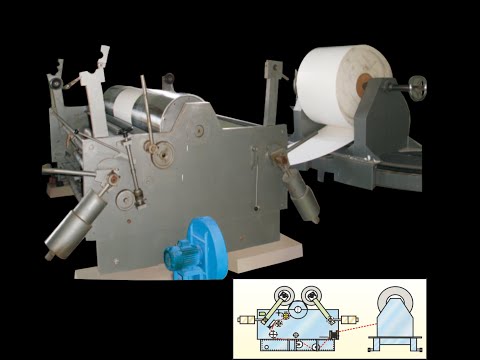

Roll to Roll Deckle Slitting Machine
 1. MODEL NO: - RK DS-60’’
ROLL TO ROLL DRUM SLITTER MACHINE
• Maximum Paper feeding Size 1500 MM  • Unwinding Unit Roll ø800MM Maximum• Unwinding Unit With 3” Manual Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (BRAND: - ARISE)• Unwinding Side Tension Controlled by Mechanical Brake System• Rotary Blade Slitting attachment (8pcs)• Air Blower System for Waste Trimming Collection• Rewinding Unit: Drum Winding Type With Double Winding Shaft System Max ø 600mm (Depending Upon Slitting Width)• Rewinding Unit With 3” Manual Shaft• Rewinding Side Tension Controlled by Mechanical Clutch System• Electronics Meter Counter With Auto Stop Control• Main Motor 7.5 HP 3 Phase AC With Variable Speed Control (VFD Brand: Schneider)• Machine Speed 80 Mtr. / Min

Additional Information:

• Item Code: RK-DS-60
• Production Capacity: 5 Units Per Month
• Delivery Time: 30 to 45 days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Production Capacity	Upto 100 m/min
Power Consumption	5 HP 3 Phase
Material	Mild Steel
Automation Grade	Semi-Automatic
Power Source	5 HP 3 Phase
Motor Power	5 HP 3 Phase
Country of Origin	Made in India

Jumbo Roll Slitting and Rewinding Machine

 1. MODEL NO:- RK DS-24’’
ROLL TO ROLL DRUM SLITTER MACHINE• Maximum Paper feeding Size 600 MM  • Unwinding Unit Roll ø800MM Maximum• Unwinding Unit With 3” Manual Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (BRAND:- ARISE)• Unwinding Side Tension Controlled by Mechanical Brake System• Rotary Blade Slitting attachment (8pcs)• Air Blower System for Waste Trimming Collection• Rewinding Unit: Drum Winding Type With Double Winding Shaft System Max ø 600mm (Depending Upon Slitting Width)• Rewinding Unit With 3” Manual Shaft• Rewinding Side Tension Controlled by Mechanical Clutch System• Electronics Meter Counter With Auto Stop Control• Main Motor 3 HP 3 Phase AC With Variable Speed Control (VFD Brand: Schneider)• Machine Speed 80 Mtr. / Min

Additional Information:

• Item Code: RK-DS-40
• Delivery Time: 30 to 45 Days

Capacity	100 m/min
Power	Main Motor 3 HP 3 Phase
Automation Grade	Semi- Automatic
Power Consumption	Main Motor 3 HP 3 Phase
Machine Speed	80 M/MIn
Brand	RK
Weight	1.5 TON

Roll to Roll Jumbo Slitting Machine

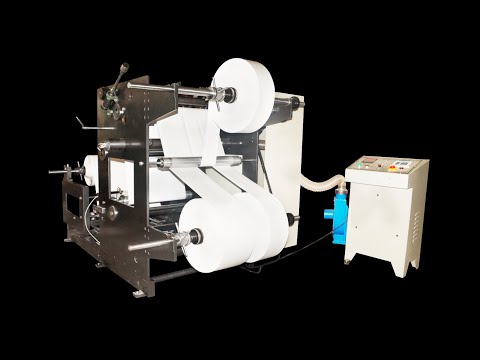

  1. MODEL NO: - RK DPS- 24”
ROLL TO ROLL DUPLEX SLITTER MACHINE• Maximum Paper feeding Size 600 MM  • Unwinding Unit Roll ø800MM Maximum• Unwinding Unit With 3” Manual Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (BRAND:- ARISE)• Unwinding Side Tension Controlled by Mechanical Brake System• Normal Shear Blade Slitting attachment (6pcs)• Air Blower System for Waste Trimming Collection• Rewinding Unit Up & Down Type With Max ø450 MM (Depends on Slitting Width)• Rewinding Unit With 3” Manual Shaft• Rewinding Side Tension Controlled by Mechanical Clutch System• Electronics Meter Counter With Auto Stop Control• Main Motor 3 HP 3 Phase AC With Variable Speed Control (VFD Brand: Schneider)• Machine Speed 80 Mtr. / Min

Additional Information:

• Item Code: DPS
• Production Capacity: 80M/m
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.
