R. K. Label Printing Machinery Private Limited

Additional Information:

• Item Code: RK-MHC-30
• Production Capacity: 30 units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Additional Information:

• Item Code: RK-MHC
• Production Capacity: 30 Untis Per Month
• Delivery Time: 2 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Additional Information:

• Item Code: RK-MHC-24
• Delivery Time: Within 2 to 3 Days

Additional Information:

• Item Code: RK-Foilcutting
• Production Capacity: 10 Units Per Month
• Delivery Time: 2 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Additional Information:

• Item Code: RK-GM
• Production Capacity: 5 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

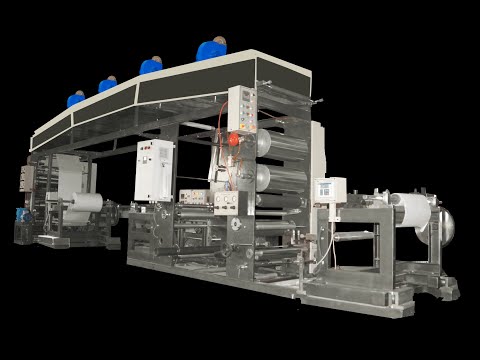

Sticker Paper Making Machine

 1.MODEL NO: - RK GM

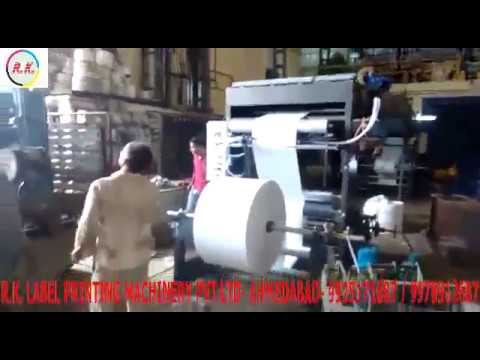

STICKER PAPER GUM COATING MACHINE

• Machine Size: 24" Inches

• Machine Length: 30' Feet

• Coating Area: 20" Inches

• Unwinding: (Chromo)

➤  Max Roll ø1000mm

➤  3” Mechanical Shaft

➤  Unwinding: (Release)

➤  Max Roll ø1000mm

➤  3” Mechanical Shaft

➤  Web Guide Unit for Release Paper

• Coating With Master Roll Type Unit

• 2000 Watts Heater - 20 Nos

• Hot Air Blower System

• Web Guide System on Paper Pasting Side Electrical & Electronics Control System with Digital Temperature Controlling Electronic Meter Count With Auto Stop Control

• Machine are Operatable from Both Side for ON & OFF Controlling

• Gum Coating Speed 25 m/min

• Release Coating Speed 25 m/min

• Rewinding Unit

➤  Max Roll ø1000mm

➤  3" Manual Shaft

• Power Consumption: 50 HP 440 V AC 3 Phase with neutral & Earthing

• Height 9 Ft, Width 7 Ft, Length 32 Ft

Extra Option:

➤  Gravure Unit for Release Side Printing

➤  Air Shaft System

Additional Information:

• Item Code: GM
• Production Capacity: 2 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

MODEL NO: - RK-3040-S WITH RFID CONVERSION UNIT

HIGH SPEED LABEL DIE CUTTING WITH SHEET CUTTING MACHINE WITH LAMINATION UNIT (300MM x 400MM)

Maximum Paper Width: 320 mm

Unwinding Unit

• Master Unwinding Unit Max Roll ø600mm
• Master Unwinding Unit With 3” Shaft (75mm)
• Master Unwinding Unit Controlled by Mechanical Brake System
• Master Unwinding Unit Top Release Rewinding Option (Mechanical Clutch)
• RFID Unwinding Unit With 3” Shaft (75mm)
• RFID Release Rewinding Option (Mechanical Clutch)
• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)

Label Transfer Unit

• For Plain, Pre-Printed and Pre-Die Cut label
• Max Width 180mm & Max Roll ø300mm
• With 3” Core Mandrel
• Servo Motor For Rewinding Unit (Brand: Schneider)
• Facility for Moving the Complete Station to make Manual Adjustment
• Nip Roll Unit After Label Transfer

Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly

Die Cutting Unit Area: Width 300mm & Repeat Length 380mm

Paper Pulling with Electronic Servo Motor Control (Brand: Schneider)

Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)

Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection

Online Waste Matrix Rewinding Unit with Mechanical Clutch System

Online Sheet Cutting Unit

Rewinding Unit

• Rewinding Unit Max Roll ø600mm
• Rewinding Unit With 3” Shaft (75mm)
• Rewinding unit Tension Controlled by Mechanical Clutch System

Dancer Roller Mechanism with analog output sensor feedback

Main Motor 3 HP 3 Phase Motor A.C Variable Speed Controller

Motor Operated by Variable Frequency Drive (Brand: Schneider)

1 HP AC Motor on Unwinding Side for Paper Unloading

1 HP AC Motor on Rewinding Side with VFD (VFD Brand: Schneider)

Machine Speed Max. 10000 to 15000 Strokes /Hr. (Depend on Length, Substrate, Die Shape For Plain Label)

Additional Information:

• Item Code: RFID
• Production Capacity: PER MONTH 4 TO 5 MACHINE
• Delivery Time: 45 DAYS

Additional Information:

• Item Code: RK-PR
• Production Capacity: 10 Units Per Month
• Delivery Time: 10 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Additional Information:

• Item Code: RK-GM-24
• Production Capacity: 2 Units per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.
