R. K. Label Printing Machinery Private Limited

Machine Type	Paper Cutting Machine
Cutting Capacity	More Than 250 pcs/min
Type of Label Cutting Machine	Sheet Label Cutter
Model Name/Number	RK-3040-S
Brand	RK
Cutting Length	400mm
Dimensions	Height 5.5 Ft, Width.4 Ft, Length 11Ft

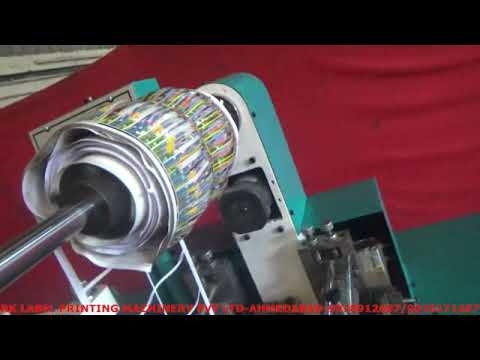

Flatbed Die Cutting Machine for Plain & Printed Paper Roll

 1.MODEL NO: - RK-3040-SHIGH SPEED LABEL DIE CUTTING WITH SHEET CUTTING MACHINE (300MM x 400MM)
• Maximum Paper Width: 320 mm• Auto Unwinding Unit With 3” Air Shaft• Unwinding Unit Roll ø600MM Maximum• Unwinding unit Controlled by Mechanical Brake System• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly• Die Cutting Unit Area: Width 300mm & Repeat Length 380mm• Paper Pulling with Electronic Servo Motor Control (Brand: Schneider)• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection• Online Waste Matrix Rewinding Unit with Mechanical Clutch System• Online Sheet Cutting Unit • Auto Rewinding Unit with 3” Air shaft• Rewinding unit Tension Controlled by Mechanical Clutch System• Dancer Roller Mechanism with analog output sensor feedback• Main Motor 3 HP 3 Phase Motor A.C Variable Speed Controller • Motor Operated by Variable Frequency Drive (Brand: Schneider)• 1 HP AC Motor on Unwinding Side for Paper Unloading• 1 HP AC Motor on Rewinding Side with VFD (VFD Brand: Schneider)• Machine Speed Max. 10000 to 15000 Strokes /Hr. (Depend on Length, Substrate, Die Shape For Plain Label)
Power Consumption - 6HP 3PhaseHeight 5.5 Ft, Width.4 Ft, Length 11Ft

Additional Information:

• Delivery Time: 30 to 45 Working Days

Machine Type	Paper Cutting Machine
Model Name/Number	RK-3040 - D
Brand	RK
Cutting Length	400
Cutting Speed	18000 Stroke per hour

HIGH SPEED LABEL DIE CUTTING MACHINE (300MM x 400MM)
• Maximum Paper Width: 320 mm
• Auto Unwinding Unit With 3” Manual Shaft
• Unwinding Unit Roll ø600MM Maximum
• Unwinding unit Controlled by Mechanical Brake System
• Gauge Unit for Paper Guide on Unwinding Side
• Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly
• Die Cutting Unit Area: Width 300mm & Repeat Length 380mm
• Paper Pulling With Electronic Servo Motor Control (Brand: Schneider)
• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)
• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection
• Online Waste Matrix Rewinding Unit with Mechanical Clutch System
• Auto Rewinding Unit with 3” Manual shaft
• Rewinding unit Tension Controlled by Mechanical Clutch System
• Dancer Roller Mechanism with analog output sensor feedback
• Main Motor 3 HP 3 Phase Motor A.C Variable Speed Controller
• Motor Operated by Variable Frequency Drive (Brand: Schneider)
• 1 HP AC Motor on Unwinding Side for Paper Unloading
• 1 HP AC Motor on Rewinding Side With VFD (VFD Brand: Schneider)
• Machine Speed Max. 10000 to 15000 Strokes /Hr. (Depend On Length, Substrate, Die Shape For Plain Label)

Power Consumption - 6HP 3PhaseHeight 5.5 Ft, Width.4 Ft, Length 7 Ft

Additional Information:

• Item Code: RK-3040D
• Delivery Time: 30 to 45 Workings Days

Machine Type	Die Cutting Machines
Type of Label Cutting Machine	Roll Label Cutter
Model Name/Number	RK-3040-D
Brand	RK
Cutting Length	400mm
Cutting Speed	18000 Strokes Per Hours

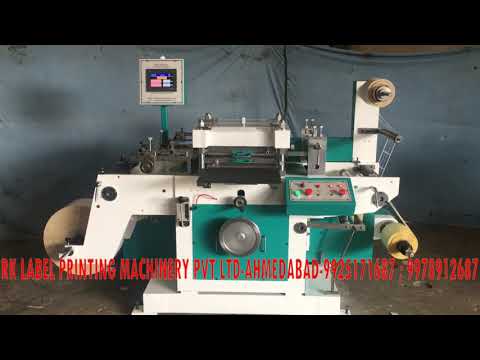

Flatbed Barocode Label Die Punching Machine With Webguide Unit

 1. MODEL NO: - RK 3040-D HIGH SPEED LABEL DIE CUTTING MACHINE (300MM x 400MM) WITH WEB GUIDE• Maximum Paper Width: 320 mm• Auto Unwinding Unit With 3” Manual Shaft• Unwinding Unit Roll ø600MM Maximum• Unwinding unit Controlled by Mechanical Brake System• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly• Die Cutting Unit Area: Width 300mm & Repeat Length 380mm• Paper Pulling With Electronic Servo Motor Control (Brand : Schneider)• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection• Online Waste Matrix Rewinding Unit with Mechanical Clutch System• Auto Rewinding Unit with 3” Manual shaft• Rewinding unit Tension Controlled by Mechanical Clutch System• Dancer Roller Mechanism with analog output sensor feedback• Main Motor 3 HP 3 Phase Motor A.C Variable Speed Controller • Motor Operated by Variable Frequency Drive (Brand: Schneider)• 1 HP AC Motor on Unwinding Side for Paper Unloading• 1 HP AC Motor on Rewinding Side With VFD (VFD Brand : Schneider)• Machine Speed Max. 10000 to 15000 Strokes /Hr. (Depend On Length, Substrate, Die Shape For Plain Label)
Power Consumption -  6HP 3PhaseHeight 5.5 Ft, Width.4 Ft, Length 7 Ft

Additional Information:

• Item Code: RK-3040-D
• Delivery Time: 30 to 45 Working Days

Type of Machine	Die Cutting Presses
Machine Type	Paper Cutting Machine
Packaging Type	Bubble Wrap
Automation Grade	Semi-Automatic
Usage/Application	For Foam, 3M Sticker Die Cutting Machine
Material	Mild Steel
Phase	7 HP 3 Phase
Size	500 X 600

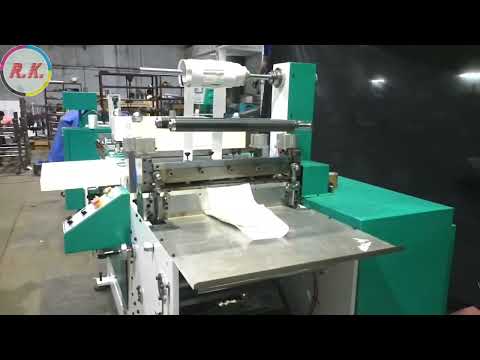

Heavy Duty Flatbed Die Cutting With sheet Cutting Machine

Paper Width: 500 mmMaximum Die Cutting Unit Area 500mm X 600mm
Auto Unwinding Unit
Auto Rewinding Unit
Online Auto Sheet Cutting Unit
Electronic Feeding Unit with Servo Motor Control with repass Scanner System
Main Motor 5 HP 3 PHASE Motor A.C Variable Speed Control System
Waste Rewinding Unit
Machines Speed 6000 strokes/hr. maximum(Depends upon Length)
Fully Machine Air Pneumatic System
Power Consumption - 7 HP 3 Phase
Height 5.5 Ft, Width. 5.5 Ft, Length 13 Ft

Additional Information:

• Item Code: RK-5060S
• Production Capacity: 2 units Per Month
• Delivery Time: 60 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Production Capacity	Upto 100 m/min
Power Consumption	6HP 3Phase
Material	Mild Steel
Automation Grade	Semi-Automatic
Voltage	3 Phase
Motor Power	3 HP
Type	Flatbed
Country of Origin	Made in India

Printed & Plain Label Die Cutting Machine

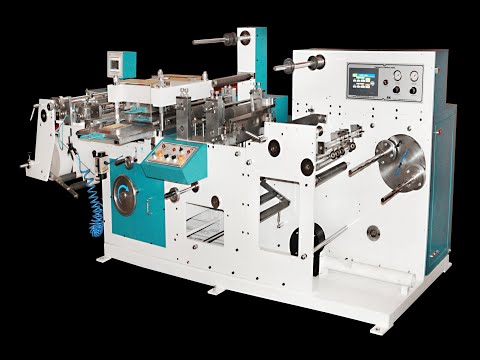

 1. RK HDTR 3040 DHIGH SPEED LABEL DIE CUTTING MACHINE WITH ONLINE SLITTING & TURRET REWINDING (300MM x 400MM)• Maximum Paper Width: 300 mm• Auto Unwinding Unit With 3” Air Shaft• Unwinding Unit Roll ø600MM Maximum• Unwinding unit Controlled by Mechanical Brake System• Electronic Web Guide Unit for Paper Guide on Unwinding Side Ultrasonic Based System (Brand:ARISE)• Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly (Brand:Panasonic)• Die Cutting Unit Area: Width 300mm & Repeat Length 380mm• Paper Pulling With Electronic Servo Motor Control (Brand: Schneider)• Rotary Blade Slitting attachment• Air Blower System for Waste Trimming Collection• Turret Rewinding Unit Indexing with Stepper Motor Controller. (Rewinding Roll ø250MM Max)• Auto Turret Index (Rewinding shaft Rotate) Once Label / Meter Counter Reach the Target with Timing Setting• Switch for Turret Index & Machine Start/Stop• Rewinding Unit Tension Controlled by Mechanical Clutch System• Facility for Both Forward & Reverse Rewinding Direction with Switch Control• Facility for 1”,1.5”,3” Core on Rewinding with Selection on Touch Screen (Easy of Core Change Setting)• Online Waste Matrix Rewinding Unit with Mechanical Clutch System• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection• Dancer Roller Mechanism with analog output sensor feedback• Main Motor 3 HP 3 Phase Motor A.C Variable Speed Controller • Motor Operated by Variable Frequency Drive (Brand: Schneider)• 0.5 HP AC Motor For Nip Roll• 1 HP AC Motor on Rewinding Side With VFD (VFD Brand: Schneider)• Meter Counter & Label Counter with Auto Stop Control• Machine Controlled By Electronic PLC System (Brand: Schneider)• Rewinding Core Size 1”, 1.5”, 3” Air Shaft System. (Each 2 Pcs)• Machine Speed Max. 10000 to 15000 Strokes /Hr. (Depend On Length, Substrate, Die Shape For Plain Label)
Power Consumption - 6HP 3Phase

Additional Information:

• Item Code: RK-HDTR-3040D
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.
