R. K. Label Printing Machinery Private Limited

Capacity	100 m/min
Power	1 HP Single Phase
Automation Grade	Semi- Automatic
Power Consumption	1 HP Single Phase
Machine Speed	60m/min
Brand	RK
Weight	500KG

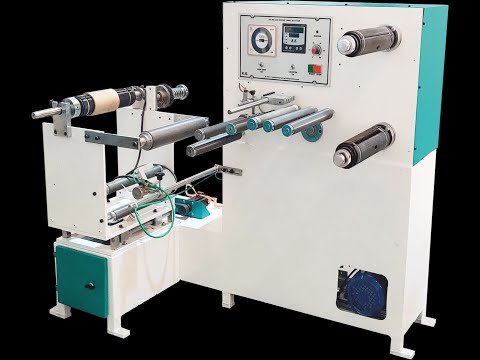

Barcode Label Slitting and Rewinding Machine

 01. R.K MS-320 ROLL TO ROLL MICRO LABEL SLITTER SIZE- 12”• Maximum Paper Width: 320 mm• Unwinding Unit Roll ø600MM Maximum with 3” Manual Shaft• Unwinding Unit Tension Controlled by Mechanical Brake System• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Normal Shear Blade Slitting attachment with Grooved Base Roll• Up & Down Rewinding System• Rewinding Unit Tension Controlled by Mechanical Clutch System•  1 HP AC Variable Speed Control Motor• Motor Operated by Variable Frequency Drive (Brand: Schneider)• Digital meter Counter unit for label counting & Meter counter with Auto Stop.
• Rewinding Core Size 1”, 1.5”, 3” Changeable with collator (Each 2 Pcs)• Machine Mechanical Speed – 60 m/min
Power Consumption – 1 HP Single PhaseHeight 5.5 Ft, Width.4 Ft, Length 5 Ft

Additional Information:

• Item Code: RK-MS-320
• Production Capacity: 20 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Production Capacity	Upto 100 m/min
Capacity	100 m/min
Usage/Application	adhesive paper
Power Consumption	3 HP 1 PHASE
Power	3 HP 1 PHASE
Material	Stainless Steel
Automation Grade	Automatic
Motor Power	2 HP
Country of Origin	Made in India

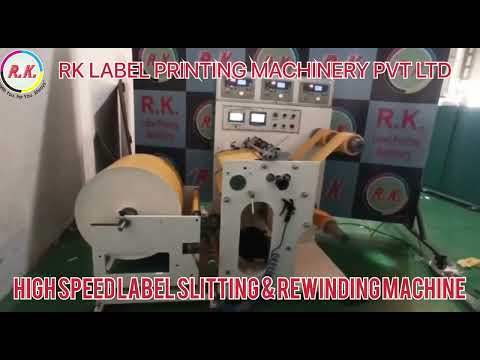

Jumbo Roll high Speed Label Slitting & Rewinding Machine

 1. MODEL: HS – 550 HIGH SPEED LABEL SLITTING & REWINDING MACHINE• Maximum Paper Width: 550 mm• Unwinding Unit Roll ø1000MM Maximum with 3” Manual Shaft• Auto Lifting with Pneumatic System• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Unwinding Unit Tension Controller With Powder Brake System • Rotary Blade Slitting Unit (8 Blade)• Air Blower System for Waste Trimming Collection• Up & Down Rewinding System (Rewinding Roll ø500MM Depends on Thickness)• Rewinding Unit Tension Controlled by Powder Clutch System• Facility for Both Forward & Reverse Rewinding Direction with Switch Control• Facility for 1”,1.5”,3” Core on Rewinding with Selection on Touch Screen (Easy of Core Change Setting)• Full Touch HMI Screen for Easy of Operation & Setting (Brand: Schneider/ Inovance)• 2 HP AC Variable Speed Control Motor for Nip Roll / Slitting Unit• 2 HP AC Variable Speed Control Motor for Rewinding Unit• Both Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)• Meter Counter & Label Counter with Auto Stop Control • Machine Controlled By Electronic PLC System (Brand: Schneider)• Rewinding Core Size 1”, 1.5”, 3” Changeable with collator (Each 2 Pcs)• Machine Mechanical Speed – 100 m/min
Power Consumption -  4 HP Single PhaseHeight 4.5 Ft, Width.3.5 Ft, Length 6 Ft

Additional Information:

• Item Code: RK-HS-550
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 TO 45 DAYS
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Production Capacity	Upto 100 m/min
Power Consumption	3 HP Single Phase
Material	Mild Steel
Brand	RK
Automation Grade	Semi-Automatic
Country of Origin	Made in India

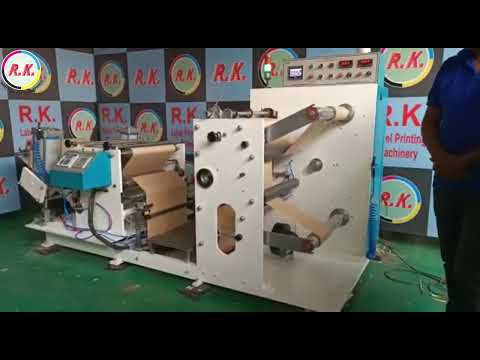

Product Label Slitting Rewinding Machine

 01. MODEL: HS – 320 HIGH SPEED  LABEL SLITTING & REWINDING MACHINE• Maximum Paper Width: 320 mm• Unwinding Unit Roll ø600MM Maximum with 3” Manual Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Unwinding Unit Tension Controlled by Mechanical Brake System• Slicing Table for Paper joint• Both Rotary & Normal Shear Blade Slitting attachment• Air Blower System for Waste Trimming Collection• Label Counting Sensor (Brand: Panasonic)• Up & Down Rewinding System (Rewinding Roll ø450MM Max)• Rewinding Unit Tension Controlled by Mechanical Clutch System• Facility for Both Forward & Reverse Rewinding Direction with Switch Control• Facility for 1”,1.5”,3” Core on Rewinding with Selection on Touch Screen (Easy of Core Change Setting)• Full Touch HMI Screen for Easy of Operation & Setting (Brand: Schneider/ Inovance)• 1 HP AC Variable Speed Control Motor for Nip Roll / Slitting Unit• 1 HP AC Variable Speed Control Motor for Rewinding Unit• Both Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)• Meter Counter & Label Counter with Auto Stop Control • Machine Controlled By Electronic PLC System (Brand: Schneider)• Rewinding Core Size 1”, 1.5”, 3” Changeable with collator (Each 2 Pcs)• Machine Mechanical Speed – 100 m/min
Power Consumption - 2 HP Single PhaseHeight 4.5 Ft, Width.3.5 Ft, Length 6 Ft

Extra Option:➤ (Air Shaft System)➤ Manual Tension Controller with Powder Brake, Regulator & AMP Meter➤ Auto Tension Controller with Powder Brake, Load Cell (E+L)

Additional Information:

• Item Code: HS-320
• Production Capacity: 20 Units Per Month
• Delivery Time: 30 TO 45 DAYS
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Production Capacity	Upto 100 m/min
Power Consumption	3 HP Single Phase
Material	Mild Steel
Automation Grade	Automatic
Motor Power	3 HP
Type	Slitting
Country of Origin	Made in India

Roll to Roll Slitting & Rewinding Machine

 1.MODEL: HS – 450 HIGH SPEED LABEL SLITTING & REWINDING MACHINE• Maximum Paper Width: 450 mm• Unwinding Unit Roll ø600MM Maximum with 3” Air Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Unwinding Unit Tension Controlled by Auto Electronic Tension Controller (IMPORTED)• Both Rotary & Normal Shear Blade Slitting attachment (08 Nos Each)• Air Blower System for Waste Trimming Collection• Up & Down Rewinding System (Rewinding Roll ø450MM Max)• Rewinding Unit Tension Controlled by Mechanical Clutch System• Full Touch HMI Screen for Easy of Operation & Setting (Brand: Schneider/ Inovance)• 3 HP AC Variable Speed Control Main Motor • Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)• Meter Counter With Auto Stop Control • Rewinding Air Shaft 3” 2 Pcs• Machine Mechanical Speed – 100 m/min
Power Consumption -  4 HP Single PhaseHeight 4.5 Ft, Width.3.5 Ft, Length 6 Ft

Additional Information:

• Item Code: RK-HS-450
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Production Capacity	Upto 100 m/min
Power Consumption	2.5 HP Single Phase
Material	Mild Steel
Automation Grade	Semi-Automatic
Motor Power	2.5 HP Single Phase
Type	Turret Rewinding System
Country of Origin	Made in India

Printed & Plain Label High Speed Slitting Machine

 01. MODEL NO: - RK TR-320            ROLL TO ROLL SLITTING & TURRET REWINDING MACHINE• Maximum Paper Width: 320 mm• Unwinding Unit Roll ø600MM Maximum with 3” Air Shaft• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)• Unwinding Unit Tension Controlled by Mechanical Brake System• Slicing Table for Paper joint with Paper Gripper• Both Rotary & Normal Shear Blade Slitting attachment• Air Blower System for Waste Trimming Collection• Label Counting Sensor (Brand: Panasonic)• Turret Rewinding Unit Indexing with Stepper Motor Controller. (Rewinding Roll ø250MM Max)• Auto Turret Index (Rewinding shaft Rotate) Once Label / Meter Counter Reach the Target with Timing Setting• Pedal Switch for Turret Index & Machine Start/Stop• Rewinding Unit Tension Controlled by Mechanical Clutch System• Facility for Both Forward & Reverse Rewinding Direction with Switch Control• Facility for 1”,1.5”,3” Core on Rewinding with Selection on Touch Screen (Easy of Core Change Setting)• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)• 1 HP AC Single Phase Variable Speed Control Motor for Nip Roll / Slitting• 1 HP AC Single Phase Variable Speed Control Motor for Rewinding Unit• Both Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)• Meter Counter & Label Counter with Auto Stop Control• Machine Controlled by Electronic PLC System (Brand: Schneider)• Rewinding Core Size 1”, 1.5”, 3” Air Shaft System. (Each 2 Pcs)• Machine Mechanical Speed – 100 m/min
Power Consumption - 3 HP Single Phase Height 5 Ft, Width.3.5 Ft, Length 5 Ft

Additional Information:

• Item Code: RK-TR-320
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.
