R. K. Label Printing Machinery Private Limited

Type of Machine	Rotary Die Cutting Machine
Packaging Type	Bubble Wrap
Automation Grade	Semi-Automatic
Rewind diameter	350 mm
Unwind diameter	600 mm
Paper width	220 mm
Country of Origin	Made in India

Rotary Label Die Cutting Machine
 MODEL NO: - RK MPS-175            ROLL TO ROLL MICRO ROTARY DIE CUTTING WITH ONLINE SLITTING MACHINE  • Maximum Paper Width: 175 mm• Unwinding Unit Roll ø600MM Maximum with 3” Manual Shaft• Gauge Unit for Paper Guide on Unwinding Side• Unwinding Unit Tension Controlled by Mechanical Brake System• Single Rotary Die Cutting Unit• Waste Matrix Rewinding Tension Controlled by Mechanical Clutch System• Normal Shear Blade Slitting attachment• Air Blower System for Waste Trimming Collection• Label Counting Sensor (Brand: Panasonic)• Online Rewinding Unit (Rewinding Roll ø250MM Max)• Rewinding Unit Tension Controlled by Mechanical Clutch System• Facility for Both Forward & Reverse Rewinding Direction (By Manual Gear Attachment)• Facility for 1”,1.5”,3” Core on Rewinding (Manual Collator Type)• 2 HP AC Single Phase Variable Speed Control Motor• Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)• Meter Counter & Label Counter with Auto Stop Control• Rewinding Core Size 1”, 1.5”, 3” Changeable with collator (Each 2 Pcs)• Machine Mechanical Speed – 60m/min• MAGNET CYLINDER CHARGE WILL BE EXTRA Power Consumption - 2 HP Single Phase Height 5 Ft, Width.3.5 Ft, Length 4 Ft

Additional Information:

• Item Code: RK-MPS-175
• Production Capacity: 15 Units Per Month
• Delivery Time: 30 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Type of Machine	Rotary Die Cutting Machine
Automation Grade	Automatic
Material	Mild Steel
Rewind diameter	600MM
Unwind diameter	600MM
Paper width	320 MM
Country of Origin	Made in India

SEMI ROTARY DIE CUTTING
 MODEL NUMBER RK320/I/SMART/ DRK INTERMITTENT ROTARY DIE CUTTING MACHINE• Maximum Paper Width: 320 mm• Unwinding Unit With 3” Airshaft Maximum Roll ø550MM • Unwinding Unit Tension Controlled by Mechanical Brake System• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC       BASED SYSTEM)• Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly (Brand:         Panasonic)• Die Cutting Repeat Length: Min 25mm & Max 250mm• Paper Pulling With Electronic Servo Motor Control (Brand: Schneider)• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection• Online Waste Matrix Rewinding Unit with Mechanical Clutch System• Auto Rewinding Unit With 3” Airshaft Maximum Roll ø500MM• Rewinding unit Tension Controlled by Mechanical Clutch System• Fully Digital Electronic Servo Control System (Brand: Schneider)• Common Magnet Cylinder 120 teeth • Die Cut with length feed mode and Print Mark Repass Mode• Machine Speed 100 to 150 stroke Per min (Depend On length)

Additional Information:

• Item Code: RK-ISMART-320
• Production Capacity: 2 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Type of Machine	Rotary Die Cutting Machine
Packaging Type	Sticker Paper
Automation Grade	Semi-Automatic
Usage/Application	Sticker Paper
Material	Mild Steel
Size	12"
Cutting Size	120 Teeth
Machine Speed	35 M / M
Warranty	1 Year
Max Printing Length Mm	381mm
I Deal In	New Only
Rewind diameter	400MM
Unwind diameter	600MM
Paper width	320MM
Country of Origin	Made in India

LABEL ROTARY DIE CUTTING
 MODEL NUMBER RK320/I/SMART/ D
 RK INTERMITTENT ROTARY DIE CUTTING MACHINE
• Maximum Paper Width: 320 mm
• Unwinding Unit With 3” Airshaft Maximum Roll ø550MM
• Unwinding Unit Tension Controlled by Mechanical Brake System
• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC       BASED SYSTEM)
• Re-Pass Scanner System (For Printed Label Die Cutting) with Sliding Assembly (Brand:         Panasonic)
• Die Cutting Repeat Length: Min 25mm & Max 250mm
• Paper Pulling With Electronic Servo Motor Control (Brand: Schneider)
• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)
• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection
• Online Waste Matrix Rewinding Unit with Mechanical Clutch System
• Auto Rewinding Unit With 3” Airshaft Maximum Roll ø500MM
• Rewinding unit Tension Controlled by Mechanical Clutch System
• Fully Digital Electronic Servo Control System (Brand: Schneider)
• Common Magnet Cylinder 120 teeth
• Die Cut with length feed mode and Print Mark Repass Mode
• Machine Speed 100 to 150 stroke Per min (Depend On length)

Additional Information:

• Item Code: RK-I-SMART-DF2
• Production Capacity: 2 Units Per Month
• Delivery Time: 30 to 45 Working Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Type of Machine	Rotary Die Cutting Machine
Automation Grade	Automatic
Rewind diameter	400MM
Unwind diameter	600MM
Paper width	320MM
Country of Origin	Made in India

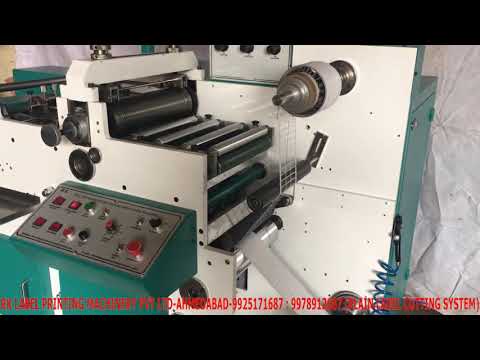

Barcode Semi Rotary Die Cutting Machine For Plain Label

MODEL NUMBER RK320/I/SMART/ D
RK INTERMITTENT ROTARY DIE CUTTING MACHINE
• Maximum Paper Width: 320 mm
• Unwinding Unit With 3” Airshaft Maximum Roll ø550MM
• Unwinding Unit Tension Controlled by Mechanical Brake System
• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC       BASED SYSTEM)
• Die Cutting Repeat Length: Min 25mm & Max 250mm
• Paper Pulling With Electronic Servo Motor Control (Brand: Schneider)
• Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)
• Separate Module for Plain & Printed label Die Cutting with Touch Screen Selection
• Online Waste Matrix Rewinding Unit with Mechanical Clutch System
• Auto Rewinding Unit With 3” Airshaft Maximum Roll ø500MM
• Rewinding unit Tension Controlled by Mechanical Clutch System
• Fully Digital Electronic Servo Control System (Brand: Schneider)
• Common Magnet Cylinder 120 teeth
• Die Cut with length feed mode and Print Mark Repass Mode
• Machine Speed 100 to 150 stroke Per min (Depend On length)

Additional Information:

• Item Code: RK-I-SMART-P
• Production Capacity: 3 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Type of Machine	Rotary Die Cutting Machine
Machine Type	Paper Cutting Machine
Packaging Type	Film
Type of Label Cutting Machine	Rotary Label Die Cutting Machine
Automation Grade	Semi-Automatic
Rewind diameter	450mm
Unwind diameter	600mm
Paper width	310mm
Country of Origin	Made in India

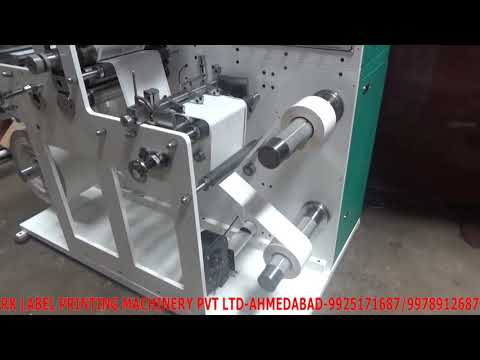

Sticker Label Die Cutting Machine
 01. MODEL NO: - RK PS-12”
ROLL TO ROLL PLAIN ROTARY DIE CUTTING WITH ONLINE SLITTING MACHINE
• Maximum Paper Width: 320 mm
• Unwinding Unit Roll ø600MM Maximum with 3” Manual Shaft
• Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)
• Unwinding Unit Tension Controlled by Mechanical Brake System
• Slicing Table for Paper joint with Paper Gripper
• Single Rotary Die Cutting Unit
• Waste Matrix Rewinding Tension Controlled by Mechanical Clutch System
• Both Rotary & Normal Shear Blade Slitting attachment
• Air Blower System for Waste Trimming Collection
• Label Counting Sensor (Brand: Panasonic)
• Up & Down Rewinding System (Rewinding Roll ø450MM Max)
• Rewinding Unit Tension Controlled by Mechanical Clutch System
• Facility for Both Forward & Reverse Rewinding Direction with Switch Control
• Facility for 1”,1.5”,3” Core on Rewinding with Selection on Touch Screen (Easy of Core Change Setting)
• Full Touch HMI Screen for Easy of Operation & Setting (Brand: Schneider)
• 2 HP AC Single Phase Variable Speed Control Motor for Die Cutting Unit
• 1 HP AC Single Phase Variable Speed Control Motor for Rewinding Unit
• Both Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)
• Meter Counter & Label Counter with Auto Stop Control
• Machine Controlled By Electronic PLC System (Brand: Schneider)
• Rewinding Core Size 1”, 1.5”, 3” Changeable with collator (Each 2 Pcs)
• Machine Mechanical Speed – 100 m/min
• MAGNET CYLINDER CHARGE WILL BE EXTRA
Power Consumption – 4 HP Single Phase
Height 5 Ft, Width.4 Ft, Length 5.5 Ft

Additional Information:

• Item Code: RKPS
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Max Paper Width	500 mm
Cutter Size	12 inch
Cut per Min	More Than 100
Power Required	3 HP
Type of Machine	Semi-Automatic
Machine Weight (kg)	500KG
Base Plate	Iron
Display Type	LED
Country of Origin	Made in India

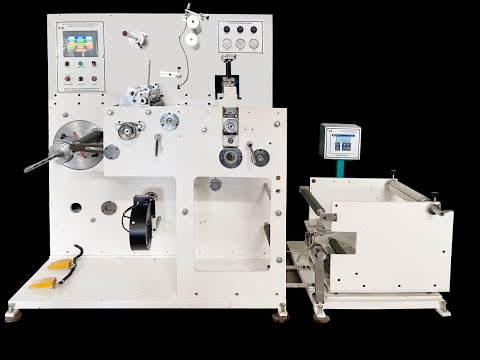

ROLL TO ROLL ROTARY DIE CUTTING & SLITTING WITH TURRET REWINDING MACHINE
•Maximum Paper Width: 320 mm•Unwinding Unit Roll ø600MM Maximum with 3” Air Shaft•Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)
•Unwinding Unit Tension Controlled by Mechanical Brake System
•Single Rotary Die Cutting Unit
•Waste Matrix Rewinding Tension Controlled by Mechanical Clutch System
•Normal Shear Blade Slitting attachment
•Air Blower System for Waste Trimming Collection
•Label Counting Sensor (Brand: Panasonic)
•Turret Rewinding Unit Indexing with Stepper Motor Controller. (Rewinding Roll ø250MM Max)
•Auto Turret Index (Rewinding shaft Rotate) Once Label / Meter Counter Reach the Target with Timing Setting
•Pedal Switch for Turret Index & Machine Start/Stop
•Rewinding Unit Tension Controlled by Mechanical Clutch System
•Facility for Both Forward & Reverse Rewinding Direction with Switch Control
•Facility for 1”,1.5”,3” Core on Rewinding with Selection on Touch Screen (Easy of Core Change Setting)
•Full Touch 7” HMI Screen for Easy of Operation & Setting (Brand: Schneider)
•2 HP AC Single Phase Variable Speed Control Motor for Die Cutting Unit
•1 HP AC Single Phase Variable Speed Control Motor for Rewinding Unit
•Both Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)
•Meter Counter & Label Counter with Auto Stop Control
•Machine Controlled By Electronic PLC System (Brand: Schneider)
•Rewinding Core Size 1”, 1.5”, 3” Air Shaft System. (Each 2 Pcs)
•Machine Speed – 100 m/min
MAGNET CYLINDER CHARGE WILL BE EXTRA
Power Consumption – 4 HP Single Phase
Height 5 Ft, Width.4.5 Ft, Length 5.5 Ft

Additional Information:

• Item Code: PTR320
• Production Capacity: 100M/M
• Delivery Time: 30 to 45 days

Machine Type	Paper Cutting Machine
Type of Label Cutting Machine	Rotary Label Die Cutting Machine
Model Name/Number	RK-TR-MPS-250
Brand	RK
Automation Grade	B
Cutting Length	380 MM
Cutting Speed	80 M/M

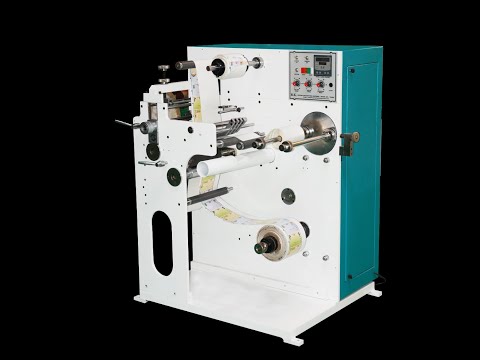

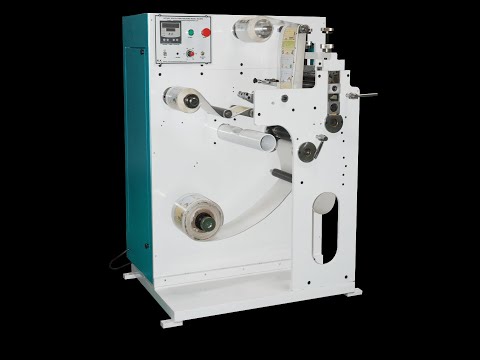

Small Barcode Label Die Cutting Machine

 MODEL NO:- RK TR-MPS-250            ROLL TO ROLL MICRO ROTARY DIE CUTTING WITH ONLINE SLITTING MACHINE  • Maximum Paper Width: 220 mm• Unwinding Unit Roll ø600MM Maximum with 3” Manual Shaft• Gauge Unit for Paper Guide on Unwinding Side• Unwinding Unit Tension Controlled by Mechanical Brake System• Single Rotary Die Cutting Unit• Waste Matrix Rewinding Tension Controlled by Mechanical Clutch System• Normal Shear Blade Slitting attachment• Air Blower System for Waste Trimming Collection• Label Counting Sensor (Brand: Panasonic)• Turret Rewinding Unit with Manual Index. (Rewinding Roll ø200MM Max)• Rewinding Unit Tension Controlled by Mechanical Clutch System• Facility for Both Forward & Reverse Rewinding Direction with Switch Control• Facility for 1”,1.5”,3” Core on Rewinding (Manual Collator Type)• 1 HP AC Single Phase Variable Speed Control Motor for Nip Roll Unit• 1 HP AC Single Phase Variable Speed Control Motor for Rewinding Unit• Both Motor Operated by Individual Variable Frequency Drive (Brand: Schneider)• Meter Counter & Label Counter with Auto Stop Control• Rewinding Core Size 1”, 1.5”, 3” Changeable with collator (Each 2 Pcs)• Machine Mechanical Speed – 60m/min• MAGNET CYLINDER CHARGE WILL BE EXTRA Power Consumption -  2 HP Single Phase Height 5 Ft, Width.3.5 Ft, Length 4 Ft

Additional Information:

• Item Code: RK-TRMPS-250
• Production Capacity: 15 Units Per Month
• Delivery Time: 30 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Model Name/Number	RK-PR
Brand	RK
Automation Grade	B
Cutting Length	381 mm
Cutting Speed	100 M/M

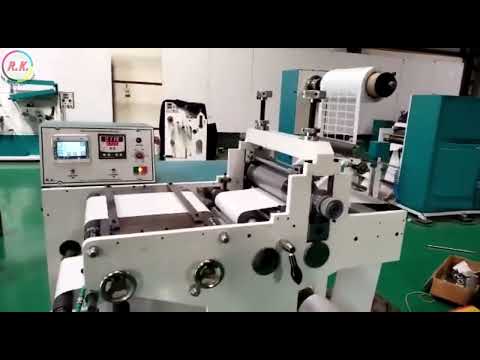

Sticker Label Barcode Die Cutting machine

 1. MODEL NO:- RK PR-12”           ROLL TO ROLL PLAIN ROTARY DIE CUTTING MACHINE  WITH CONVEYER BELT SYSTEM• Paper Width: 320 MM• Rotary Die Cutting Unit• Auto unloading Unit max. ø600 MM • Rewinding Unit max. ø600 MM• Wastage Rewinding Unit • Unwinding Unit 3’’ Manual Shaft    • Re-winding Unit 3’’ Manual Shaft    • Meter Counter With Auto Stop Control• Sheet Counter With Auto Stop Controller • 2 HP AC Single Phase Variable Speed Control Motor For Die Cutting Unit• Electronic Web Guide for Paper Movement (IMPORTED- ULTRASONIC BASED SYSTEM)

Additional Information:

• Item Code: RK-PR-320
• Production Capacity: 10 Unit Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Material	Paper
Size	100x150mm
Design Type	Plain
Color	White
GSM	60 to 350 GSM
Surface Finish	Glossy, Matte
Adhesive	Chromo Paper & PP
Shape	As Per Flexible Die Design

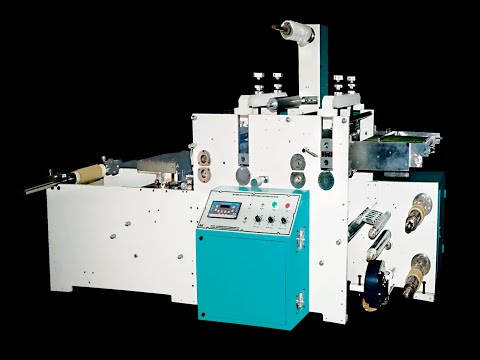

Paper Width: 320 mm. Maximum

• Online Rotary Die Cutting Unit
• Online Rotary Sheet Cutting Unit with Conveyer Belt System
• Online Rewinding Unit
• Unwinding Unit With Electronic Web Guide Unit Waste Rewinding Unit
• Main Motor : 2 HP Three Phase AC Variable Speed Control
• Meter Counter & Sheet Counting with Auto Stop Control System
• Max. Speed 70 Mtr. Per Minutes (150 Sheets) •Power Consumption - 2 HP 3 PHASE
• Height 5.5 Ft, Width.5.5 Ft, Length 6.5 Ft EXTRA OPTION : SLITTING ATTACHMENT

Additional Information:

• Item Code: RK-Vandana
• Production Capacity: 15 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.
