R. K. Label Printing Machinery Private Limited

Printing Speed	80 m/min
Number Of Colors	8
Rewind Reel Diameter	600mm
Max Rewinding diameter	800mm
Usage/Application	Paper
Color Output	8
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Printing Width	310mm
Material Width	310mm
Country of Origin	Made in India

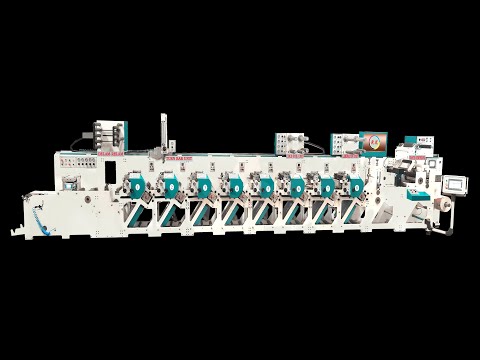

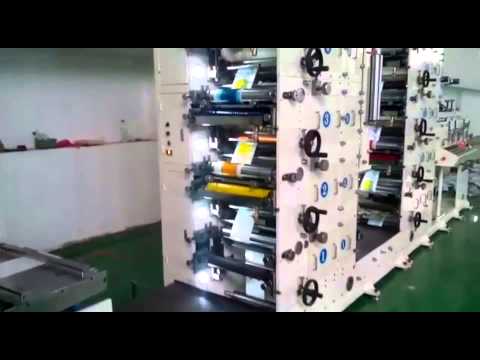

Flexo Label Printing Machine With Die Cutting Unit (8 Colour With 3 Die Cutting)

 MODEL NO RK FM-NICE-P 320/ 8 COLOREIGHT COLOUR ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER UNITTHREE ROTARY DIE CUTTING UNIT • 8 Color Printing Units • Hot Air Dryer System for All Printing Unit• 1 UV Dryer Unit System (Facility to Upgrade)• Fully Touch Screen Control System• Unwinding Unit ➤ Max Roll ø800mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ Web Guide With Slicing Table and Paper Holder ➤ Auto Electronic Tension Controller (Powder Brake) with Load Cell Feedback  (IMPORTED) ➤ Air Pneumatic Loading System For Easy Loading of Reels • 8 Nos. Ceramic Anilox Rollers (As Per Your Requirement) • Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• No Need Pressure for every Job one-time set• Quick Change Printing Cylinder & fast job change system.• Three Rotary Die Cutting Unit One For Die Cutting And Second For Sheet Cutting And Third For Full Cutting With Conveyor Belt System• Rewinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Auto Electronic Tension Controller (Powder Clutch) with Load Cell Feedback  (IMPORTED)• Speed:  60 M/Min• 3 Set Printing Cylinder (As Per Your Requirement)• Max Print Width: 310 MM• Max Print Length: 450 MM EXTRA OPTION:• ALL UV DRYER • VIDEO MONITOR • TURN BAR UNIT FOR BACK SIDE PRINTIN• COLD FOIL / LAMINATION UNIT• DELAM-RELAM• SNOWBALL REWINDING

Additional Information:

• Item Code: RK-FM-8-320
• Delivery Time: 40 TO 65 DAYS
• Packaging Details: Flim Packing

Printing Speed	80 m/min
Number Of Colors	6
Usage/Application	Paper
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310MM
Country of Origin	Made in India

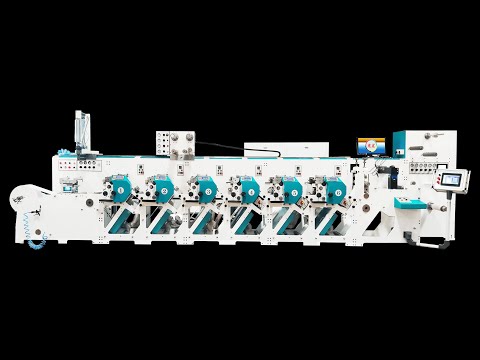

Pharma Label Printing Machine with Water Base Ink

 SIX COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH SINGLE ROTARY DIE CUTTING UNIT•6 Color Flexo Printing Units •Hot Air Dryer System For All Printing Unit
•Unwinding Unit
    ➤    Max Roll ø800mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    Web Guide With Slicing Table and Paper Holder
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
    ➤    Air Pneumatic Loading System For Easy Loading of Reels
•6 Nos. Ceramic Anilox Rollers (As Per Your Requirement)
•Individual Motorized Anilox Roll System for Each Printing Unit
•Fully Touch Screen Control System for Easy of Operation
•No Need Pressure for every Job one-time set
•Quick Change Printing Cylinder & fast job change system.
•Online Die Cutting Unit with Waste Matrix Rewinding
•Rewinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
•Speed:  60-M/Min
•3 Set Printing Cylinder (As Per Your Requirement)
•Max Print Width:310 MM
•Max Print Length:450 MM
WITH TURN BAR MOVABLE


Cold Foil Unit
➤Lamination With Wet Glue➤Unwinding Unit Tension Controlled By Pneumatic Pressure Gauge

Additional Information:

• Production Capacity: 80m/m
• Delivery Time: 40 to 60 working days

Printing Speed	Up to 50 m/min
Number Of Colors	4
Usage/Application	Paper
Color Output	4
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310mm
Country of Origin	Made in India

Product Label Printing Machine

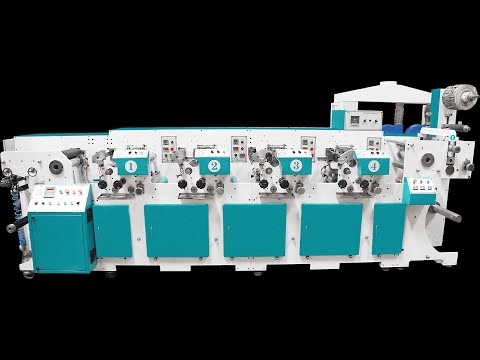

 FOUR COLOUR FLEXO ROTARY LABEL PRINTING MACHINE ONE ROTARY DIE CUTTING UNIT
• 4 Color Printing Units with Hot Air Dryer System• Hot Air Dryer System For All Printing Unit
• Unwinding Unit
    ➤    Max Roll ø800mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    Web Guide With Slicing Table and Paper Holder
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
    ➤    Air Pneumatic Loading System For Easy Loading of Reels
• 4 Nos. Ceramic Anilox Rollers (As Per Your Requirement)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Fully Touch Screen Control System for Easy of Operation
• No Need Pressure for every Job one-time set
• Quick Change Printing Cylinder & fast job change system.
• Online Die Cutting Unit with Waste Matrix Rewinding
• Rewinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Speed:  60-M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Print Width:310 MM
• Max Print Length:450 MM

Additional Information:

• Item Code: RK-FM
• Production Capacity: 60M/M
• Delivery Time: 30 to 45 Days

Printing Speed	Up to 50 m/min
Number Of Colors	6
Color Output	5
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310mm
Material Width	12"
Motor Power	20 KW 3 Phase
Resolution	1080
Phase	3
Power Source	20KW
Heating System	UV Dryer
Number Of Head Nozzles	5
Power Consumption W	Machine Power 20 KW 3 Phase
Print Speed M Per Hr	50 m/min
I Deal In	New Only
Country of Origin	Made in India

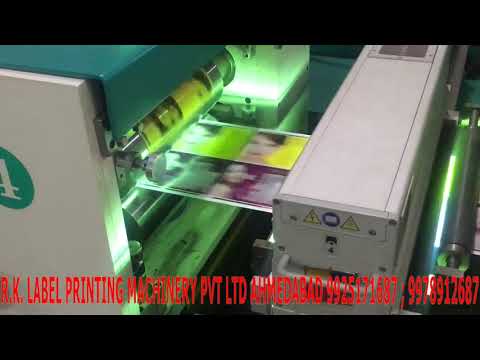

Semi Rotary Intermittent Printing Machine

 01. MODEL NO RK-320 IFP- SUPER SMART TWO COLOUR INTERMITTENT FLEXO PRINTING WITH SINGLE INTERMITTENT DIE CUTTING MACHINE FULL SERVO BASED SYSTEM ALL UV DRYER SYSTEM WITH CHILLER PLATE FACILITY• 2 Colour Intermittent Flexo Printing Units • Printing Unit with Common Printing Cylinder of 120 Teeth• 2 UV Dryer System (BRAND: - UV RAYS, MADE IN ITALY)• Unwinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ Web Guide With Slicing Table and Paper Holder ➤ Electronic Tension Controller with Powder Brake & Amp Meter• 2 Nos. Ceramic Anilox Rollers (As Per Your Requirement) • Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• Fully Digital Electronic Servo Control Unit With Full Touch Screen Control System for Easy of Operation• No Need Pressure for every Job one-time set• One Intermittent Rotary Die Cutting Unit with Online Waste Matrix Rewinding Rewinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Tension Controller with Powder Clutch & Amp Meter• Machine Speed 100 to 125 stroke / min (Depend On repeat length)• Max Paper Width : 320 MM• Max Print Width   : 310 MM• Min Print Length  :  50 MM• Max Print Length  : 200 MM

Additional Information:

• Item Code: IFP
• Delivery Time: 40 to 60 Working Days

Printing Speed	80 m/min
Number Of Colors	6
Color Output	6
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310mm
Weight	2.5 TON
Country of Origin	Made in India

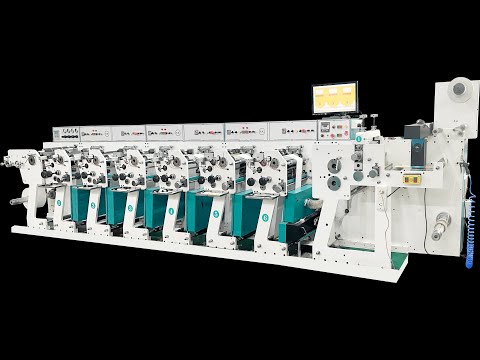

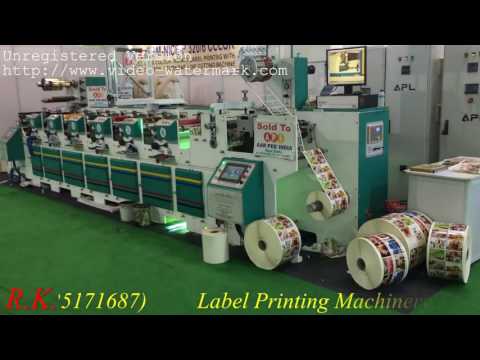

Six Colour Tower Type Flexo Printing With Die Cutting

 SIX COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER UNITTWO ROTARY DIE CUTTING WITH CONVEYER BELT SYSTEMINDIVIDUAL IR & UV DRYER WINDOW SYSTEM
•6 Color Flexo Printing Unit
•IR Lamp Based Hot Air Dryer System For All Printing Unit•1 UV Dryer System (BRAND: - RK, MADE IN INDIA)•6 Nos Ceramic Anilox Rollers (As Per Your Requirement)
•Unwinding Unit
      ➤ Max Roll ø600mm
      ➤ 3” Air Shaft (75mm)
      ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
      ➤ With Slicing Table & Paper Holder for Paper Joining      ➤ Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)•Individual Motorized Anilox Roll System for Each Printing Unit•Printing Unit Adopt 360 Degree To Regulate Each Unit•Dial Gauge for Printing Registration•Two Rotary Die Cutting Unit One For Die Cutting And Second For Sheet Cutting With Short Conveyer Belt Drive System•Lamination Unit•Turn Bar Unit for Back Side Printing•Rewinding Unit
      ➤ Max Roll ø450mm
      ➤ 3” Air Shaft (75mm)
      ➤ Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)•Main Motor 5 HP 3 Phase AC Variable Speed Control System (VFD Brand: Schneider)•Speed:50M/Min•3 Set Printing Cylinder (As Per Your Requirement)
•Max Paper Width          : 320 MM•Max Printing Width      : 310 MM•Max Print Length          : 430 MM

Power Consumption 12 HP 3 Phase UV Power
5 HPHeight 11.5 Ft, Width 5.5 Ft, Length 12 Ft

Additional Information:

• Item Code: RKF-320-6
• Delivery Time: 30 to 45 Days

Printing Speed	50 m/min
Number Of Colors	4
Rewind Reel Diameter	450mm
Max Rewinding diameter	600mm
Usage/Application	Paper
Web substrate	Chromo Paper, PP, Polyster & Silver Paper
Max Printing Length	0-500 (mm)
Country of Origin	Made in India

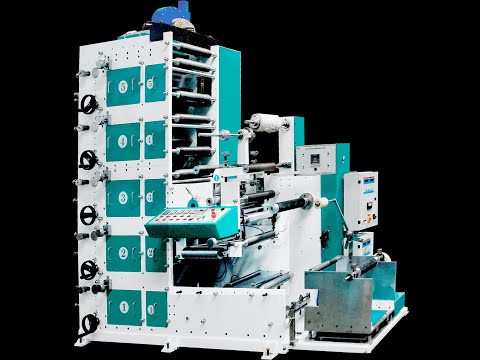

Stack Type Label Printing Machine

 FIVE COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER UNITONE ROTARY DIE CUTTING UNITINDIVIDUAL IR & UV DRYER WINDOW SYSTEM

• 5 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit
• 1 UV Dryer System (BRAND: - RK, MADE IN INDIA)
• 5 Nos Ceramic Anilox Rollers (As Per Your Requirement)
• Unwinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    With Slicing Table & Paper Holder for Paper Joining
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Printing Unit Adopt 360 Degree To Regulate Each Unit
• Dial Gauge for Printing Registration
• Online Die Cutting Unit with Waste Matrix Rewinding
• Turn Bar Unit for Back Side Printing
• Rewinding Unit
    ➤    Max Roll ø450mm
    ➤    3” Air Shaft (75mm)
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Main Motor 5 HP 3 Phase AC With Variable Speed Control System (VFD Brand: Schneider)
• Speed:50M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Paper Width          : 320 MM
• Max Printing Width       : 310 MM
• Max Print Length          : 430 MM

Power Consumption 10 HP 3 Phase
UV Power 5HP
Height 10 Ft, Width 5.5 Ft, Length 10 Ft

Additional Information:

• Item Code: RKF-5
• Production Capacity: 60M/M
• Delivery Time: 30 to 45 Days

Printing Speed	Up to 50 m/min
Color	2 Color
Number Of Colors	2
Usage/Application	Paper
Color Output	2
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310mm

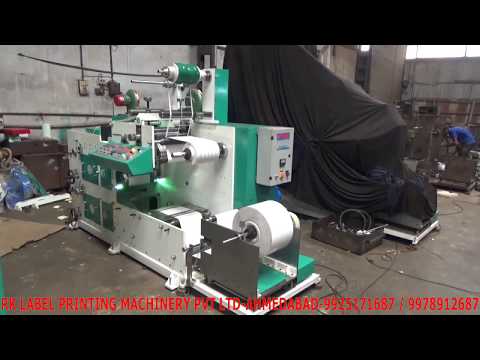

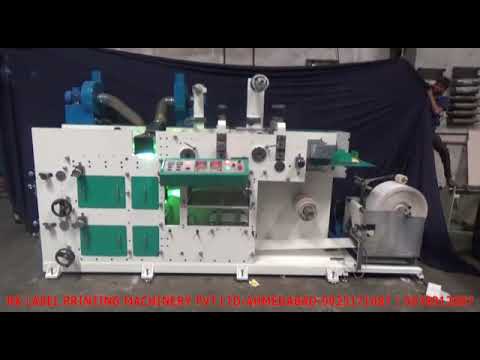

Two Colour Barcode Label Flexo Rotary Printing Machine With Die Cutting

 TWO COLOUR FLEXO ROTARY LABEL PRINTING MACHINEONE ROTARY DIE CUTTING UNIT
INDIVIDUAL IR & UV DRYER WINDOW SYSTEM
• 2 Color Flexo Printing Unit
• IR Lamp Based Hot Air Dryer System For All Printing Unit
• 2 Nos Ceramic Anilox Rollers (As Per Your Requirement)
• Unwinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    With Slicing Table & Paper Holder for Paper Joining
    ➤    Auto Electronic Tension Controller (IMPORTED)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Printing Unit Adopt 360 Degree To Regulate Each Unit
• Dial Gauge for Printing Registration
• Online Die Cutting Unit with Waste Matrix Rewinding
• Rewinding Unit
    ➤    Max Roll ø450mm
    ➤    3” Air Shaft (75mm)
    ➤    Tension Controller with Mechanical Clutch System
• Main Motor 3 HP 3 Phase AC With Variable Speed Control System (VFD Brand: Schneider)
• Speed:50M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Paper Width          : 320 MM
• Max Printing Width      : 310 MM
• Max Print Length          : 430 MM

Power Consumption 5.5 HP 3 Phase
Height 5.5 Ft, Width 5.5 Ft, Length 10 Ft

Additional Information:

• Item Code: RKF-2
• Production Capacity: 60M/M
• Delivery Time: 30 to 45 Days

Printing Speed	120 m/min
Number Of Colors	6
Usage/Application	Paper
Color Output	6
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310MM
Country of Origin	Made in India

• 6 Color Flexo Printing Units
• Hot Air Dryer System For All Printing Unit
• Unwinding Unit
    ➤    Max Roll ø800mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    Web Guide With Slicing Table and Paper Holder
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
    ➤    Air Pneumatic Loading System For Easy Loading of Reels
• 6 Nos. Ceramic Anilox Rollers (As Per Your Requirement)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Fully Touch Screen Control System for Easy of Operation
• No Need Pressure for every Job one-time set
• Quick Change Printing Cylinder & fast job change system.
• Online Die Cutting Unit with Waste Matrix Rewinding
• Rewinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Speed:  60-M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Print Width:310 MM
• Max Print Length:450 MMWITH TURN BAR MOVABLE FOR BACK SIDE PRINTING

COLD FOIL UNIT:
    ➤    Lamination With Wet Glue
    ➤    Unwinding Unit Tension Controlled By Pneumatic Pressure Gauge

Additional Information:

• Item Code: RK-FM-320-6
• Delivery Time: 40 to 65 Working Days

Printing Speed	Up to 50 m/min
Usage/Application	Paper
Color Output	3
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	310mm
Country of Origin	Made in India

Multi Colour Flexo Label Printing Machine

THREE COLOUR FLEXO ROTARY LABEL PRINTING MACHINETWO ROTARY DIE CUTTING WITH CONVEYER BELT SYSTEMINDIVIDUAL IR & UV DRYER WINDOW SYSTEM
• 3 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit
• 3 Nos Ceramic Anilox Rollers (As Per Your Requirement)
• Unwinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    With Slicing Table & Paper Holder for Paper Joining
    ➤    Auto Electronic Tension Controller (IMPORTED)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Printing Unit Adopt 360 Degree To Regulate Each Unit
• Dial Gauge for Printing Registration
• Two Rotary Die Cutting Unit One For Die Cutting And Second For Sheet Cutting With Short Conveyer Belt Drive System
• Lamination Unit
• Rewinding Unit
    ➤    Max Roll ø450mm
    ➤    3” Air Shaft (75mm)
    ➤    Tension Controller with Mechanical Clutch System
• Main Motor 3 HP 3 Phase AC Variable Speed Control System (VFD Brand: Schneider)
• Speed:50M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Paper Width          : 320 MM
• Max Printing Width      : 310 MM
• Max Print Length          : 430 MM

Power Consumption 5.5 HP 3 Phase
Height 5.5 Ft, Width 5.5 Ft, Length 12 Ft

Additional Information:

• Item Code: RKF-320-3
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Printing Speed	50 m/min
Number Of Colors	2
Rewind Core Inner Diameter	3"
Rewind Reel Diameter	450mm
Max Rewinding diameter	600mm
Usage/Application	Paper
Web substrate	Chromo Paper, PP Paper
Max Printing Length	500-1000 (mm)
Country of Origin	Made in India

Two Colour Sticker Paper Flexo Label Printing With Sheet Cutting Unit

 1. MODEL NO. RK F 320/2 COLOUR TWO COLOUR FLEXO ROTARY LABEL PRINTING MACHINETWO ROTARY DIE CUTTING WITH CONVEYER BELT SYSTEMINDIVIDUAL IR & UV DRYER WINDOW SYSTEM
• 2 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit• 2 Nos Ceramic Anilox Rollers (As Per Your Requirement) • Unwinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ With Slicing Table & Paper Holder for Paper Joining ➤ Auto Electronic Tension Controller (IMPORTED)• Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• Dial Gauge for Printing Registration• Two Rotary Die Cutting Unit One For Die Cutting And Second For Sheet Cutting With Short Conveyer Belt Drive System• Rewinding Unit ➤ Max Roll ø450mm ➤ 3” Air Shaft (75mm)• Main Motor 3 HP 3 Phase AC Variable Speed Control System (VFD Brand: Schneider)• Speed:50M/Min• 3 Set Printing Cylinder (As Per Your Requirement) • Max Paper Width          : 320 MM• Max Printing Width      : 310 MM• Max Print Length          : 430 MM Power Consumption 5.5 HP 3 PhaseHeight 5.5 Ft, Width 5.5 Ft, Length 12 Ft

Additional Information:

• Item Code: RKF-320-2C2D
• Production Capacity: 20 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Printing Speed	Up to 50 m/min
Number Of Colors	4
Usage/Application	Paper
Color Output	5
Material	Mild Steel
Max Printing Length	0-500 (mm)
Machine Type	Automatic
Color Printing	Color Printing
Printing Width	310
Country of Origin	Made in India

Semi Multi Colour Rotary Printing Machine

 01. MODEL NO RK-320 IFP- SUPER SMART FIVE COLOUR INTERMITTENT FLEXO PRINTING WITH SINGLE INTERMITTENT DIE CUTTING MACHINE FULL SERVO BASED SYSTEM ALL UV DRYER SYSTEM WITH CHILLER PLATE FACILITY • 5 Colour Intermittent Flexo Printing Units • Printing Unit with Common Printing Cylinder of 120 Teeth• 5 UV Dryer System (BRAND: - UV RAYS, MADE IN ITALY)• Unwinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ Web Guide With Slicing Table and Paper Holder ➤ Electronic Tension Controller with Powder Brake & Amp Meter• 5 Nos. Ceramic Anilox Rollers (As Per Your Requirement) • Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• Fully Digital Electronic Servo Control Unit With Full Touch Screen Control System for Easy of Operation• No Need Pressure for every Job one-time set• One Intermittent Rotary Die Cutting Unit with Online Waste Matrix Rewinding Rewinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Tension Controller with Powder Clutch & Amp Meter• Machine Speed 100 to 125 stroke / min (Depend On repeat length)• Max Paper Width : 320 MM• Max Print Width   : 310 MM• Min Print Length  :  50 MM• Max Print Length  : 200 MM

Additional Information:

• Item Code: RK-IFP-5
• Production Capacity: 2 Units Per Month
• Delivery Time: 40 TO 65 DAYS
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Color	8 Color
Print Speed	More Than 3000 mm/min
Label Length	More Than 100 mm
Print Resolution	1080 dpi
Max Label Width	More Than 300 mm
No. of Colors	8
Country of Origin	Made in India

Servo Based 8 Colour Printing Unit with All UV Dryer and Hot Air Dryer

Automatic Plate Registration System

Chiller Drum System

Full Touch Screen Control System

Unwinding:

 --> Max Roll ø1000mm

--> 3” Air Shaft (75mm)

--> Electronic Web Guide (ULTRASONIC BASED SYSTEM)

--> With Slicing Table and Paper Holder

--> Auto Electronic Tension Controller (Powder Brake) with Load Cell Feedback

--> Air Pneumatic Loading System For Easy Loading of Reels



8 Nos Ceramic Anilox Rollers (As Per Your Requirement)

3 Set Printing Cylinder (As Per Your Requirement)

Individual Motorized Anilox Roll System for Each Printing Unit

Printing Unit Adopt 360°  to Regulate Each Unit

No Need Pressure for every Job one-time set

Quick Change Printing Cylinder & fast job change system

Two Rotary Die Cutting Unit One For Die Cutting And Second For Sheet Cutting /Full Cutting With Conveyer Belt System



Rewinding Unit

--> Max Roll ø1000mm

--> 3” Air Shaft (75mm)

--> Auto Tension Controller (Powder Clutch)

Speed - 100- 120 M/min (UV Dryer)

Max Print Width : 310 MM

Max Print Length : 450 MM



Extra Option:

Video Montior

Turn bar for Reverse Pritning

Cold Foil / Lamination Unit

Delam-Relam

Sheeter Stacker

Snowball Rewinding

Additional Information:

• Production Capacity: 100 Meter Per Min
• Delivery Time: 30 TO 45 DAYS

Printing Speed	50 m/min
Number Of Colors	8
Rewind Core Inner Diameter	3"
Rewind Reel Diameter	700
Max Rewinding diameter	700
Usage/Application	Paper
Max Printing Length	500-1000 (mm)
Machine Type	Manual
Color Printing	Color Printing
Printing Width	310 to 1000 MM
Automation Grade	B
Thickness	40 to 200 GSM
Country of Origin	Made in India

Tower Type Horizontol Flexo Sticker Label Printing Machine

  1. MODEL NO. RK HF 320/4+4 COLOUR                         SIX COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER  UNIT TWO ROTARY DIE CUTTING WITH CONVEYER BELT SYSTEM INDIVIDUAL IR & UV DRYER WINDOW SYSTEM• 8 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit• 1 UV Dryer System (BRAND: - RK, MADE IN INDIA)• 8 Nos Ceramic Anilox Rollers (As Per Your Requirement) • Unwinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ With Slicing Table & Paper Holder for Paper Joining ➤ Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)• Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• Dial Gauge for Printing Registration• Two Rotary Die Cutting Unit One For Die Cutting And Second For Sheet Cutting With Short Conveyer Belt Drive System• Lamination Unit• Turn Bar Unit for Back Side Printing• Rewinding Unit ➤ Max Roll ø450mm ➤ 3” Air Shaft (75mm) ➤ Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)• Main Motor 5 HP 3 Phase AC Variable Speed Control System (VFD Brand: Schneider)• Speed:50M/Min• 3 Set Printing Cylinder (As Per Your Requirement) • Max Paper Width          : 320 MM• Max Printing Width      : 310 MM• Max Print Length          : 430 MM

Additional Information:

• Item Code: RKHF
• Production Capacity: 10 Units Per Year
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Color	2 Color
Print Speed	More Than 3000 mm/min
Label Length	More Than 100 mm
Print Resolution	1080 dpi
Max Label Width	200 mm
No. of Colors	2
Country of Origin	Made in India

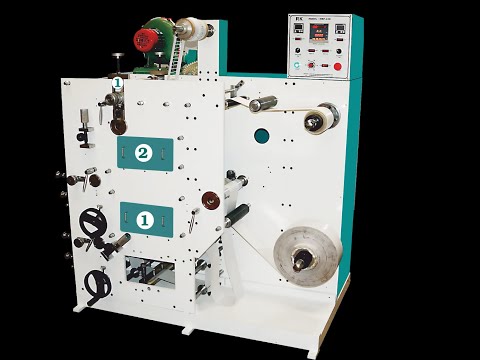

Small Sticker Label Printing Machine

 TWO COLOUR FLEXO ROTARY LABEL PRINTING MACHINEONE ROTARY DIE CUTTING UNIT
•2 Color Flexo Printing Unit
•IR Lamp Based Hot Air Dryer System For All Printing Unit
•2 Nos Ceramic Anilox Rollers (As Per Your Requirement)
•Unwinding Unit
➤ Max Roll ø600mm
➤ 3” Manual Shaft (75mm)
➤ Gauge Unit for Paper Guide on Unwinding Side
➤ Tension Controlled by Mechanical Brake System
•Individual Motorized Anilox Roll System for Each Printing Unit
•Printing Unit Adopt 360 Degree To Regulate Each Unit
•Online Die Cutting Unit with Waste Matrix Rewinding
•Rewinding Unit
➤ Max Roll ø400mm
➤ 3” Manual Shaft (75mm)
➤  Tension Controlled by Mechanical Clutch System
•Main Motor 3 HP 3 Phase AC Variable Speed Control System
•Speed: 30 - 50 M/Min•3 Set Printing Cylinder (As Per Your Requirement)
•Max Paper Width         : 220 MM
•Max Printing Width      : 200 MM
Power Consumption 3HP 3Phase
Machine Size: - H:6 ft., W:4 ft., L:5 ft.

Additional Information:

• Item Code: MRF250
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Working Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Printing Speed	80 m/min
Number Of Colors	6
Usage/Application	Paper
Color Output	6
Material	Mild Steel
Max Printing Length	500-1000 (mm)
Machine Type	Semi-Automatic
Color Printing	Color Printing
Printing Width	220 mm
Country of Origin	Made in India

Label Printing Machine for Sticker paper, Chromo paper
 SIX COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER UNIT
SINGLE ROTARY DIE CUTTING UNIT
•6 Colour Printing Unit With Hot Air Dryer
•1 UV Dryer System (Facility to Upgrade)
•Full Touch Screen Control System
•Unwinding Unit
➤ Max Roll ø600mm
➤ 3” Air Shaft (75mm)
➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
➤ With Slicing Table and Paper Holder
➤ Auto Electronic Tension Controller (Powder Brake) with Load Cell Feedback
•6 Nos. Ceramic Anilox Rollers (As Per Your Requirement)
•Individual Motorized Anilox Roll System for Each Printing Unit
•Printing Unit Adopt 360° to Regulate Each Unit
•No Need Pressure for every Job one-time set
•Quick Change Printing Cylinder & fast job change system
•Online Rotary Die Cutting Unit with Waste Matrix Rewinding
•Rewinding Unit
➤ Max Roll ø600mm
➤ 3” Air Shaft (75mm)
➤ Auto Electronic Tension Controller (Powder Clutch) with Load Cell Feedback
•Main Motor 5HP 3Phase Ac Variable Speed Control System
•Speed:  50-M/Min
•3 Set Printing Cylinder (As Per Your Requirement)
•Max Print Width:230 MM
•Max Print Length:450 MM
EXTRA OPTION:
ALL UV DRYER
VIDEO MONITOR

Additional Information:

• Item Code: RK-MFM
• Production Capacity: 10 Units Per Year
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Material	PVC
Packaging Type	Roll
Color	6 colour
Pattern	Printed
Size	320 MM
Ink Type	Water and UV Base
Country of Origin	Made in India

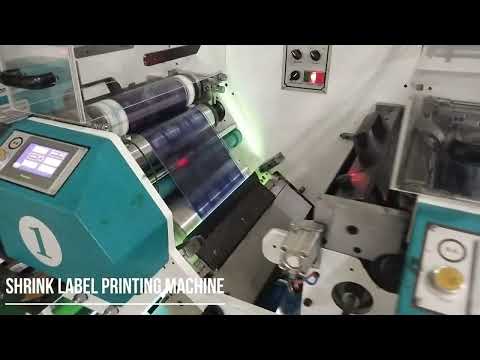

MODEL NO RK FMS-NICE-P 320/ 6 COLOUR / PVC SHRINK LABEL PRINTING MACHINE

SIX COLOUR FLEXO PRINTING MACHINE WITH SINGLE DIE CUTTING MACHINE

FULL SERVO BASED SYSTEM ALL UV DRYER & HOT AIR DRYER SYSTEM WITH ALL PRINTING UNIT WITH

CHILLER DRUM SYSTEM

SIX Colour Flexo Printing Units

Hot Air Dryer System For All Printing Unit

ALL UV Dryer System (BRAND: - UV RAYS/GEW, MADE IN ITALY/UK)

All Printing Unit With Automatic Block Position Registration System

All Printing Unit, Die Cutting Unit, Infeed And Out Feed are Driven by Individual Servo System

Unwinding Unit

·       Max Roll ø800mm

·       3” Air Shaft (75mm)

·       Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)

·       Web Guide With Slicing Table and Paper Holder

·       Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)

·       Air Pneumatic Loading System For Easy Loading of Reels

SIX Nos. Ceramic Anilox Rollers (As Per Your Requirement)

Individual Motorized Anilox Roll System for Each Printing Unit

Printing Unit Adopt 360 Degree To Regulate Each Unit

Fully Touch Screen Control System for Easy of Operation

No Need Pressure for every Job one-time set

Quick Change Printing Cylinder & fast job change system.

Online Die Cutting Unit with Waste Matrix Rewinding

Rewinding Unit

·       Max Roll ø600mm

·       3” Air Shaft (75mm)

·       Electronic Tension Controller with Load Cell Feedback and Independent Motor & Drive Synchronized with Main Drive using Encoder for Auto Tension Control (IMPORTED)

Speed:  60-M/Min

Max Print Width:310 MM

Max Print Length:450 MM

TOTAL SERVO MOTOR 09 NOS. ((Brand:- Schneider / Inovance)

WITH TURN BAR UNIT FOR BACK SIDE PRINTING (MOVEABLE)

WITH RELAME/DELAM UNIT (MOVEABLE)

WITH COLD FOIL / LAMINATION UNIT (MOVEABLE)

Additional Information:

• Item Code: RKFMS
• Production Capacity: every month 3 to 4 machine dispatch
• Delivery Time: 45 to 90 days
• Packaging Details: Shrink sleeve Printing Machine

Printing Speed	80 m/min
Machine Type	Semi-Automatic
Number Of Colors	1
Usage/Application	Paper
Color Output	1
Material	Mild Steel
Max Printing Length	500-1000 (mm)
Color Printing	Color Printing
Country of Origin	Made in India

Tint / Patch Printing Machine
 MODEL NO. RK F 320/1 COLOUR
ONE COLOUR FLEXO ROTARY LABEL PRINTING MACHINE
ONE ROTARY DIE CUTTING UNIT
•1 Color Flexo Printing Unit
•IR Lamp Based Hot Air Dryer System For Printing Unit
•1 Nos Ceramic Anilox Rollers (As Per Your Requirement)
•Unwinding Unit
➤ Max Roll ø600mm
➤ 3” Air Shaft (75mm)
➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
➤ With Slicing Table & Paper Holder for Paper Joining
➤ Tension Controller with Mechanical Brake System
•Individual Motorized Anilox Roll System for Each Printing Unit
•Printing Unit Adopt 360 Degree To Regulate Each Unit
•Dial Gauge for Printing Registration
•One Rotary Die Cutting Unit
•Rewinding Unit
➤ Up & Down Rewinding System
➤ Max Roll ø300mm
➤ 3” Air Shaft (75mm)
➤ Tension Controller with Mechanical Clutch System
•Main Motor 3 HP 3 Phase AC Variable Speed Control System (VFD Brand: Schneider)
•Speed:50M/Min
•3 Set Printing Cylinder (As Per Your Requirement)
•Max Paper Width          : 320 MM
•Max Printing Width      : 310 MM
•Max Print Length          : 430 MM
Power Consumption 5.5 HP 3 Phase
Height 5.5 Ft, Width 5.5 Ft, Length 12 Ft

Additional Information:

• Item Code: RKF-320-1
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Color	6 Color
Print Resolution	1200 dpi
Power	25hp
Capacity	40mtr per min
Country of Origin	Made in India

Stack Type Water bottle Label Printing Machine

 FIVE COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER UNITONE ROTARY DIE CUTTING UNITINDIVIDUAL IR & UV DRYER WINDOW SYSTEM

• 5 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit
• 1 UV Dryer System (BRAND: - RK, MADE IN INDIA)
• 5 Nos Ceramic Anilox Rollers (As Per Your Requirement)
• Unwinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    With Slicing Table & Paper Holder for Paper Joining
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Printing Unit Adopt 360 Degree To Regulate Each Unit
• Dial Gauge for Printing Registration
• Online Die Cutting Unit with Waste Matrix Rewinding
• Turn Bar Unit for Back Side Printing
• Rewinding Unit
    ➤    Max Roll ø450mm
    ➤    3” Air Shaft (75mm)
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Main Motor 5 HP 3 Phase AC With Variable Speed Control System (VFD Brand: Schneider)
• Speed:50M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Paper Width          : 320 MM
• Max Printing Width       : 310 MM
• Max Print Length          : 430 MM

Additional Information:

• Item Code: RK320
• Production Capacity: 25 machine monthly
• Delivery Time: 45 DAYS
• Packaging Details: For Water Bottle Sticker Printing Machine

Material	PP
Size	120x180mm
Packaging Type	Roll
Thickness	60 TO 70 GSM
Country of Origin	Made in India

MODEL NO. RK F 320/5 COLOUR WATER BOTTLE STICKER PRINTING MACHINE

FIVE COLOUR FLEXO ROTARY LABEL PRINTING MACHINE WITH ONE UV DRYER UNIT

ONE ROTARY DIE CUTTING UNIT

INDIVIDUAL IR & UV DRYER WINDOW SYSTEM

5 Color Flexo Printing Unit

IR Lamp Based Hot Air Dryer System For All Printing Unit

1 UV Dryer System (BRAND: - RK, MADE IN INDIA)

5 Nos Ceramic Anilox Rollers (As Per Your Requirement)

Unwinding Unit

·       Max Roll ø600mm

·       3” Air Shaft (75mm)

·       Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)

·       With Slicing Table & Paper Holder for Paper Joining

·       Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)

·       Individual Motorized Anilox Roll System for Each Printing Unit

·       Printing Unit Adopt 360 Degree To Regulate Each Unit

·       Dial Gauge for Printing Registration

·       Online Die Cutting Unit with Waste Matrix Rewinding

·       Turn Bar Unit for Back Side Printing

·       Rewinding Unit

·       Max Roll ø450mm

·       3” Air Shaft (75mm)

·       Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)

Main Motor 5 HP 3 Phase AC Variable Speed Control System (VFD Brand: Schneider)

Speed:50M/Min

3 Set Printing Cylinder (As Per Your Requirement)

Max Paper Width          : 320 MM

Max Printing Width      : 310 MM

Max Print Length          : 430 MM

Additional Information:

• Item Code: WATERBOTTLE
• Production Capacity: PER MONTH 5 TO 06
• Delivery Time: 30 TO 45 DAYS

Color	Single Color
Country of Origin	Made in India

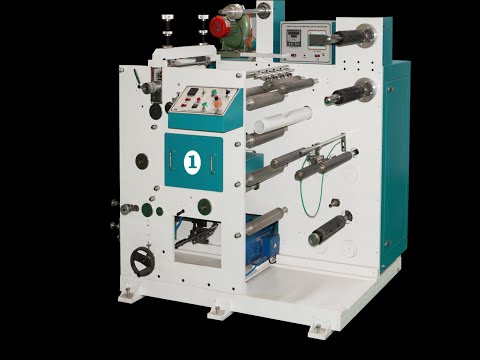

Small 1 Colour Printing Machine With 1 Die Cutting

 MODEL NO. RK-MRF-220 / 01 COLOUR                        ONE COLOUR FLEXO ROTARY LABEL PRINTING MACHINEONE ROTARY DIE CUTTING UNIT•1 Color Flexo Printing Unit •IR Lamp Based Hot Air Dryer System For All Printing Unit•1 Nos Ceramic Anilox Rollers (As Per Your Requirement) •Unwinding Unit ➤ Max Roll ø600mm ➤ 3” Manual Shaft (75mm) ➤ Gauge Unit for Paper Guide on Unwinding Side ➤ Tension Controlled by Mechanical Brake System•Individual Motorized Anilox Roll System for Each Printing Unit•Printing Unit Adopt 360 Degree To Regulate Each Unit•Online Die Cutting Unit with Waste Matrix Rewinding•Rewinding Unit ➤ Max Roll ø400mm ➤ 3” Manual Shaft (75mm) ➤ Tension Controlled by Mechanical Clutch System•Main Motor 2 HP 3 Phase AC Variable Speed Control System•Speed: 30 - 50 M/Min•3 Set Printing Cylinder (As Per Your Requirement) •Max Paper Width         : 220 MM•Max Printing Width      : 200 MM Power Consumption 3HP 3PhaseMachine Size: - Height 5.5 Ft, Width 4 Ft, Length 5 Ft

Additional Information:

• Item Code: MRF-220
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Ink Type	CYMK
Printing Method	Nylon Block
Color Printing	Color Printing
Processed Materials	Aluminum Foil
Max Speed	50-100 m/min, 100-150 m/min
Max Web Width	250-500 mm, 500-700 mm
Automation Grade	Automatic
Applications	Reel To Sheet Delivery
Printing Station	8 Colour + 1 Colour Rotogravure

Ice Cream Sleeve Printing Machine on Metallic Silver paper

Technical Specification:
•Servo Based 8 Flexo & 1 Rotogravure Printing Unit with Hot Air Dryer
•Automatic Plate Registration System
•Full Touch Screen Control System
•Unwinding:
➤    Max Roll ø1000mm
➤    3” Air Shaft (75mm)
➤    Electronic Web Guide (ULTRASONIC BASED SYSTEM)
➤    With Slicing Table and Paper Holder
➤    Auto Electronic Tension Controller (Powder Brake)  with Load Cell Feedback (IMPORTED)
➤    Air Pneumatic Loading System For Easy Loading of Reels
•8 Nos Ceramic Anilox Rollers (As Per Your Requirement)
•3 Set Printing Cylinder (As Per Your Requirement)
•Individual Motorized Anilox Roll System for Each Printing Unit
•Printing Unit Adopt 360°  to Regulate Each Unit
•No Need Pressure for every Job one-time set
•Quick Change Printing Cylinder & fast job change system
•One Rotary Die Cutting Unit for Full Cutting With Conveyer Belt System or Roll to Roll Rewinding
•Rewinding Unit:
➤     Max Roll ø1000mm
➤     3” Air Shaft (75mm)
➤     Auto Tension Controller (Powder Clutch)
•Speed - 60 M/min (Water based Ink)
•Max Print Width : 310 MM
•Max Print Length : 450 MM
Extra Option:
Video Monitor
Turn bar for Reverse Printing
Cold Foil / Lamination Unit
Delam-Relam
Sheeter Stacker

Additional Information:

• Item Code: RK-FMS-320-8
• Production Capacity: 2 Units Per Month
• Delivery Time: 40 to 65 Working Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Usage/Application	Paper Cup Printing
Printer Type	Flexo
Resolution	1080
Material	Mild Steel
Automation Grade	Semi-Automatic
Color Printing	Color Printing
Model/Type	RKF-1000-4
Max Printing Speed	30-50 m/min

Multicolor flexo printing machine for cups

 FOUR COLOUR FLEXO ROTARY PAPER CUP PRINTING MACHINE
•4 Color Printing Unit With IR With Hot Air System
•Ceramic Anilox Rollers (As Per Your Requirement)
•Electronic Web Guide For Paper Movement System
•Auto Tension Control For Unwinding Unit
•Auto Tension Control For Rewinding Unit
•Auto Air Pneumatic Unwinding Unit & rewinding Unit
•Printing Unit Adopt 360 Degree To Regulate Each Unit
•Main Motor 7.5 HP 3 Phase AC Variable Speed Control System
•Speed:50M/Min
•3 Set Printing Cylinder (As Per Your Requirement)
•Max Print Width:950 MM
•Max Print Length:430 MM
Power Consumption 15HP 3Phase
Machine Size: - H:7.5 ft., W:5 ft., L:15 ft.

Additional Information:

• Item Code: RKF1000
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

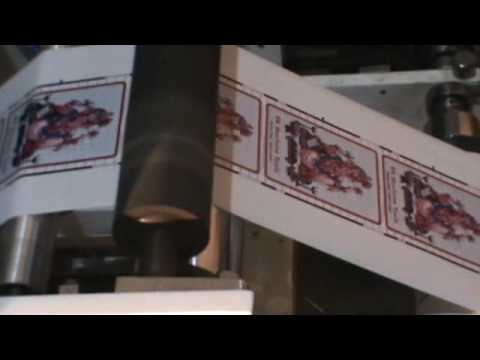

Type of Machine	Paper Bag Printing Machine
Bag Material	Kraft Paper, Brown paper Printing Machine
Brand	RK
Usage/Application	This machine used for Pre Printing of Kraft paper Roll
Machine Type	Semi-Automatic
Maximum Cutting Speed	500 - 1000 mm/sec
Warranty	1 Year
Country of Origin	Made in India

Crafted Paper Flexo Printing Machine

 1. MODEL NO. RK F 510/4 COLOUR                         FOUR COLOUR FLEXO ROTARY LABEL PRINTING MACHINE• 4 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit• 4 Nos Ceramic Anilox Rollers (As Per Your Requirement) • Unwinding Unit ➤ Max Roll ø1000mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ With Slicing Table & Paper Holder for Paper Joining ➤ Tension Controller with Powder Brake System  ➤ Auto Lifting with Pneumatic System ➤ Auto Loading System For Easy Loading of Reels• Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• Platform For Easy Operating • Rewinding Unit ➤ Max Roll ø1000mm ➤ 3” Air Shaft (75mm) ➤ Auto Unloading Pneumatic system ➤ Tension Controller With Powder Clutch• Main Motor 5 HP 3 Phase AC Variable Speed Control System• Speed:50M/Min(Depend On Substrate, Inks, Temperature And Other Factor)• 1 Set Printing Cylinder (As Per Your Requirement) • Max Paper Width          : 500 MM• Max Printing Width      : 535 MM• Max Print Length          : 430 MM

Additional Information:

• Item Code: RK-FM-550-4Colour
• Production Capacity: 2 Units Per Month
• Delivery Time: 30 to 45 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Color	3 Color
Usage/Application	Thermal paper
Printer Type	Flexo
Resolution	1080
Material	Mild Steel
Automation Grade	Semi-Automatic
Color Printing	yes
Max Web Width	450mm
Max Printing Speed	30-50 m/min

Thermal Paper Printing Machine With Turn Bar Unit

  1. MODEL NO. RK F 450/3 COLOUR                         THREE COLOUR FLEXO ROTARY LABEL PRINTING MACHINE INDIVIDUAL IR & UV DRYER WINDOW SYSTEM• 3 Color Flexo Printing Unit • IR Lamp Based Hot Air Dryer System For All Printing Unit• 3 Nos Ceramic Anilox Rollers (As Per Your Requirement) • Unwinding Unit ➤ Max Roll ø600mm ➤ 3” Air Shaft (75mm) ➤ Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM) ➤ With Slicing Table & Paper Holder for Paper Joining ➤ Auto Electronic Tension Controller (IMPORTED)• Individual Motorized Anilox Roll System for Each Printing Unit• Printing Unit Adopt 360 Degree To Regulate Each Unit• Dial Gauge for Printing Registration• Rewinding Unit ➤ Max Roll ø450mm ➤ 3” Air Shaft (75mm) ➤ Tension Controller with Mechanical Clutch System• Main Motor 3 HP 3 Phase AC With Variable Speed Control System (VFD Brand: Schneider)• Speed:50M/Min• 3 Set Printing Cylinder (As Per Your Requirement) • Max Paper Width          : 450 MM• Max Printing Width      : 440 MM• Max Print Length          : 435 MM Power Consumption 5.5 HP 3 PhaseHeight 5.5 Ft, Width 5.5 Ft, Length 10 Ft

Additional Information:

• Item Code: RKF-450
• Production Capacity: 10 Units Per Month
• Delivery Time: 30 to 40 Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.

Color	6 Color
Max. Web Width	300 mm, 250-500 mm
Processed Materials	Roll to Roll & Roll to Sheet Form
Usage/Application	Aluminum Blister Foil Printing Machine
Automation Grade	Automatic
Max Speed	50-100 m/min
High Resolution	10801

Blister Foil Printing Machine (Flexo Type)

• 6 Color Flexo Printing Units
• Hot Air Dryer System For All Printing Unit
• Unwinding Unit
    ➤    Max Roll ø800mm
    ➤    3” Air Shaft (75mm)
    ➤    Electronic Web Guide for Paper Movement (IMPORTED: ULTRASONIC BASED SYSTEM)
    ➤    Web Guide With Slicing Table and Paper Holder
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
    ➤    Air Pneumatic Loading System For Easy Loading of Reels
• 6 Nos. Ceramic Anilox Rollers (As Per Your Requirement)
• Individual Motorized Anilox Roll System for Each Printing Unit
• Fully Touch Screen Control System for Easy of Operation
• No Need Pressure for every Job one-time set
• Quick Change Printing Cylinder & fast job change system.
• Online Die Cutting Unit with Waste Matrix Rewinding
• Rewinding Unit
    ➤    Max Roll ø600mm
    ➤    3” Air Shaft (75mm)
    ➤    Auto Electronic Tension Controller with Load Cell Feedback (IMPORTED)
• Speed:  60-M/Min
• 3 Set Printing Cylinder (As Per Your Requirement)
• Max Print Width:310 MM
• Max Print Length:450 MMWITH TURN BAR MOVABLE FOR BACK SIDE PRINTING

COLD FOIL UNIT:
    ➤    Lamination With Wet Glue
    ➤    Unwinding Unit Tension Controlled By Pneumatic Pressure Gauge

Additional Information:

• Item Code: RK-FMS-320-6
• Production Capacity: 5 Units Per Month
• Delivery Time: 40 to 65 Working Days
• Packaging Details: Default Packing will be Done by Film Wrapping. Based on Requirement we can Provide Wooden Pallet or Wooden Box Packing at Extra Cost.
