Roop Ultrasonix Ltd.

Brand	RTUL
Usage/Application	Concrete Testing
Voltage	220 V
Frequency	50 Hz
Model Number	UX4600L

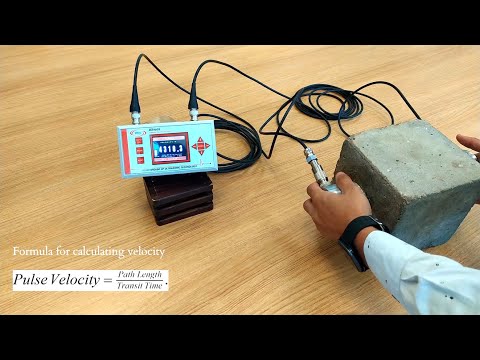

All four models are fully portable instruments for assessing the quality of concrete either as in situ or precast. These are designed with field conditions in mind and are very simple to operate. Accuracy and stability is unmatched. Equipment generates low frequency pulses and measures the time of flight in the material. The time is displayed on screen. The time of flight and the velocity of sound in the material are correlated to estimate the mechanical strength of concrete.

Accuracy	99.5 %
Display Type	Digital
Model	MT 150
Brand	RTUL
Country of Origin	Made in India

Owing to the efforts of our skilled professionals, we have been constantly engaged in offering a qualitative assortment of Thickness Gauges.

Accuracy	99.5 %
Brand	RTUL
Display Type	Digital
Weight	500-800 Gram

Ultrasonic Thickness measurement is non destructive method of measurement and particularly, suitable for components having access only from one side, where conventional gauge cannot be used.

Measuring Range	1.2-300 mm*
Probe Frequency	2.5 to 5 MHz
Material Mode	Metal & Plastic
Data Interface	USB

Ultrasonic Thickness measurement is non destrucve method of measurement and parcularly, suitable for components having access only from one side, where convenonal gauge cannot be used. It is especially useful in measurement of thickness of pipes, pressure vessels. We have automated systems for online thickness measurement in pipes or plates and for applicaons like corrosion monitoring, bond tesng, laminaon detecon, material characterizaon.

Transducer Type	Ultrasonic
Power	1200 W
Linearity Error	0.01 %
Voltage	12 to 24 V DC
Usage/Application	Industrial Automation

Contact probes are single element longitudinal wave probes intended for use in direct contact with a test piece and they consist of receptacles, cases, protective membrane, piezoelectric elements, sound-absorbing materials and other components.

The connectors of the probe cables are Q6 connectors for small element probes (Diameter=12mm) and Q9 connectors for other element
The contact probes are widely used for the inspection of forgings, castings, rods, plates, shafts and etc.

• The piezoelectric elements are used for transmitting and receiving the ultrasonic waves.
• The protective membrane is made of high hardness corundum film featuring high resistance to abrasion and corrosion.
• The cases are made of aluminum alloy with the surface sanding and passivation.
• The absorbing materials are used to absorb the back noise of the elements.

Measuring Range	200
Model Name/Number	RTUL 4590
Warranty	1 year

Ultrasonic distance measurement is a “Non Contact” method of measurement of distance in air of an object.Ultrasonic Distance measurement provides a reliable, accurate and fast way to measure distance and calculates thearea & Volume of any space. An ideal tool for Architects and Civil, Survey Engineers.

Measurement Range	Up to 10 Meters
Display Type	OLED
Power Source	Rechargeable Battery
Data Output	Bluetooth, USB
Material	Stainless Steel
Usage/Application	Used for Concrete testing
Country of Origin	Made in India

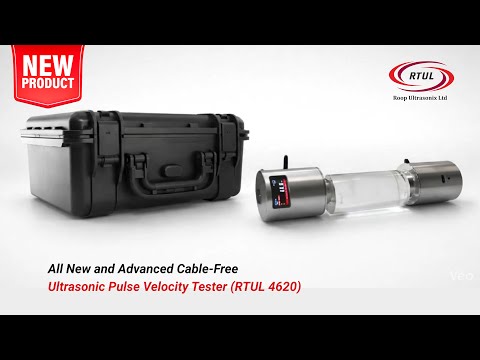

A portable wireless device used to check the quality, strength, and internal defects of concrete without damaging it. The tester sends ultrasonic pulses through concrete and measures the time taken for the waves to travel—helping detect cracks, voids, honeycombing, and weak zones instantly.

Key Features

• Wireless operation, easy to use on-site

• High accuracy with fast time-of-flight measurement

• Works with 50–100 kHz transducers

• Suitable for in-situ and precast concrete

• Complies with ASTM and BS standards

Uses

• Concrete strength checking

• Quality control

• Detecting internal defects

• NDT inspection for civil projects
