Fluid Machinery Lab
| Power Source | singe phase or three phase |
| Country of Origin | Made in India |
| colour | white and blue |
| brand | ssi |
| manufacture | saini scientific industry |
saini scientific industry manufacture of fluid mechinery lab equipment ( Centrifugal blower test rig (Fixed Speed with AC Motor) Centrifugal Blower Test Rig (Variable Speed with DC motor) Axial fan test rig (Fixed Speed with AC Motor) Axial fan test rig (variable Speed with DC Motor) Wind tunnel test rig. Single stage air compressor test rig Double stage air compressor test rig with loading system Double stage air compressor test rig Without loading system Boundary layer apparatus Hydraulic ram test rig Single stage Centrifugal pump test rig Single stage Centrifugal pump test rig ( with 3 prefixed speeds) Single stage Centrifugal pump test rig ( variable speed with DC motor ) Single stage Centrifugal pump test rig (variable speed with AC motor) Single stage Centrifugal pump test rig (Variable Speeds with Swinging Field Dynamometer) Multi stage centrifugal pump test rig Multi stage centrifugal pump test rig ( with 3 prefixed speeds) Multi stage centrifugal pump test rig ( variable speed with DC motor ) Multi stage centrifugal pump test rig (variable speed with AC motor) Multi stage centrifugal pump test rig(Variable Speeds with Swinging Field Dynamometer) Series & parallel centrifugal pump test rig Series & parallel centrifugal pump test rig ( variable speed with DC motor ) Series & parallel centrifugal pump test rig (variable speed with AC motor) Reciprocating pump test rig Reciprocating pump test rig ( with 3 prefixed speeds) Reciprocating pump test rig ( variable speed with DC motor ) Reciprocating pump test rig (variable speed with AC motor) Reciprocating pump test rig (Variable Speeds with Swinging Field Dynamometer) Gear pump test rig Gear pump test rig ( with 3 prefixed speeds) Gear pump test rig ( variable speed with DC motor ) Gear pump test rig (variable speed with AC motor) Gear pump test rig (Variable Speeds with Swinging Field Dynamometer) Submersible pump test rig Jet pump test rig Pelton wheel turbine test rig Pelton wheel turbine test rig (output power 1 KW ) Pelton wheel turbine test rig (output power 1.5 KW ) Pelton wheel turbine test rig (output power 3 KW ) Francis turbine test rig Francis turbine test rig (output power 1 KW ) Francis turbine test rig (output power 1.5 KW ) Francis turbine test rig (output power 3 KW ) Kaplan turbine test rig Kaplan turbine test rig (output power 1 KW ) Kaplan turbine test rig (output power 3 KW ) Subsonic Wind Tunnel test rig. Vane pump test rig Rotary vane vacuum pump test rig Piston pump test rig Universal pump test rig Axial flow pump test rig Lobe pump test rig Diaphragm pump test rig Screw pump test rig Radial fan test rig Two stage radial fan test rig Radial compressor test rig Single stage piston compressor test rig Double stage piston compressor test rig Air duct apparatus Axial turbine test rig Reaction turbine test rig Propeller type turbine test rig gas turbine test rig, Gas turbine with power turbine test rig, Gas turbine jet engine test rig, Impulse turbine test rig, Reaction turbine test rig, Axial steam turbine test rig, Multi turbine test rig.)
Additional Information:
- Production Capacity: 100
- Delivery Time: 15-20 days
View Complete Details
| Country of Origin | Made in India |
| Water Flow | Clear Water |
| Pressure Gauge | Bourdon Type |
| Vacuum Gauge | Bourdon Type |
| brand name | saini |
| model number | SSIFMHL-014 |
| - Pump | Mono-block jet type, capacity 1 HP. |
| - Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| - Measuring tank | 400 x 500 x 400 mm size, Capacity 80 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Clear water |
| - Gauge | one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-2 kg/cm2 |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Jet pump test rig.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Jet pump test rig. The present Jet Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a monoblock Jet Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
View Complete Details
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-002B |
| - Drive | DC motor, 1 HP standard make |
| - Axial fan | Compatible to 1 HP |
| - Pitot tube with manometer | For static, dynamic & differential pressure measurement. 50 cm |
| - Stop watch | Electronic. |
SAINI SCIENCE INDUSTRIES manufacture of Axial fan Test Rig (Variable Speed with DC motor )
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Axial fan Test Rig (Variable Speed with DC motor). This equipment comprises of a Axial Flow Fan coupled to a DC Motor. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Axial Fan. A Pitot Tube with manometer is provided in the delivery line of Axial fan for static and dynamic and differential pressure measurement.
View Complete Details
| Country of Origin | Made in India |
| model number | SSIFMHL-006 |
| brand name | saini |
| - Wind tunnel | Open type wind tunnel |
| - Test section | 150 X 150 X 1000 mm. |
| - Axial fan | Compatible capacity. |
| - Drive | Compatible capacity. |
| - Manometer | U tube manometer 50 cm. |
| - Micro pitot tube | Inner diameter. 0.6mm For boundary layer experiment. |
SAINI SCIENCE INDUSTRIES manufacture of Boundary layer apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Boundary layer apparatus. The test section of Boundary Layer Apparatus?? has been developed to perform various experiments of aerodynamics and fluid flow. This is an open circuit Wind Tunnel, provides a region of air flow. A layer of fluid, which comes in contact with the boundary surface, adheres to it on account of viscosity, as a real fluid flow past a solid boundary. As a result, no slip condition prevails. If the boundary is at rest, the fluid at the boundary has zero velocity and the velocity increases if the fluid is away from the boundary. Thus, there, is a thin layer in the vicinity of the boundary within which the velocity has been affected because of the boundary & viscous effects. This thin layer has been termed as the Boundary Layer apparatus.
View Complete Details
Hydraulic Ram Test Rig
₹ 62,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Country of Origin | Made in India |
| model number | SSIFMHL-007 |
| brand name | saini |
| - Hydraulic ram | Supply head 1.0 m, Delivery head 4 meter (max.) |
| - Water pump | 1 HP pump, Crompton make. |
| - Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| - Measuring tank | For waste water: 400 x 350 x 250 mm size, Capacity 35 liters approx, Fitted with Piezo-meter Tube |
| - Overhead tank | Size : 400 x 400 x 750 mm, Capacity 120 liter approx. (stainless steel material ) |
| - Air vessel | Suitable capacity |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-1 kg/cm2 |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of hydraulic ram test rig.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality hydraulic ram test rig. Hydraulic Ram is used for pumping small quantity of water at high head, when large quantity of water at small head is available. It operates on the principle that if flow water is suddenly brought to rest in a long pipe, a phenomena known as water hammer occurs, wherein a pressure wave travels along the pipe. This principle is used in the Hydraulic Ram to pump water. The set-up consists of a box incorporating pulse and non-return valves and a supply reservoir on a stand which is fed by the overhead tank. An air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic.
View Complete Details

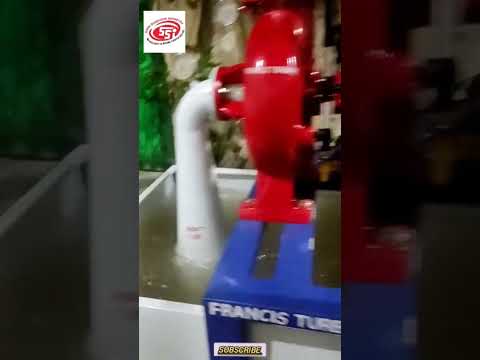

Francis Turbine Test Rig
₹ 1,85,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-016A |
| - Output power | 1 KW. |
| - Discharge | 1000 LPM (approx.) |
| - Supply head | 15 meter |
| - Speed | 1500 RPM (approx.) |
| - Runner | Curved vanes type. |
| - Dynamometer | Rope brake drum type , drum diameter 200 mm. |
| - Sump tank | Capacity 350 liters approx. (stainless steel material ) |
| - Water circulation | Centrifugal pump , 5HP , three phase, standard / kirloskar /Crompton makes |
| - Dial balance (1 nos ) | 25 kg |
| - Pressure gauge | Bourdon type , range 0-7 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Discharges measurement | Venturi meter with differential pressure manometer. |
| - Tank material | stainless steel material |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Francis turbine test rig. (Output power 1 KW).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Francis turbine test rig. (Output power 1 KW). Francis Turbine is a reaction turbine, which was developed by an English born American Engineer Sir J. B. Francis. The water enters the turbine through the outer periphery of the runner in the radial direction and leaves the runner in axial direction and hence it is called a mixed flow turbine. As the water flows to the runner, a part of pressure energy goes on changing into kinetic energy. Thus the water through the runner is under pressure. The runner is completely enclosed in a air tight casing and the casing & runner is always full of water. The present set-up consists of a runner. The water is fed to the turbine by means of Centrifugal Pump, radically to the runner. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the runner. This runner assembly is supported by thick cast iron pedestal. Load is applied to the turbine with the help of brake arrangement so that the efficiency of the turbine can be calculated. A draught tube is fitted on the outlet of the turbine. The set-up is complete with guide mechanism. Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine.
View Complete Details
| Country of Origin | Made in India |
| model number | SSIFMHL-003 |
| brand name | saini |
| - Wind tunnel | Open type wind tunnel |
| - Test section | 300 X 300 X 1000 Cm |
| - Axial fan | Compatible capacity. |
| - Drive | 3 HP motor with speed controller |
| - Air velocity | Maximum 30 m/s in test section |
| - Digital force indicator | For lift and drag force |
| - Multiple manometer | 0-40 Degree inclination with vertical axis |
| - Pitot static tube | For velocity measurement |
| - Micro-pitot tube | For boundary layer experiment. |
| - U tube manometer | Length 500 mm |
| - Inclined manometer | 300 mm |
SAINI SCIENCE INDUSTRIES manufacture of Wind Tunnel Test Rig (Variable Speed with AC motor ).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Wind tunnel Test Rig (Variable Speed with AC motor). WIND TUNNEL has been developed to perform various experiments of aerodynamics and fluid flow. This is a open circuit Wind Tunnel provides a region of controlled air flow into which models can be fitted at downstream of working section. The Tunnel consists of bell mouth shaped entry to guide the air smoothly into settling chamber and stabilizes the air flow this follows working section for test section where various models can be tested. Test section with acrylic sheet, will be provided for visual observation. Working section is followed by diffuser section which reduces the dynamic pressure at the exit. A fan coupled with motor is used to produce desired wind velocity.
View Complete Details
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-001A |
| - Drive | AC motor, Crompton make |
| - Blower | Centrifugal, forced draft type |
| - Impeller | 3 nos. , interchangeable 1. Forwarded curved vane. 2. Backward curved vane. 3. Radial curved vane. |
| - Pipe | GI Pipe , 50 mm diameter |
| - Pitot tube with manometer | For static, dynamic & differential pressure measurement. 50 cm |
| - Stop watch | Electronic |
SAINI SCIENCE INDUSTRIES manufacture of Centrifugal blower test rig (Fixed Speed with AC Motor)
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Centrifugal blower test rig (Fixed Speed with AC Motor). This equipment comprises of a FD Centrifugal Blower coupled to a Motor. Three interchangeable impellers with forward, backward and radial vanes are provided with the test rig. A Pitot Tube is provided in the delivery line of blower for static Power input to the AC Motor.
View Complete Details
Centrifugal Pump Test Rig
₹ 48,500/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-008C |
| - Pump | Kirloskar make, capacity 1HP, speed 2800 RPM (MAX.) Head 12 meter (max.) Model no.:- KH-01BS 25X25 |
| - Drive | 1 HP AC motor With speed control Crompton make. |
| - Sump tank | 700 x 500 x 400 mm size , Capacity 140 liters approx. (stainless steel material ) |
| - Measuring tank | 300 x 500 x 400 mm size, Capacity 60 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Clear water |
| - Gauge | One piece vacuum gauge And one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-4 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Single stage Centrifugal pump test rig (variable speed with AC motor).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Single stage Centrifugal pump test rig (variable speed with AC motor). The present Centrifugal Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Centrifugal pump coupled with a AC Motor. Power input to the AC Motor is varied by means of a VARIAC to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of water is measured by using measuring tank and stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
View Complete Details
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-017A |
| - Output power | 1 KW. |
| - Discharge | 1000 LPM (approx.) |
| - Supply head | 5 meter |
| - Speed | 1500 RPM (approx.) |
| - Dynamometer | Rope brake drum type , drum diameter 200 mm. |
| - Sump tank | Capacity 400 liters approx. (stainless steel material ) |
| - Water circulation | Centrifugal pump , 7.5HP , three phase, standard / kirloskar /Crompton makes |
| - Pressure gauge | Bourdon type , range 0-7 kg/cm2 |
| - Discharges measurement | Venturi meter with differential pressure manometer. |
| - Tank material | stainless steel material |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Kaplan turbine test rig. (Output power 1 KW).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Kaplan turbine test rig. (Output power 1 KW). Kaplan Turbine is an axial flow reaction turbine named in honour of Dr. B. Kaplan, a German Engineer. This turbine is suitable for low head. The power produced by a turbine is proportional to QH. As the head (H) decreases the discharge (Q) must increase to produce the same power. The present set-up consists of a scroll casing housing a runner. Water enters the turbine through the stationary guide vanes and passes through the runner axially. The runner has a hub and airfoil vanes, which are mounted on it. The water is fed to the turbine by means of Centrifugal Pump. The runner is directly mounted on one end of a central shaft and other end is connected to a brake arrangement. A transparent hollow cylinder made of acrylic is fitted in between the draught tube and the casing for observation of flow on to the airfoil vanes. This runner assembly is supported by thick cast iron pedestal. Load is applied to the turbine with the help of drum brake arrangement so that the efficiency of the turbine can be calculated. The set-up is supplied with control panel. Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine
View Complete Details
| Material | stainless steel and mild steel |
| Number Of Phases | single phase |
| Voltmeter | 0-300v |
| Model Name/Number | SSIFMHL-019 |
| Brand | ssi |
| Country of Origin | Made in India |
Additional Information:
- Production Capacity: 100
- Delivery Time: 10-12
View Complete Details
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-015A |
| - Output power | 1 KW. |
| - Discharge | 300 LPM (approx.) |
| - Supply head | 25 meter |
| - Speed | 1000 RPM (approx.) |
| - Impeller | Bucket type, material brass, |
| - Nozzle | Material aluminum |
| - Spear | Material stainless steel |
| - Dynamometer | Rope brake drum type , drum diameter 200 mm. |
| - Sump tank | 600 x 650 x 900 mm size , Capacity 350 liters approx. (stainless steel material ) |
| - Water circulation | Centrifugal pump , 5HP , three phase, standard / kirloskar /Crompton makes |
| - Dial balance (2 nos ) | One is 25 kg and second is 10 kg |
| - Pressure gauge | Bourdon type , range 0-4 kg/cm2 |
| - Discharges measurement | Venturi meter with differential pressure manometer. |
| - Tank material | stainless steel material |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Pelton wheel turbine test rig. (Output power 1 KW).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Pelton wheel turbine test rig. (Output power 1 KW). Pelton Wheel Turbine is only impulse water turbine now in common use named in honour of Sir L. A. Pelton (1829-1908) of California, USA. It is a tangential flow impulse turbine. The water strikes the buckets along the tangent of the runner. The energy available at the inlet of the turbine is only kinetic energy. The pressure at the inlet and outlet of the turbine is atmospheric. This turbine is used for high heads. The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Flow of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.
View Complete Details
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-012A |
| - Pump | Capacity 1HP, speed 1500 RPM (MAX.) Head 5 kg/cm2( max.) |
| - Drive | 1 HP motor, Crompton make having step cone pulley for three different prefixed speeds. |
| - Sump tank | 600 x 500 x 400 mm size , Capacity 120 liters approx. (stainless steel material ) |
| - Measuring tank | 200 x 500 x 400 mm size, Capacity 40 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Oil. |
| - Gauge | One piece vacuum gauge And one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-2 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Gear pump test rig (with 3 prefixed speeds).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Gear pump test rig (with 3 prefixed speeds). The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with an AC Motor. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
View Complete Details
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-018 |
| - Wind tunnel | Open type wind tunnel. |
| - Test section | 300 X 300 X 1000 Cm. |
| - Axial fan | Compatible capacity. |
| - Drive | 3 HP motor with speed controller |
| - Air velocity | Maximum 30 m/s in test section. |
| - Digital force indicator | For lift and drag force. |
| - Multiple manometer | 0-40 Degree inclination with vertical axis |
| - Pitot static tube | For velocity measurement |
| - Micro-pitot tube | For boundary layer experiment. |
| - U tube manometer | Length 500 mm |
| - Inclined manometer | 300 mm |
| - Stop watch | Electronic |
SAINI SCIENCE INDUSTRIES manufacture of Subsonic Wind Tunnel test rig. (Variable Speed with AC motor ).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Subsonic Wind Tunnel test rig. WIND TUNNEL has been developed to perform various experiments of aerodynamics and fluid flow. This is a open circuit Wind Tunnel provides a region of controlled air flow into which models can be fitted at downstream of working section. The Tunnel consists of bell mouth shaped entry to guide the air smoothly into settling chamber and stabilizes the air flow this follows working section for test section where various models can be tested. Test section with acrylic sheet, will be provided for visual observation. Working section is followed by diffuser section which reduces the dynamic pressure at the exit. A fan coupled with motor is used to produce desired wind velocity.
View Complete Details
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-012C |
| - Pump | Capacity 1HP, speed 1500 RPM (MAX.) Head 5 kg/cm2( max.) |
| - Drive | 1 HP AC motor, With speed control. (Crompton makes.) |
| - Sump tank | 600 x 500 x 400 mm size , Capacity 120 liters approx. (stainless steel material ) |
| - Measuring tank | 200 x 500 x 400 mm size, Capacity 40 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Oil. |
| - Gauge | One piece vacuum gauge And one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-2 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Gear pump test rig (variable speed with AC motor).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Gear pump test rig (variable speed with AC motor). The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a AC Motor. Power input to the AC Motor is varied by means of a VARIAC controlled AC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
View Complete Details
Series And Parallel Centrifugal Pump Test Rig
₹ 1,25,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-010B |
| - Pump (2 nos.) | Kirloskar make, capacity 1HP, speed 2800 RPM (MAX.) Head 12 meter (max.) Model no.:- KH-01BS 25X25 |
| - Drive (2 nos.) | 1 HP AC motor With speed control |
| - Sump tank | 700 x 600 x 500 mm size , Capacity 210 liters approx. (stainless steel material ) |
| - Measuring tank | 300 x 600 x 500 mm size, Capacity 90 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Clear water |
| - Gauge | One piece vacuum gauge one piece pressure gauge one piece compound gauge |
| - Stop watch | Bourdon type , range 0-4 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Compound gauge | Bourdon type , range -760 mm of hg to 2 kg/cm2 |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Series & parallel centrifugal pump test rig (variable speed with AC motor).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Series & parallel Centrifugal pump test rig (variable speed with AC motor). The present Centrifugal Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of two Centrifugal pumps. Both pumps are coupled with individual Motors. Speed Control facility is provided to vary the RPM of motor. RPM Indicator with Proximity sensor indicates the RPM of Pump. Pipeline and valve arrangement provided enables the user to operate the test rig either in single pump operation, parallel mode or in series mode. Flow of water is measured by using measuring tank and stopwatch. Vacuum & Pressure gauges are fitted on suction line and delivery line of each pump to measure the pressure.
View Complete Details
| Brand | saini |
| Country of Origin | Made in India |
| model number | SSIFMHL-009C |
| - Pump | 2 or 3 stage, capacity 2HP, speed 2800 RPM (MAX.) |
| - Drive | 2 HP AC motor Crompton make with speed control |
| - Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| - Measuring tank | 400 x 500 x 400 mm size, Capacity 80 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Clear water |
| - Gauge | One piece vacuum gauge And one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-4 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Multi stage Centrifugal pump test rig (variable speed with AC motor).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of multi stage Centrifugal pump test rig (variable speed with AC motor). The present multi stage Centrifugal Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a multi stage Centrifugal pump coupled with an AC Motor. Power input to the AC Motor is varied by means of a VARIAC to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of water is measured by using measuring tank and stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
View Complete Details

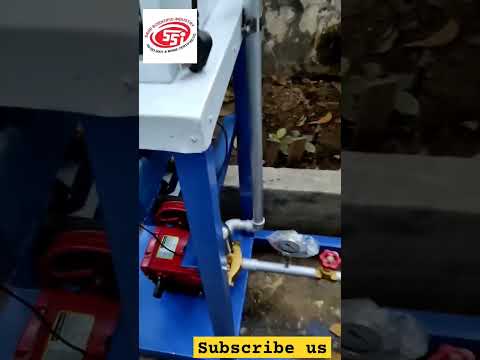

Reciprocating Pump Test Rig
₹ 55,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-011C |
| - Pump | Double acting single cylinder, capacity 1HP, Speed 250 RPM (max.) , head 5 kg/cm2 ( max.) Everest |
| - Drive | 1 HP AC motor With speed control Crompton make. |
| - Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| - Measuring tank | 350 x 500 x 400 mm size, Capacity 70 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Clear water |
| - Gauge | One piece vacuum gauge And one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-4 kg/cm2 |
| - Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Reciprocating pump test rig. (Variable speed with AC motor).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Reciprocating pump test rig. (Variable speed with AC motor). The present Reciprocating Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Cylinder Reciprocating Pump coupled with a AC Motor Power input to the AC Motor is varied by means of a VARIAC to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of water is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
Additional Information:
- Item Code: SSIHML-004
View Complete Details
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-013 |
| - Pump | Submersible type, capacity 1 HP. |
| - Sump tank | 800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material ) |
| - Measuring tank | 400 x 500 x 400 mm size, Capacity 80 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
| - Medium flow | Clear water |
| - Gauge | one piece pressure gauge |
| - Stop watch | Electronic type |
| - Pressure gauge | Bourdon type , range 0-2 kg/cm2 |
| - Tank material | (stainless steel material ) |
| - Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Submersible pump test rig.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Submersible pump test rig. The present Submersible Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Submersible Pump, which is mounted horizontally with sump tank. Flow of fluid is measured by using measuring tank and stop watch.
View Complete Details
| Country of Origin | Made in India |
| model number | SSIFMHL-005B |
| brand name | saini |
| - Compressor | Double stage, double cylinder capacity 6.9 CFM ( Max.) |
| - Working pressure | 7 kg/cm2 |
| - Drive | 2 HP, Crompton make motor, |
| - Manifold measurement | Suitable capacity |
| - Flow measurement | Orifice meter with manometer |
| - Temperature measurement | Digital temperature meter with 4 piece sensor. |
| - Air Tank | Capacity 150 liter ( 500*500*600 mm ) with safety valve , shut off valve , control valve |
| - Pressure gauge | Bourdon type |
SAINI SCIENCE INDUSTRIES manufacture of Double Stage Air Compressor Test Rig (without loading system).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Double Stage Air Compressor Test Rig (without loading system). Two Stage Air Compressor Test Rig consists of a double stage reciprocating type air compressor driven by 2 HP Motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of the air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir and at intermediate stage can be measured by Temp. Sensors and gauges.
View Complete Details
| Country of Origin | Made in India |
| brand name | saini |
| model number | SSIFMHL-004 |
| - Compressor | Single stage, capacity 4.5 CFM ( Max.) |
| - Working pressure | 5 kg/cm2 |
| - Drive | 1 HP, Crompton make motor |
| - Manifold measurement | Suitable capacity |
| - Flow measurement | Orifice meter with manometer |
| - Temperature measurement | Thermometer 2 Nos. |
| - Air Tank | Capacity 90 liter with safety valve , shut off valve |
| - Pressure gauge | Bourdon type |
SAINI SCIENCE INDUSTRIES manufacture of Single Stage Air Compressor Test Rig.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Single Stage Air Compressor Test Rig. Single Stage Air Compressor Test Rig consists of a single stage reciprocating type air compressor driven by 1 HP motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with an orifice plate and a water manometer. Bellow is fitted on one side of this air tank to regulate the flow. Temperature of inlet and outlet of air and pressure at outlet can be measured by Temperature sensor and pressure gauge.
View Complete Details
Rotary vane vacuum pump test rig
₹ 72,500/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Watch Video
| Number Of Phases | single phase |
| Pipe Diameter | 1 inch |
| Model Name/Number | SSIFMHL-020 |
| Brand | ssi |
| Country of Origin | Made in India |
The unit consists of an electric motor driven Vane pump, oil sump tank, measuring tank & flow control valve. Instruments are provided to measure the Suction & Delivery pressure, Power consumption of the pump. The set up is mount on a sturdy, powder coated steel frame
Additional Information:
- Production Capacity: 100
- Delivery Time: 10-12
View Complete Details
- Developed and Managed by IndiaMART InterMESH Limited
