SAINI SCIENCE INDUSTRIES manufacture of Discharge through venturi meter, orifice meter & Rota meter apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Discharge through venturi-meter, orifice meter & Rota meter apparatus. The apparatus consists of three pipelines emerging out from a common manifold. One pipeline contain a Venturimeter, second contains an Orifice and third pipe line contains a rota meter . The pressure tapings from the Venturimeter and Orificemeter are taken to differential manometer to measure pressure difference. The Venturimeter and Orificemeter and rotameter are connected in parallel and anyone of them can be put in operation by operating valves provided at the downstream. These valves can also regulate the flow. Present Set-up is self contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different floe rate. Flow rate of water is measured with the help of measured with the help of measuring tank and stop watch.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of Discharge through venturi meter & orifice meter apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Discharge through venturi-meter & orifice meter apparatus. The apparatus consists of two pipelines emerging out from a common manifold. One pipeline contain a Venturimeter, second contains an Orifice meter. The pressure tapings from the Venturimeter and Orifice meter are taken to differential manometer to measure pressure difference. The Venturimeter and Orifice meter are connected in parallel and anyone of them can be put in operation by operating valves provided at the downstream. These valves can also regulate the flow. Present Set-up is self contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different floe rate. Flow rate of water is measured with the help of measured with the help of measuring tank and stop watch.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of Centre of pressure apparatus (hydrostatic pressure apparatus).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality centre of pressure apparatus (hydrostatic pressure apparatus). The Centre of Pressure Apparatus has been designed to determine the static thrust exerted by a fluid on a submerged surface and allow comparison of the measured magnitude and position of this force with simple theory. A fabricated quadrant is mounted on a balance arm, which pivots on knife-edges. The knife-edges coincide with the centre of arc of the quadrant. Thus, of the hydrostatic forces acting on the quadrant when immersed, only the force on the rectangular end face gives rise to a moment about the knife-edges. The balance arm incorporates a balance pan for the weights supplied and an adjustable counterbalance. This assembly is mounted on top of an acrylic tank, which may be leveled by adjusting screwed feet. An indicator attached to the side of the tank shows when the balance arm is horizontal. Water is admitted to the top of the tank by a flexible tube and may be drained through a cock in the side of the tank. The water level is indicated on a scale on the side of the quadrant.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of Centre of pressure apparatus (hydrostatic pressure apparatus).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality centre of pressure apparatus (hydrostatic pressure apparatus). The Centre of Pressure Apparatus has been designed to determine the static thrust exerted by a fluid on a submerged surface and allow comparison of the measured magnitude and position of this force with simple theory. A fabricated quadrant is mounted on a balance arm, which pivots on knife-edges. The knife-edges coincide with the centre of arc of the quadrant. Thus, of the hydrostatic forces acting on the quadrant when immersed, only the force on the rectangular end face gives rise to a moment about the knife-edges. The balance arm incorporates a balance pan for the weights supplied and an adjustable counterbalance. This assembly is mounted on top of an acrylic tank, which may be leveled by adjusting screwed feet. An indicator attached to the side of the tank shows when the balance arm is horizontal. Water is admitted to the top of the tank by a flexible tube and may be drained through a cock in the side of the tank. The water level is indicated on a scale on the side of the quadrant.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of electrical analogy apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality electrical analogy apparatus. The model is to be designed as per the requirements out of copper and Bakelite plates. A sample model arrangement will be given with setup. A Probe is mounted on a trolley, which can traverse in two planes fitted on tray to locate equipotential lines. X – Y Co-ordinates of the probe at each point can be located on the scale fitted on the cross slide. Necessary potential can be given with the help of Analogue Field Plotter can be displayed on the meter provided. To get general idea on specimen case is given as below.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of Pitot tube setup Apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality pitot tube setup Apparatus. A Pitot Tube is used to measure the local velocity at a given point in the flow stream. A pitot tube of standard design made of copper/SS/brass is supplied and is fixed below vernier scale. The vernier scale is capable to measure the position of Pitot Tube in transparent section. The pipe has a flow control valve to regulate the flow. A differential water manometer is provided to determine the velocity head. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

Additional Information:

• Item Code: SSIFML-014
• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days
• Packaging Details: extra

Additional Information:

• Production Capacity: 100
• Delivery Time: 7 to 10 days
• Packaging Details: extra

SAINI SCIENCE INDUSTRIES manufacture of cavitation apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality cavitation apparatus. The apparatus has been designed to demonstrate the phenomenon of cavitation. The present set-up consists of a test section made of Acrylic having conversion and diversion section. Pressure tapings at appropriate position are provided. This test section is having one control valve at upstream side to regulate the water flow rate. Two pressure gauges are connected to these taping which give the pressure readout at the time of flow passing through this test section. The unit is self-contained close circuit type with sump tank, measuring tank and centrifugal pump. Flow through test section can be regulated with the help provided by-pass and control valve.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days
• Packaging Details: extra

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of meta-centric height apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality meta-centric height apparatus. A pontoon is allowed to float in a small tank having a transparent side. Removable steel strips placed in the model for the purpose of changing the weight of the model. Displacement of weight is measured with the help of a scale. By means of a pendulum (consisting of a weight suspended to a long pointer) the angle of tilt can be measured on a graduated arc.
For tilting the ship model, a cross bar with two movable hangers is fixed on the model. Pendulum and graduated arc are suitably fixed at the center of the cross bar. A set of weights is supplied with the apparatus.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

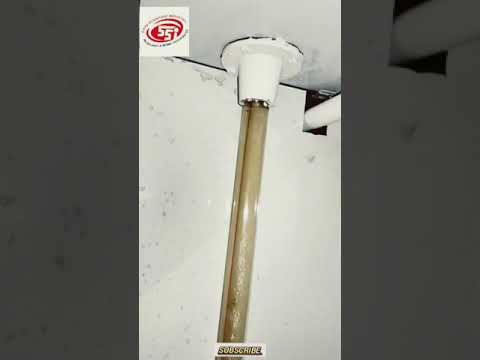

SAINI SCIENCE INDUSTRIES manufacture of Reynold’s apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Reynold’s apparatus. The apparatus consists of a glass tube with one end having bell mouth entrance; connected to a constant head water tank, at the other end a valve is provided to vary the flow rate. The tank is of sufficient capacity to store water. A capillary tube is introduced centrally in the bell mouth for feeding dye from a small container placed at the top of tank, through polythene tubing. By varying the rate of flow, the Reynold's number is changed. This also changes the type of flow. Visual observation of dye (Thread) will indicate the type of flow, which can be confirmed from the Reynold's number computed. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line. Flow rate of water is measured with the help of measuring cylinder and stop watch.

Additional Information:

• Item Code: SSIFML-013
• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of free vortex apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality free vortex apparatus. The experimental set up consist of a circular transparent cylindrical tank in which four circumferential jets are placed along the circumference of the cylinder near its bottom which helps in the formation of free vortex. It is assumed that the torque exerted by these jets is negligible. A pointer can be transverse horizontally & vertically across full diameter of the vessel so that water surface profile can be measure. Both axes contain graduations so that exact position of the pointer is known. The experimental procedure involves measurement of the resulting free surface that represents the variation of the sum of the pressure head and datum head. An arrangement is provided to drain the vessel.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of free & forced vortex apparatus.SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality free & forced vortex apparatus. The free vortex experimental set up consist of a circular transparent cylindrical tank in which four circumferential jets are placed along the circumference of the cylinder near its bottom which helps in the formation of free vortex. It is assumed that the torque exerted by these jets is negligible. A pointer can be transverse horizontally & vertically across full diameter of the vessel so that water surface profile can be measure. Both axes contain graduations so that exact position of the pointer is known. The experimental procedure involves measurement of the resulting free surface that represents the variation of the sum of the pressure head and datum head. An arrangement is provided to drain the vessel. The forced vortex experimental set up consist of a circular transparent cylindrical tank in which plate is rotated with the help of a variable speed motor so that the cylinder rotates about its vertical axis with the help of a V belt and forced vortex is formed. An upper probe can be transverse horizontally & vertically across full diameter of the vessel so that water surface profile can be measure. Both axes contain graduations so that exact position of the probe is known. The experimental procedure involves measurement of the resulting free surface that represents the variation of the sum of the pressure head and datum head. An arrangement is provided to drain the vessel.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of Bernoulli’s theorem apparatus.
Saini science industries is counted among the listed manufacturers, wholesalers and exporters of premium quality Bernoulli’s apparatus. The setup is designed to verify Bernoulli's Theorem experimentally Set up consists of a one piece clear acrylic test section with convergent and divergent part sections, supply thank, measuring tank, inlet water tank and pump for closed loop water circulation. The test section is connected to Piezo-meter Tubes through pressure tapping at different locations on the section to demonstrate the Bernoulli’s Theorem. The flow rate of water is measured using measuring tank and stop watch provided.

Additional Information:

• Item Code: SSIFML-001
• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days
• Packaging Details: extra

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of losses due to friction in pipe lines apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality losses due to friction in pipe line apparatus. The Set-up consists of three pipes of different diameters, which are connected in parallel. Pressure tapings are provided on each pipe to measure the pressure losses with the help of a Differential Manometer. Control valves are fitted on each pipe, which enables to use one pipe at a time for experiment. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Item Code: 9023
• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days
• Packaging Details: extra

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

SAINI SCIENCE INDUSTRIES manufacture of Flow through orifice & mouth piece apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Flow through orifice & mouth piece apparatus. It consists of a tank provided with inlet supply diffuser, overflow, and provision for fitting Orifice or Mouthpiece at the outlet of tank. An arrangement is done to vary head and keep it constant at desired level. A pointer gauge arrangement for measuring X-Y co-ordinates of Jet is also fitted. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow rate of water is measured with the help of measuring tank and stop watch.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

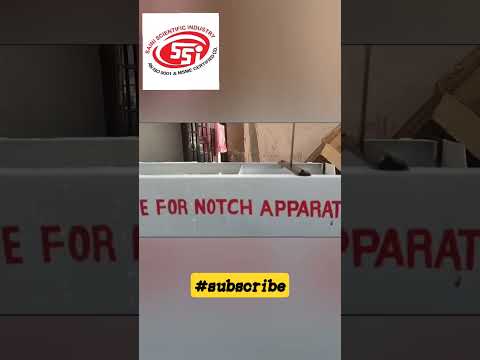

SAINI SCIENCE INDUSTRIES manufacture of Discharge Through Notches Apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality Discharge Through Notches Apparatus. The setup consists of a channel having sufficient length and width in which water is supplied from the bottom. Required Notch is fitted at one end of this channel. A pointer gauge with Vernier scale is fitted to measure the height of fluid in flow channel. Arrangement for fixing interchangeable notches is made. Set of three notches, i.e. rectangular notch, 60 V notch, 45 V notch is provided along with the set-up. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days

Additional Information:

• Production Capacity: 100
• Delivery Time: 10-12

Additional Information:

• Production Capacity: 100
• Delivery Time: 7-10 days
• Packaging Details: extra
