Saini Scientific Industry

Brand

SAINI

Description

The set up consists of two glass column packed with Anion and Cation exchanger resin upto suitable height. The layer of glass wool is placed on bottom and top of the resin bed. The feed is allowed to enter from the bottom of first column and comes out of the top, which is again passed through the second column is same fashion. A digital conductivity meter measures the conductivity of liquid coming out of the second column. Flow rate of water is measured with the pre-calibrated rotameter. A tank with FHP pump with flow control valve and by-pass arrangement is provided for feed circulation

• Experimentation/Learning Objectives To deionise water to make it soft and to determine the exchange rate and saturation point.
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts.
• Floor Area: 1.5 m x 1 m.
• Required Chemicals & Laboratory Glassware.
• Required analyzing equipments as per the system to study.
Technical Details
Column (2 Nos.) : Material Borosilicate Glass / Stainless Steel Dia 55mm, Length 500mm approx. (For Anion & Cation)
• Water Tank : Material Stainless Steel, Capacity 25 Ltrs.
• Feed Circulation : FHP Pump, Mashbow/Standard make
• Flow Measurement : By Rotameter, Eureka make
• Piping : Stainless Steel and PVC
• Conductivity Measurement : Digital Conductivity Meter
• Control panel comprising of : With Standard make On/Off switch, Mains Indicator etc.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint

Brand

SAINI

Description

The set up consist of three vertical column packed with activated Charcoal. Columns are operated individually. Liquid feed with dye is fed to the individual column from the bottom and samples are collected from the top at regular interval of time. Rotameter is provided to measure the flow rate. Pump with a feed tank is provided for fluid flow.

• Experimentation/Learning Objectives
• To obtain the breakthrough curve and hence length of unused bed for the given adsorption system.
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts.
• Floor Area : 1.5m x 1m.
• Required Chemicals & Laboratory Glassware.
• Colorimeter.
• Required analyzing equipments as per the system to study.
Technical Details
• Column (3 Nos.) : Material Borosilicate glass of different dia.
• Feed tank : Material Stainless Steel, Capacity 20 litres.
• Receiving tank : Material Stainless Steel (3 Nos.), Capacity 5 litres. (For all 3 columns)
• Feed circulation : FHP, Magnetic Pump made of Polypropylene.
• Piping : Stainless Steel and PVC of size ¼″.
• Flow measurement : Rotameter for feed.
• Stop Watch : Electronic.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand

saini

Description

 The equipment consists of a distillation still made of stainless steel. Feed in the still is heated externally by heater. The vapours form at the top of the vessel, are condensed in condenser by circulating cooling water. Temperature of the feed mixture is controlled by means of a digital temp. controller. The condensate is collected in a receiver made of stainless steel.

Experimentation/Learning Objectives • To study the characteristics of Simple Distillation. • To verify of Rayleigh’s Equation

Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 32 Amp. MCB with earth connection. Earth voltage should be less than 5 volts. • Water Supply: 2LPM@1bar • Floor area required: 1.5m x 1.0m • Floor Drain. • Required Chemicals.

Technical Details

 • Flow measurement : Rotameter for cold water for condenser • Distillation still : Material Stainless Steel, capacity 5 ltrs. (approx.) Insulated with ceramic wool and cladding with Aluminum foil. • Condenser : Concentric Tube type (Material- Stainless Steel) • Distillate tank : Material- Stainless Steel, capacity 2 Ltrs. • Heater : Nichrome wire heater. • Control panel comprises of : Digital Temp. Controller : PID Controller, 0-199.9°C (For Steam Generator) Digital Temp. Indicator : 0-199.9°C with multi-channel switch. Temp. Sensors : RTD PT-100 type With Standard make on/off switch, Mains Indicator • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand

saini

Description

The setup consists of two glass columns with packing of rashing rings and silica gel. Water & Air flow rates can be set and measured by Rotameters and temperature by RTD type temperature sensors. Water at desired temperature is sprayed in first column. Air from compressed air supply connected to bottom of first column and air outlet from top of the first column connected to bottom of second column and then air leaves from top of the second column. Wet/Dry bulb temperatures of air line are measured from suitable locations.

• Experimentation/Learning Objectives
• To calculate Humidity for humidification & dehumidification.
• To calculate the mass transfer coefficient in the Humidification colum
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts.
• Compressed Air Supply: 4 CFM@2 Bar.
• Water Supply (Initial Fill)
• Floor Drain.
• Floor Area Required: 1.5 m x 1m.
Technical Details
• Column : Material Borosilicate Glass Dia 50 mm, Length 500 mm (2Nos.)
• Packing : Rasching Rings & Silica Gel.
• Air Flow Measurement : By Rotameter.
• Water Flow Measurement : By Rotameter.
• Water Tank : Material Stainless Steel, compatible capacity
• Water circulation : By Pump
• Heater : Nichrome wire heater
• Condenser : Material SS, compatible capacity
• Temperature sensors : RTD PT-100 type- 10Nos.
• Control panel comprising of : Digital Temp. Controller : 0-199.9 °C, For Air Digital Temp. Indicator : 0-199.9 °C, with multi-channel switch With Standard make On/Off switch, Mains Indicator etc.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand

SAINI

Description

 The experimental set-up of Spray Tower consists of a glass column provided with necessary accessories. It operates on a semi-batch mode. Fine spray nozzle is fitted at the top. Feeds are metered by Rotameters and derived from separate feed tanks. The liquid-liquid interface can be maintained by controlling the flow rate of extract with the help of needle valve provided on Rotameter. Total set-up is housed in a rigid structure. The structure also supports tanks, piping, Rotameters and other unit.

Experimentation/Learning Objectives • To study the effect of the dispersed phase flow rate on overall volumetric mass transfer coefficient. • Dispersed phase hold-up study.

Utilities Required • Compressed Air Supply: 0.5 CFM@1 bar. • Water Supply • Floor Drain. • Required Chemicals & Laboratory Glassware.

Technical Details

• Extraction Column : Material Borosilicate Glass Diameter 45 mm (approx.), Height 750 mm (approx.). • Feed Tank : Material Stainless Steel (2Nos.), Capacity 20 Ltrs. • Extract & Raffinate Tanks : Material Stainless Steel (1each), Capacity 10 Ltrs. • Feed Circulation : By Compressed Air • Pressure Regulator : 0-2 kg/cm². • Pressure Gauge : Bourdon type, 0-2 kg/cm2 . • Flow Measurement : Rotameters (One each for Solvent & Solute) • Arrangement is done for changing height of interface zone. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Pain

Brand

SAINI

Description

The setup consists of a Reactor, in which solid cylinder of Benzoic Acid is placed and is stirred by means of a variable speed mixer. Baffles are also provided. The Reactor is made of Stainless Steel. Peltilizer is provided to make the solid cylinder of Benzoic Acid. Constant temperature water bath arrangement is provided to conduct the experiment at various temperatures.

• Experimentation/Learning Objectives
• Dissolution of Benzoic acid in water: Kinetic studies
• Dissolution of Benzoic acid with reaction in aqueous NaOH solution.
Utilities Required
• Water Supply.
• Floor Drain.
• Floor area required: 1.0m x 0.75m
• Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
Technical Details
• Reactor : Material Stainless Steel, Capacity 2 Ltrs. (approx.)
• Water Bath : Material Stainless Steel, Double Wall, insulated with ceramic fibre wool.
• Heater : Nichrome Wire Heater
• Stirrer : Stainless Steel Impeller and shaft coupled with DC motor drive for variable speed.
• Temperature Sensors : RTD PT-100 type.
• Control panel comprises of : RPM Indicator : Digital, Non contact type. Digital Temp. Controller : PID Controller, 0-199.9°C (for hot water tank). With Standard make on/off switch, Mains Indicator & fuse etc.
• The setup is provided with Peltilizer & compatible spanner
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint

Brand

saini

Description

Natural Draft Tray Dryer is a dryer in which moisture removal takes place by heat under natural condition. The set-up consists of an insulated Stainless Steel chamber fitted with heater. Inside the chamber a tray is attached directly to an electronic weighing balance, which is fitted on the bottom, outside the chamber. Material for drying is placed in the tray and regular loss of weight is monitored. Temperature controller fitted in the set-up maintains the required temperature in the chamber.

• Experimentation/Learning Objectives
• To study the drying characteristics of a solid material under batch drying condition.
• Determination of drying rate and to plot moisture lost with time under for different operating conditions.
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts.
• Drying Solids.
• Bench area required: 1.0m x 1.0m
Technical Details
• Drying Chamber : Material Stainless Steel, Size (30 x 30 x 30) cm insulated by Ceramic wool and housed in a MS Chamber. Maximum Temperature 120°C.
• Heater : Nichrome wire heater
• Weighing Balance : Digital, 0-1000gm. of ± 1 gm resolution.
• Temp. Sensor : RTD PT-100 type
• Control panel comprises of : Digital Temp. Controller : PID Controller, 0-199.9°C (For Drying Chamber) With Standard make on/off switch, Mains Indicator etc.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand

saini

Description

 This is a dryer in which moisture removal takes place by means of forced draft action created by hot air. The setup consists of an insulated double wall chamber. Inside the chamber a tray is attached directly to a electronic weighing balance, which is fitted on the bottom, outside the chamber. Material for drying is placed in the tray and regular loss of weight is monitored. Air from a blower passes through a heating chamber and is used as drying agent. Arrangement is done to vary the airflow rate.

Experimentation/Learning Objectives • To study the drying characteristics of a solid under forced draft condition and determine the critical moisture content. • To correlate the constant drying rate with air mass velocity.

Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts. • Wet Solid. • Floor area required: 2.0m x 0.75m

Technical Details

• Drying Chamber : Insulated double wall chamber, Size (20 x 20 x 25) cm • Weighing Balance : Digital (0-1000gm) of ± 1 gm resolution. • Hot Air Circulation : By forced draft fan, Arrangement is done to vary the air flow rate. • Heating Chamber : Compatible capacity. • Heater : Nichrome wire heater. • Temperature Sensors : RTD PT – 100 Type • Control panel comprises of : Digital Temp. Controller : PID Controller, 0-199.9° C Digital Temp. Indicator : 0-199.9° C (with multi-channel switch) With Standard make on/off switch, Mains Indicator etc. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand

saini

Description

The basic data of any distillation problem are the equilibrium between the liquid and vapour phases of the system subjected to distillation. Hence is of great importance to study the vapour-liquid equilibrium. The set-up consists of distillation still with a heating element. An electrical Dimmerstat is connected to heating element for varying heat input. The vapours form the top of column are condensed in the shell and tube type condenser by circulating cooling water. The condensate is collected in reflux drum and feedback to column as reflux. A tank with pump is provided to circulate cold water to condenser. Flow rates can be regulated through control valve fitted. Instrumentation is provided to measure the temperatures at different points.

• Experimentation/Learning Objectives
• To determine the vapour Liquid Equilibrium curve for CCl4 and Toluene or any other mixture
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts.
• Water Supply.
• Floor Drain.
• Floor area required: 1.0m x 0.5m
• Refractrometer for Analysis.
• Required Chemicals.
Technical Details
• Distillation still : 1 Ltrs. Capacity, made of Stainless Steel. Insulated by ceramic wool.
• Condenser : Concentric Tube type.
• Heater : Nichrome wire
• Cooling Water Tank : Material Stainless Steel, Capacity 15 Ltrs. (approx.)
• Cold Water circulation : Using FHP Pump.
• Temperature Sensors : RTD PT-100 type
• Control panel comprising of : Digital Voltmeter : 0-300 Volt. Dimmerstat : 0-230 V, 2A. Digital Temp. Indicator : 0-199.9ºC RTD PT-100 Type with multi-channel switch With standard make on/off switch, Mains Indicator etc.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Capacity	all types available
Material	mild steel / stainless steel
Orientation	MASS TRASFER LAB, ENGINEERING LAB EQUIPMENTS
Automation Grade	Manual
Country of Origin	Made in India

Swenson Walker crystallizer is a continuous type crystallizer. It is a Jacketed round bottom semi cylindrical trough open at the top. Cooling water flows through the jacket. A ribbon mixer is provided in crystallizer trough, which rotates at low rpm for agitation of saturated solution. The saturated solution is prepared in a tank fitted with heater and a stirrer. This hot feed is fed at one end of the crystallizer and flows slowly towards the other end while being cooled and is allowed to flow back in hot feed tank making the process continuous. The crystals sediments at the bottom of the trough, and can be washed out at the end of process. The pump circulates cooling water and the Rotameter measures flow rate. Instrumentation is provided for measuring the temperatures at different point

Additional Information:

• Item Code: SSIMTL-019
• Production Capacity: 1000
• Delivery Time: 1-15 DAYS
• Packaging Details: all types available

Brand

saini

Description

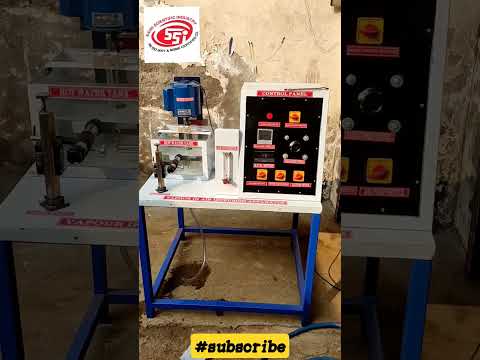

Confirming a packed bed of spherical balls of a solid in a vertical tube, and observing its rate of diffusion into stream of air passed across the top of the tube can conveniently study the diffusion of solid into air. The equipment is fitted with a vertical glass column with a mesh near the base of column to hold the spherical balls. Spherical balls of known weight and diameter are filled in the column to make a packed bed. Air is allowed to pass through the silica gel chamber. From the bottom of the column, dry air is allowed to enter in the packed bed.

Experimentation/Learning Objectives • To calculate the mass transfer co-efficient of vaporization of naphthalene in air using a packed bed of spherical particles of naphthalene. • To plot Sh/Sc 1/3 Vs Re on log 45g graph and determine the functional relationship

Utilities Required • Compressed Air Supply: 4 CFM@2bar • Floor area required: 1.0m x 1.0m • Weighing Balance: 0.01 gm resolution. • Solid Spherical Balls of Naphthalene

Technical Details

• Diffusion Column : Material Borosilicate Glass • Air flow Measurement : By Rotameter. • Pressure gauge : Bourdon type, 0-2 kg/cm2 • Pressure regulator : 0-2 kg/cm2 • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid

Brand/Make

saini

Description

 The set-up consists of a glass column packed with Rasching rings. Continuous counter current contacts between the solvent and solute phases are made, which results into extract and raffinate streams. Flow meters (Rotameters) are used to note the flow of solvent & solute respectively. The continuous and dispersed phase streams are metered and derived from separate containers. The total set-up is housed in a well-designed rigid structure. The structure also supports tanks, piping, Rotameters, panel and other units.

• Experimentation/Learning Objectives
• To determine overall mass transfer coefficient based on continuous & dispersed phase.
• To determine individual “Height of Transfer Unit” based on continuous & dispersed phase.
• To determine overall “Height of Transfer Unit” based on continuous & dispersed phase.
Utilities Required
• Compressed Air Supply: 0.5 CFM@1bar
• Water Supply
• Floor Drain.
• Floor Area Required: 1.0 m x 1.0 m.
• Required Chemicals & Laboratory Glassware.
Technical Details
• Extraction Column : Material Borosilicate Glass, Dia 55 mm, Height 750 mm (approx).
• Packing : Rasching Rings, Material Borosilicate Glass,
• Feed Tanks : Material Stainless Steel (2Nos.), Cap. 20 Ltrs.
• Extract & Raffinate Tanks : Material Stainless Steel (1each), Cap. 10 Ltrs.
• Feed Circulation : By Compressed Air.
• Flow Measurement : Rotameters-2Nos. (One each for solvent & solute)
• Pressure Regulator : 0-2 kg/cm2 .
• Pressure Gauge : Bourdon type, 0-2 kg/cm2 .
• Arrangement is done for changing height of interface zone.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint

Brand

saini

Description

The equipment consists of jacketed pressure vessel for distillation. Steam from a steam generator can either be allowed to enter in the outer jacket or in the vessel. The vapours form the top of the vessel are condensed in the shell and tube type condenser by circulating cooling water, supplied by laboratory overhead tank. The condensate is collected in a separating chamber. The setup is fitted with steam trap, control valves, pressure gauge, temperature sensors and other instrumentations required.

Experimentation/Learning Objectives • To study the characteristics of Steam Distillation.

Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 32 Amp. MCB with earth connection. Earth voltage should be less than 5 volts. • Water Supply: 2 LPM@1bar. • Floor area required: 1.5m x 1.0m • Floor Drain. • Required Chemicals.

Technical Details

• Distillation Vessel : Material Stainless Steel, Capacity 3 Ltrs. (approx.) Jacketed Type, insulated with ceramic wool and Aluminium cladding. • Flow measurement : Rotameter for cold water. • Steam Generator : Made of Stainless Steel, provided with Pressure Gauge & Level Indicator, Safety valve & insulated with ceramic wool and Aluminium cladding. • Separating Chamber : Material Borosilicate Glass, Capacity 2 Ltrs. (approx.) • Condenser : Material Stainless Steel, Shell & Tube type • Distillate tank : Material Stainless Steel, Capacity 5 Ltrs. (approx.) • Heater : Nichrome wire heater • Temp. Sensors : RTD PT-100 type • Control panel comprises of : Digital Temp. Controller : PID Controller, 0-199.9°C (For Steam Generator) Digital Temp. Indicator : 0-199.9°C, with multi-channel switch. With Standard make on/off switch, Mains Indicator etc. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand/Make

saini

Description

Crystallization is the formation of solid particles within a homogeneous phase of saturated liquid. Its wide use has a two-fold basis, a crystal formed from an impure solution is itself pure and crystallization affords a practical method of obtaining pure chemical substances in a satisfactory condition for packing and storing. This operation involves both heat and mass transfer. Cooling type agitated batch crystallizer set up consists of an open jacketed stirred vessel provided with water heating & cooling arrangement. The feed is prepared in the crystallizer itself with hot water and stirrer. The hot saturated solution in the crystallizer is then cooled by circulation of cooling water and crystals are formed.

• Experimentation/Learning Objectives
• To study the performance of a Batch Crystallizer.
• To determine the crystal yield and the efficiency of crystallizer.
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts.
• Water Supply.
• Floor Drain.
• Floor area required: 1.0m x 0.75m
• Required Chemicals.
Technical Details
• Crystallizer : Jacketed Type, Material Stainless Steel, Cap. 2 Ltrs. With conical bottom
• Stirrer : FHP, Variable Speed.
• Heater : Nichrome wire heater
• Cooling Water Tank : Material Stainless Steel, Capacity 30 litre fitted with Pump.
• Flow measurement : By Rotameter for cooling water.
• Pump : FHP.
• Receiving Tank : Material Stainless Steel , Capacity 2 litre with SS sieve
• Temp. Sensors : RTD PT-100 type
• Control panel comprises of : Digital Temp. Indicator : 0-199.9ºC with multi-channel switch With Standard make on/off switch, Mains Indicator etc.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand

saini

Description

Rotary dryer is a unit in which drying is done by forced draft action created by hot air. The set-up consists of a long revolving cylindrical shell slightly inclined towards the outlet. The shell is fitted with two brackets for support. Air from a blower passes through a heating chamber serves the purpose of drying agent. An arrangement for rotating the dryer shell at low RPM is provided by means of an electrical motor and a reduction gearbox. Wet feed enters from one end of the cylinder and dry material discharges from the other end. As the shell rotates internal flights lift the solids and shower them down through the interior of the shell. This action increases the contact of wet solid against hot air making the dryer very effective. The flow of hot air is countercurrent to solids. Flow control and by-pass valve are fitted to regulate the airflow.

• Experimentation/Learning Objectives
• To study the operation of a Rotary Dryer.
• To study the drying characteristics of a solid material under batch drying condition in a rotary dryer.
Utilities Required
• Electricity Supply: Single Phase, 220 V AC, 50 Hz, 32 Amp. MCB with earth connection. Earth voltage should be less than 5 volts.
• Wet Solid.
• Floor Area required : 2.5m x 1.0m
Technical Details
• Drying Shell : Material Stainless Steel, Length 1.5 m, Dia. 110 mm.
• Feed Hopper : Material Stainless Steel, Compatible Capacity
• Product Receiver : Material Stainless Steel, Compatible Capacity.
• Rotating Action : Using motor coupled with a Reduction Gear Box.
• Hot Air Circulation : By forced draft fan, Arrangement is done to vary the air flow rate.
• Heating Chamber : Compatible capacity
• Heater : Nichrome wire heater
• Temperature Sensors : RTD PT-100 type.
• Control panel comprises of : Digital Temp. Controller : PID Controller, 0-199.9°C (For Hot Air) With Standard make on/off switch, Mains Indicator etc.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Brand/Make

saini

Description

The York Scheibel's Column falls in the class of gravityoperated extractors with mechanical agitation. The presence of alternatively agitating and calming sections in a York Scheibel's column yield higher extraction efficiency than the conventional packed column. In the setup a continuous counter current contact between the solvent and solute phases is made which results into extract and raffinate streams. Rotameters are used to measure the flow of solvent and solute respectively. The continuous and dispersed phase streams are metered and derived from separate containers. Each stage consists of a woven wire mesh section and a mixing section. The propeller speed can be controlled to the desired value by a controller. Total set-up is housed in a well-designed rigid structure. The structure also supports tanks, piping, Rotameter, panel and other units.

Experimentation/Learning Objectives • To determine overall mass transfer coefficient based on continuous & dispersed phase. • To determine individual `Height of Transfer Unit' based on continuous & dispersed phase. • To determine overall `Height of Transfer Unit' based on continuous & dispersed phase.

Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltage should be less than 5 volts. • Compressed Air Supply: 0.5 CFM@1 bar • Water Supply • Floor Drain. • Floor Area Required: 1 m x 1 m. • Required Chemicals & Laboratory Glassware

Technical Details

 • Extraction Column : Material Borosilicate Glass Dia. 45 mm, Height 750 mm (approx). • Packing : Woven mesh of Stainless Steel • Agitator : Stainless Steel/Teflon impellers with Stainless Steel shaft coupled to a Variable Speed DC Motor. • RPM Measurement : Digital RPM Indicator, non contact type with Proximity sensor. • Feed Tank (2 Nos). : Material Stainless Steel, Capacity 20 Ltrs. • Extract & Raffinate Tanks : Material Stainless Steel (1 each), Capacity 10 Ltrs. • Feed Circulation : By Compressed Air • Pressure Regulator : 0-2 kg/cm². • Pressure Gauge : Bourdon type, 0-2 kg/cm2 . • Flow Measurement : Rotameters (One each for solvent & solute) • Arrangement is done for changing height of interface zone. • Control panel comprising of: Standard make on/off switch, Mains Indicator etc. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
