Our Products
8 products available
- Admittance Type Level Switch (Disc Probe) - SLA.M/B
- Compact Admittance Level Switch Coat Endure
- Admittance Level Switch
- Intelligent Admittance Level Limit Switch
- Admittance Level Limit Switch

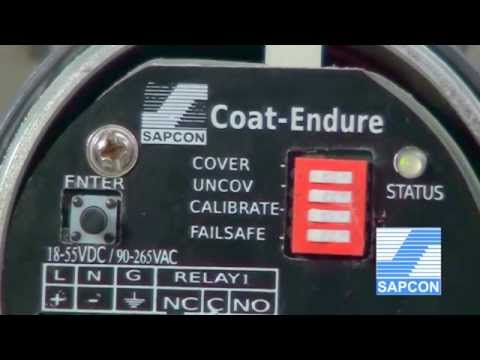

- Rf Admittance Level Switch-Coat Endure
- Admittance Type Level Switch SLA series
- RF-Admittance Level Switch (Integral)
Admittance Level Switch
We are a leading Manufacturer of Admittance Type Level Switch (Disc Probe) - SLA.M/B, Compact Admittance Level Switch Coat Endure, Admittance Level Switch, Intelligent Admittance Level Limit Switch, Admittance Level Limit Switch and Rf Admittance Level Switch-Coat Endure from Indore, India.
₹ 7,800/Unit
₹ 8,500/Piece
₹ 7,200/Unit
₹ 7,200/Unit
₹ 7,500/Unit
₹ 7,800/Piece
₹ 9,000/Piece
₹ 7,200/Unit
Interested in this product?
Get Best Quote
| Material/Body | Metal |
| Size | Medium |
| Country of Origin | Made in India |
| Relay Output | Rated on 6A 230 V |
| Power Consumption | 5 VA approximately |
Sapcon’s Admittance Level Limit Switch utilizing specially designed
Immuno Coat Probe offers a rel iable solution to level detection proble ms which have been so far difficult to solve with Capacitance type system utilizing conventional probes.
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Country of Origin | Made in India |
| Input Supply | 11-55 VDC |
| Current | 50mA max |
| Temperature | 0dig C to 80dig C |
| Indication Red | Alarm |
With an aim to stand tall on the expectations of our esteemed clients, we are providing Compact Admittance Level Switch Coat Endure
Additional Information:
- Item Code: CoatEndure-T
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Size | Medium |
| Country of Origin | Made in India |
| Cable Entries | 3 No. / 2 No. |
| Temperature | -20dig C to + 60dig C |
| Power Consumption | 5 VA approx |
Technical Specification:
| Housing | Cast Aluminum, weather proof, back panel/wall mounting. |
| Cable Entries | 3 No. / 2 No. |
| Max. Amb. Temp. | -20º C to + 60 ºC. |
| Power Consumption | 5 VA approx. |
| Mains Voltage | 230 V or 110 V AC (-15% to +10%), 50 Hz; 24 V AC/DC 90 to 260 V AC universal power supply (to be specified while ordering). |
| Relay Output | One/two set (s) of potential free change over contacts rated at 230V AC 6A, 50 Hz for non-inductive loads. |
| Fail-Safe Mode | Max. or Min. field selectable. |
| Indication (switching) | Red LED for alarm, Green LED for normal. |
| Indication (sensitivity) | 10 step LED dot/bar display |
| Response Time | 0.2 second typical. |
| Switching Delay | Adjustable from 0.5 to 20 second for probe covered or uncovered. |
| Connection to Probe | Via co-axial screened cable with drain wire. |
| Switching Hysteresis | 0.2 PF. typical. |
Additional Information:
- Item Code: SLA-Series
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
Intelligent Admittance Level Limit Switch
₹ 7,200/UnitGet Latest Price
| Country of Origin | Made in India |
| Cable Entry | 3 Nos. of 1/2 inch, BSP/NPT/NG20 |
| Ambient Temperature | 20dig C to + 60dig C |
| Mains | 110/230 V AC (-10 to + 10%) 50 Hz (as specified in order). |
| Power Consumption | 5 VA approx |
In line with clients' diverse requirements across the country, we are offering an excellent range of Intelligent Admittance Level Limit Switch. This switch is precisely used as to measure level. Provided switch is manufactured by our skilled professionals using optimum quality raw material and progressive technology in conformance with defined quality standards. Being a quality-oriented organization, we confirm our clients that the provided range is excellent on counts of quality.
Features:
- Highly-accurate
- Easy to install
- Fail safe function
Technical Specification:
| Housing | Cast aluminum, Weather-proof, Stoving enamel painted, suitable for back panel/wall mounting. |
| Cable Entry | 3 Nos. of ½” BSP/NPT/NG20 |
| Ambient Temperature | 20 ºC to + 60 ºC. |
| Mains | 110/230 V AC (-10 to + 10%) 50 Hz (as specified in order). |
| Power Consumption | 5 VA approx. |
| Indication (Switching) | Red LED for each level alarm, red LED for fault alarm, flashing green LED as heart-beat for healthy condition. |
| Indication (Calibration) | LCD, one digit for mode field and two digits for data field. |
| Response Time | 0.2 Second. Typical. |
| Switching Delay | Programmable up to 99 Second. For probe covered/uncovered condition for each set point. |
| Connection to | 2-core ordinary cable, |
| Electronic Insert | Having max. resistance of 25 W per core. |
| Initial Capacitance | 20 to 1200 pF. |
| Switching Hysteresis | Approx. 0.5 pF at initial |
| Single Point Operation | Capacitance of 30 pF. |
| Switching Hysteresis | Programmable over |
| Two Point Pump Control | Entire setting range. |
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
Admittance Level Limit Switch
₹ 7,500/UnitGet Latest Price
| Country of Origin | Made in India |
| Output Signal | 3 to 12 V DC |
| Supply Voltage | 15 V derived from evaluation unit. |
| Ambient Temperature | -20dig C to + 80dig C |
| Measuring Frequency | ~ 500 KHz. |
With sincere intentions to preserve and uplift our reputation in the market, we bring forth a distinguished assortment of Admittance Level Limit Switch. Our offered switch is manufactured using utmost-grade raw material and cutting-edge technology in compliance with defined quality standards. The provided range considers quality proof unscreened cable to offer maximum safe operations. Keeping in mind the diverse requirements of our clients, we provide the entire range in various sizes and at affordable price.
Features:
- Compact size
- Rust proof
- Safe to use
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Level Measurement Type | Point level detection |
| Usage/Application | Sticky,Free flowing powder,Liquid etc |
| Model No. | Coat Endure |
| Input Supply | 11-55 V DC / 90-265 V AC |
| Power Consumption | 4.8 W |
| Probe Length | 65mm to 3500 mm |
| Switching | Relay / PNP |
| Temperature | 0dig C to 80dig C |
A compact admittance type level switch based on RF admittance working principle is specially design to detect sticky solids and liquids. This level measuring device is suitable for conductive as well as non-conductive application media.
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Size | Medium |
| Country of Origin | Made in India |
| Housing | Cast aluminum weather-proof (Optional Flame-proof) |
| Cable Entry | 3 No 1/2, 3/4 BSP / NPT / ET, type SC and DC |
| Sensor Mounting | Less than 1 inch BSP/NPT |
The probe comprises sense and shield electrodes, electrically isolated from the metallic tank by the means of a suitable insulator.
Product Description:
- Easy to calibrate, using a push-button
- Coating immunity for viscous liquids & sticky media
- Temperature stable circuitry - drift free reliable switching operation
- Compact size and short insertion length, ideal for use in constricted places
- Low maintenance with no moving parts
- Modular construction, so low down time
- Driven shield system. Can tolerate certain amount of coating
- Easy installation with switches and one bi-color LED
- Selectable fail-safe condition (maximum/minimum)
- Configurable probe covered and/or uncovered delay
- Failsafe PNP-NO output for DC and Changeover SPDT relay output for AC operation
- Wide operational supply range: 10 to 55 VDC for PNP-NO and 85 to 265 VAC for SPDT relay
Technical Specification:
| Power supply | 10 -55V DC (optional 85 to 265 VAC 50/60Hz) |
| Outputs | PNP-No. (optional SPDT potential free relay output) |
| Max. Load current | Non-Latching 120MA for PNP-No. |
| Indication | Red: Alarm, Green: Normal |
| Fail-safe mode | Minimum or Maximum (Field Selectable) |
| Switching delay | Covered/Uncovered configurable from 1 to 20 seconds |
| Housing | Cast aluminum weather-proof (Optional Flame-proof) |
| Cable entry | 3 No 1/2, 3/4 BSP / NPT / ET, type SC and DC |
| Sensor mounting | <1” BSP/NPT |
| Probe Insertion length | Minimum 100 mm |
| Weight | ~1.300 Kg |
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
RF-Admittance Level Switch (Integral)
₹ 7,200/UnitGet Latest Price
| Power Supply | 18 -55V DC (optional 85 to 265 VAC 50/60Hz) |
| Outputs | PNP-No. (optional SPDT potential free relay output) |
| Max Load current | Non-Latching 120MA for PNP-No. |
| Cable Entry | 2 no. 1/2 inch BSP |
We have gained a remarkable position in the industry by offering a qualitative assortment of RF Admittance Type Level Switch (Integral Model). This switch is highly reliable and requires less maintenance. The offered range is manufactured employing high-end technology and well-tested raw material in adherence with set industry defined guidelines. Apart from this, the entire range is rigorously tested under the strict inspection of our quality controllers. This range can be availed from us in various specifications at market leading prices.
Salient Features:
- Easy to calibrate, using a push-button
- Active build-up compensation algorithm - immunity against material build-up
- Temperature stable circuitry - drift free reliable switching operation
- Compact size and short insertion length, ideal for use in constricted places
- Low maintenance with no moving parts
- Modular construction, so low down time
- Driven shield system. Can tolerate certain amount of coating
- Easy installation with switches and one bi-color LED
- Selectable fail-safe condition (maximum/minimum)
- Configurable probe covered and/or uncovered delay
- Failsafe PNP-NO output for DC and Changeover SPDT relay output for AC operation
- Wide operational supply range: 18 to 55 VDC for PNP-NO and 85 to 265 VAC for SPDT relay
Application:
- Sapcon Admittance is ideal for use in constricted places due to its compact size and short insertion length. It can be used for detecting level in vessels containing granular solids, powders; liquids and slurries. It can be used in dusty plant environment.
Technical Specification:
| Power supply | 18 -55V DC (optional 85 to 265 VAC 50/60Hz) |
| Outputs | PNP-No. (optional SPDT potential free relay output) |
| Max. Load current | Non-Latching 120MA for PNP-No. |
| Indication | B-Color LED Red: Alarm, Green: Normal |
| Fail-safe mode | Minimum or Maximum (Field Selectable) |
| Switching delay | Covered/Uncovered configurable from 1 to 20 seconds |
| Housing | Cast aluminum weather-proof (Optional Flame-proof) |
| Cable entry | 2 no. ½” BSP |
| Sensor mounting | <1” BSP/NPT |
| Probe Insertion length | Minimum 100 mm |
View Complete Details
Yes, I am interested!
