Float Level Switches & Transmitters
Providing you the best range of Side Mounted Magnetic Float Type Level Switch and Float Level Transmitter with effective & timely delivery.
Interested in this product?
Get Best Quote

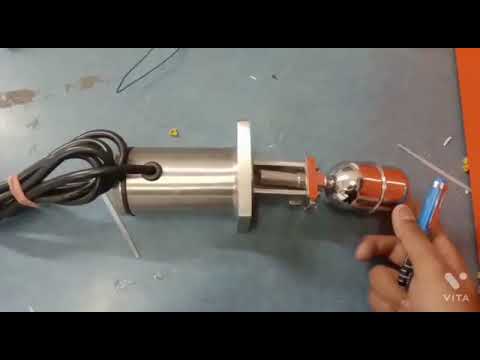

Side Mounted Magnetic Float Type Level Switch
₹ 5,500/PieceGet Latest Price
Product Brochure Watch Video
| Level Measurement Type | Point Level, Multi-point Level, Continuous Level |
| Mounting Options | Side Mount, Top Mount |
| Media Type | Liquid |
| Material | SS |
| Power Supply | 24 VDC |
| Process Pressure | Max 2.0MPa |
A change in fluid level can correspondingly cause the float to travel up or down.The float end fixed with a permanent magnet. A reed switch is placed in horizontalto the float. On Level raises, the float moves near to the reed switch, the magnetmakes the reed switch state change. This change in output contact is used todetect level signal.
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
Float Level Transmitter
Get Latest Price
| Size | Medium |
| Country of Origin | Made in India |
| Output | Switching Transducer |
| Boom Length | 200mm |
| Usage | Level Switch |
Sapcon inst make level transmitter works on the principle of reed resistance/permanent magnet basis. Reed switches function like the center arm (as shown in fig. 1) of a potentio meter. As per liquid level float moves up or down, magnet inside the float operates the reed switches thereby causing a change in resistance value. Change in the resistance is measured by the electronics unit and conditioned as a current output of 4 to 20 mA. Signal conditioner is head mounted and of 2-wire loop powered suitable for 12 to 24 VDC giving output of 4 to 20 mA.
View Complete Details
Yes, I am interested!
