Sapcon Instruments Private Limited

Switch Type	Relay
Usage/Application	Industrial
Pole And Throw Specification	SPDT
Mounting Options	Both Side and Top
Current Rating	6Amp potential-free at 230 V AC
Model Name/Number	Orbit-lite
Brand	Sapcon

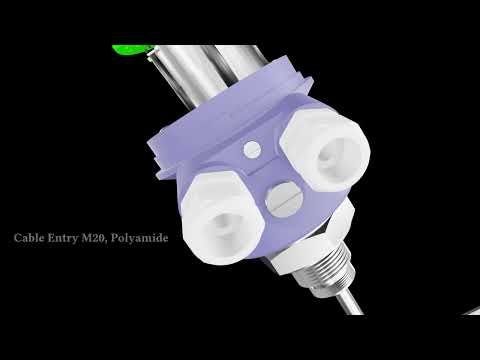

Rotary paddle type level switch is a level limit switch used to detect powders and granular solids. A compact and light weight body with plug-n-play setup makes installation operation easy.

• Application Temperature Range: up to 200°C
• Outputs: : 1NO, 1NC 6Amp potential-free at 230 V AC
• Switching: Single-point switching
• Suitable for Bulk Density ≥ 0.5g/cm3
• Foldable paddle mechanism for easy installation
• Probe Length Range: 100mm - 1000mm
• Maximum Horizontal Load: 125 Nm
• Wetted Parts: Aluminum, SS-316, FKM / NBR
• Power Supply: 230 V AC

Switch Type	SPDT
Housing	Cast all Weatherproof integral with paddle (IP-67)
Ambient Temperature	0dig C to 80 dig C
High Temperature	150dig C
Power Consumption	3 VA (approx)
Operating Voltage	90-265 V AC 24 V DC
Probe Length	110 mm to 3500mm

Product Details:

• Built in universal supply of 90-265 V AC 24 V DC
• Direct stepper motor design
• Need for gear boxes and clutches is eliminated
• Variable torque control, one paddle for all applications
• Flap action to discard clinging material
• Selectable fail-safe operation
• Foldable paddle mechanism for ease of installation
• Two potential free contacts with adjustable time delay.

Applications:

• Chemical Powders
• Animal Feed Industry
• Plastic chips, PVC powders
• Cement Powder application
• Food processing Industry
• Pharmaceutical powders

Additional Information:

• Item Code: SLMR
