Laser Cutting Machines

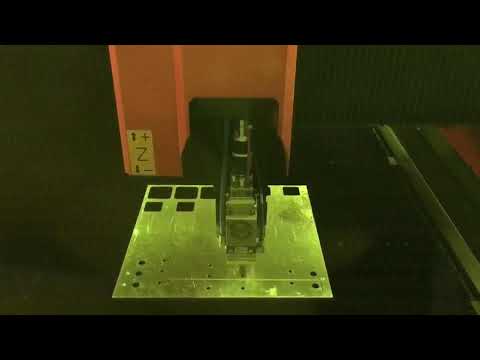

BFC Fiber Laser Cutting Machine
Get Latest Price
Minimum Order Quantity: 1 Unit
Product Brochure Watch Video
| Type of Machine | Fiber Laser Cutting Machine |
| Working Area | 2500*1200 mm |
| Machine Type | Tube Cutting |
| Laser Power | 3000W |
| Cutting Material | Mild Steel |
| Model Name/Number | BFC 3015 |
| Brand | JFY |
| Usage/Application | Laser Sheet Cutting Machine |
| Cutting Speed | 900 m/min |
| Automation Grade | Automatic |
| Cutting Thickness | 22 |
| Frequency | 50 Hz |
| Maximum Format Size That Can Be Processed Z-Axis | 280 mm |
| Time Of Table Exchange | 10 Sec |
| Maximum Format Size That Can Be Processed X-Axis | 3050 mm |
| Maximum Format Size That Can Be Processed Y-Axis | 1545 mm |
Product Details :
Features And Performance :
FSCUT is a laser cutting control system that is specifically designed for the sheet metal industry. With the integrated HMI from JFY, its high performance and design ensure maximum productivity and ergonomic operation.
User-friendly interface for easy setup and operation.
Support of various piercing functions (e.g. multiple stage piercing process, segmented and stepping patterns).
Support of various cutting technologies (e.g. fly cut, frog-leap,kerf compensation and lead-in cutting functions).
Support of various file formats to import designs directly into the system.
The new generation of single module fiber lasers from JFY offer the perfect blend of superior beam quality, compact size,and highlight conversion efficiency. It is suitable for remote processing,high-frequency laser cutting and clean surface cutting.
The BFC is equipped with the Raytool Auto Focus Laser CuttingHead.The optimized optical and water-cooling design enables the laser head to work continuously stable at high power for a long time
View Complete Details
| Type of Machine | CO2 Laser Cutting Machine |
| Working Area | 4000x2000mm |
| Machine Type | Sheet & Tube |
| Laser Power | 100 W |
| Model Name/Number | EFCII3015 |
| Cutting Material | Mild steel, Stainless steel, Aluminum ,Copper, Brass |
| Capacity | 16 mm (Mild Steel) |
| Cooling Mode | Air Cooling |
| Brand | JFY |
| Working Voltage | 240 V |
| Cutting Accuracy | 0.1 mm |
| Maximum Format Size That Can Be Processed Z-axis | 280 mm |
| Maximum Format Size That Can Be Processed Y-Axis | 1580 mm |
| Maximum Format Size That Can Be Processed X-Axis | 3100 mm |
| Positioning Deviation | 0.03 mm |
| Machine Net Weight | 8000 Kg |
Product Details :
Features And Performance :
This CNC control system is based on the Windows platform and has been proven to be reliable and high-performing.
Our cutting head is designed with built-in protective glasses, ensuring reliable and optimized cutting quality. These protective glasses safeguard the optics from potential debris or damage that may come from the process zone. Overall, this results in a significantly higher durability of the cutting head, as well as higher cutting precision.
TruFiber is the ultimate fiber laser solution for all your cutting needs.
In fact, TruFiber delivers excellent process stability and consistent process results.
Furthermore, the technology requires a minimum of maintenance.
Using offline programming software can improve material utilization and process efficiency. On the one hand, programming software can optimize the nesting process to reduce material waste. On the other hand, it can simplify the programming process by converting simple and complex part drawings into processing programs – which results in faster production times. The Lantek programming software is a proven solution based on latest technology.
View Complete Details
| Laser Power | 12kW |
| Type of Machine | Fiber Laser Cutting Machine |
| Working Area | 4000x2000mm |
| Machine Type | Tube Cutting |
| Cutting Material | Acrylic |
| Model Name/Number | FSCUT4000 |
| Brand | JFY |
| Automation Grade | Automatic |
| Frequency | 50 Hz |
| Phase | Single Phase |
| Cutting Accuracy | 0.1 mm |
| Max. Weight | 900 Kg |
| Max. Speed | 140 m/min |
| Time Of Table Exchange | 10 Sec |
| Machine Net Weight | 8000 Kg |
| Output Fiber Optic Diameter | 100 um |
| Average Positioning | 0.03 mm |
| Maximum Format Size That Can Be Processed X - Axis | 3050 mm |
| Maximum Format Size That Can Be Processed Y-Axis | 1545 mm |
| Maximum Format Size That Can Be Processed Z-Axis | 260 mm |
Product Details :
Features And Performance :
TruFiber is the ultimate fiber laser solution for all your cutting needs.
In fact, TruFiber delivers excellent process stabillity and consistent process results.
Furthermore, the technology requires a minimum of maintenance.
Precitec cutting unit with outstanding performance.
High cutting speed due to low weight.
Stable processing of thick materials.
Easy and quick maintenance.
FSCUT4000 is a widely used and proven laser cutting control system that is designed for high speed and precision applications. Advanced functions (e.g. automatic edge detection, break-point memory, and power ramping) ensure high cutting quality and efficiency. Overall, the FSCUT4000 provides a versatile and efficient solution for laser cutting operations, improving productivity and reducing material waste.
Parameter Technical DataBFC 3015+BFC 4020+BFC 6020+Maximum format size that can be processedX-axismm305040506050Y-axismm154520502050Z-axismm260260260WorkpieceMax. weight (up to 6KW)kg90016002350Max. speedSimultaneousm/min140140140Max. accelerationg1.71.71.7Max. positioning speedm/min140140140AccuracyPositioning deviationmm±0.03±0.03±0.03Average positioningmm±0.03±0.03±0.03Cutting accuracymm±0.1±0.1±0.1Machine performanceCNC controlFSCUT 4000FSCUT 4000FSCUT 4000Time of table exchangesec101316Machine net weightkg80001000013000Laser DataTruFiber 3KWTruFiber 4KWTruFiber 6KWMax. powerW300040006000Cutting headPrecitec LMPrecitec LMPrecitec PCWavelengthum1071±21071±21071±2Output typeQBHQBHQBHOutput fiber optic diameterum100100100Max. sheet thicknessMild steelmm222225Stainless steelmm162025Aluminummm122020Coppermm5610Brassmm81020
View Complete Details
