Shri Nanda Industries

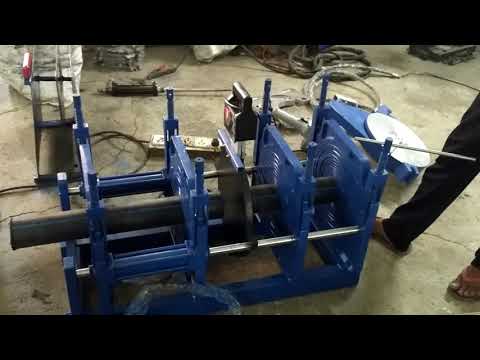

SNI-315 (90/315mm)

HDPE Pipe Hydraulic Jointing M/c  with Jack, Power Pack, Digital Heater, Pipe End Facer & spacers (90,110,125,140,160,180,200,225,250,280,315)

Plastic Pipe Welding Machine
For butt fusion welding of HDPE pipe OD 315 mm                                                                                                Small and compact butt fusion pipe welding machine for use in trenches, on site and in the workshop.

Basic Unit/ Hydraulic Jack
·         Dual twin pipe clamps for a secure grip and easy axial / radial alignment of pipe, parallel hydraulic cylinders.
·         High Strength and Low Weight (86 kg  315 mm).  It reduces Labour.  So jointing cost low.
·         Cylinder & Rod size (ID 35 mm & OD 25 mm)


Hydraulic Unit/ Power Pack
·        Compact, Double Pressure setting (Low & High), Push Button Operated (LP Forward Low Pressure for pipe face trimming & heating, HP Forward High Pressure for jointing & REV  Reverse)
·        Large, easy to read fine scale pressure gauge with vibration free needle ( max. pressure 100 kg/cm² )
·        Pump run only with push button pushing, ACV 230, 1 HP, Weight 35 kg.
Electric Trimmer/ Pipe End Facer
·         760 W, ACV 230
·       Wt 35 kg
Heating Plate/ Digital Heater
·         Digital Temperature Controller, Anti-stick TEFLON coated, Aluminum Casted,  ACV 230/ 3000W
·       Wt 8 kg

Total weight of complete SNI-315 machine 164kg
One year warranty.

Made in india

Additional Information:

• Item Code: SNI-315
• Production Capacity: 3 joint per hours
• Delivery Time: 2-5 days
