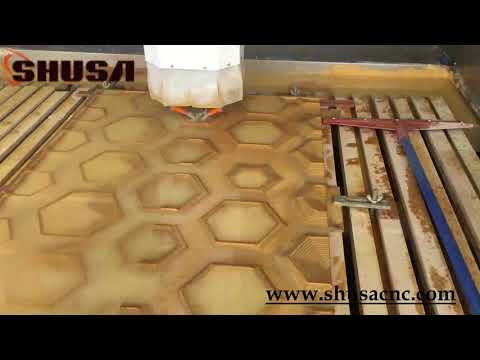

CNC Engraving Machines
CNC Engraving Machines
₹ 10,61,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 2500 x 1300 mm |
| Z Axis Working Area | 300 mm |
| Spindle Power | 7.7 kW |
| Model | SM2500S_2 |
| Job Material | Sandstone, Marble, Artificial Stone, Stone, Black Graphite |
| Spindle Head Type | Double Head Spindle |
| Spindle Speed | 24000 RPM |
| Z movement | Ball Screw |
| Command Code | G Code*u00.mmg*.plt, G Code |
| Dimension | 3650 x 2150 x 1640 mm |
| Condition | New |
| Item | SHUSA Intaglio SM2500S-2 |
| Working Table Size(mm) | 2700 x 1600 mm |
| Max Engraving Size(mm) | 2500 X 1300 mm |
| Vertical Movement(mm) | 350 mm |
| Gantry Height(mm) | 420 mm |
| No Of head | 2 head |
| Max Moving Speed | 30000 mm/min |
| Power Transmission | Heavy duty 27x23mm Helical Reck Pinion |
| Precision Planetory Gear Box in X Y Axis | |
| X Y Axis Driving Torque | 64 N.m Max at Pinion |
| Self Lubrication System | Automatic with Timer Adjustment |
| Control System | Control Handle NK105 /A11E |
| Spindle Power(HP) | 7.3 HP |
| Max Spindle Speed(Rpm) | 24000 rpm |
| Total Power(kw) | 14 KW |
| Machine Leveling | Anti Vibration Leveling Pad |
| Machine size(mm) | 3650 x 2150 x 1640 |
| Gross Weight (kg.) | 2210 Kg. |
Additional Information:
- Item Code: SM2500S_2
- Production Capacity: 4 Sqr feet per hour
- Delivery Time: 7 days
View Complete Details
Wood Engraving Machine
₹ 6,51,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 1300 x 2500 mm |
| Spindle Power | 5.5 kW |
| Machine Type | 3 Axis |
| Automatic Grade | Automatic, Semi-Automatic |
| Job Material | Wood |
| Model | DB2500,DB1830 |
| Manner of Receiving Data | USB |
| Frequency(Hz) | 50 |
| Voltage(V) | 380 |
| Maxi Spindle Speed(RPM) | 24000 |
| Vertical Movement(mm) | 150 |
We are offering an excellent quality of Wood Engraving Machine.
Applications:
- Wood folding Screen
- Doors and Widows
- Integrated cabinet
- Individual furniture
- 3D wooden products
- Acrylic mold
- Large size Billboard
- Dining top and corners
Model Overview:
MODEL | DB2500 | DB1830 |
Working Table Size(mm) | 1570 x 2950 | 2125 x 3500 |
Maxi Engraving Size(mm) | 1300 x 2500 | 1850 x 3050 |
Vertical Movement(mm) | 150 | 150 |
Maxi Moving feed(mm/min) | 25000 | 25000 |
Manner of Receiving Data | USB | USB |
Control System | 0501-3 | 0501-3 |
Memory(MB) | 128M | 128M |
Spindle Power(KW) | 2.2 (Optional-3kW) | 3 |
Maxi Spindle Speed(RPM) | 24000 | 24000 |
Cutter Diameter(mm) | 3.175-12 | 3.175-12 |
Cooling System for Spindle | Circulating Water | Circulating Water |
Gross Weight(Kg) | 950 | 1100 |
Power(Kw) | 11 | 8 |
Voltage(V) | 380 | 380 |
Frequency(Hz) | 50 | 50 |
Current(A) | 18 | 12 |
Machine Size(mm) | 3080x1990x1440 | 3590x2550x1600 |
Packing Size(mm) | 3300x2180x1680 | 3850x2250x1730 |
Rotary Device | Optional | Optional |
Dust Collector | Optional | Optional |
Additional Information:
- Item Code: DB-2500V
View Complete Details
| X-Y Axis Working Area | 1300 x 2500 mm |
| XY Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 350 mm |
| Machine Type | 3 Axis |
| Job Material | Stone |
| Spindle Head Type | Single Spindle |
| Command Code | G Code |
| Driven Motor | Servo Motor |
| Machine Condition | New |
Our organization is known as one of the leading manufacturers and suppliers of CNC Metal Engraving Machine. These are the superior quality designing machine used in the cutting and engraving of soft metal and stones. Our routers are developed and designed using advanced technology and advanced plant machinery, to ensure international quality standards.
Applicable Industries:
- Metal & Stone working: engraving on various metal, granite, blue stone, marble, grit stone, ceramic tile, soapstone and etc.
Features:
- Support breakpoint memory, Save 8 different breakpoint processing information.
- Multi-coordinate memory function. Provide nine working coordinate system,
- Support online adjust spindle operating frequency.
View Complete Details

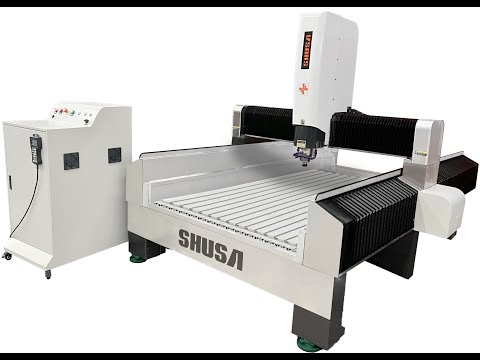

3 Axis CNC Stone Engraving Machine
₹ 7,51,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 300 mm |
| Spindle Power | 7.5 kW |
| Model | SM 1300 |
| Machine Type | 3 Axis |
| Job Material | Black Graphite, Artificial Stone, Marble, Sandstone, Stone |
| Spindle Head Type | Single Spindle |
| Maximum Working Speed | 40,000 mm / min |
| Spindle Speed | 24000 rpm |
3 Axis CNC Stone Engraving Machine by Shusa Mechatronics is a high-tech machine used for carving and cutting designs into wood. It operates using computer commands to create detailed and precise patterns, making it perfect for furniture, art, and decorative projects.
This machine is easy to use, saves time, and ensures accuracy in crafting intricate designs that would be hard to achieve by hand. Whether you’re a professional woodworker or a hobbyist, it helps you turn your ideas into beautiful wood creations with minimal effort.
Additional Information:
- Delivery Time: 5-10 days
View Complete Details

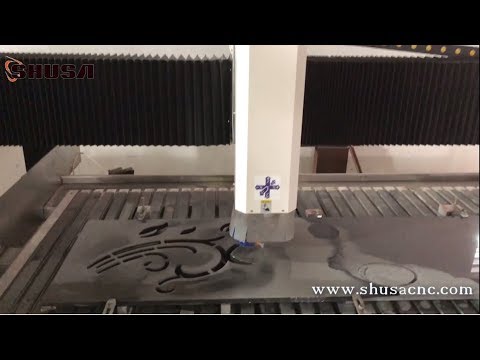

CNC Stone Cutting and Engraving Machine
₹ 8,91,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 3000 x 1500 |
| Z Axis Working Area | 450 mm |
| Spindle Power | 7.5 kW |
| Model | SM 3015 S |
| Machine Type | 3 Axis |
| Job Material | Artificial Stone, Stone, Black Graphite, Marble, Sandstone |
| Spindle Head Type | Single Spindle |
| Maximum Engraving Speed | 30,000 mm/min |
| Spindle Speed | 24000 RPM |
| Command Code | G Code, G Code*u00.mmg*.plt |
| Driven Motor | Servo Motor |
| Machine Condition | New |
The Shusa SM 3015 S is a high-precision CNC Stone Engraving Machine engineered for durability, speed, and exceptional accuracy. Built with a robust structure and advanced components, it features accurate servo motors on all axes, zero-backlash gearboxes in X & Y for smooth motion under heavy load, and automatic lubrication for low maintenance. The 7.5 kW high-speed spindle (24,000 RPM) with ceramic ball bearings ensures fine detailing with low noise and long operational life. With a working area of 3000 x 1500 mm, Z-axis travel of up to 450 mm, and a heavy-duty gantry, this machine is ideal for stone engraving, carving, and temple work. Key highlights include water-cooled spindle, stainless steel covers, guided LM rails, precision planetary gearbox, NK105 control system, and a center water tray for easy cleaning. Perfect for professionals seeking reliability, productivity, and long-term performance.
View Complete Details

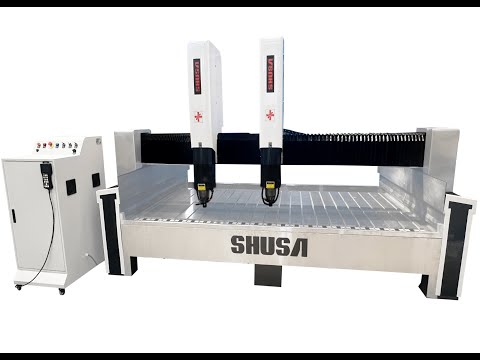

Double Head CNC Stone Engraving Machine
₹ 10,61,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 3000 X 1500 |
| Z Axis Working Area | 450 mm |
| Spindle Power | 7.5 kW |
| Model | SM 3015 S2 |
| Machine Type | 3 Axis |
| Job Material | Stone, Sandstone, Marble |
| Spindle Head Type | Double Head Spindle |
| Maximum Engraving Speed | 30,000 mm/min |
| Spindle Speed | 24000 RPM |
The SM 3015 S2 Double Head CNC Stone Engraving Machine from Shusa Mechatronics is a high-precision, heavy-duty CNC solution designed for large-format stone engraving and carving. With a spacious working table size of 3100 x 1600 mm and a maximum engraving area of 3000 x 1500 mm, it is ideal for handling big stone slabs with ease. This machine comes equipped with two powerful heads, allowing simultaneous operations to boost productivity. It features a robust Z-axis movement of 330 mm / 450 mm and a gantry height of 430 mm / 530 mm, making it suitable for deep and intricate carvings. Powered by 1500 W AC servo motors and driven by ultra-precision planetary gearboxes and 24x24 mm helical rack and pinion systems, it ensures high-speed operation up to 30,000 mm/min with excellent stability. Premium-grade 30 mm Taiwan linear rails on all axes and 25 mm ballscrews on the Z-axis ensure accuracy and longevity. The machine is fitted with 7.5 KW / 10 HP water-cooled spindles, reaching up to 24,000 rpm, and supported by a water circulation cooling system with a tank and pump. It uses ER32 collets to accommodate cutter diameters from 1 mm to 20 mm. Additional features include an NK105 remote handle controller, a 3-set automatic self-lubrication system, stainless steel covers and trays, 6 anti-vibration leveling pads, bellows-type dust and waterproof rail covers, and a 32 GB pen drive. With a total power requirement of 24 KW and packing dimensions of 4100 x 2300 x 2210 mm, this machine is built for precision, performance, and durability, making it an ideal choice for professionals in the stone engraving industry.
Additional Information:
- Item Code: SM3015S2
View Complete Details
CNC Wood Carving Machine
₹ 6,81,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 1300 x 2500 mm |
| Automatic Grade | Fully Automatic |
| Cooling System for Spindle | Circulating Water |
| Memory(MB) | 128M |
| Control System | 0501-3 |
| Manner of Receiving Data | USB |
| Brand | Shusa |
Backed by the support of our experienced professionals in this domain, we have been able to bring forward a qualitative range of CNC Wood Engraving Machine. The provided machine is precisely manufactured by our renowned professionals using the best grade components and modern technology.
Model Overview:-
Working Table Size(mm) | 1340 x 1850 | 1570 x 2950 |
Maxi Engraving Size(mm) | 1200 x 1500 | 1300 x 2500 |
Vertical Movement(mm) | 100 | 150 |
Maxi Moving feed(mm/min) | 5000 | 25000 |
Manner of Receiving Data | USB | USB |
Control System | 0501-3 | 0501-3 |
Memory(MB) | 128M | 128M |
Spindle Power(KW) | 1.2 | 2.2 (Optional-3kW) |
Cutter Diameter(mm) | 2-6.35 | 3.175-12 |
Cooling System for Spindle | Circulating Water | Circulating Water |
Gross Weight(Kg) | 410 | 950 |
Power(Kw) | 2 | 11 |
Voltage(V) | 220 | 380 |
Frequency(Hz) | 50 | 50 |
Current(A) | 8 | 18 |
Machine Size(mm) | 1960x1550x1250 | 3080x1990x1440 |
Packing Size(mm) | 2060x1670x1380 | 3300x2180x1680 |
Rotary Device | Optional |
View Complete Details
3D CNC Wood Engraving Machine
₹ 8,81,000/UnitGet Latest Price
Minimum Order Quantity: 1 Unit
Product Brochure Watch Video
| Spindle Power | 1.5 kW |
| Job Material | Wood |
| Maximum Working Speed | 6 m/min |
| Spindle Speed | 24000 RPM |
| Condition | New |
| Brand | Shusa |
Offering you a complete choice of products which include Wood Engraving and Cutting CNC Machine such as CNC Router Machine for Cutting, WOOD CNC Router Machine for Cutting and CNC Router Cutting Machine, 3d CNC Wood Engraving machine.
View Complete Details
