CNC Stone Engraving Machine
We are a leading Manufacturer of Stone Carving Cnc Router Machine, Cnc Rotary Engraving Machine, 5 Axis CNC Bridge Saw Machine, Semi-Automatic 3018-3 Column Stone Engraving Machine, CNC Stone Engraving Machine and Stone Engraving Machine from Ahmedabad, India.
₹ 7,80,000/Piece
₹ 22,50,000/Piece
₹ 33,50,000/Piece
₹ 16,50,000/Piece
₹ 8,81,000/Piece
₹ 8,81,000/Piece
Interested in this product?
Get Best Quote
| X-Y Axis Working Area | 1300 x 2500 mm |
| Model | Stone Carving Cnc Router Machine |
| Job Material | Stone |
| Spindle Head Type | Single Spindle |
| Machine Condition | New |
| Country of Origin | Made in India |
We are manufacturer of superior quality of Stone Carving Cnc Router machine. The offered router is precisely manufactured by utilizing quality ensured raw material and advanced technology in sync with set industry parameters. Our provided range of router is available in varied specifications as per our client's requirements. Further, our esteemed clients can avail these routers from us at affordable prices.
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| X-Y Axis Working Area | 3000 x 1200 |
| Z Axis Working Area | 500 mm |

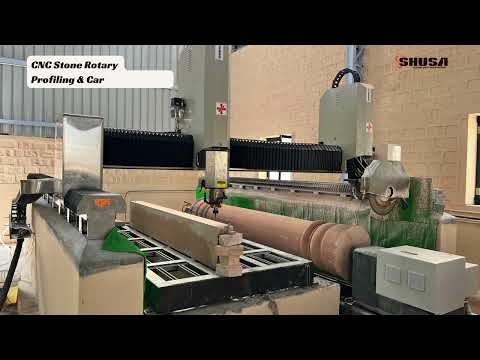

| Model | Cnc Rotary Engraving Machine |
| Machine Type | 4 Axis |
| Spindle Head Type | Double Head Spindle |
| Spindle Speed | 24000 rpm |
| Country of Origin | Made in India |
| Products Name | Cnc Rotary Engraving Machine |
| Color | Grey |
| Specifications : | |
| Item | SM 3036 SB R600 |
| CNC Lathe Stone Diameter | Max 600 mm- Min 100 mm |
| CNC Lathe Stone Length | Max 3000 mm - Min 300 mm |
| Max Engraving Size on Table | 3000 mm x 1200 mm |
| Np Of Head | 2 |
| Cutting Stroke of Blade X Axis | 2200 mm |
| Cutting Stroke of Blade Y Axis | 3600 mm |
| Max vertical Travel of Blade Z axis | 450 mm |
| Controller | 4 axis Controller with Computer & 17'' screen |
| Power Transmission | Ultra Precision Planetory Gear Box & Heavy duty 24x24 mm Helical Rack Pinion |
| Self Lubrication System | 3 set Automatic with Timer Adjustment |
| Motor Drive | 1500 W Servo motor & Drive in all Axis |
| Blade Spindle Power | 13HP |
| Max Blade RPM | 3000 Rpm |
| Tool Spindle Power(HP) | 10 HP |
| Max Tool Spindle Speed(Rpm) | 24000 rpm |
| L M Guide | 30 mm LM Guide in all Axis |
| Blade Cutter Diameter | 450 mm |
| Tool Diameter | 1-20 mm |
| Total Power(kw) | 26 KW |
| Profiling On CNC lathe | Yes |
| Profiling On Fix Table | Yes |
| Carving on CNC Lathe | Yes |
| Carving On Fix Table | Yes |
| Engraving Table Size (Optional ) | 3000 mm x 1200 mm |
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
5 Axis CNC Bridge Saw Machine
₹ 33,50,000/PieceGet Latest Price
Minimum Order Quantity: 01 Piece
Product Brochure Watch Video
| Size | 18 inch |
| Usage/Application | Industrial |
| Spindle Speed | 3000 RPM |
| Voltage | 380 V |
| Blade Diameter | 600 mm |
| Accuracy | 0.02 mm |
| I Deal In | New Only |
| Country of Origin | Made in India |
| 1 | Working Table Dimension | 3200 mm x 2000 mm |
| 126 inch x 78.5 inch | ||
| 2 | Cutting Stroke of Blade-X AXIS | 3350 mm (132 inch) |
| 3 | Cutting Stroke of Blade-Y AXIS | 2290 mm (90 inch) |
| 4 | Z Axis Stroke of Blade | 400 mm |
| 5 | Max Blade Rotation- C AXIS | 0 to 360 Degree |
| 6 | Blade Tilting Capacity - A Axis | 0 & 45 Degree |
| 7 | Max Diameter Of Blade | 625 mm |
| 8 | Blade Hole Diameter | 50 mm |
| 9 | Blade Locking Flange Diameter | 200 mm |
| 10 | Max Cutting Depth | 200 mm |
| 11 | Max Machine moving Velocity | 15 mtr/min |
| 12 | Power Of Blade Motor | 22 KW |
| 13 | Max Blade Speed | 3000 Rpm |
| 14 | Variable Speed of Blade | Yes |
| 15 | Water Consumption at 2 bar | 30 litre / minute |
| 16 | Total Machine Power | 30 KW |
| 17 | Machine Outer Size | 5500 x 3300 x 3500 mm |
| 18 | CAD CAM Software | Inbuilt CAM Software with PolyGone cutting Feature |
| 19 | Tilting Table (Optional) | 0 to 85 degree with Hydraulic Pump |
| 20 | Camera (Optional) | High resolution with Online cutting feature |
Additional Information:
- Item Code: CUBO-625
- Production Capacity: 40 machines a year
- Delivery Time: 30 days
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote

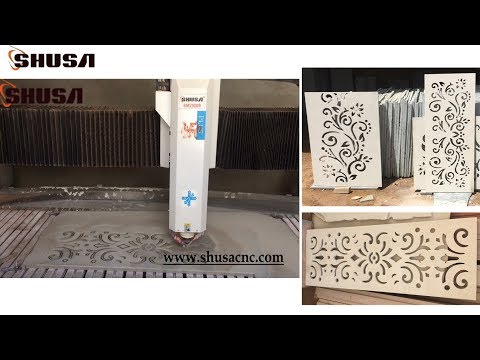

Semi-Automatic 3018-3 Column Stone Engraving Machine
₹ 16,50,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 300 x 1800 mm |
| Spindle Power | 6 kW |
| Model | 3018-3 |
| Job Material | Stone, Wood |
| Spindle Head Type | Multi-Spindle |
| Maximum Engraving Speed | 20 m/min |
| Maximum Working Speed | 45 m/min |
| Spindle Speed | 6000-18000 RPM |
| Command Code | G Code |
| Machine Weight | 3000 kg |
| Condition | New |
| No. of Gear Box | 1 |
Shusa 3018-3 Column Stone Engraving Machine is mainly used for engraving on marble, granite, wood and sand stone, column and pillar. Four heads will process four designs on the surface of column stone at the same time. It makes the column processing easier and faster. Hard frame structure of cnc router is welded by thick-walled rectangular steel and tempered at high temperature. Shusa column engraving machine is fully controlled by CNC and is able to work with universal G-Code and M-Code. Controller of the machine is easy to operate and having power as well as point saving feature.
Additional Information:
- Item Code: CSE3018-3
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
CNC Stone Engraving Machine
₹ 8,81,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 1300 x 2500 mm |
| Spindle Power | 7.5 kW |
| Model | DB2500K |
| Job Material | Marble, Stone, Sandstone |
| Maximum Working Speed | 30000 mm/min |
| Command Code | G Code |
| Condition | New |
| Working table size(mm) | 1400 X 2576 mm |
| Shredding Machine Type | Cross-Cut |
| Shredding Capacity | 500-1000 kg/hr |
| Z Axis Working Area | 250 mm |
| Gantry Height | 300mm |
Stone Engraving Machine DB2500K is developed to work on hard materials such as granite, natural marble, artificial marble, ceramic tile, sandstone and other decorative materials. DB2500K is with better dust-proof and waterproof system. The 0701 decode-free control handle can give a big help to save the design reading time.
Features:
- With dust-proof and waterproof system
- The diamond cutter and sintered cutter for hard materials make it easier to process vertical letter and pattern on stone.
- High rigid frame structure can achieve high speed and high accuracy.
- The precise large power spindle can provide high-speed engraving and fine processing.
- Automatic cutter sensor improves engraving efficiency.
- Power-off protective memory function assures restarting work in the same position after power-off.
- Advanced DSP offline control system can provide better stability.
Applications:
- Whole cabinet door and table
- Marble and ceramic tile craftworks
- Gravestone engraving
- Individual indoor and outdoor decorations making
- Other stone industry
Additional Information:
- Item Code: DB-2500K
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
Stone Engraving Machine
₹ 8,81,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| X-Y Axis Working Area | 2500 x 1300 mm |
| Z Axis Working Area | 350 mm |
| Spindle Power | 7.25 HP |
| Model | SM2500S |
| Machine Type | 3 Axis |
| Job Material | Wood, Stone, Marble, Black Graphite |
| Spindle Head Type | Single Spindle |
| Spindle Speed | 24000 RPM |
| X-Y Movement | Rack & Pinion |
| Z movement | Ball Screw |
| Resolution | 0.1 mm |
| Driven Motor | Servo Motor |
| Control System | DSP Controller / NC Studio |
| Power Consumption | 12 kW |
| Machine Weight | 2100 kg |
| Condition | New |
| Table Size | 2620 x 1400 mm |
| Working Precision | 0.1 mm |
| Gantry Height | 450 mm |
Stone Engraving Machine DB 2500S is used for hard materials such as granite, natural marble, artificial marble, ceramic tile, sandstone and other decorative materials. This 3 axis CNC engraving machine is with better dust-proof and water-proof system. With 300mm gantry height, DB2500 S can meet customers’ requirements to engrave on much thicker materials. DB2500 S is designed for multiple productions. At the same time machine can produce two similar kind of design which reduces production time by 50 percentage. Heavy duty gear box in all axis of the machine gives better rigidity and accuracy.
Features:
- Automatic cutter sensor improves engraving efficiency.
- Power-off protective memory function assures restarting work in the same position after power-off.
- Advanced DSP offline control system can provide better stability.
Additional Information:
- Item Code: SM2500S
- Production Capacity: 4 Sqr feet per hour
- Delivery Time: 7 days
View Complete Details
Yes, I am interested!
