High Voltage Detectors

Manufacturer of a wide range of products which include A C High Voltage Tester, SEW High Voltage Non Contact Proximity Detector 500KV, Capacitive High Voltage Detector Upto 11KV, Personal Safety High Voltage Detector, High Voltage Detector Upto 36.5KV and High Voltage Detector Upto 24KV.

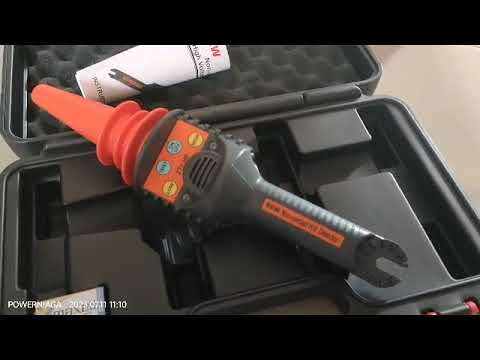

A C High Voltage Tester
Interested in this product?
Get Best Quote

A C High Voltage Tester

Rs 9,600 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Product Brochure

Model Name/NumberSEW 273HP
Usage/ApplicationIndustrial
BrandSEW
Voltage132KV
Power SupplyAA
DimensionSMALL
Display TypeALARM
Phase3 PHASE
ColorBLACK
Country of OriginMade in India

2 ranges for selection : LOW 50V~1.5kV
                                            HIGH 1.5kV~132kV
??? There is no power consumption in off mode : 0uA
??? Nice mechanical slide switch for function selection :  HIGH / OFF / LOW
??? The power consumption in low voltage detection mode : Less than 20mA
??? The power consumption in high voltage detection mode : Less than 20mA
??? Bright LED and audible alarm sound when voltage is present.
??? Lightweight, robust and compact.
??? Efficient and easy to use
??? Users have to use the Hot Stick when test high  voltages between 1.5kV~132kV.
??? SEW provides nice optional accessories of  Hot Sticks HS-175 and HS-120 for high voltage detection.
??? Optional accessories :
   HS-175 Telescopic hot stick (triangle-type)
   HS-120 Hot stick

 SPECIFICATIONS

 Operating
 temperature
 0°C~50°C
 Dimensions 245(L) x 80(W) x 37(D)mm
 Weight
 (battery included)
 Approx. 175g
 Power source 9V(6LF22) x 1 Alkaline battery
 Safety standards EN 61326-1
 EN 61000-4-2  EN 61000-4-3


Additional Information:

  • Item Code: 273
  • Production Capacity: 100
  • Delivery Time: READY

View Complete Details

Yes, I am interested!

SEW High Voltage Non Contact Proximity Detector 500KV
Interested in this product?
Get Best Quote

SEW High Voltage Non Contact Proximity Detector 500KV

Rs 9,600 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandSEW
Model Name/Number275HP
ConditionNew

The 275HP / 500HP is a HIGH VOLTAGE proximity detector. 275HP has eight voltage detection settings from 240Vac to 275KVac. 500HPhas 10 Voltage detection settings from 240V to 500KV. The 275HP / 500HP consists of an internal pickup sensor plate, a sensitivity selector,visual and a sound annunciator. With the 275HP / 500HP physical contact with electrical conductors is not necessary when testing for livelines. This tester works by proximity.Checking or proofing the tester is easy. Switch the sensitivity to 240V AC and place the dome against a low voltage live conductor or rubIts sensor senses the radiated field which surrounds live conductors. Radiated field strength increases with voltage decreases quickly withdistance or earth shielding. The radiated field from a cable of closely bunched conductors supplied by three phase power tends to cancelSee “Limitations of use” paragraph). Detecting distance of a 250Vac single live wire is approximately 10cm. With a bunched neutral andearth cable, as in a flexible cable, the distance is reduced to 5cm.Some of the typical users are : identify and check live cables; find fault in flexible cables; check earth equipment; service neon lightning;trace live wires; check high frequency radiation ; detect residual or induced voltages. For example, faults in damaged flexible cables arefound by applying low voltage to each conductor. Earthing the remainder and moving the tester along the cable until the change in conditionobtained. (Flexible cables which are used in mining and building industries, are readily repairable when the break in the cable is located.)When using for high voltage, the rotary switch (attenuator) is used to identify and differentiate various HV live cables. The tester must beused in conjunction with a long and insulating rod when measuring high voltage (KV). However, the 275 HP / 500HP is a non contacttester and it is advised that the tester should never come in to contact with cables (KV) as this tester is merely a non-contact AC proximitytester.
Checking or proofing the tester is easy. Switch the sensitivity to 240V AC and place the dome against a low voltage live conductor or rub the dome with a cloth oragainst an item of clothing as this generates a static DC which triggers the detection of circuit. The light and beeper should go “on” as if a live wire is being approached.Approaching the dome near a computer screen or a TV screen (not liquid crystal display type) should also trigger the tester while on 240V selection.FEATURES :
8 Voltage Settings : 240V , 2KV, 6KV, 11KV, 22KV, 33KV, 132KV and 275KV AC (Model 275HP).?10 Voltage Settings : 240V, 3.3KV, 11KV, 22KV, 33KV, 66KV,110KV, 220KV, 330KV, 500KV (Model 500HP).? Self test selection.? High bright LEDs visual indication.? Sound indication.?? Non-contact work by proximity.? Detect low voltage on any systems.? Compatible with most link sticks.? Use 3 x 1.5V “C” batteries? Easy access to batteries.? High impact nylon casing.? Sealed by “0” rings? Suitable for indoor and outdoor use.? Light weight, robust, compact.? Weight : Approx. 500g.
SAFETY:
? Meets EN61000-3-2; EN61000-3-3; EN61326-1; EN55011 EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6; EN61000-4-11.



Additional Information:

  • Item Code: 500HP
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier / By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days.
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

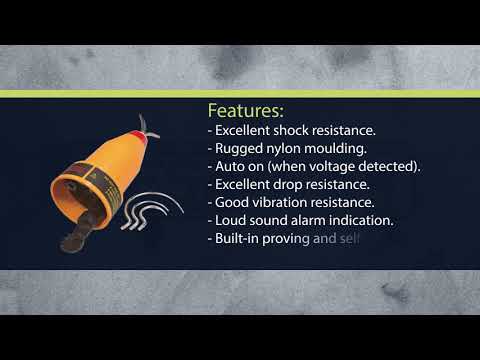

Capacitive High Voltage Detector Upto 11KV
Interested in this product?
Get Best Quote

Capacitive High Voltage Detector Upto 11KV

Rs 33,000 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandKUSAM-MECO
Model213HVD
UsageIndustrial

Capacitive High Voltage Detector Model 213HVD have been designed to meet the latestIEC Standards. It is self starting and automatically activated when the High Voltage is appliedto the contact electrode. It can also be manually armed before use by depressingthe "TEST/ ARMING" Button. This detector is intended for use on sinusoidal (50 or 60Hz)High Voltage Systems. Capacitive High Voltage Detector Model 213HVD systemsvoltage is 11kV.It is utilized to determine if a system is live or not, so that it may be safely earthed / grounded.Model 213HVD is designed for outdoor, but can be utilized indoor and in allwheather condition. It is housed in a rugged, reinforced nylon moulded casing and areshock drop and vibration resistant. Non-standard threshold voltages can becustomized to suit applications requirements. The High Voltage Detector have alow battery detection which inhibit manual arming when the battery is too low. The Nyloncase is easy to clean and maintain and the High Voltage Detector is suppliedwith the cleaning kit. A visual indication shows when the High Voltage Detector is armed.When armed, the Green Leds flashes about twice per second.When High Voltage is detected, the RED Leds flashes about twice per second and the buzzeralso buzz intermittently.
SPECIAL FEATURES :
    Auto - ON (when Voltage Detected).  Excellent Drop Resistance.  Good Vibration Resistance.  Built - in Proving and self - test circuit  Compatible with all link sticks.  High Bright Color Coded LEDS.  Works from normal 9V battery.Excellent Shock Resistance.Rugged Nylon moulding  Interchangeable Contact Electrode.  Use in All Whether Conditions.  Compatible with all link sticks.  Lightweight, Robust Compact.  Suitable for indoor and outdoor use.  Self (Auto-On) or Manual Arming.  Easy access to batteries.  Customized threshold on demand.  Auto - Off (if no voltage detected).
GENERAL SPECIFICATIONS :
í System Voltage : 11 kVí Threshold set within Range : 1.65 kV to 4.4kVí Response Time : <1 Sec1 í Auto - OFF : 3 Min2 í Bridging Protection : Yes3 í Spark Protection : Yes4 í Battery Low : <7V5 í Threshold : 3.02 kV6 í Battery current : <30mA7 í Green = Armed : Yes8 í Red = V Detected : Yes9 í Test / Arming Button : 11 kVí Dimensions : 300(L) x 100(W) x 100(D) mmí Weight : Approx. 550g ( battery included )
SAFETY :
IEC 60068-2-2 ; IEC 60068-2-6;IEC 60068-2-32 ; IEC 60529  Meets IEC 61243-1
ACCESSORIES:
Battery Instruction manual Carrying Case.
NOTE :
Other rating available :33KV, 66KV, 132KV, 11/33KV, 44/132KV,66/132KV, 6.6/132KV, 11/132KV, 11/44KV,33/132KV, 44KV.

Additional Information:

  • Item Code: 213HVD
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

Personal Safety High Voltage Detector
Interested in this product?
Get Best Quote

Personal Safety High Voltage Detector

Rs 3,903 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandKUSAM-MECO
Model286SVD
UsageIndustrial

286 SVD is a sensor for sensing AC High Voltage for personal safety. It provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers withp rominent warning when approaching high voltage and for taking necessary safety action, preventing illusion and misjudgment which could lead to electric shock to an individual.When a person wearing 286 SVD is approaching high voltage source or equipment, the sensor will detect automatically and buzzer will generate a “Bi-Bi” short sound for warning and LED will give flashlight to remind operators that the user is approaching a high voltage and special attention shall be givento the safety of operations.
SPECIAL FEATURES :
 Compact, easy to wear and convenient in use. Usable both indoor and outdoor. Water-proof design. Equipped with self-testing functions. Sound and flash light warning of different frequencies varied positively with sensed voltages. Able to sense all kinds of AC High Voltage System. Low power consumption. CE Certified.
GENERAL SPECIFICATIONS :
í Distance of starting warning : 80cm for 11.4KV (6.6KV voltage to earth)í Min. Sensing Voltage : 1.1KVí Applicable Frequency : 50/60Hzí Volume : 70dB or higher at 1 meter distanceí Operating Temperature Humidity : 5°C ~ 45°C / 80% R.H.í Battery life : 50 hours for continuous use.í Battery : CR2032í Outside dimensions : 59(L) x 56(W) x 18(H) mmí Weight : Approx. 35g.(including Battery)
ACCESSORIES :
Elastic cord, Band, Bracket, Instruction manual Battery.
METHOD OF USE:
 Inspection before use
(1) Check the appearance and structure for any abnormality.
(2) Press Self-Test switch (about 10 seconds) to confirm all functions are working normally.
(3) To be careful and to avoid misjudgement, test the unit by contacting AC 110V /230V insulated wire with its front side to see if it sounds and flashes. Wearing Wear the unit to the outer side of fore arm with the sensing side faces outwardly,as shown in the figure :The effect is best when the sensing side is facing high voltage in right angle (90Deg.).When it is worn at the inner side of arm or is covered by cloth, the sensitivity ispoorer.
Brand:KUSAM-MECO
Model:286SVD
Usage:Industrial



Additional Information:

  • Item Code: 286SVD
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier per By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

High Voltage Detector Upto 36.5KV
Interested in this product?
Get Best Quote

High Voltage Detector Upto 36.5KV

Rs 15,000 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandKUSAM-MECO
Model230HD
UsageIndustrial

The detector detects high and extra high voltage in AC lines.An elongated insulated rod permits checking of high tension circuits at safe distance for live voltage. Also it is telescopic compact, light-weight, easy to use and handy.
SPECIAL FEATURES :
Telescopic, Compact, light-weight, Easy to use.  High-voltage detection in high tension circuits.  Easy to recognize indications Intermittent lighting in RED of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable in full daylight, noisy location.  Water proof The detecting head, being tightly enclosed, is free from any trouble due to dust, water.
GENERAL SPECIFICATIONS :
í Display : Light : Flashing red light; Sound : intermittent sound 50dB apart 3m.í Overall length :Model 230HD : Retracted : 893 ± 50mm ; Extracted : 1520 ± 50mm.Model 290HD : Retracted :1370 ± 50mm ; Extracted : 2450 ± 50mm.í Operating Temperature : -10°C ~ 50°Cí Storage Temperature : -20°C ~ 60°Cí Construction : Water proof (detecting head impervious to water)í Battery : 2 button cells Lr44 (1.5V)í Weight : Model 230HD-Approx. 485g. Model 290HD - Approx. 590g.(including Battery)
SAFETY :
IEC / EN61243-1, 60068-2-6, 60068-2-32, 60068-2-14  Water proof (detecting head impervious to water)
ACCESSORIES :
Instruction manual Carrying Case.

Additional Information:

  • Item Code: 230HD
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

High Voltage Detector Upto  24KV
Interested in this product?
Get Best Quote

High Voltage Detector Upto 24KV

Rs 15,000 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandKUSAM-MECO
Model276HD
UsageIndustrial

The detector detects the presence of voltage from 80V ~ 600V 3KV ~ 24KV in AC lines. An elongated insulation rod permit schecking of high tension circuits at safe distance for voltage.The equipment is compact,  light weight,  and easy to handle,  and is also available for voltage detection in low-tension circuits.
SPECIAL FEATURES :
 Telescopic,  Compact,  light-weight and handy.  High-voltage detection : The equipment,  when in stretched state is available for voltage detection in high-tension circuits (3.3kV,  6.6kV 24KV) whether the wires involved are nakedor insulated.  Low Voltage detection : The equipment can be used for voltage detection in low-tension circuits(80V ~ 600V) by holding the nameplate portion of the detecting head. Before-use,  check caneasily be done by plugging in an AC 100V plug socket,  without using a tester.  Easy to recognize indication : Intermittent lighting in red of a high intensity light-emitting diodeand intermittent audible sound of an electronic buzzer are readily recognizable in full daylight, noisy location.  Water proof : The detecting head,  being tightly enclosed,  is free from any trouble due to dust, dirt,  water.
RATINGS AND SPECIFICATIONS :
í Working Voltage Range : H.V. : 3kV ~ 24kV AC. Hold grip portion to detect.L.V. : 80V ~ 600V AC. Hold nameplate portion to detect.í Frequency : 50 Hz / 60Hzí Operation Test : (Initial Voltage)(a) When stretched,  hold the grip portion.Put the sensing tip in contact with the voltage : 250V AC± 50V the LED and buzzer should work.(b) When retracted,  hold the nameplate portion.Put the sensing tip in contact with the voltage : 80V ACor below the LED and buzzer should work.í Operation start distance : Distance at which operation starts when front metal is broughtnear f5mm O. C. Wire with grip portion held by hand.Where 24 kV / f 3mm (voltage to ground) @ 20 cmWhere 6.6 kV / f 3mm (voltage to ground) @ 3 cmWhere 3.3 kV / f 3mm (voltage to ground) @ 1 cmí Dielectric Strength :(a) Between Sensing tip ~ Grip portion : 50kV AC,  1 min(The detector has to be stretched)(b) Between Sensing tip ~ Nameplate portion : 4kV AC,  1 min.í Construction : Waterproof (detecting head impervious to water).í Insulation resistance :(a) Between Sensing tip ~ Grip portion : (The detector has to be stretched)The insulation resistance is more than 2000MW @1KV.(b) Between Sensing tip ~ Nameplate portion :The insulation resistance is more than 2000MW @1KV.í Leakage Current Test : Put high voltage on the parts listed below.(a) Between Sensing tip ~ Grip portion : 50kV AC,  1 min(The detector has to be stretched)The leakage current has to be 100mA or less than 100mA.(b) Between Sensing tip ~ Nameplate portion : 4kV AC,  1 min.The leakage current has to be 100mA or less than 100mA.í Working Temperature Range : -10°C ~ +50°Cí Battery : 3 button-cells LR44 (1.5V)í Dimension : 354mm to 1005mm lengthí Weight : Approx. 185g.
SAFETY :
EN55022 EN61000-4-2 EN61000-4-3  Meets EN61010-1 EN50081-1 EN55082-1
ACCESSORIES :
Instruction manual Carrying Case.

Additional Information:

  • Item Code: 276HD
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

High Voltage Detector Up To 81.5kv
Interested in this product?
Get Best Quote

High Voltage Detector Up To 81.5kv

Rs 18,501 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandKUSAM-MECO
Model290HD
UsageIndustrial

The detector detects high and extra high voltage in AC lines.An elongated insulated rod permits checking of high tension circuits at safe distance for live voltage. Also it is telescopic compact, light-weight, easy to use and handy.
SPECIAL FEATURES :
Telescopic, Compact, light-weight, Easy to use.? High-voltage detection in high tension circuits.? Easy to recognize indications Intermittent lighting in RED of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable in full daylight, noisy location.? Water proof The detecting head, being tightly enclosed, is free from any trouble due to dust, water.
GENERAL SPECIFICATIONS :
í Display : Light : Flashing red light; Sound : intermittent sound 50dB apart 3m.í Overall length :Model 230HD : Retracted : 893 ± 50mm ; Extracted : 1520 ± 50mm.Model 290HD : Retracted :1370 ± 50mm ; Extracted : 2450 ± 50mm.í Operating Temperature : -10°C ~ 50°Cí Storage Temperature : -20°C ~ 60°Cí Construction : Water proof (detecting head impervious to water)í Battery : 2 button cells Lr44 (1.5V)í Weight : Model 230HD-Approx. 485g. Model 290HD - Approx. 590g.(including Battery)
SAFETY :
IEC / EN61243-1, 60068-2-6, 60068-2-32, 60068-2-14? Water proof (detecting head impervious to water)ACCESSORIES :
Instruction manual Carrying Case.
Brand:KUSAM-MECO
Model:290HD
Usage:Industrial

Additional Information:

  • Item Code: 290HD
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier per By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

KUSAM MECO High Voltage Non Contact Proximity Detector KM 275HP
Interested in this product?
Get Best Quote

KUSAM MECO High Voltage Non Contact Proximity Detector KM 275HP

Rs 9,600 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

High Voltage Detector Work At 11, 33, 66,132, 220,275KV HV Tester

Additional Information:

  • Item Code: KM275
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier / By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days.
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

High Voltage Probe (DC 0-40KV,AC 0-28KV
Interested in this product?
Get Best Quote

High Voltage Probe (DC 0-40KV,AC 0-28KV

Rs 6,000 / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

MaterialPVC
Model Name/NumberPD28
Usage/ApplicationIndustrial
Type Of Testing MachinesEddy Current Dynamometer
ColorBlack
Packaging TypeBox
Display TypeAnalog
Load Capacity40KV
BrandSEW
GradeManual
Machine TypeMANUAL

Most Digital Multimeters can measure AC Voltage up to 750 /1000V and DC Voltage upto 1000V DC.To extend the measuring range of the digital multi meter for low - power , high - voltage , highimpedance circuits such as TV, Video Monitors.
FEATURES :
? PD - 28 is a High Voltage Probe used to measure both AC DC voltage with your Multimeter.? It consist of 2 kinds of contact tips : One is a round needle tip for normal use. The other is a special flat springtype for CRT anode.? A separate test clip for the ground connection is provided.? A set of test leads for connecting to the Multimeter a high quality enclosure which has very High Insulationproperties.? It has a ergonomically designed handle for convenient use.? It can be used with most Digital Multimeters.



Additional Information:

  • Item Code: PD28
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier / By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days.
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!

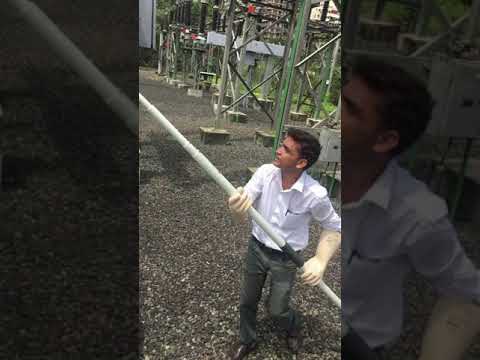

High Voltage Multifunction Phasing Sticks
Interested in this product?
Get Best Quote

High Voltage Multifunction Phasing Sticks

Rs 1.07 Lakhs / PieceGet Latest Price

Minimum Order Quantity: 01 Piece

Product Brochure

BrandKUSAM-MECO
ModelPC 22KV
ApplicationIndustrial

This NEW “PC” range of High Voltge Multifunction Phasing Stickare :all - in - one,a Phase Comparator with colour code scale indication, a Voltage Detector with Neon Indication a Scaled analog Voltmeter. They are available in five models for applications up to 44 kV systems(6.6kV,11kV, 22kV, 33kV 44 kV ).These Dual Poles instruments incorporate modern, high quality glass fibre front end,composite polyurethane main body molding to give tough and very light weight construction and superior Safety features. They have analogue Colour Coded Dual Scales and Neon indication.They are VDE0681part 5 compliant and IEC1243 - 2.They are practical and efficient.Because of their multifunction capabilites, you do not need to buy separate instruments, you can therefore stay within your budget without compromise.They are supplied complete with instruction manual. They are housed in a superb High quality modern Plastic Case with shock absorbing foam . They are suitable for indoor and outdoor use (in dry weather).
Fiberglass is of hot stick quality and tested to IEC specs(100kV /300mm for 1min). All front end (resistors) are encapsulated.These analog Multifunction phasing Sticks are ideally suited for testing of grounded or ungrounded systems. Important applications include checking voltage fuses,testing for correct phase connections, and for absence of high voltage on deenergizedlines or apparatus. The dual scale read direct(nomultiplier)in kV AC or in % of full scale and colour coded(Green =in phase; Red = out of phase). A Bright neon is included on the scale for easy visibility indoor and it has dual purpose.They do not require dismantling or re-assembling and do not haveany user’s assembled parts, so eliminating the risks of assemblymistake and accidents during High Voltage Work. In a break down situation they are lighter than any other sticks available in the market today. The indicator has been screened for high immunity to interference fields. They determine the voltage and positively identify phases up to 44kV.They are equipped with two fixed - length poles connected by a strong flexible, insulated cable.Hand guards are standard on all models. They are easy to handle, light weight,well insulated and designed to ensure maximum operator safety.
SPECIAL FEATURES:
Dual Colour Code Scale (%,Vac). Measure and test Phase to Earth. DC version available . Suitable for indoor and outdoor use. Light weight Robust Compact. Carry Case included.
Neon indicator lit when >1200 Vac. High Quality Fibreglass wound Rod. Measure Phase to Phase. Current is limited to ±1 mill - ampere. Designed to Exceed VDE 0681 part 5.Compare between Phases. Self powered operation - No Battery. High immunity to interference fields. Voltage colour code - O-Y-G-B-R. Meets IEC 61481 : 2001

Additional Information:

  • Item Code: PC22KV
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: By Courier By Hand
  • Production Capacity: As Per Your Requirement
  • Delivery Time: Within Working 7 To 10 Days
  • Packaging Details: Company A/c Details: Signal Hawk Electronics Pvt. Ltd. Bank Name: Kotak Mahindra Bank A/c No: 8611127178 RTGS/NFSC Code: KKBK0000183 Branch: Preet Vihar,New Delhi-110092 Tin No: 07110369836 Pan No: AANCS5911N

View Complete Details

Yes, I am interested!
