Sky-Earn Enterprise

Current Range	0–1000 A
Max AC Current	1000A
Brand	Fluke
True RMS	Yes
Maximum Current (AC/DC)	1000 A
Current Type	AC/DC
AC Or DC Measurement	AC/DC
Measurement Type	True RMS
Jaw Opening	37 mm
Max DC Voltage	600V
Max Voltage Range	0–600 V
Max AC Voltage	600V
Safety Category	CAT III 600 V
Jaw Opening Size	30mm
DC Voltage	1000V
AC Current - Sensing Range	200 A
DC Current - Sensing Range	1000A
Model Name/Number	Fluke-319
Warranty	1 Year
Dimensions (L x W x H)	162.4 x 58.25 x 30.5 mm
Usage/Application	Industrial
AC Voltage	600 V
Auto Power Off	Yes
Jaw Open	37mm
IP Rating	IP40

Clamp Meters
Wires in tight compact spaces. Panels out of reach. Extra large conductors. We understand your workspace and have designed products for noise-free, reliable readings. Built on success, clamp meters designed by Fluke are known as workhorse clamp meters. With advanced performance, the clamp meter line is designed to be simple to use and gimmick-free.
Functionality
• The unique new features of the 40 milli-amps measurement High-precision electric current measurement--0.01A
• High-resolution, 1.6% high-precision measurements. (many engineers take small measurements more often than large current measurements)
• The new clamp head is narrow and the body is compact and portable, making it ideal for use in confined spaces
• The new starting current feature offers starting current measurement of appliances and lights for instance with an integration time of 100 ms
• The new frequency test feature offers precise measurement of VFD pulse width modulation Output signal frequency
• Large 1000A AC/DC current testing; AC/DC voltage testing
• Min Max (minimum value / maximum value) feature Current and voltage modes
• The new zeroing feature* returns the display to zero to perform (dc) testing
• True RMS
• Large back light screen, convenient viewing • Screen save function to save measurement results on the screen
• Automatic off function prolongs battery life and ensures the instrument’s continued availability.
• 6000 character display
• 4000Ω resistance measurement
• Continuity testing ≤ 30 Ω
• Clamp opening: 37mm The new 319 clamp meter is designed based on detailed research into the requirements of electrical engineers. It can be used to test both starting current (inrush) and frequency. A small clamp head and compact, lightweight body make it perfect for use in confined spaces. 40A range low current measurement (0.01A resolution) is a unique design allowing users to measure small currents more easily. At the same time, the clamp also offers features such as True RMS, maximum/minimum, zeroing, backlight display and display hold. The 319 clamp meter is therefore a powerful tool for use in the daily maintenance and installation of electronics.

Current Range	0–400 A
Current Measurement	400 A
Brand	Fluke
True RMS	Yes
AC Or DC Measurement	AC/DC
Jaw Opening	30 mm
Max Voltage Range	0–600 V
Safety Category	CAT IV 600 V
DC Voltage	600.0 V
AC Current - Sensing Range	40.00 A / 400.0 A
DC Current - Sensing Range	40.00 A / 400.0 A

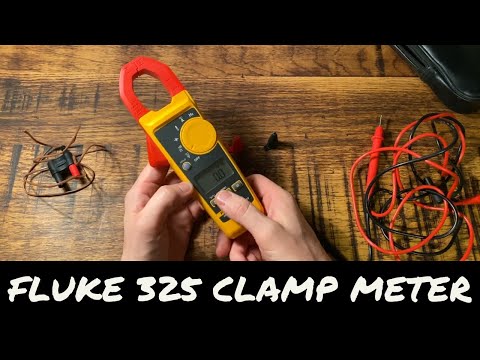

Model Name/Number	Fluke 325
Warranty	2 Year
Dimensions (L x W x H)	207 x 75 x 34
Usage/Application	Industrial
Auto Power Off	Yes
Frequency Via Flexible Current Probe Accuracy	CAT III 600 v
Frequency Hz	500.0 Hz
Max wire diameter	30 mm
Set Content	2 pic with wire

The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

• Measures AC/DC current up to 400 A through jaw
• AC/DC voltage to 600 V using test leads
• Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
• Measures temperature from -10 °C to 400 °C with included K-type thermocouple
• Min/Max function records important values

Comes with a two-year warranty

Additional Information:

• Item Code: 5293856
• Production Capacity: 25
• Delivery Time: Ready Stock
• Packaging Details: BOX
