Sky-Earn Enterprise

Material	Industrial
Usage/Application	Insulation Resistance Testing
Model Name/Number	Rishabh AIT 501
Type Of Testing Machines	Powder Dynamometer
Packaging Type	Box
Range	100km
Display Type	Digital
Test Voltage	5000V
Load Capacity	5KV
Color	Green
Grade	Automatic
Short Circuit Current	1.8 mA

Rishabh AIT 501 Digital Insulation Tester  Agam compact insulation resistance tester with diagnostic features like PI, DAR. When carrying out insulation resistance measurements this device uses test voltages of 500V, 1000V, 2500V and 5000V. At 500V this tester can carry out insulation resistance measurements from 1MOhms to 20GOhms, it carries out this measurement at 5MOhms to 1000GOhms. The tester can also be used to carry out AC/DC voltage measurements  and low resistance testing . The AIT 501 is an autoranging device and will automatically choose the applicable range depending on the test. It also includes a large, backlit LCD screen, auto power down function when left idle and includes a USB interface for using the tester to download data to PC. To accompany USB connectivity the AIT 501 also includes datalogging capabilities. When displaying testing results the AIT 501 uses both numerical and analogue bar graph representation of the test results. It also allows users to carry out comparisons, polarisation index calculations and dielectric absorption calculations. This insulation resistance tester is CAT III 600V, EN 61010-1 and EN 61326-1 compliant.. An ideal tool for Insulation testing designed smartly.

Features & Benefits

• Robust unit : Ideal for portable testing
• Test voltages of 500V, 1000V, 2500V and 5000V & Insulation Resistance measurement upto1 TOhm : To cater wide applications
• Automatic Polarisation Index (PI), Dielectric Absorption Ratio (DAR): For diagnostic testing of Insulation
• DC/AC voltage measurements to 600V : To check live voltages if any present in DUT
• Autoranging insulation resistance tester : No need to select range manually
• Auto shut down when left idle & Optional Operation on Mains via adapter: Ensures Battery saving
• Datalogging capabilities and USB interface : For maintaining records & data analysis
• Comparator Function:Pass/fail (Go-No-Go) test for the insulation measurements
• Wide LCD with backlit screen, Analog bar graph (30 segment): For Easy, Comfortable and Accurate viewing

Applications:

• MV & LV Transformers
• MV & LV Cables
• MV & LV Motors, Generators
• MV Switchgears & Panels

Measurement Range	100 Ohm
Test Voltage	5000V
Resistance Range	0–1000 MΩ
Display Type	Digital
Test Type	Insulation
Type Of Testing Machines	Insulation Tester
Power Source	Rechargeable
Packaging Type	Box
Protection Class	CAT III
Color	Black
Frequency	50 Hz
Usage/Application	Insulation Resistance Testing
Range	5000km
Model Name/Number	AMB-50
Load Capacity	5 KV
Grade	Automatic
Material	Industrial
Weight	5kg

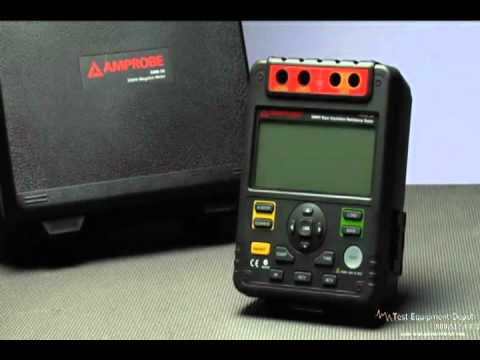

Amprobe AMB-50 Industrial High-Voltage Insulation TesterRated 3.00 out of 5 based on 2customer ratings



• Test insulation of wires, cables, transformers, motors, surge arrestors and generators
• Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000 V
• Insulation resistance measurement up to 1T Ω
• User selectable programmable timer (10s to 30 min)
• Automatic discharge of test object after completion of measurement
• Diagnostic tools
• Polarization index (PI)
• Dielectric absorption ratio (DAR)
• Comparison feature to set pass/fail thresholds for quick measurement and verification
• Dual power source – receptacle or batteries
• Built in internal memory storing 18 measurements

Description

The Amprobe AMB-50 High-Voltage Insulation Tester has the necessary features for professional insulation diagnostics. It features calculation of PI and DAR parameters. The pass/fail comparison function helps to improve testing productivity. Readings are clearly displayed on a large backlit LCD display. Windows compatible PC Software and USB communications port serve for connecting the instrument to the PC and management of the recorded test data.

Additional Information:

• Production Capacity: 25
• Delivery Time: Ready Stock
• Packaging Details: Box
