Sky-Earn Enterprise

Port Type	RJ45
Number Of Ports	24 Port
No. Of Ports	24 Port
Rack Size	1U
Category Rating	Cat6
Shielding	Unshielded
Mounting Type	Rack Mount
Brand	Panduit
Part Number	CPPL24WBLY
Product Type	Flat
Material	CRS
Shield Type	Unshielded
Number of Rack Units	1
Standards Met	RoHS Compliant
Overall Height (mm)	43.68
Color	Black

The Mini-Com® Faceplate Modular Patch Panel accepts up to 24 Mini-Com Modules for unshielded applications in 1 RU and mounts to 19 inch and 23 inch racks and cabinets. The panel offers front access, includes label pockets for easy identification, and is black.

Additional Information:

• Item Code: CPPL24WBLY
• Production Capacity: 500
• Delivery Time: Ready Stock
• Packaging Details: Box

Port Type	RJ45
Number Of Ports	24 Port
Rack Size	1U
Shielding	F/UTP
Ports	24 Ports
Operating Temperature	Minimum 750 insertion cycles
Commercial Standards	TIA/EIA-568-B.2-1 Component Compliant FCC Subpart F 68.5 Compliant IEC-603-7 Compliant ISO 11801 Cla
Material	CRS (cold rolled steel)
Thickness	060” (1.52mm)
Coating	Gray / Option for Black
Contact Plating	50μ” Gold/100μ” Nickel
Electrical/Optical Characteristics	Interface Resistance: 20 milliohms Initial Contact Resistance: 2.5 milliohms Insulation Resistance:
IDC Connector	Plastic Housing: Thermoplastic UL94V-0 rated or equivalent Operating Life: Minimum 20 retermination
Dimensions	1U 24 Port: 44mm x 483mm x 197mm 2U 48 Port: 88mm x 483mm x 197mm Shipping Weight 1U 24 Port: 530g 2
No. Of Ports	48 Port

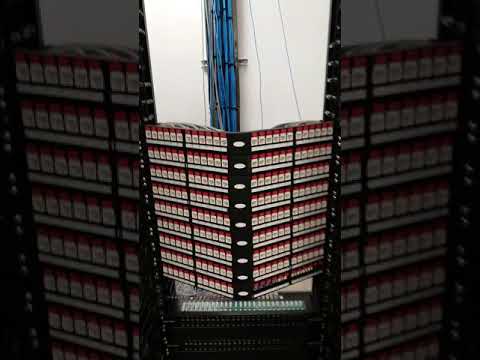

PowerCat 6 Angled Patch Panels are ideal for installations of high density or which utilize extensive side and end-of-the-rack cable management. The angled feature provides enhanced port access and minimizes patch cord bend radius to the rack. The IDC section consists of V-shaped contacts that flex not fatigue when terminated. Each RJ45 port features a patented spring-loaded shutter and can be color coded to match jack outlets with the use of optional port icons. Offering both front and rear labeling options, the patch panel is constructed of cold-rolled steel for additional strength and durability.

• Available in 1U 24 port and 2U 48 port density
• Each port features the patented spring-loaded shutter:
  •  – prevents incomplete mating
  •  – protects from dust and contaminants
• Patented IDC V-shaped contacts that flex not fatigue when terminated
• Features pointed IDC towers to speed termination and enhance cable retention
• Dual color-coding allows for 568 A/B wiring configuration
• Front and rear port labeling (port sequence 1–480) as well as panel identification label
• 4 x 6 ganged jack configuration
• Individually removable patch panel ports
• Removable cable management shelf(s) ensure bend radius compliance
• Available with either ANSI and metric hardware kit
• Can be terminated using industry standard punch-down tools
• RJ45 port which is RJ-11 compatible
• Molded category identification on each port face as well as optional port identification icons

Additional Information:

• Item Code: PID-00156
• Production Capacity: 50
• Delivery Time: Ready
• Packaging Details: Box

Fiber Type	Single Mode
Number of Port	24 Port
Port Count	24 Port
Connector Type	Male
Panel Type	Rack Mount
Usage/Application	Networking
Rack Size	1U
Converter type	LIU
Number Of Adapters	12
Brand	D-LINK
Part Number	NLU-FSDLLCR-24
Rack Height	50.8 mm
Type	Patch Pannel
Dimension	436x241.5x41mm
Frame Material	Fiber

Sliding FM SSliding FMS Loaded 1U

• D-Link 19-inch Sliding Optical Fiber Interconnection Units are the smaller basic patch panel & cabinet used in interconnecting, cross-connecting, or splicing applications in LANs at a premise location.

• The D-Link 1U Series Combination Shelves help you save time & money to manage your cable resources efficiently. By using these shelves to terminate and splice fibers, you can rearrange cabling quickly and keep track of your fiber resources.

Features

• 1.5mm steel sheet for strong housing
• Slim 1 Unit Mounting Height
• Ball bearing slide rails with positive stop
• Sliding design is easy to work for patching the connectors
• Front-mounted cable saddles for jumper management
• Can manage both splices and terminations
• Preassembled shelves in multiple configurations
• Can include adapter panels for up to 48LC, 48SC terminations
