Sky-Earn Enterprise

Additional Information:

• Item Code: SFP-10G-LR-S
• Production Capacity: 1000
• Delivery Time: Ready Stock
• Packaging Details: package

• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1310nm FP laser and PIN Photo detector for 20km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
•  Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
•  Compatible with RoHS
• +3.3V single power supply
•  Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C

Additional Information:

• Item Code: 1310
• Production Capacity: 1000
• Delivery Time: Ready
• Packaging Details: Box

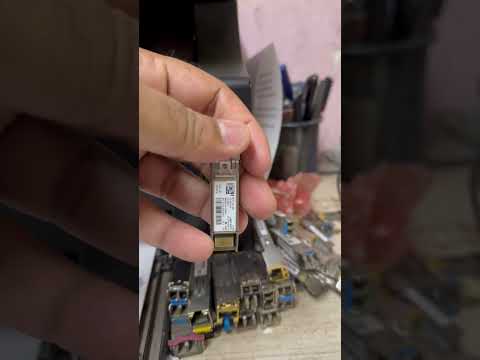

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode Fibers. The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

Additional Information:

• Item Code: GLC-LH-SMD
• Production Capacity: 100
• Delivery Time: Ready
• Packaging Details: Box

Additional Information:

• Item Code: GLCTE
• Production Capacity: 500
• Delivery Time: READY STOCK
• Packaging Details: PACKAGE

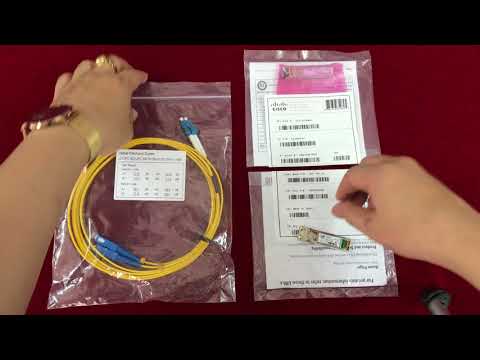

CISCO SFP 10G LR S  Cisco SFP+ modules offer the following features and benefits.

   Industry’s smallest 10G form factor for greatest density per chassis

   Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)

   Supports “pay-as-you-populate” model for investment protection and ease of technology migration

   Digital optical monitoring capability for strong diagnostic capabilities

   Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

   Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

Cisco SFP-10G-SR-S module (S-Class)

The Cisco 10GBASE-SR module supports a link length of 26 meters on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000 MHz km MMF (OM3), up to 300-meter link lengths are possible. Using 4700 MHz km MMF (OM4), up to 400 meter link lengths are possible. SFP-10G-SR-S does not support FCoE.

Cisco SFP-10G-SR module

The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000MHz km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz km MMF (OM4), up to 400m link lengths are possible.

Cisco SFP-10G-SR-X module

The Cisco SFP-10G-SR-X is a multirate 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000M Hzkm MMF (OM3), up to 300m link lengths are possible. Using 4700MHz km MMF (OM4), up to 400m link lengths are possible.

Cisco SFP-10G-LRM module

The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade Multimode Fiber (MMF). To make sure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4. For additional information on mode conditioning patch cord

The Cisco 10GBASE-LRM Module also supports link lengths of 300m on standard Single-Mode Fiber (SMF, G.652).

Cisco SFP-10G-LR-S module (S-Class)

The Cisco 10GBASE-LR module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) (G.652). SFP-10G-LR-S does not support FCoE.

Cisco SFP-10G-LR module

The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF, G.652).

Cisco SFP-10G-LR-X module

The Cisco SFP-10G-LR-X is a multirate 10GBASE-LR, 10GBASE-LW, and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF, G.652).

Cisco SFP-10G-ER-S module (S-Class)

The Cisco 10GBASE-ER module supports a link length of up to 40 kilometers on SMF (G.652). SFP-10G-ER-S does not support FCoE.

Cisco SFP-10G-ER module

The Cisco 10GBASE-ER Module supports a link length of up to 40 kilometers on standard Single-Mode Fiber (SMF, G.652).

Additional Information:

• Item Code: SFP10GLRS
• Production Capacity: 1000
• Delivery Time: READY STOCK
• Packaging Details: BOX
