Smiit Constech

Capacity	800 Kg
Model Name/Number	ZLP800
Material Of Platform	Galvanized
Platform Length	7.5 MTR
Platform Width	2.2 MTR
Type Of Mast	Single Mast
Work Surface	Stainless Steel
Suspended Height	100 MTR

We SMIT Corporation are the manufacturer and Importer of High Class Construction Machinery. We are Authorised dealer of Wacker Neuson Equipments. We are Surat, Gujarat based manufacturer & Supplier.
We have best quality machines, all kinds of spares &provide all kind of services as well on site and off site both.

Additional Information:

• Item Code: 01
• Delivery Time: 01 DAYS

Capacity	120kg
Material	Aluminum
Application	Platform Scale
Model	smit ls132
Features	Current Calibrated
Load Cell Certifications	OIML
Combined Error	0
Maximum Safe Overload	120% FS
Ultimate Safe Overload	200% FS
Recommended Excitation Voltage	9 to 12V DC
Maximum Excitation Voltage	25V DC
Cable Length	7.5 mtr

This is our load cell system for suspended rope platform. Which is required for safe usage of SRP. As labour dont use it over loaded and any accidents occur.

Capacity	750 kgs
Load Capacity	750 kgs
Work Surface	Stainless Steel
Type Of Mast	Double Mast
Material Of Platform	Galvanized
Brand	SMIT
Model Name/Number	ZLP-800
Assembly	Aerial Platform
Material	Stainless Steel
Equipment Type	Construction
After Sale Service	Provided

ZLP-800 , 7.2 mtr working width and height upto 150 - 250 mtrs. WIth electrical panel.
Suspended rope platform and working platform

Additional Information:

• Item Code: ZLP-800
• Production Capacity: 01
• Delivery Time: 01 days

Load Capacity	800 kgs
Platform Length	7.5 mtr
Brand	SMIT
Model Name/Number	ZLP800
Material Of Platform	Galvanized
Platform Width	1.5 mtr
Type Of Mast	Double Mast
Working Height	upto 200 mtr
Work Surface	Stainless Steel
Material	Stainless Steel
Installation	Provided
Equipment Type	Aerial Work Platform
Assembly	Aerial Platform
After Sale Service	Provided

ZLP 800 and many other models, suspended rope platform. upto 250 mtr height. for working. We are a leading Manufacturer & Supplier of a wide range of Light Construction Equipment & Autho Dealer of Wacker Neuson.

Additional Information:

• Delivery Time: 01 days

Model Name/Number	ZLP800
Material Of Platform	Galvanized
Load Capacity	800 Kgs
Platform Length	7.5 mtr
Platform Width	1 mtr
Type Of Mast	Double Mast
Work Surface	Stainless Steel
Installation	Provided
Suspended Height	100 mtr, 150 mtr & 200 mtr
Braking Torque	Brake Motor

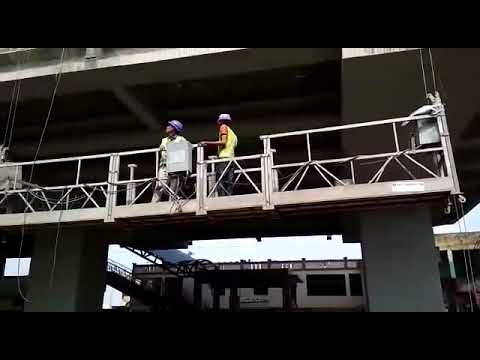

Rope Suspended Working Platform for Construction work, Plastering Work, Colour Painting Work, Facade Work, etc.

Additional Information:

• Delivery Time: 02 days

Capacity	500 Kg
Material	Stainless Steel
Material Of Platform	Steel
Platform Length	7.5 mtr
Platform Width	1.5 mtr
Type Of Mast	Double Mast
Work Surface	Stainless Steel
Installation	Provided
Suspended Height	100 mtr

We have each and every spares of the suspended rope platform. Safety lock limit switch , remote, panel, load cell, counter weight, gearbox, motor, books, etc. all the spares required for suspended rope platform under one single roof.

Additional Information:

• Production Capacity: 10 pcs per pc
• Delivery Time: 02 days

Platform Length	7.5 mtr
Load Capacity	1000 kg
Material	Aluminium
Model Number/Name	ZLP800
Material Of Platform	Aluminium / MS
After Sale Service	Yes
Platform Width	1.5 mtr
Working Height	150 m
Type Of Mast	Double Mast
Work Surface	Stainless Steel
Installation	Provided
Suspended Height	2upto 00 mtr
Equipment Type	Construction
Counterweight	800kg
Assembly	Aerial Platform
Lifting Height	100 m
Lifting speed	8-10m/min
Power	1.5KW
Rated load	630Kg
Steel Rope	8.3mm

Driven by a vision to achieve significant growth in this industry, we are providing a premium quality array of Suspended Rope Platform..

Other Details:

Smit Corporation has recently updated our construction machinery equipment, new and advanced machine suppliers in all over India. The company will benefit with the cost advantage of supply in India.

Rope Suspended Platform is the major product for Smit Corporation. We have Updated and High Quality Suspended Platform which is available in Lawrence road, Delhi, India.

All type of suspended platform like single, double hoister and L profile. As per customer requirement or need for high rise building work like painting, plastering, maintenance and glass cleaning.

Inspection and adjustment of after Installation:

Inspect every connection to make sure them reliable enough, steel rope is good without any broken, the steel clamp is put the right place, nut is screwed down, cotter pin has been equalized level, the extended distance of front beam comply with standard, stabilizing moment of the suspension mechanism is more than twice of the overturning moment.

Inspection of electromagnetic Brake:

1. The gap between the gag bit and magnechuk should be within 0.8 to 1mm, first loose the cannulated bolt on the top cover of motor, then screw the bolt to adjust the gap, and make the gap around uniformly distributed, at last screw the cannulated bolt to tighten the motor top again.
2. When the electromagnetic brake and gad bit are working, there should be without cards stagnation, and after pull in, it must be away completely from the friction disc.

• Check of Residual current circuit Breaker, after putting through the power, turn on the residual current circuit breaker, press the trial button, and then the switch should be off at once, at this time, press the reset button, the switch should be on again.

Operation:

1. Put through the power
2. Press start button
3. Two hoist are working at the same time, put the hand knob in the middle and press the control switch
4. One hoist work, put the hand knob to the side of hoist, and then press the control switch
5. After working, cut off the power and lock the electrical control box well.

Safe Operation and Regulations:

Suspended Platform belongs to a high altitude equipment, so it is important to pay more attention to the safe operation and usage.

The Industrial Suspended market in India is the range of Rs. 200000 – Rs 330000 as per client requirement. In terms of region wise distribution, Western India contributes 50-55 % of the total requirement, while southern India follows with 20-25 percent. The total volume for Industrial cranes is estimated to be approximately 200 to 800 Suspended Platforms.

From supply side, the market is highly fragmented, with over 300 crane manufacturers vying for a slice of the pie that is only 5% the size of the demand for Rope Suspended Platform in Indian Market. Such a market dynamic does not give any manufacturer the economies of scale new product development. Hence, Technological advancements in the industrial cranes market have been few and far between, leaving very little product differentiation.

The Indian customer is an ever evolving customer – from being exposed to shoddy equipment a decade ago, today the Indian customer is the king with a choice of high quality equipment at his beck and call. The demands of the customers are also evolving. Initially, the customer used to have a single line focus of only the pricing aspect without bothering a lot about the technical comparisons between different offerings.

Additional Information:

• Delivery Time: 1days

Load Capacity	>250 kg
Brand	SMIT
Model Name/Number	ZLP800
Material Of Platform	Galvanized
Platform Length	7.5 mtr
Platform Width	2.5 mtr
Type Of Mast	Double Mast
Installation	Provided
Suspended Height	upto 150 mtr
Braking Torque	immediate
Machine Weight	950 kgs
Rated Lifting Force	full
Rated Power Kw	7.5 hp
Safety Lock Type	tilt proof
Usage/Application	construction
Counterweight	1000 kgs
Locking Cable Angle	all

ZLP800 suspended working pltform for construction use for Facade work and all other painting, plastering work..

Load Capacity	1000 kgs
Working Height	>20 m
Platform Width	1.5 mtr
Type Of Mast	Double Mast
Work Surface	Painted Steel
Installation	Provided
Suspended Height	100 mtr
Application	Electical Fitting
Brand	SMIT
Assembly	Aerial Platform
Lifting Height	50 m / 100 m
Lifting Speed	9 - 11 m/min
Platform size	1.2 m
Power	1.5 KW
Related Load	150 Kg
Wire Rope Length	50 m / 100 m x 2

For catering the variegated needs of our clients, we are deeply engrossed in offering a qualitative array of Single Person Suspended Platform..

Othe Details:

In India we can Provide you Suspended Platform with Havels Motor no one else in India Can Provide you Suspended Platform With Havels Motor. They provide you Chinese Hoister. We are among the most distinguished organizations engaged in manufacturing and supplying quality range of Suspended Rope Platform-Aluminum. The suspended rope platform offered by us is widely used by the clients for temporary and permanent lifting of people and their working equipment. These rope platforms are also used by our patrons for various others purposes like building maintenance, decoration, glass cleaning, facade cleaning purpose, chimneys, glass fitting, fixing facade bill boards, banners, maintenance of facade lights, for signage fixing and signage maintenance. All these suspended rope platforms are manufactured by using latest technology, machines and optimum quality aluminum and components sourced from the reputed vendors of the market.

These suspended rope platforms are applauded by the patrons for their attributes mentioned as under:

• Longer service life

• Hassle free operation

• Corrosion resistance

• Use friendliness

• Robust construction
