Full Height Single Lane & Dual Turnstiles are designed for complete and secure closure of the passageway to control pedestrians entering or exiting restricted areas in high security situations. The rotation is 4 X 90 degrees

In sensitive areas, the only way to ensure selectivity of entrance is to positively identify every person seeking admittance. Turnstiles ensure this selectivity by presenting a barrier that cannot be passed until after positive identification. Control of identification can be by attendant operated push button or one of a variety of access card readers or biometric readers.

Full Height Single & Dual Lane Turnstile comprises of a framework constructed from mild steel tubes and angles welded and bolted to form a rigid structural frame with a vertical central rotor of square section tube and horizontal bars of stainless steel tubes. The complete mechanical head mechanism and logic control unit is housed in the top box of the Turnstile.

Features:

• Robust construction and user friendly operation makes it suitable for high throughput in unmanned entrances
• Electro-mechanical, solenoid based drive, hand operated (push to turn)
• Bi-directional control for entrance as well as exit passage
• Positive action lock to prevent two passages at one time
• Anti backup device to prevent reverse rotation once the head mechanism has moved 30° from the rest position
• Self centering and damping mechanism to ensure complete and smooth rotation of the head mechanism to its neutral position
• Fail safe (rotor will be free to rotate in either direction) or fail lock (rotor will lock in either direction) configuration in case of power failure
• Can be integrated with any access control system like card reader or biometric reader
• Can be integrated with fire alarm output
• CE Certified against Electrical & EMC Safety

Technical Data:

• Power : 230 V AC ± 10%, Single Phase, 50 Hz
• Power Consumption: 40 watts
• Duty Cycle: 100%
• Throughput: 10 to 15 persons per lane per minute with positive identification
• Weight: 350 kg (approx)
• Temperature: 5 to 55 °C
• Humidity: 90% non-condensing
• Dimensions: Single Lane: 2212 mm (H) x 1450 mm (W) x 1500 mm (L), Dual Lane: 2212 mm (H) x 2162 mm (W) x 1500 mm (L)
  Walkway: 2000 mm (H) x 530 mm (W) per lane
• Framework: Mild Steel Powder Coated or Stainless Steel
• Rotor Arms: Stainless Steel
• Installation: Fixed to concrete floors by means of anchor bolts supplied with the Turnstile

Additional Information:

• Item Code: MKI-MKII

High Security Tubestile (Man Trap)

Tubestile offers the highest security for environment that is susceptible to theft & sabotage. It is a full height turnstile with a two stage security check giving maximum protection. EMV Compliant Setup

Application areas: Server rooms, clean rooms, R&D facilities, strong rooms, sensitive manufacturing facilities, credit card manufacturing units

Features:

• Compact design with limited floor space requirement
• Mild steel powder coated enclosure with polycarbonate doors
• Motorized brushless DC motor drive
• Throughput: 4 persons per minute
• Bi-directional control
• Microprocessor based intelligence with automatic operation
• Normally locked mode
• Weight sensing for prevention of multi person entry
• Interlock doors: Clear openings are never presented for ensuring highest level of security
• Internal & semi-external installation
• CE Approved
• Microprocessor based intelligence
• Dimension: Diameter 1000 mm and height 2200 mm
• Weight sensing and IR sensor for prevention of multi person entry
• Third party access control integration

Technical Specifications:

• Dimension Outer: 1170 x 1145 x 2430 mm (L x W x H)
• Dimension Inner: 920 x 600 x1930 mm (L x W x H)
• Walkway Passage: 600 X 1930 mm (L x H)
• Power: 230 V AC ± 10%, 50 Hz Single Phase
• Current: (a) During Standby: 500 mA at 230 V AC, (b) During Operation: 1 A at 230 V AC
• Construction: Mild steel powder coated (stainless steel cladding optional)
• Door material: Polycarbonate (5 mm)
• Traffic indicator GO / STOP indicator provided on both sides
• Input: PFC from access control panel. PFC for emergency operation
• Output: Feedback to indicate completion of transaction. Multiple persons / overweight / tubestile is not vacant
• Operating Temperature: Up to 50 degrees C
• Humidity: 90% RH

Operation:

• Both doors are locked in rest position
• Authorized signal opens first door allowing the user to step inside
• Presence is detected by weight sensors and IR beams
• First door then closes
• Second door opens
• The second door closes once the unit is vacated
• Both doors are locked in rest position

Additional Information:

• Item Code: TBS-2000-2000S

Tripod Slim Turnstile - Motorised Drop Arm - Model TS-1 SL MD / TS-1S SL MD

Motorised operation with automatic drop arm and automatic reset

Tripod Slim Turnstiles are designed to control pedestrians entering or exiting restricted areas in low to medium levels of security, generally under some surveillance and for crowd control applications. The rotation is 3 X 120 degree (tri-arm design) for bi-directional application with high volume of pedestrian movement.

Typical applications would be in revenue control, BPOs, parks, passenger terminals, shopping malls, factory entrances, sports complexes, airports, etc.

Normally passage is to the left of the casework when individual units are used for entry or exit. The tripod can be arranged to open from a variety of local or remote input signal, such as switch, access control reader, biometric reader, etc.

Access control / biometric reader /sensor can be mounted on the top of the cabinet on the slanting surface provided.

The tripod arms are recessed into the cabinet ensuring that there are no obstructions to impede passage or sharp ends to catch clothing.

Features

• Solenoid locking mechanism

• 3 x 120?? stop

• Bi-directional operational control

• A locking mechanism prevents the tripod rotating in the opposite direction once it has travelled 25?? past the rest position

• The self centering mechanism with hydraulic damping ensures that the head always rotates quietly and smoothly to the rest position

• Positive action lock prevents two passages at one time

• Integration with all types of access control panels / card readers available in the market

• Can be integrated with fire alarm output

• The Turnstile is bolted to the floor using anchor bolts

• CE compliance for electrical & EMC safety

??

Technical Data

• Power 230 V AC, 50 Hz, single phase
• Current 0.5A typical
• Power consumption Less than 40 Watts
• Duty Cycle 100%
• Lane Indicator Built in Green Arrow & Red Cross
• Weight 48 kg
• Temperature 5 to 55 DegreeC
• Humidity 90% non-condensing
• Space Required 745 X 680 X 1045 mm (Approx.)
• Walkway 380 mm or 500 mm
• Casework Mild Steel Powder Coated or Stainless Steel
• Tripod Arms Stainless Steel
• Tripod Hub Index Mild Steel Powder Coated
• Internal Components Rust free alloy of high strength
• Integration Two PFCs required (Entry & Exit)
• Locking Mechanism Solenoid
• Intelligence Built in logic control
• Installation By anchor bolts on structural concrete base

Models

TS-1 SL MD Motorised Drop Arm tripod with mild steel powder coated cabinet in Siemens grey colour with automatic drop arm feature in case of emergency or power failure and automatic reset

TS-1S SL MD Motorised Drop Arm tripod with stainless steel cabinet with automatic drop arm feature in case of emergency or power failure and automatic reset

Additional Information:

• Item Code: TS-1-SL-MD

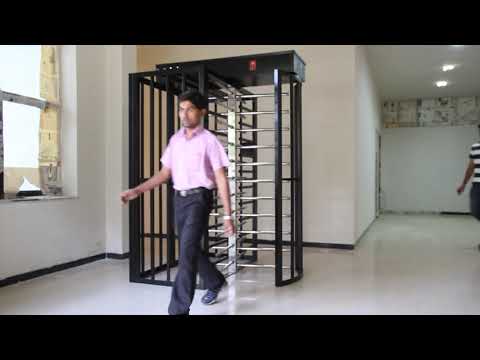

Full Height Single & Dual Lane 3 x 120° Turnstile

In sensitive areas, the only way to ensure selectivity of entrance is to positively identify every person seeking admittance. Turnstiles ensure this selectivity by presenting a barrier that cannot be passed until after positive identification. Control of identification can be by attendant operated push button or one of a variety of access card readers or biometric readers.

Full Height Single & Dual Lane 3 x 120° Turnstiles are designed for complete and secure closure of the passageway to control pedestrians entering or exiting restricted areas in high security situations. The rotation is 3 X 120 degrees.

Full Height Single & Dual Lane 3 x 120° Turnstile comprises of a framework constructed from mild steel tubes and angles welded and bolted to form a rigid structural frame with a vertical central rotor of square section tube and horizontal bars of stainless steel tubes. The complete mechanical head mechanism and logic control unit is housed in the top box of the Turnstile.

Features:

•  Robust construction and user friendly operation makes it suitable for high throughput in unmanned entrances
• Electro-mechanical, solenoid based drive, hand operated
• Bi-directional control for entrance as well as exit passage
• Positive action lock to prevent two passages at one time
• Anti backup device to prevent reverse rotation once the head mechanism has moved 30° from the rest position
• Self centering and damping mechanism to ensure complete and smooth rotation of the head mechanism to its neutral position
• Fail safe (rotor will be free to rotate in either direction) or fail lock (rotor will lock in either direction) configuration in case of power failure
• Can be integrated with any access control system like card reader or biometric reader
• Can be integrated with fire alarm output
• CE compliant

Technical Data:

•  Power : 230 V AC ± 10%, Single Phase, 50 Hz
• Power Consumption: 40 watts
• Duty Cycle: 100%
• Throughput: 10 to 15 persons per minute with positive identification
• Weight: 350 kg (approx)
• Temperature: 5 to 55 °C
• Humidity: 90% non-condensing
• Dimensions: 2212 mm (H) x 1400 mm (W) x 1400 mm (L)
• Walkway: 2000 mm (H) x 530 mm (W) per lane
• Framework: Mild Steel Powder Coated or Stainless Steel
• Rotor Arms: Stainless Steel
• Installation: Fixed to concrete floors by means of anchor bolts supplied with the Turnstile. Does not require support from sidewalls or ceiling

Models:

MK-1-120: MS Powder Coated Frame and SS Rotor Bars

MK-1-120S: SS Frame and SS Rotor Bars

Tripod Slim Turnstile - Electro Mechanical Manual - Model TS-1 SL / TS-1S SL

Tripod Slim Turnstile - Electro Mechanical Drop Arm - Model TS-1 SL ED / TS-1S SL ED

Tripod Slim Turnstiles are designed to control pedestrians entering or exiting restricted areas in low to medium levels of security, generally under some surveillance and for crowd control applications. The rotation is 3 X 120 degree (tri-arm design) for bi-directional application with high volume of pedestrian movement.

Typical applications would be in revenue control, BPOs, parks, passenger terminals, shopping malls, factory entrances, sports complexes, airports, etc.

Normally passage is to the left of the casework when individual units are used for entry or exit. The tripod can be arranged to open from a variety of local or remote input signal, such as switch, access control reader, biometric reader, etc.

Access control / biometric reader /sensor can be mounted on the top of the cabinet on the slanting surface provided.

The tripod arms are recessed into the cabinet ensuring that there are no obstructions to impede passage or sharp ends to catch clothing.

Features

• Solenoid locking mechanism

• 3 x 120 stop

• Bi-directional operational control

• A locking mechanism prevents the tripod rotating in the opposite direction once it has travelled 25 degrees past the rest position

• The self centering mechanism with hydraulic damping ensures that the head always rotates quietly and smoothly to the rest position

• Positive action lock prevents two passages at one time

• Integration with all types of access control panels / card readers available in the market

• Can be integrated with fire alarm output

• The Turnstile is bolted to the floor using anchor bolts

• CE compliance for electrical & EMC safety

Technical Data

• Power 230 V AC, 50 Hz, single phase
• Current 0.5A typical
• Power consumption Less than 40 Watts
• Duty Cycle 100%
• Lane Indicator Built in Green Arrow & Red Cross
• Weight 48 kg
• Temperature 5 to 55 DegreeC
• Humidity 90% non-condensing
• Space Required 745 X 680 X 1045 mm (Approx.)
• Walkway 380 mm or 500 mm
• Casework / Housing Mild Steel Powder Coated or Stainless Steel
• Tripod Arms Stainless Steel
• Tripod Hub Index Mild Steel Powder Coated
• Internal Components Rust free alloy of high strength
• Integration Two PFCs required (Entry & Exit)
• Locking Mechanism Solenoid
• Intelligence Built in logic control
• Installation By anchor bolts on structural concrete base

Models

TS-1 SL Electro mechanical manual tripod with mild steel powder coated cabinet in Siemens grey colour

TS-1S SL Electro mechanical manual tripod with stainless steel cabinet

TS-1 SL ED Automatic drop arm feature in case of emergency or power failure and manual reset

TS-1S SL ED Automatic drop arm feature in case of emergency or power failure and manual reset

Additional Information:

• Item Code: TS-1S-SL

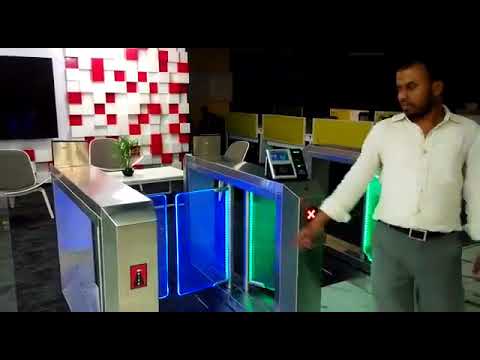

• Transparent swing flap barriers and elegant design that blends in to any sophisticated interior in modern offices for quick access control in high traffic, limited space areas
• Brushless DC motor ensures low maintenance, low operating cost and long life
• Bi-directional throughput
• Movement of flap barriers is of swing type
• Suitable for physical access control with luggage / trolley bags and for children
• Safety photo cells for detecting luggage / trolley
• In the event of power failure the Swing Barrier will open manually with minimum force or optional battery backup can be provided for automatic operation
• Electromagnetic locking to withstand forced entry attempts
• Can be easily integrated with a wide variety of access control systems

• Housing Options for SS matt / mirror finish or MS powder coating
• Rotor Arm SS Tube
• Swing Flap Material Acrylic
• Drive Brushless DC motor with maintenance free worm gear box. Encoder and sensor controlled passageway with automatic swing flaps
• Encoder For precise position and centre alignment
• Functionality Bi-directional throughput without increasing width of the housings
• Control Mechanism Controller ensures progressive accelarations and gradual decelarations for safe movement without vibrations
• Interface Control Logic Board microcontroller to process incoming commands, keeps track of signals from sensors and generates commands to the control mechanism. Opening of flap doors when emergency or fire alarm command is received. Pre-set timeout facility. Relay output for complete transaction
• Safety IR sensors ensure safe passage without entrapment / pinching. 20 mm to 50 mm safety clearance between flap doors
• Fail Safe Mode Swing flaps will open automatically and remain open as long as the emergency signal in on
• Visual Indication LED displays with bright pictogram on the housing for status and direction indication
• Passage Width 650 mm (standard), 900 mm (disabled persons)
• Overall Width 1050 mm (standard), 1300 mm (disabled persons)
• Overall Length 1350 mm
• Flap Door Height 985 mm
• Housing Height 1080 mm
• Housing Width 200 mm
• Flap Door Ground Clearance 265 mm
• Access Control Integration Standard electrical control for entry / exit. Swing flaps operate by input of control signal to connector block. Can be integrated with any access control system
• Power Supply 230 V AC
• Control Circuit Voltage 24 V DC
• Power Consumption 75 W nominal, 100 W peak
• Throughput Capacity 20 persons per minute
• Ambient Operating Temperature 0 to 50 Degree C
• Weight 90 kg

Additional Information:

• Item Code: SLB-100S-200S

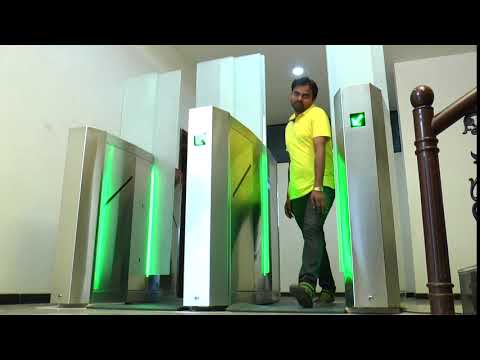

• Aesthetic design for quick access control in high traffic, limited space areas
• Brushless DC motor ensures low maintenance, low operating cost and long life
• Sliding flaps for confortable passage, quick opening and closing and prevents jumping over or crawling under
• Mechanical and electrical locking in closed position prevents fraudulent entry
• Can be easily integrated with a wide variety of access control systems

• Housing: Sleek and sturdy with low space requirement. Options for SS matt / mirror finish or MS powder coating
• Flap Door Material: Acrylic or glass
• Drive: Brushless DC motor with crank and rod linkage to ensure mechanical locking in closed or open positions. Operation without vibrations
• Functionality: Bi-directional throughput ensures comfortable passage in high traffic and limited space areas
• Control: Control logic board microcontroller to process incoming commands, keeps track of signals from sensors and generates commands to the control mechanism. Opening of flap doors when emergency or fire alarm command is received. Pre-set timeout facility. Relay output for complete transaction
• Safety: IR sensors ensure safe passage without entrapment / pinching. 20 mm to 50 mm safety clearance between flap doors
• Operation during emergency / fire alarm: Flap doors will open and remain open as long as the emergency signal in on
• Battery back up: In case of power failure, the flap doors will be opened with battery backup and will close automatically on restoration of power supply
• Visual Indication: LED displays with bright pictogram on the housing for status and direction indication
• Passage Width: 520 mm
• Overall Width: 1160 mm
• Overall Width: 1300 mm
• Flap Door Height: 1200 mm
• Housing Height: 1100 mm
• Housing Width: 320 mm
• Flap Door Ground Clearance: 200 mm
• Access Control Integration: Standard electrical control for entry / exit. Flap doors operate by input of control signal to connector block. Can be integrated with any access control system
• Power Supply: 230 V AC
• Control Circuit Voltage: 24 V DC
• Power Consumption: 75 W nominal, 100 W peak
• Throughput Capacity: 15 to 20 persons per minute
• Ambient Operating Temperature: 0 to 50 DegreeC

Additional Information:

• Item Code: RSB-1-1S

Retractable Flap Barrier

For pedestrians and people with reduced mobility

Features:

Retractable Flap Barrier has been developed to provide user-friendly access control with high throughput & aesthetic look for higher security applications where a visual / physical barrier is required. It provides a solution to the common problems faced in modern business environments such as quick access for staff & visitors while protecting assets, information & personnel from the danger of un-authorized entry, in an aesthetic environment in corporate offices, IT parks, BPOs, call centers.

Retractable Flap Barrier consists of two or more adjacent housings with an acrylic panel to create high-speed pedestrian walkways. More housings (with two barrier panels & electronics back to back in one housing) may be inserted to increase the number of lanes of access.

Retractable Flap barrier is available in single lane and multiple lane (either even or odd) configurations as per site requirements.

Two housings (end columns) with retractable flaps make one lane of access. One housing (inter lane) with two flaps back to back is used in between the end columns to increase the number of lanes.

Features

• Opening and closing time is 0.5 seconds for 520 mm passage and 1 second for 900 mm passage

• Highly reliable Brushless DC Motor

• Bi-directional control

• Safety sensors

• Passage clearance of 520 mm or 900 mm

• Microcontroller based operation

• Integration with all types of access control panels / card readers available in the market

• Can be integrated with fire alarm output

Technical Data

• Power 230 V AC, 50 Hz, single phase
• Current 1 Amp
• Duty Cycle 100%
• Passage Clearance 520 m or 900 mm
• Opening / Closing Time 0.5 second for 520 mm passage and 1 second for 900 mm passage
• Housing Mild Steel Powder Coated or Stainless Steel Housing
• Barrier Transparent Acrylic
• Dimensions RB-1 / RB-1S 410 mm X 300 mm X 1000 mm, RB-2 / RB-2S 1500 mm X 300 mm X 1500 mm

Models

RB-1 / RB-1S For pedestrians access control system with passage clearance of 520 mm

RB-2 / RB-2S For handicapped persons with passage clearance of 900 mm

Tailgating feature available

Modes of operation Normally closed / Normally open

Additional Information:

• Item Code: RB-1-1S

P-type MotorisedSwing Gate is specially designed to offer a wide passage for the disabled, large package entry, individuals with carts, trolley entry, etc. It is generally installed as a standalone barrier for material movement or with a series of Tripod Turnstiles or Flap Barriers as a wide entry lane. A smooth and silent motorized drive mechanism, along with safety features, ensures high a level of comfort to the user. The P-type Swing Gate swings 90º in both directions. P-type Gate allows a maximum opening of 900 mm. Two opposite P-type Gates, configured facing each other, work simultaneously to provide an extra wide clear walkway for movement of larger objects in and out of a secured area.

Features:

• Designed for secured and reliable operation with aesthetics in mind

• Minimal exposed hardware

• Maintenance free BLDC Motor and positive locking mechanism with directional release

• Adjustable opening / closing time from 2, 4, 8 or 10 seconds

• Material of construction is Mild Steel Powder Coated or Stainless Steel Cabinet with Stainless Steel Rotor

• Acrylic or Glass Rotor also available

• Controlled via microcontroller logic unit. One PFC input for opening / closing the mechanism in each direction

• If a person stands in the walkway, the arm of the gate will not hurt the person

• In the event of an emergency or power loss the P-type Gate is fail safe and it can be opened by pushing the swing arm

• Integration with all types of access control systems / card readers or biometric readers available in the market

• Can be integrated with fire alarm output

Specifications:

• Cabinet Material: Stainless Steel or Mild Steel Powder Coated

• P-type Swing Arm Material: Stainless Steel 50 mm and 25 mm dia pipe frame

• Power supply : 230 V AC, 50 Hz +- 10%

• Power consumption : 30 Watt in standby and 60 watt in peak

• Motor: Maintenance Free Brushless DC Motor

• Duty Cycle: 100%

• Temperature: 5 to 55 DegreeC

• Humidity: 90% non-condensing

• Dimensions : 1030 mm (H) x 255 mm (W) x 425 mm (D)

• Arm Length: 900 mm

Additional Information:

• Item Code: PG-1000M-SM

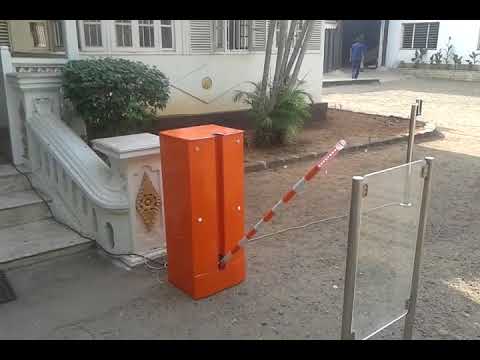

• Aslant retraction of barrier arm for greater safety compared to conventional boom barriers
• Safety sensors to avoid collission of two wheeler with barrier arm
• Quick opening and closing for high throughput
• Mechanical and electronic locking in closed position to prevent fraudulent entry
• Ensures comfortable passage in areas with high trffic and limited space
• Automatic opening in the event of an emergency
• Long life cycle and low operating cost
• Can be integrated with a wide variety of access control systems

• Brushless DC motor drive
• Sensor controlled passageway with automatic retractable barrier arm
• LED display with pictogram on the side panel for status and direction indication
• Bi-directional throughput
• Housing of stainless steel or powder coated mild steel and barrier arm of stainless steel
• Barrier can be activated by authorisation of an access control system or by a push button
• Operating Voltage: 180 to 270 V AC, 50 Hz
• Opening and Closing Time: Less than 2 seconds
• Power Consumption: 50 W
• Throughput: 10 to 15 two wheelers per minute
• Passage Clearance: 100 mm
• Barrier Arm Slant Angle: 45°

Additional Information:

• Item Code: 2VB-VBS
