Stronghold Packaging

• Pneumatic Strapping Machine is mainly used for heavy-duty flat packaging jobs.
• It is light and easy to use.
• It is mainly use to save time.
• It helps is saving money by not using the seal at the time of packing. One man can operate the tool so it helps in saving man power.
• It is mainly use in cotton industries /jute industries.
• It is very help full in modern industrial packaging
• It uses in Tensioning, Sealing & Cutting.
• Strap tension and sealing time can be adjusted at the touch of a button.
• It incorporates the latest in strapping technology.
• It Strains, sticks & cuts the strap pneumatically in one time.
• It uses in PP and Pet strap.

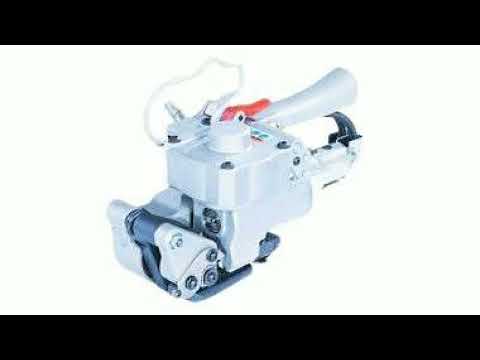

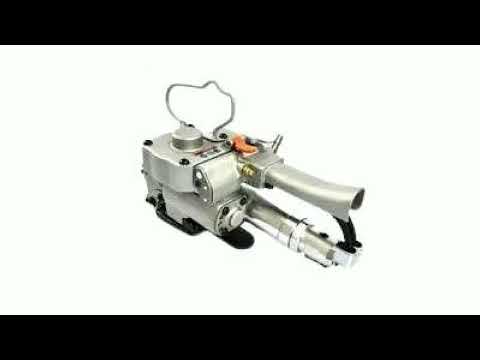

Pneumatic Strapping Machine

ØPneumatic Strapping Machine is mainly used for heavy-duty flat packaging jobs.

ØIt is light and easy to use.

ØIt is mainly use to save time.

ØIt helps is saving money by not using the seal at the time of packing. One man can operate the tool so it helps in saving man power.

ØIt is mainly use in cotton industries /jute industries.

ØIt is very help full in modern industrial packaging

ØIt uses in Tensioning, Sealing & Cutting.

ØStrap tension and sealing time can be adjusted at the touch of a button.

ØIt incorporates the latest in strapping technology.

ØIt Strains, sticks & cuts the strap pneumatically in one time.

ØIt uses in PP and Pet strap.

 vFeatures

• Item Code: PetStrapMachine
• Pay Mode Terms: D/P
• Delivery Time: 3days

• Item Code: PetStrapMachine

size: 19mm

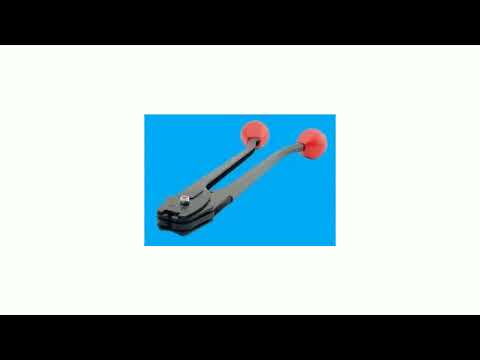

item code: c 3104

specification: double notched 11” handle steel strapping sealer. Whole tool is heat- trated

for steel strapping roll

made in taiwan

• Item Code: PACKINGTOOLC3106

Power source: 3P 380V 50/60HZ Power: 1.27kW 10A | Packing speed: ≤ 18path/min | Strapping force: 0 90kg (Adjustable) | Supporting Value: 100kgs | Hot adhering position: Bottom | Table height: 750mm (It’s possible to customize the height) | Arch: 1. standard size: width 800mm X height 600mm (inner size) 2. material :aluminum alloy (It’s possible to customize the size)| Applicable PP strap: Width(9,10,11,12,13,15)mm, thickness(0.6~1.0)mm | Stretching Resistance: Max.150kg | Applicable PP strap spool: W:160mm | Inner dia.: 200mm - 210mm, out dia.: 400mm - 500mm | Packing Type: parallel 1~2 packing strips, In type of photoelectric control, manual operation | Dimensions: L1580 × W620 × H1420mm | Packing measurements: L1700×W800×H1050mm (1.43CBM,dis???assembled arch) | Weight: N.W: 280kg G.W: 320kg | Noise: ≤75DB | Environment Condition: humidity≤98%, temperature 0 40 | Bottom Adhesion: surface≥90%, width≥20%, deviation of position≤2mm PLC control “Siemens ”PLC | Contactor French “Schneider” | Button French “TE” | Relay : French “Schneider” | Motor : Chinese “MEIWA” | Sensor switch & proximity switch : German “P+F” | 5000 boxes /day .

Additional Information:

• Item Code: Thinkpack2400
• Production Capacity: 1300MM {W} X 1300 {L} X 2400MM {H}
• Delivery Time: 5 to 7 days
• Packaging Details: Port Of Dispatch Ahmedabad

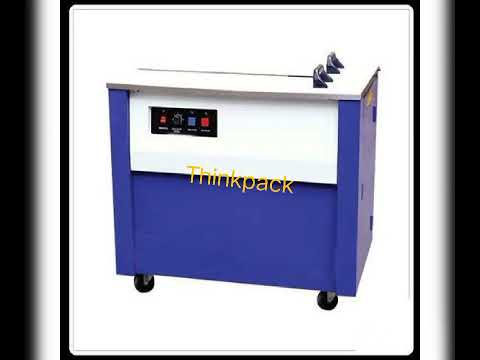

Think Pack Semi Automatic Strapping MachineSPECIFICATION FEATURES Machine Tension: 60Kgs. | Strap Size: 9mm,12mm & 15mm | Strap Cycle Strap: 2.5 Sec. / Strap. | Sealing Method: Heat Sealed | Machine Dimension: 895mm {L} X 565mm {W} X 740mm {H} | Machine Net: 85KGS | Power Supply: 220V / 50 HP. Steel Rollers { SS 304 } | Steel Strap Dispenser. {Core Inner Dia : 200mm} | Steel Package Stop. | Stainless Steel Top 1.5MM | Copper Winding Motor | Sensor Type Tension Detector. | Control Panel : Push Button | Magnet At Both Doors
