Time Equipment Private Limited

Operating Weight	13360 Kg
Maximum Bucket Capacity	0.45 m3
Brand	Tata Hitachi
Model Name/Number	Zaxis140H
Maximum Engine Power	95 Hp
Usage/Application	Road Construction
Fuel tank	250.0 L
Swing circuit	32.3 MPa
Arm Length	2.10 m

The all-new GI series. ZAXIS 140H excavator provides impressive fuel economy, swift front movement and easy operations. Having improved fuel efficiency and productivity, the HIOS III hydraulic systems and engine control systems helps in reducing CO2 emissions as well.

Features:

• Engine Rated Power: 95 PS @ 1950rpm
• Operating Weight: 13360 Kg
• Backhoe Bucket: 0.45 - 0.7 m3
• Brand- Tata Hitachi
• Model- Zaxis 140H

Bucket Capacity	0.04m-0.09m
Condition	New
Max Torque	11kgf-m @ 1320 rpm
Operating Weight	13360 kg

Tata Hitachi Zaxis 140H Ultra Hydraulic Excavator
Introducing the all-new ZAXIS ULTRA series of excavators. Taking the existing ZAXIS Range of excavators to new heights of performance and efficiency, the ZAXIS ULTRA series is at the vanguard of Tata Hitachi’s commitment to manufacture high-quality machines that epitomise reliability and superior operating capabilities and operator safety and comfort. Rock-solid structures, powerful engines and state-of-the-art hydraulics under the hood deliver maximum power and precision, while ensuring remarkable fuel efficiency.
The ZAXIS ULTRA series is the result of Tata Hitachi’s decades of experience as a pioneer in innovating, designing and producing hydraulic excavators.

Max Engine Power	130 Hp
Bucket Capacity	1.5 m3
Condition	New
Model	ZAXIS 33U

New Excavator price Ex200 Infra Tata Hitachi

Powered by Hitachi's original Optimum Hydraulic System
Benefit: Fast and smooth combined operations for higher performance.

• Cross sensing summation system
• Fuel saving pump system
• Original pilot circuit
• Boom and Arm regeneration, holding valves
• Spare spool for attachments
• Absolute type hydraulic filter
• New absolute type hydraulic filter
• New improved pilot filter for protection of hydraulic system

Model	EC950E
Operating Weight	91840 Kg
Dealer Type	Authorised (Brand Website)

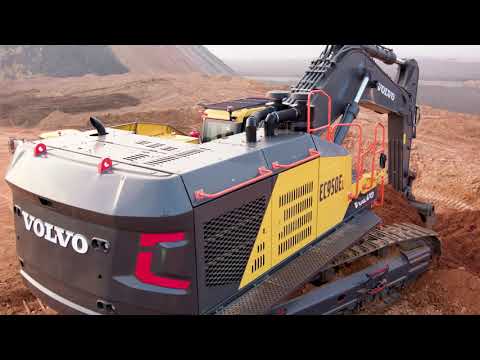

Volvo EC950E Large Excavator Price

Perform a variety of tasks with greater speed in Volvo's heavy-duty EC950E, utilizing advanced technology to increase productivity and efficiency.

 Whether you're working on a quarry, in mass excavation or any other application, the big and powerful EC950E excavator and Volvo's durable wear-resistant components will maximize your profitability and uptime.

Additional Information:

• Item Code: EC950E
• Production Capacity: 1000 ton
• Delivery Time: next day

Fuel Tank	705 ltr
After Sales Service Available	Yes
Swing Speed	12 rpm
Brand	Tata Hitachi
Operating Weight	47,100 kg
Hydraulic Tank	310 ltr
Engine Power	235 kW (320 PS)
Type	Water cooled 4 cyl.
Bucket Capacity	1.9-3.1 m3
Shovel	21.0 m3
Max.Torque	130 kgf-m @ 1500 rpm
Hydraulic system	510 ltr
Pilot Pump	1 Gear pump

To meet the precise requirement of the clients, we are providing a wide gamut of Mining Excavator ZAXIS 470H.

Bucket Capacity	0.04m-0.09m
Condition	New
Operating Weight	12518 KG

Tata Hitachi Construction Excavator New EX 130 Prime

Everything you need in your 13 Ton Ex130 Prime Excavator is Performance, Dependability, Comfort, Safety, Return On Investment, Connectivity and Versatility. Tata Hitachi's EX 130 Prime Hydraulic Excavator sets benchmarks in all these areas. The machine has been designed to provide precision control, high fuel efficiency, high productivity, superior operator comfort, excellent versatility and unmatched return on investment.

Higher Production
0.7 m3 GP bucket - 17% Bigger
0.65 m3 QR bucket - 8% Bigger
All-new Swing Device / Higher Swing Speed - 17% faster New EX130 Prime
Intelligent Optimum Hydraulic System (iOHS)
Upgraded and Improved Engine


Least Fuel Consumption
Auto Idle and Auto Deceleration (Patented Technology)
Mode Selection- EP and HP mode
Dial Type Throttle
Fuel Saving Pump System


Higher Durability
Heavy Duty Boom – 20% Higher Plate Thickness
Heavy Duty Boss - 17% Higher Diameter
Heavy Duty Arm End Boss
Improved Arm Lug Profile – 25% Higher Lug Radius
Track Frame top & bottom plate - Higher Yield Strength


Higher Reliability
Most Reliable Hydraulic Aggregates
Components Tested and Validated to International Standards
Proven Hitachi Technology


Low Fuel Consumption
Fuel saving pump system
Dual work mode

High Resale Value
Most trusted brand
Largest dealer network
Highly reliable & durable machines
Easy availability of parts & support

Low Maintenance Cost
Long drain hydrailic oil- 4500hrs
Fuel Filter - 500 hrs New EX130 Prime - Construction Excavator | Tata Hitachi
Maintenance free cyclonic air pre cleaner for longer engine life
Fuel pre filter for better filtration efficiency New EX130 Prime - Construction Excavator | Tata Hitachi

Additional Information:

• Delivery Time: next day

Maximum Bucket Capacity	0.6 cum
Model Name/Number	TMX 20 neo
Shoe Width	500 mm
Working Area	Rock Type
Engine Type	water-cooled
Maximum Engine Power	100 HP
Country of Origin	Made in India

Operating Weight    19800 - 20000 kg
Brand    CAT
Model Name/Number    320D3 GC
Bore    104 mm
Stroke    113 mm
Swing Speed    10 r/min
Ground Clearance    450 mm
Displacement    5.76 L
Engine Model    ALUW06DTI
Engine Power    100 kW (ISO 14396:2002)
Net Power    92 kW (ISO 9249:2007)
Main System - Maximum Flow    400 L/min (200 x 2 pumps)
Fuel Tank Capacity    350 L
Maximum Reach at Ground Level    9140 mm
Maximum Equipment Pressure    35000 kPa
Maximum Travel Pressure    35000 kPa
Maximum Swing Pressure    25000 kPa
Pilot System Maximum Pressure    3900 kPa
Boom Cylinder Bore    125 mm
Boom Cylinder Stroke    1260 mm
Stick Cylinder Bore    130 mm
Stick Cylinder Stroke    1504 mm
Bucket Cylinder Bore    115 mm
Bucket Cylinder Stroke    1104 mm
Boom    Reach 5.7 m
Maximum Swing Torque    62 kN.m
Shipping Height    3100 mm (top of cab)
Bucket    GD 1 m3
Counterweight Clearance    1020 mm
Handrail Height    2915 mm
Shipping Length    9520 mm
Product Description
The CAT 320D3 GC Hydraulic Excavator delivers reduced fuel consumption - as low as 11 liters per hour, lowered maintenance costs by up to 20 percent, low owning costs, simpler routine maintenance, increased performance, and long-term durability.

Built to Last:
6-cylinder mechanical engine for improved reliability
Integrated component design for better durability and strength
Consolidated pilot system for simpler hydraulics
New modified X-frame structure for longer life and durability
Reinforced boom and stick with internal baffle plates for increased

durabilityGreased track link between pins and bushings provides increased undercarriage life and noise reduction

Lower Maintenance Costs:
Up to 20% lower maintenance costs compared to the 320D2
Save time and money with extended service intervals for hydraulics and coolants
New hydraulic oil filter with 50% more life
6,000-hour hydraulic oil service with 12% less oil required
Quick and easy maintenance with most service locations accessible at ground level
Filters grouped together to reduce maintenance time
Pressure taps and SOS ports help maximize uptime

Reduced Fuel Consumption with High Performance:
With the increased fuel efficiency, typical fuel consumption in earthmoving applications is between 11 to 13 liters per hour, lower than most comparable machines in the market.
Robust and easy-to-maintain fuel system filtration reduces risk of failure from contaminated fuel
Caterpillar designed and built hydraulic pumps deliver superior performance


Superior Operator Comfort:
Ergonomically designed cab with easy-to-operate controls
Multiple seat and joystick adjustment options enhance comfort
25% increase in glass area for improved worksite visibility and enhanced productivity
Reduced blind spots with convex profile glass for better safety
Low-effort joystick controls reduce operator fatigue

Built-in Safety Features:
Hydraulic activation lever safely locks out all hydraulic functions
Anti-skid plating and countersunk bolts reduce slipping in severe conditions and during routine checks
A full-length firewall separates the pump compartment from the engine

Additional Information:

• Item Code: 103
• Production Capacity: 50
• Delivery Time: With in 2 Days
• Packaging Details: Operating Weight 19800 - 20000 kg Brand CAT Model Name/Number 320D3 GC Bore 104 mm Stroke 113 mm Swing Speed 10 r/min Ground Clearance 450 mm Displacement 5.76 L Engine Model ALUW06DTI Engine Power 100 kW (ISO 14396:2002) Net Power 92 kW (ISO 9249:2007) Main System - Maximum Flow 400 L/min (200 x 2 pumps) Fuel Tank Capacity 350 L Maximum Reach at Ground Level 9140 mm Maximum Equipment Pressure 35000 kPa Maximum Travel Pressure 35000 kPa Maximum Swing Pressure 25000 kPa Pilot System Maximum Pressure 3900 kPa Boom Cylinder Bore 125 mm Boom Cylinder Stroke 1260 mm Stick Cylinder Bore 130 mm Stick Cylinder Stroke 1504 mm Bucket Cylinder Bore 115 mm Bucket Cylinder Stroke 1104 mm Boom Reach 5.7 m Maximum Swing Torque 62 kN.m Shipping Height 3100 mm (top of cab) Bucket GD 1 m3 Counterweight Clearance 1020 mm Handrail Height 2915 mm Shipping Length 9520 mm Superior Operator Comfort: Ergonomically designed cab with easy-to-operate controls Multiple seat and joystick adjustment options enhance comfort 25% increase in glass area for improved worksite visibility and enhanced productivity Reduced blind spots with convex profile glass for better safety Low-effort joystick controls reduce operator fatigue Built-in Safety Features: Hydraulic activation lever safely locks out all hydraulic functions Anti-skid plating and countersunk bolts reduce slipping in severe conditions and during routine checks A full-length firewall separates the pump compartment from the engine A ground-level fuel cutoff switch shuts down the engine in an emergency Large steps on track frame and storage box for easy and safe climb Emergency exit in cab for improved operator safety Versatility: Utility and finishing work are fast and flawless with Cat buckets Demolition work is quick and easy with Cat hammers and other work tools Cat couplers let you swap between attachments in seconds without leaving the cab

Max Engine Power	271 Hp
Max Operating Weight	63900 Kg

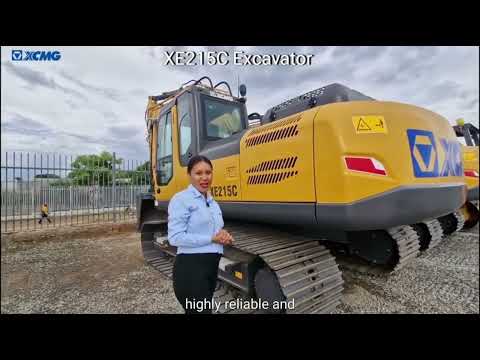

XCMG Crawler Excavator XE215c

• Industry Leading Main Pump flow for Fast Hydraulic Operation
• LC track with 9 Rollers for unmatched Balance.
• Overall Structure Strengthened for Rugged Indian Conditions.
• HVAC Cabin with Comfortable Operator seat for long working hours

Technical Specification
