Aggregate Testing Equipment
Manufacturer of a wide range of products which include Automatic Bitumen Compactor, PS 300 Ferroscan System, Dorry Abrasion Testing Machine., Los Angeles Abrasion Testing Machine, Digital Los Angeles Abrasion Testing Machine and Air Entrainment Meter Concrete.
₹ 75,000/Piece
₹ 12,60,000/Piece
₹ 35,000/Piece
₹ 50,000/Piece
₹ 50,000/Piece
₹ 18,500/Piece
₹ 40,000/Piece
₹ 45,000/Piece
Interested in this product?
Get Best Quote
| Usage/Application | Bitumen Testing |
| Material | Mild Steel |
| Display Type | digital |
| Color | Blue |
| Brand | TQTE |
| Country of Origin | Made in India |
The Automatic Bitumen Compactor eliminates the laborious process of manual compaction and an even degree of compaction is achieved. The drive mechanism lifts the weight of 4.5 kg and drops it through a correct height of 457 mm. The rammer foot is removable, which facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An automatic blow counter enables the number of blows to be preset before each test and automatically stops the machine on completion. Suitable For : 230 Volts, single phase
Salient Features
- For 4" mould
- For 6" Marshal mould
- Universal for 4" and 6" Moulds
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Brand | HILTI |
| Depth Range | 300 mm |
| Usage/Application | Laboratory |
| Model Name/Number | PS 300 |
| Country of Origin | Made in India |
Concrete detector for rebar localisation, depth measurement and size estimation in structural analysis
Max. detection depth for object localization200 mm 1Localisation accuracy1% +/-3mm mm 2Minimum distance between two neighbouring objects30 mmData memory (scanner)200 scansWorking temperature range-10 - 50 °C
Additional Information:
- Delivery Time: 2 DAYS
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote

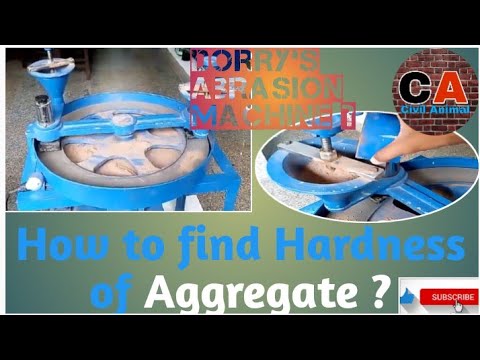

Dorry Abrasion Testing Machine.
₹ 35,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Material | Mild Steel |
| Weight | 120 |
| Voltage | 220 |
| Brand | TQTE |
| Phase | SINGLE |
| Color | BLUE |
| Country of Origin | Made in India |
AS PER BS: 812 The machine is used to determine the resistance of aggregate to wear by abrasion. Inadequate abrasion resistance of road-surfacing aggregates means an early loss of the texture depth required to maintain high-speed skidding resistance.
Salient Features
- Specification :It consists of a disc rotating about a shaft connected to a reduction gear box coupled to a motor. The disc rotates at 28-30 r.p.m. Under the rotating disc is a tray with an outlet to facilitate the removal of sand. Two conical hoppers are mounted on a bracket fixed to the circular tray. An arrangement is made for start and stop the flow of sand. Two holes are provided for mounting two specimens simultaneously. Two containers with weights are supplied to keep the specimens pressed against the rotating disc. Suitable for operation on 220 volts, 50 cycles, A.C. supply.
Additional Information:
- Delivery Time: READY STOCK
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Usage/Application | Aggregate Testing |
| Material | Mild Steel |
| Weight | 300kg |
| Frequency | 50hz |
| Voltage | 240v |
We, "Total Quality Testing Equipments" are a "Manufacturer And Trader" of high-quality Testing Machines, Testing Equipment, Ball Mill, Cube Testing Machine, Aggregate Crushing Valve, Permeability Apparatus etc. Our offered range consists of best grade products. In addition to this, our products are acknowledged for their points like easy to use, high quality, and long life.
Our mentor "Mr. Amit Sharma" is the guiding force behind our rapid growth. He holds the deep expertise that encourages us to bring out a perfect innovation in our offered range.
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Display Type | DIGITAL |
| Material | Mild Steel |
| Phase | SINGLE |
| Color | BLUE |
| Brand | TQTE |
We, "Total Quality Testing Equipments" are a "Manufacturer And Trader" of high-quality Testing Machines, Testing Equipment, Ball Mill, Cube Testing Machine, Aggregate Crushing Valve, Permeability Apparatus etc. Our offered range consists of best grade products. In addition to this, our products are acknowledged for their points like easy to use, high quality, and long life.
Our mentor "Mr. Amit Sharma" is the guiding force behind our rapid growth. He holds the deep expertise that encourages us to bring out a perfect innovation in our offered range.
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Usage/Application | Laboratory |
| Brand | VINCULUM LABS |
| Material | MS |
| Automation Grade | Manual |
| Color | WHITE |
As entrainment of air in limited percentage improves durability of concrete and very low percentages deteriorate it, measurement of air entrapped in freshly mixed concrete becomes important. The use of chemical additives to increase workability of concrete in turn requires an air content check to be made. Air entrainment meters are used to determine air entrained in freshly mixed concrete by pressure method. The apparatus consists of a pressure tight flanged cylindrical measuring bowl. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories. Calibration cylinder with spring clamp, trowel, tamping rod, straight edge. Rubber mallet and measure.
Models :
- Bowl Capacity: 0.005 cubic meter
- Bowl Capacity: 0.007 cubic meter
- Bowl Capacity: 0.01 cubic meter
- Bowl Capacity: 0.01 cubic meter
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
Robust Et-202 Digital Theodolite
₹ 40,000/PieceGet Latest Price
| Model Name/Number | robust et-202 |
| Brand | robust |
| Usage/Application | Survey |
| Minimum Order Quantity | 1 Piece |
| Brand | Robust Make |
| Usage | BUILDING LAYOUT MARKING PURPOSE, Levels angle, Alignment of lines |
| Model Number | ET -202 laser plummet |
| Display Panel | Double Side |
robust surveying instruments digital theodolite with sokkia - pantax based features , dual display, accurecy 2 second and least count 1second , dual battery and laser centring fir easy to setup and surveying work
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote

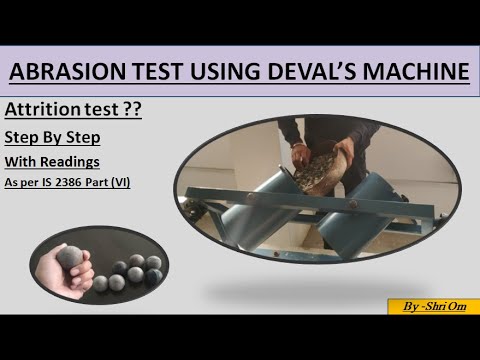

Deval Abbrasion Testing Machine
₹ 45,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Watch Video
| Test Method | Deval |
| Application | Aggregate |
| Display Type | Analog |
| Material | Mild Steel |
| Automation Grade | Semi Automatic |
| Phase | Three Phase |
| Power Supply | 415 V |
| Brand | vinculum labs |
| Country of Origin | Made in India |
For the determination of resistance of aggregate to wear by abrasion. Two hollow cylinders, closed at one end and provided with tightly fitting covers at the other end. The inside diameter of the cylinder 20 cms and 34 cms depth. The cylinders are mounted on a shaft at an angle of 30° with the axis of rotation. The shaft rotates at 30-33 rpm through a reduction gear, coupled to a motor. Suitable for operation on 440 volts, three phase, 50 cycles, AC supply. Supplied complete with a counter and push button starter. With 12 nos cast iron spheres or steel spheres (steel balls) hardened, approx. 48 mm in diameter, each weighing 380-445 gm. RELATED STANDARD : IS : 2386
View Complete Details
Yes, I am interested!
