Total Quality Testing Equipments

Pundit Ultrasonic Pulse Velocity
Make: Proceq, Switzerland
Model: Pundit PL-200 Pulse Velocity,
IMPORT: USA,
New generation and design-protected touch-screen unit specifically designed to be used on-site, in harsh environments for a range of applications while providing enhanced measurement modes.

Additional Information:

• Delivery Time: 2 DAYS

Cube Testing Machine – 1000 kN Capacity (Hand Operated)

Total Quality Testing Equipments

The 1000 kN Hand Operated Cube Testing Machine from Total Quality Testing Equipments is designed for accurate and reliable compression strength testing of concrete cubes and cylinders. Ideal for laboratories, construction sites, and educational institutions, this manually operated machine delivers precise load application and durable performance under tough conditions.

• Testing compressive strength of concrete cubes and cylinders

• Quality control at construction sites and R&D labs

• Educational institutions and training centers

• Rugged and reliable for field or lab use

• Precision hydraulic loading with analog gauge

• Easy to operate and maintain

• Cost-effective and durable design

• Suitable for IS: 516 and other international standards

Additional Information:

• Production Capacity: READY IN STOCK
• Delivery Time: NEXT DAY
• Packaging Details: WOODEN

The quality of concrete is mainly judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures. Proceq invented the Original Schmidt Hammer, the world’s first and now most widely used test hammer for analyzing the compressive strength of concrete properties.

The Original Schmidt hammer will hit the concrete at a defined energy whereas its rebound is dependent on the hardness of the concrete and is measured by the instrument. The Original Schmidt hammer is available in models with different impact energies. Each test hammer designed for a specific test application, in order to meet the needs of the customers to investigate a wide range of material types and sizes, such as bridge decks, thin walls, cast stone components or small components.

Additional Information:

• Delivery Time: 10 DAYS
• Packaging Details: PLASTIC BOX

1. Structural form: Main unit (complete machine),
anchor, hand-operated.
2. Rated penetration force: 30KN.
3. Shear strength of the specimen plate: <
132Kpa.
4. Pull-out force: 15KN, 25KN.
5. Penetration speed: 1.2 meters/minute.
6. Weight of the main unit: 60 kilograms.

• Diameter range:  16 - 162 mm
• Base material:  Concrete
• Operation mode:  Rig-based drilling system

Rapid chloride penetration test (RCPT) apparatus is laboratory device to find Electrical Indication of Concrete’s Ability to Resist Chloride Ion Penetration and to find chloride diffusion coefficient of concrete for predicting service life, durability based design, and durability-based quality control, of concrete structures.

This fully automatic device can log data after each 30mins and shows the logged value of all 3 channels simultaneously on the 2nd display.

It's automatic shutdown feature after 6 hrs. That is after completion of test makes it very unique, user can keep machine on testing for 6hrs before leaving the lab in the evening. Data will be logged in Memory/pendrive.

Its Bluetooth feature can connect your Android mobile to access the data remotely and readings can be shared by WhatsApp. Complying with various National and international standards like ASTM 1202, AASHTO T 277.

Additional Information:

• Delivery Time: 4 DAYS
• Packaging Details: WOODEN BOX

Additional Information:

• Delivery Time: READY STOCK
• Packaging Details: WOODEN BOX

concrete penetrometer

Supply complete with

·         Cylindrical spring housing with a plunger attached

·         Penetration needle

·         Graduated plunger 1 kg division to 60 kg

·         A set  of six needle points

·         Area of needle (645,323 ,161, 65, 32, 16 mm²

Additional Information:

• Packaging Details: WOODEN BOX

• Specifications: Consists of a movable bearing rod to which a cone 145mm. long and 75mm. dia at a base is fixed. The bearing rod passes freely through a bracket which is provided with release mechanism. A dial graduated in mm with rack and pinion is provided for measuring the penetration. Complete with a conical container 150mm ID X 180mm deep and a platform.

Standards:ASTM C 232; EN 480-4
Specification:

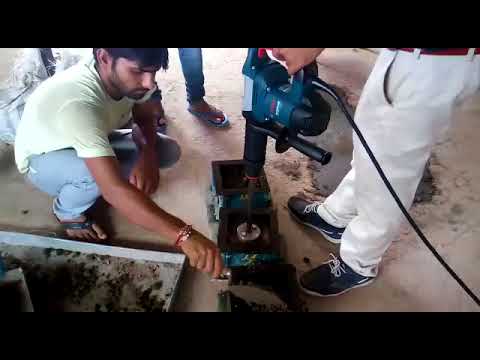

Used for the compaction of concrete samples in a mould. Generally the vibratory hammer is found to be a much faster & quicker method as compared to impact hammering. The vibratory hammers are supplied with 1 tamping feet & 1 shank.
Used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete.
Dimensions : 290 x 255 x 350 mm
Weight (approx.) : 6 kg

Additional Information:

• Production Capacity: 100
• Delivery Time: ready stock
• Packaging Details: wooden box

Additional Information:

• Production Capacity: 20
• Delivery Time: 2-3 DAYS
• Packaging Details: WOODEN BOX

We are one of the trusted companies of Compression Testing Machine. Our products are enormously admired in the market owing to their top features.

Concrete rebound hammer (sclerometer) – is a device for concrete and other building materials strength testing. The engineer Ernst Schmidt invented the construction of the sclerometer.

The method is based on the impacting the impact plunger on the concrete surface with predetermined (normed) impacting energy and subsequent measuring of the height of the striker rebounding. The height of the striker rebounding will be proportional to the strength of concrete. The strength of concrete is determined with the calibration charts that are supplied with the instrument.

Concrete Rebound Hammer NOVOTEST SH is very ease in operation, has good reliability of design and high measurement accuracy, so that this method is the most common method of measuring the strength of concrete in the world. The strength testing with the Concrete rebound hammer is correspond with ASTM C 805; ASTM D 5873 (for rock); DIN 1048, p. 2; ENV 206; EN 12 504-2; ISO / DIS 8045.

There are several versions of the device, which are different in impacting energy.

• The most “powerful” Rebound hammer is designed to measure the strength of concrete with a thickness of 70-100mm and more, also for the strength testing of massive rocks with impact energy – 2,207J (Nm). This is the base and the most common model of Rebound hammer, about 90% of the Rebound hammers in the world have the same impact energy.
• Average “powerful” Rebound hammer has the 735J (735 Nm) impacting energy. The impact energy is reduced threefold in compared with the base model. The main application of this instrument is measuring the strength of bricks and concrete products with a wall thickness less than 100 mm and small sizes of sample, also it used for testing the less strength stones and rocks.
• The least “powerful” Rebound hammer has 196J (196Nm) impact energy. The main purpose is the strength testing the mortar of brick masonry.

Depending on requerments tasks user always need to select the correct model of Rebound hammer. All models, independently of impact energy, are devices for non-destructive testing, so that they are not destroying the object of testing.

To verify the accuracy of Rebound hammer, a special calibrated anvil is used . Correctly functioning instrument have to display certain value testing the standard anvil.

Pile Integrity Testing (PIT) is a non-destructive method used to assess the quality and integrity of piles, typically deep foundations. It involves applying a low-strain impact (like a light hammer tap) and analyzing the resulting vibrations to identify any issues like voids, cracks, or changes in the pile's cross-section.

• Accessories: Adaptor for 30 cm diameter sieves. Time switch 0-60 mins in 5 mins graduation.

Additional Information:

• Delivery Time: ready stock

Reaction Container
IS:2386 (Part VII)
The reaction container is one of the most important apparatus required for determination of the potential alkali reactivity of aggregates by chemical method. It is made from stainless steel and fitted with an air tight cover which is held in position with the special clamp.

Additional Information:

• Production Capacity: 200

• Highly durable
• Fine finish
• Easy to use

• The Machine consist of the following :
• Stainless steel bath
• Temperature controller (Thermostatic/Digital)
• Immersion electric heater
• Constant speed Pump cum stirrer
• Carriage holding up to three standard briquette moulds
• Electric motor with gear mechanism
• Stainless steel scale and pointer
• Control Panel
• Accessories : 1. Thermometer IP 38 C, range 23ºC to 27ºC. 2. Briquette mould with base-plate

Additional Information:

• Production Capacity: 25
• Delivery Time: READY STOCK
• Packaging Details: WOODEN BOX

The concrete permeability apparatus comprises of a mild steel cell of Square/Round cross-section mounted on a stand and a pressure chamber is connected to the cell through copper tubing and T-connector mounted on the stand with sleeve packed valve and rubber hose pipe with end connections. The cell assembly consists of one base plate and one top plate connected to nozzles.The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-15kg/cm sq. Gauge is for indicating the pressure in the cell. A foot pump and a pressure tube is supplied to develop pressure in the chamber.The apparatus is supplied with a measuring cylinder 500cc to measure percolated quantity to water.

Additional Information:

• Production Capacity: 100
• Delivery Time: READY STOCK

With our efficiency and vast knowledge in this industry, we have come up with a wide range of Vibrating Table (Cube Mould). The offered product is provided in various specifications & broadly identified for its durable body structure and easy usage. Our trained professionals design the offered sander polish by making use of advanced technology as per the market standards. The offered product is provided within a given time frame to our customers.

Features:

• Rigid design
• Require less maintenance
• Optimum functionality

• Specifications : It is a motorized, mechanical unit. The speed is adjusted so that the load increase on the specimen is between 4 to 6 kg/sec. A flexure test attachment for keeping the specimen in position is also supplied. This consists of two rollers 10mm. diameter and spaced 100mm apart, and a third roller of the same diameter equidistant from the first two and for transmitting the applied load to the opposite face of the prism. The unit is for operation on 230 Volts, single phase, 50 cycles A.C.supply. Loads are measured on a proving ring fitted with a sensitive dial gauge. Supplied without proving ring.

  Accessories: Proving ring, capacity 500 Kn.

Additional Information:

• Production Capacity: 25
• Delivery Time: READY STOCK
• Packaging Details: WOODEN BOX
