Soil Testing Equipment

Manufacturer of a wide range of products which include Swelling Pressure Test Apparatus, HMP PDG pro Digital Static Plate Load Tester, Static Plate Load Test Ev2, Digital Marshall Stability Testing Machine, Le Chatelier Apparatus and shrinkage bar mould.

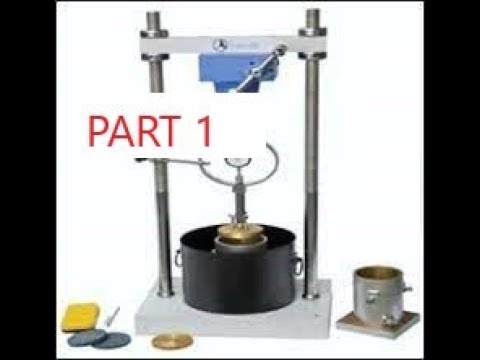

Swelling Pressure Test Apparatus
Interested in this product?
Get Best Quote

Swelling Pressure Test Apparatus

Rs 50,000 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Materialms
Brandvinculum labs
Colorblue
Country of OriginMade in India

Remoulded Compacted soil, when soaked in water, absorbs water and swells. Swell test apparatus is designed to determine the swelling pressure developed by soil specimens moulded to desired densities at known moisture content.
Salient Features
  • Specifications : The outfit comprises the following:
    One loading unit, hand operated 5 tons capacity with two rates of travel.
    One high sensitivity Proving Ring 250 kg. capacity with calibration chart and carrying case.
    One dial gauge 0.01 mm x 25 mm.
    One Gun Metal mould 1000ml. capacity. (100 mm dia x 127.3 mm high) with collar and base plate and a pair of porous stones 100 mm dia x 12.7 mm thick.
    One Gun metal /brass perforated swell plate 100 mm dia x 16 mm thick.
    One spacer 100 mm dia x 12.7 mm thick one load transfer bar and one steel ball.
    One soaking tank 250 mm dia x 210 mm high.


Additional Information:

  • Delivery Time: ready stock
  • Packaging Details: wooden

View Complete Details

Yes, I am interested!

HMP PDG pro Digital Static Plate Load Tester
Interested in this product?
Get Best Quote

HMP PDG pro Digital Static Plate Load Tester

Rs 10,000 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

The HMP PDG Pro Static Plate Load Test to determine load settlement lines, to evaluate the deformability and the load capacity of the soil .It has huge application in earthworks and foundation engineering as well as road construction.

The static plate load test is indicated in DIN 18 134 and conforms to ASTM D1194/1195/1196. The modulus of deformation Ev is determined from the load settlement line of the first load (Ev1) and the second load (Ev2). Through the first loading a certain remaining deformation always obtains and therefore the proportion of the accordingly higher Ev2 value to the Ev1 value provides an indication to the attained compaction.

The load settlement lines can be read with the HMP PDG-K directly on the display.

The test results can be printed out immediately at the site via thermal printer or be revised later in the office on PC



Additional Information:

  • Delivery Time: 10 days
  • Packaging Details: PLASTIC BOX

View Complete Details

Yes, I am interested!

Static Plate Load Test Ev2
Interested in this product?
Get Best Quote

Static Plate Load Test Ev2

Rs 8.5 Lakhs / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Product Brochure

Ev2 Plate Bearing Test Set Static Deformation Testing Machine USAGE OVERVIEW:Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.

PRODUCT FEATURE:1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage
stabilization.3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments;5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.7.USB transmission interface, easy to connect with the computer.
Parameters
ProductStatic Deformation Testing Plate Bearing Test Set
ApplicationEffective depth0~ 500mm
Working ambientWorking ambient -10???~40??? Humidity <90%HR

Electeic sedimentation meter

Size
Screen size:3inchOverall size:100×205×40mmNet weight:0.8kg
Storage amount400 groups testing curve
Powder supplyLithium battery, over 18hrs continuous work time
Display methodChinese/English
PrinterConnection methodWireless Bluetooth printer

Transducer
Pressure range100kN
Displacement range25mm
Displacement resolution0.01mm


Measure device
Bearing plateDiameter:300mmThickness:25mmWeight:17.5kg
Loading deviceHydraulic pump:100kNhigh pressure tube:2mOil cylinder extensible rod:1*90mm,1*120mm,1*160mm,1*160mm,2*60mm
Sedimentation measure deviceThree point frame (with flexible and rotary lever arm, adjustable base)Dimension:2320*570*420mmWeight:12.5kg


Additional Information:

  • Production Capacity: 10
  • Delivery Time: 10days

View Complete Details

Yes, I am interested!

Digital Marshall Stability Testing Machine
Interested in this product?
Get Best Quote

Digital Marshall Stability Testing Machine

Rs 75,000 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Materialms
Brandvinculum labs

The test is applicable to hot mix designs using bitumen and aggregates upto a maximum size of 25mm. In this method, the resistance to plastic deformation of cylindrical specimen of bitumenous mixture is measured when the same is loaded at periphery at 5 cm per min. This test procedure is used in designing and evaluating bitumenous paving mixes. The test procedure is extensively used in routine test programmes for paving jobs. There are two major features of the marshall method of designing mixes namely, a) density – voids analysis b) Stability – flow tests. The marshall stability of mix is defined as a maximum load carried by a compacted specimen at a standard test temperature of 60ºC. The flow value is deformation the marshall test specimen under goes during the loading upto the maximum load, 0.25 mm units. In this test and attempt is made to determine optimum binder content for the type of aggregate mix and traffic intensity.
Salient Features
  • The apparatus consists of :
    1) A loading unit motorized, capacity 5000kgf with two telescopic pillars and an adjustable cross head. Limit switches are fitted inside to control upward or downward movement of the pillars. On-off reversing switch and indicator lamps are on the front side while a hand wheel to manually move the pillars is on the right. The load frame has fixed speed of 5.08cm per minute. Operated on 230 Volts A.C.
    2) 1 No. Compaction pedal with specimen mould holder.
    3) 2 Nos. Compaction Rammers, 4.5kg weight and free fall 45.7cm.
    4) 1 No. Breaking head assembly with provision to fix flowmeter.
    5) 3 Nos. Specimen mould 10.16cm I.D. x 7.6cm high with base plate and extension collar.
    6) 1 No. Kit for specimen extraction, consists of one each load transfer bar, steel ball, specimen extracting plate.
    Accessories :
    (a) Integral type Proving Ring capacity 3000 kgs.
    (b) A dial gauge 0.01 x 25mm
    (c) Universal Water Bath S.S. with false bottom and pyramid shaped lid to accomodates 3 Nos. marshall specimen
    (d) Thermometer 0 - 250ºC x 1ºC


Additional Information:

  • Production Capacity: 100
  • Delivery Time: ready stock

View Complete Details

Yes, I am interested!

Le Chatelier Apparatus
Interested in this product?
Get Best Quote

Le Chatelier Apparatus

Rs 1,500 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Materialbrass
Brandvinculums labs

Product DescriptionFeatures:
  • It consists of a small split cylinder forming a mould.
  • On either side of the split cylinder.
  • Two parallel indicating arms with pointed ends are attached.
  • Supplied complete with two glass plates and a lead weight.

View Complete Details

Yes, I am interested!

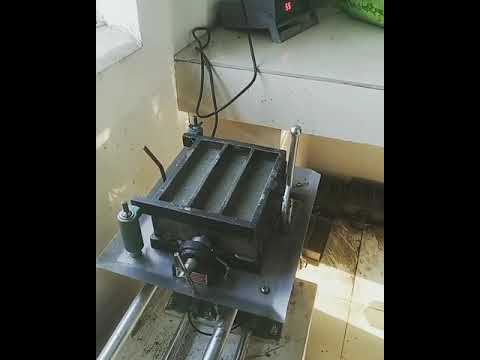

shrinkage bar mould
Interested in this product?
Get Best Quote

shrinkage bar mould

Rs 1,200 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Colorblue
Brandvinculum labs
Country of OriginMade in India

  • ZI 1013-A: Shrinkage Bar Mould - One Gang (One Compartment)
  • ZI 1013-B: Shrinkage Bar Mould - Two Gang (Two Compartment)
  • ZI 1013-C: Shrinkage Bar Mould - Three Gang (Three Compartment)
  • ZI 1013-D: Shrinkage Bar Mould - Four Gang (Four Compartment)
  • Spares: Stainless steel smooth or knurled and threaded reference pins as required.
  • Supplied in Packs of one dozen.

View Complete Details

Yes, I am interested!

Hand Operated Bitumen Extractor
Interested in this product?
Get Best Quote

Hand Operated Bitumen Extractor

Rs 5,500 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Automation GradeManual

This instrument is used for determination and checking of bitumen percentage in bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable aluminum rotor bowl, capacity 1500 gms. with a cap and tightening nut. The bowl assembly is mounted on a vertical shaft which protrudes from a cast housing. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved bitumen coming out of the rotating bowl and getting collected in the housing.

View Complete Details

Yes, I am interested!

Electrical Bitumen Extractor
Interested in this product?
Get Best Quote

Electrical Bitumen Extractor

Rs 15,000 / PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Automation GradeAutomatic
Phasesingle

This instrument is used for determination and checking of bitumen percentage in bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable aluminum rotor bowl, capacity 1500 gms. with a cap and tightening nut. The bowl assembly is mounted on a vertical shaft which protrudes from a cast housing. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved bitumen coming out of the rotating bowl and getting collected in the housing.
an electric motor and gear. Care is taken to prevent solvent entering into the rotor of electrical motor. Operates on 230 Volts A.C. single phase.
Accessories : 1. Filter paper disc (packet of 100nos.) 2. Benzene

View Complete Details

Yes, I am interested!
