Crate Size	600×400 mm
Conveyor Type	Modular Belt
System Layout	Straight
Load Capacity	25 kg/crate
Structure Material	SS304
Speed	20 m/min
Automation Level	Automatic
Application	FMCG
Accessories	Stopper
Drive Type	Geared Motor

The crate conveyor belt are designed to transfer plastic cases. Their size is designed to guarantee optimal unloading and infeed to machines. Making the best use of the available space. The crate conveyors are of two chain design.

Additional Information:

• Item Code: CCMB-600
• Production Capacity: 300-600 crates
• Delivery Time: According to machine size
• Packaging Details: wooden case

Conveyor type	Cleated belt
Capacity	1000 kg/hr
Conveyor length	5 m
Incline angle	30 deg
Belt width	500 mm
Structure material	MS powder coated
Belt material	PVC
Speed	0.5 m/s
Motor power	1 HP
Application	Plastic granules

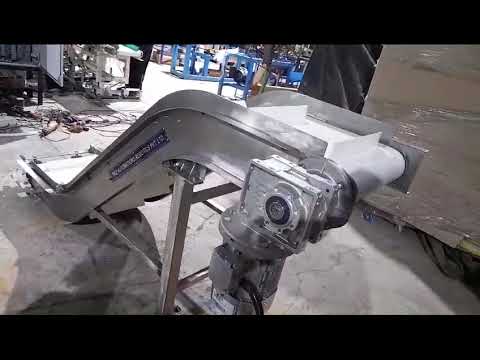

An inclined conveyor, also known as an incline conveyor belt, is a system that moves materials or products up or down at an angle.

Additional Information:

• Item Code: IBC-500-30
• Production Capacity: 10 Units/ Month
• Delivery Time: According to machine size
• Packaging Details: wooden case

Assembly Type	Manual Assembly
Conveyor Type	Roller
Industry	Engineering
Workstation Length	1.5 m
Belt Width	roller conveyor
Structure Material	MS Powder Coated
Accessories	Side Rails
Speed Control	Fixed Speed
Return Type	Single Level
Load per Station	50 kg

The Assembly Line Conveyor Machine is a continuous material handling system designed to transport components, sub-assemblies, or finished products through multiple workstations in a controlled and efficient manner. The system typically consists of a flat belt or modular belt mounted on a rigid steel frame, driven by an electric motor with speed control. It enables synchronized assembly operations, inspection, testing, and packaging while maintaining consistent flow and productivity. The conveyor can be customized with work tables, fixtures, guards, sensors, and automation interfaces to suit various manufacturing processes.

Additional Information:

• Item Code: ALRC-01
• Production Capacity: as per customer requiment
• Delivery Time: According to machine size
• Packaging Details: wooden case

Conveyor Type	Spiral
Capacity	200 kg
Brand	Sarp
Roller Diameter	50 mm
Length	15 feet
Width	600 mm
Material	Mild Steel
Conveying Speed	50 m/min
Weight	200 kg

A spiral belt conveyor is a vertically oriented material handling machine designed to transport products continuously between different height levels while occupying minimal floor space. The machine operates by guiding a conveyor belt along a helical or spiral path around a rigid central column. This configuration allows products to move upward or downward smoothly without the need for steep inclines or multiple transfer points. The spiral belt conveyor shown in the image represents a freestanding industrial design where the belt wraps around a central structure supported by a heavy-duty frame, making it suitable for high-capacity and continuous-duty applications. Such systems are commonly used in modern automated plants where space utilization, efficiency, and uninterrupted product flow are critical requirements.
The working principle of a spiral belt conveyor is based on the continuous movement of a belt driven by a motorized drive unit. The belt is guided along fixed spiral rails that determine the vertical pitch and overall height of the system. As the belt rotates, it simultaneously moves horizontally and vertically, carrying products along the spiral path. Each complete rotation of the belt results in a defined vertical rise or drop, enabling products to reach the required elevation difference over multiple revolutions. The motion is smooth and controlled, allowing products to maintain their orientation and stability throughout the conveying process. Because the conveyor operates continuously, it eliminates the start-stop motion typically associated with elevators or lift-based systems.
Structurally, the spiral belt conveyor consists of a central column that serves as the primary load-bearing element of the machine. This column is fabricated from heavy-duty steel sections designed to withstand the combined forces of belt tension, product load, and dynamic operational stresses. The column is anchored securely to the floor using base plates and foundation bolts to ensure stability during operation. Surrounding the central column is the spiral frame or cage, which supports the belt along its helical path. This frame is precisely fabricated to maintain consistent belt tracking and pitch, ensuring reliable operation over long periods.
The conveyor belt itself is a critical component of the system and is typically constructed from modular plastic segments or, in more demanding applications, from steel. Modular plastic belts are widely used due to their flexibility, durability, and ease of maintenance. These belts consist of interlocking modules that form a continuous loop capable of bending around the spiral path without compromising strength. The belt surface can be configured as open or closed depending on the application, and anti-slip textures may be incorporated to improve product stability. For food and pharmaceutical industries, food-grade materials are used to meet hygiene and safety standards. In heavy-duty or high-temperature environments, steel belts may be selected for their superior strength and thermal resistance.
The drive system of a spiral belt conveyor is designed to provide sufficient torque to move the entire belt and product load smoothly. The drive unit typically consists of a geared motor coupled with a Variable Frequency Drive, allowing precise control of belt speed. Depending on the design, the drive may be located at the top or bottom of the spiral. The motor and gearbox are selected based on factors such as conveyor height, belt length, load capacity, and required throughput. The use of a variable frequency drive enables speed adjustment to match upstream and downstream equipment, ensuring synchronized operation within an automated system.
Infeed and outfeed sections are integrated into the spiral belt conveyor to allow seamless transfer of products from straight conveyors or processing equipment. These sections are carefully designed to minimize

Additional Information:

• Item Code: SBC-200
• Production Capacity: As per customer requirement
• Delivery Time: As product size
• Packaging Details: wrapping with protective film and packed in wooden create suitable for transport
