Vivek Machine Tools

• FRAME : The robust frame is fabricated from Solid Steel Plates with heavy cross ribbing to main housing for perfectly balanced distribution of stress over the cross section eliminating deflection and vibration and thus improving die and machine life.
• CLUTCH : The pin key/Revolving Key type clutch is manufactured from W. P. S. material duly heat treated to provide long trouble free service.
• CRANK SHAFT AND BEARINGS : The Crank Shaft is made out from special alloy steel and it is precisely ground finish. Heavy Duty bearings and nickel, phosphoresce bushes with proper lubricating grooves ensures adequate spread of the lubricating oil for smooth functioning.
• BRAKE : Spring operated brake with out centered plate system works according to timing adjustment to provide longer life to the brake. It is operated by Cam.
• ADJUSTABLE STROKE : The unique feature of adjustable stroke enables the press to perform all kind of operations by employing short stroke for blanking and forming operation.
• RAM SLIDE : Ram Slide is made from seasonal high grade casting duly ground for friction free travel through slides, ensuring longer life of die and easy operation
• STANDARD ACCESSORIES : Die Clamp, Motorpully, Stud Drive, Motor Stand.

Capacity And Types of Presses:

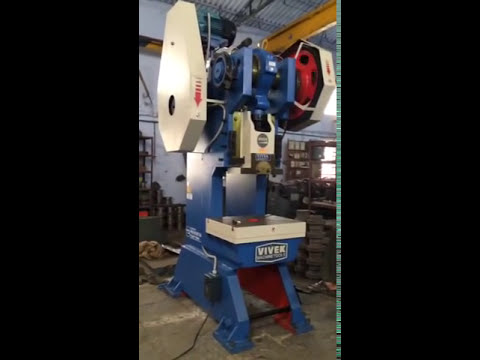

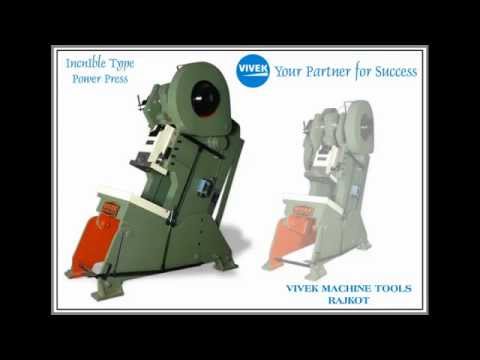

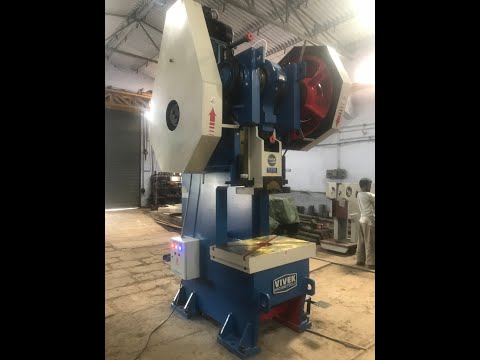

• Gap Frame Precision Power Presses are available in capacities of 30 to 300 tonnes in single geared types "C" Type models. and also available inclinable type and permanently inclinable type models these machines are subjected to stringent performance testing using advanced testing devices to ensure high performance, increased productivity & reliability.

Fabrication of Frame

• The robust frame is fabricated from solid steel plates with heavy cross ribbing to main housing & " C" supports for perfectly balanced distribution of stress over the cross section elimination deflection and vibration and thus improving die & machine life.

Crank Shalt And Eccentric:

• Eccentric crank shaft is machined form en-9 steel round bar. it has been groung finished on bearing surface. The main crank shaft & eccentric bearings are covered with high quality of phosphor-bronze or gun metal bushes and lubrication oil grooves for smooth functioning clutch & keys. Rolling key type clutch is manufactured from wps material duly heat treated to provide long trouble free services.

Connecting Rod And Shaft:

• We have provide connecting rod made out from steel casting with phosphor-bronge or gun metal bushings or brass and we have also provide back shaft both side bearing with gun metal bushing.

Clutch And systems oF Keys:

• Rolling key type clutch is manufactured from WPS material duly heat treated to provide long trouble free service.

Adjustments of Stroke:

• The unique feature of adjustable stroke enable the press to perform all kinds of operations by employing short stroke for blanking & forming operations.

Brake And Liner:

• Spring operated powerful heavy duty brakes is of release type works according to timing adjustment to provide longer life to the brake. it is operated by cam wheel or brake wheel.

Ram & Ram Slide :

• The ram slide is machined form high grade cast iron & seasonal high grade castings the bearing surface are hand scrapped for perfect aligment. ensuring longer life of die & easy operation.

Accessories (Standard) :

• Motor Stand, Motor Pully. Main Gear Cover, Fly Wheel Cover, Studs Drive For Screw, Hand operated oil pump, knock-out systems.

Description:

• The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes.
• This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates.
• Pressure relief value is provided to safe guard the system and machine from overload. The Hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.

• The robust frame is fabricated from Solid Steel Plates with heavy cross ribbing to main housing for perfectly balanced distribution of stress over the cross section eliminating deflection and vibration and thus improving die and machine life.

• The pin key/Revolving Key type clutch is manufactured from W. P. S. material duly heat treated to provide long trouble free service.

• The Crank Shaft is made out from special alloy steel and it is precisely ground finish. Heavy Duty bearings and nickel, phosphoresce bushes with proper lubricating grooves ensures adequate spread of the lubricating oil for smooth functioning.

• Spring operated brake with out centered plate system works according to timing adjustment to provide longer life to the brake. It is operated by Cam.

• The unique feature of adjustable stroke enables the press to perform all kind of operations by employing short stroke for blanking and forming operation.

• The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes.
• This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates.
• Pressure relief value is provided to safe guard the system and machine from overload. The Hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.

• The electric control panel is located on the left hand side of the machine. If is assembled from the internationally reputed parts for consistent performance, reliability and availability. if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate and fault and replace components conveniently.

Additional Information:

• Production Capacity: 250
