Vivek Machine Tools

We are providing our clients with the best-in-class range of Variable Rack Angle Hydraulic Shearing Machine. Developed using premium quality stainless steel, these products in compliance with the defined parameters of the industry.

Additional Information:

• Production Capacity: 500

• The Frame is rigidly constructed from Solid steel plates with safeguards, It's interlocked design provides support to the bed directly on the frame to avoid weak sections at load supports.

• Hydraulic Hold Down system are provided to hold the sheet securely to avoid slipping and bowing allowing a clear and accurate cut.

• Each machine is provided with high quality single segment, (HcHcr) knives for enhanced tool life. The knive blades are four edged.

• Steel body Mini Hydraulic Shearing machine, having Cutting capacity of Blade Size : 457mm( 18” Blade Length ) With HCHCR D2 Grade 4 Edged blades. Complete with standard Accessories Electrical, complete with Panel Board But without Hydraulic Oil.

Followings Brands Parts Are Used In Our Making:

• Electrical Control Panel: Siemens/Schneider/Telemec./Moeller/Idec/Phoenix etc reputed make
• Electric Motor: Lubi/Crompton/Kirloskar/Rimco /Siemens/Bharat Bijali etc reputed make
• Electric Wire: Finolex/RR Cable/Polycab
• Hydraulic Power Pack: Rexroth/ Polyhedron/Hydroline/Hydac/Vickers/Yuken/ ATOS/Dowty

Specification:

• Hydraulic Sheet Metal Work Unit.
• Fully Automatic Machine.
• 4 Sided Use Cutting Blades.
• Genuine Power Pack.
• Heavy Duty Hydraulic Cylinder.
• Guaranteed cutting capacity.
• M.S Bar Cutting 50x10 mm.

• The Frame is rigidly constructed from Solid steel plates with safeguards, It's interlocked design provides support to the bed directly on the frame to avoid weak sections at load supports.

• Hydraulic Hold Down system are provided to hold the sheet securely to avoid slipping and bowing allowing a clear and accurate cut

• Each machine is provided with high quality single segment, (HcHcr) AISI knives for enhanced tool life. The knive blades are four edged.

• Mechanical Back Gauge is operated by Rack Pinion arrangement for easy and accurate cutting operations. The Front gauge moves on a "T" slot provided on the table.

• To avoid accident, Finger Guard is fitted in front of Hold down system for operator's protection without obstructing his view.

• All moving parts are provided lubrication by hand operated pump/cupfor smooth operation.

• Electrical equipment are not under warranty.

• Electrical Control Panel:Siemens/Schneider/Telemec./Moeller/Idec/Phoenix etc reputed make
• Electric Motor:Lubi/Crompton/Kirloskar/Rimco/Siemens/Bharat Bijali etc reputed make
• Electric Wire:Finolex/RR Cable/Polycab
• Hydraulic Power Pack: Rexroth/ Polyhedron/Hydroline/Hydac/Vickers/Yuken/ ATOS/Dowty

• Regged structure as per international standards
• Moving beam synchronized by differentiae cylinders
• Hardened rollers guide beam for constant blade gap
• Rake angle adjustable to suit thickness and materiel
• Blade gap adjusted with leavers for clean cuts
• Sheets clamped hydraulically before cut starts
• Shearing-clamped forces adjustable to suit job
• Squaring arm 600 mm at right –helps distribute wear
• Front gauging with stops, scale
• Both blades premium HCHC0r AISI, four usable edges
• Cutting length and position adjustable for shorter jobs
• Beam retirnson releasing footswitch for smaller cuts
• Cuttings area illuminated for clear view
• First two hold downs spaced closer at both ends
• Squaring arm 1000 mm at left with hardened lines
• Front operated powered back gauge range 1000mm
• Hardened rods, recessed table for easy sheet feeding
• Sheet supporter 100mm long help supports long plates
• Ramp on rear slides out cut sheets outside shear area
• Footswitch movable for operation from safe position
• Finger safety guard with clear view of lighted cutting area
• Dependable global of hydraulics, electrical
• Efficient compact power pack with minimum piping
• Electricals neatly wired-labeled for troubleshooting

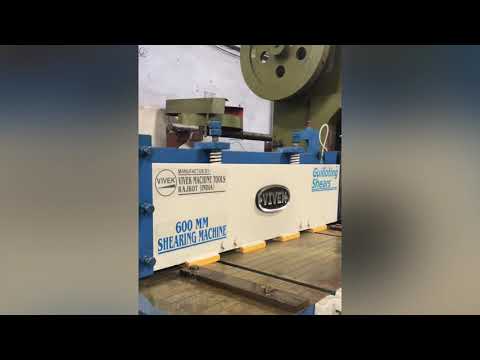

We are offering an outstanding range of Horizontal Over Crank Shearing Machine, which is fabricated using premium quality stainless steel and other required raw material. Furthermore, these products stand on the grounds of defined quality parameters of the industry, signifying their peerless standards. Over crank shearing machine that we offer are highly demanded owing to their significant attributes such as longer service life, sturdiness and resistance against corrosion.

Additional Information:

• Production Capacity: 930 X 3 MM (MS)
• Delivery Time: 2-3 WEEKS
• Packaging Details: PLASTIC WRAP / WOODEN BOX PACKING
